TRANSAXLE ASSEMBLY

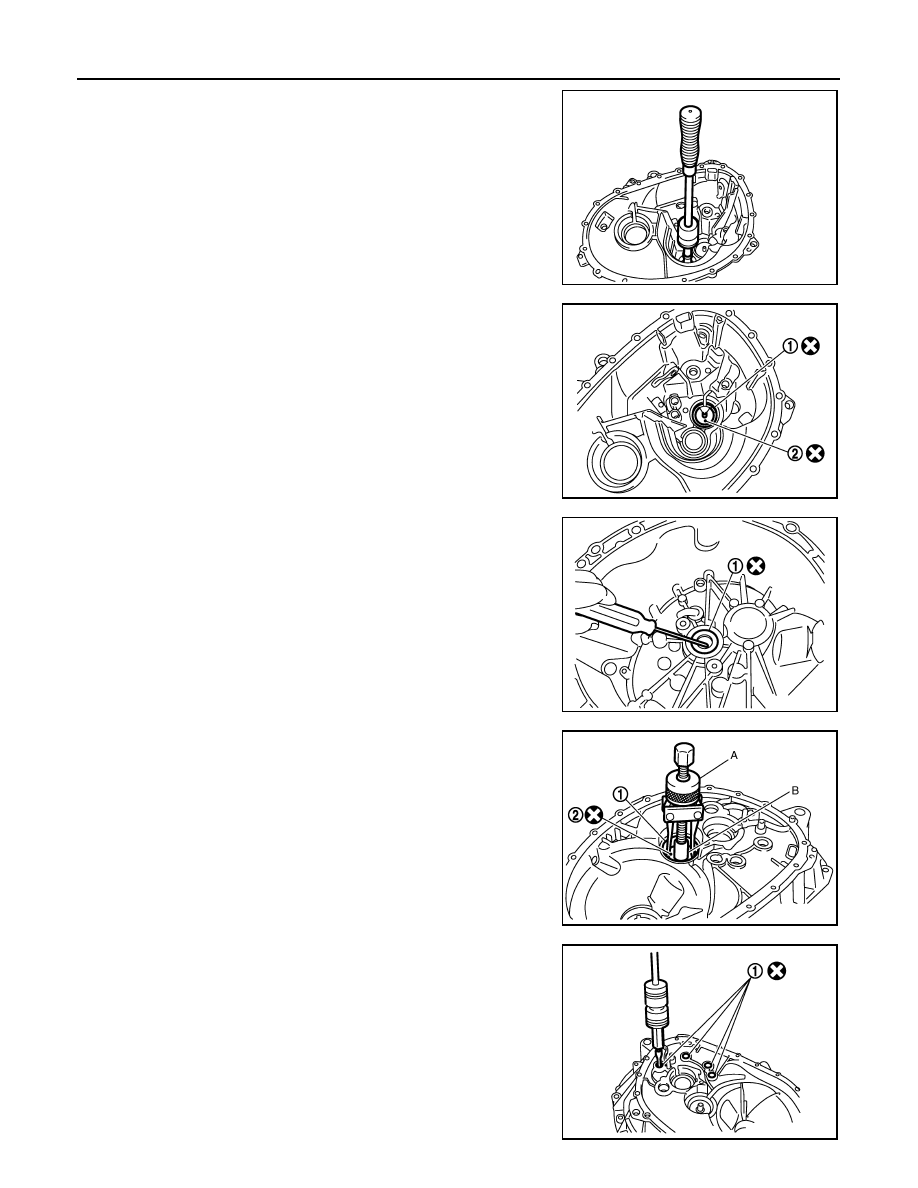

25. Remove mainshaft rear bearing outer race from transaxle case,

using a remover [Commercial service tool].

CAUTION:

Never damage transaxle case.

26. Remove mainshaft rear bearing adjusting shim from transaxle

case.

27. Remove snap ring (1) and oil channel (2) from transaxle case.

28. Remove input shaft oil seal (1) from clutch housing, using a

screwdriver.

CAUTION:

Never damage clutch housing.

29. Remove mainshaft front bearing outer race (1) from clutch hous-

ing, using the puller (A) [SST: KV381054S0 (J-34286)] and a
spacer (B) [Commercial service tool].

CAUTION:

Never damage clutch housing.

30. Remove oil channel (2) from clutch housing.

31. Remove bushing (1) from clutch housing, using a remover

[Commercial service tool].

CAUTION:

Never damage clutch housing.

PCIB1706E

PCIB1708E

PCIB1714E

JPDIC0107ZZ

PCIB1717E

TRANSAXLE ASSEMBLY

TM-37

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

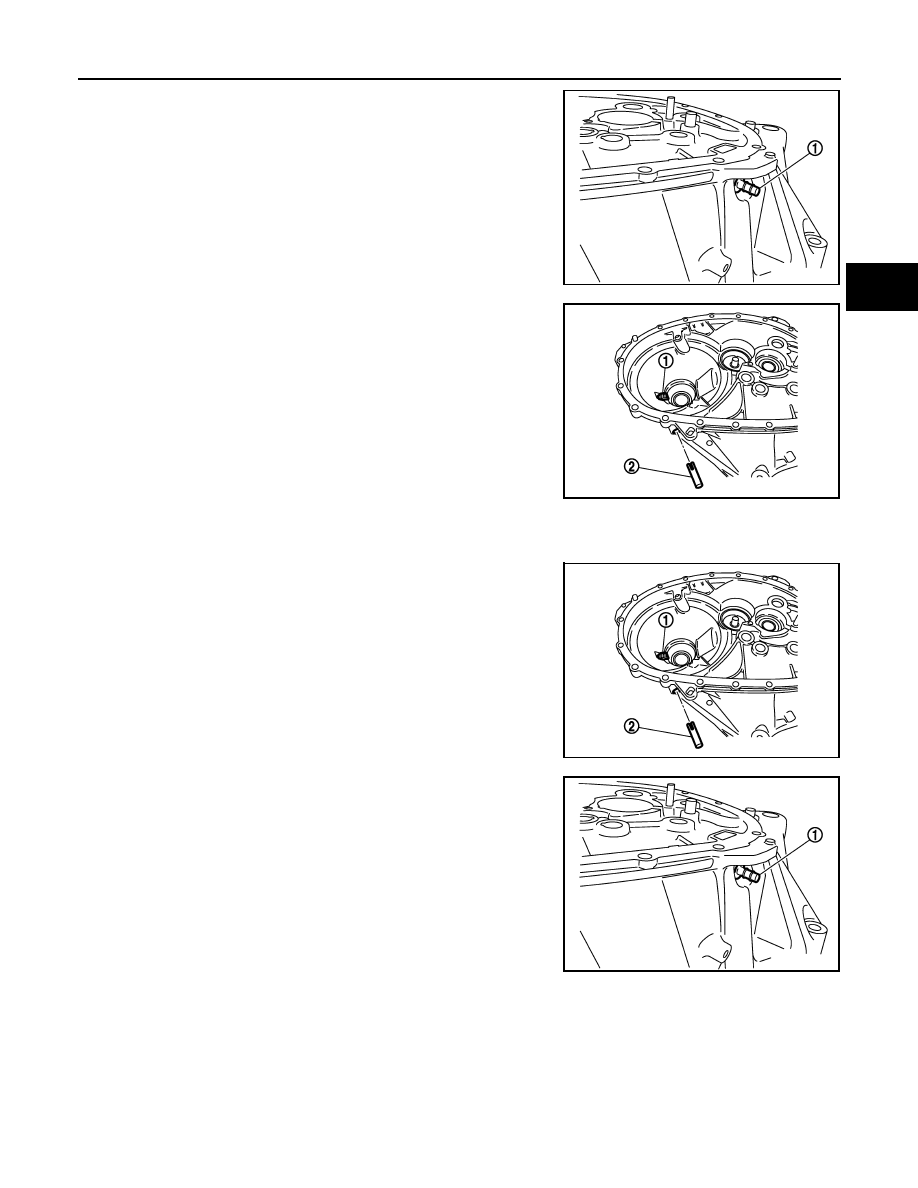

32. Remove 2 way connector (1) from clutch housing.

33. Remove plug from clutch housing.

34. Remove pinion gear (1) and pinion shaft (2) from clutch housing.

Assembly

INFOID:0000000009948883

1.

Install pinion gear (1) and pinion shaft (2) to clutch housing.

CAUTION:

Replace transaxle assembly when replacing clutch hous-
ing.

2.

Install plug to clutch housing.

3.

Install 2 way connector (1) to clutch housing.

PCIB1720E

PCIB1719E

PCIB1719E

PCIB1720E

TM-38

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

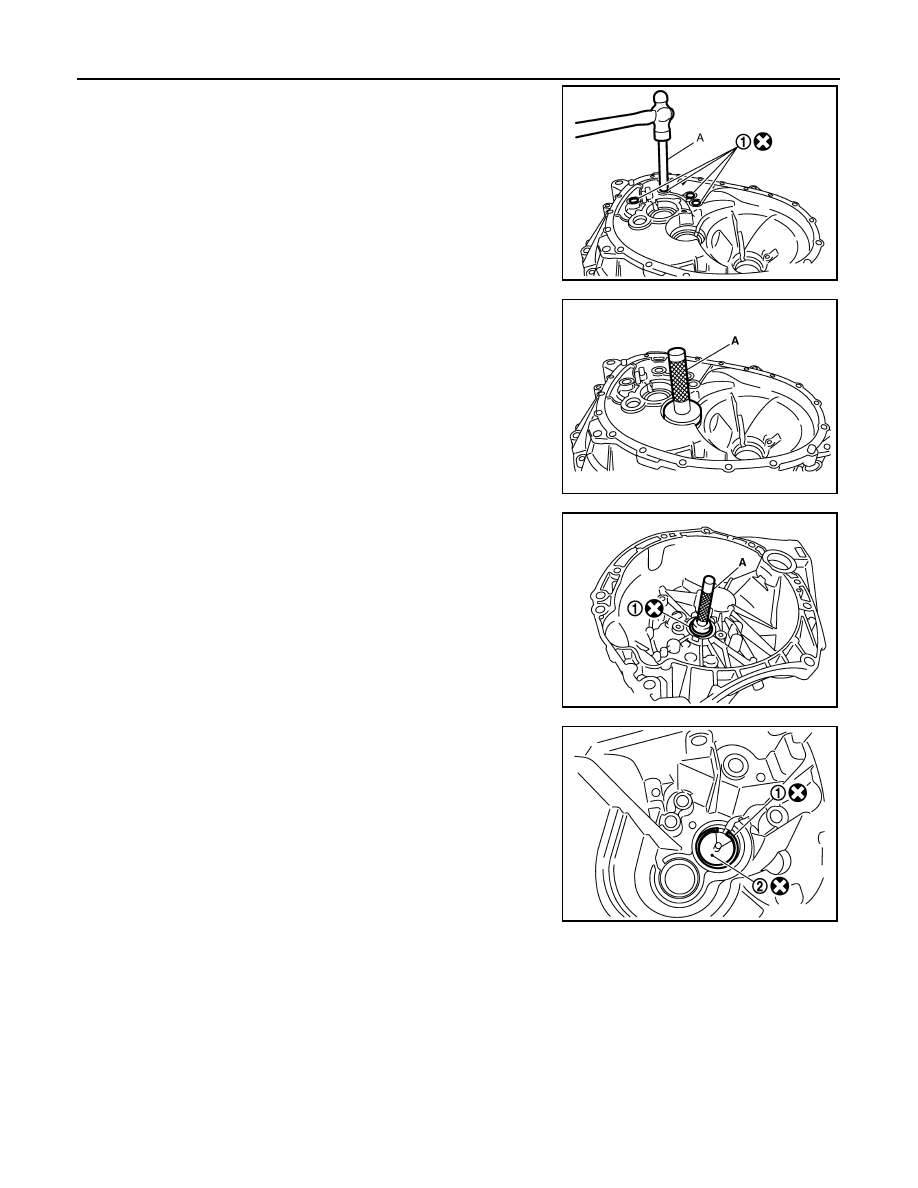

4.

Install bushings (1) so that they becomes even to clutch housing
edge surface, using a drift (A) [Commercial service tool].

5.

Install oil channel to clutch housing.

CAUTION:

Never reuse oil channel.

6.

Install mainshaft front bearing outer race to clutch housing,
using the drift (A) [SST: KV38100200 ( - )].

CAUTION:

Replace mainshaft front bearing outer race and mainshaft
front bearing inner race as a set.

7.

Install input shaft oil seal (1) to clutch housing, using the drift (A)
[SST: ST33220000 ( - )].

8.

Install snap ring (1) and oil channel (2) to transaxle case.

CAUTION:

• Select and install snap ring that has the same thickness

as previous one.

• Replace transaxle assembly when replacing transaxle

case.

9.

Install mainshaft rear bearing adjusting shim to transaxle case.

CAUTION:

Select mainshaft rear bearing adjusting shim according to
the following procedures when replacing mainshaft adjust-
ing shim, 6th main gear, 5th main gear, or 4th main gear.
• Replace mainshaft adjusting shim.
- If new mainshaft adjusting shim is thinner than previous one, offset the thickness difference by

selecting thicker mainshaft rear bearing adjusting shim.

- If new mainshaft adjusting shim is thicker than previous one, offset the thickness difference by

selecting thinner mainshaft rear bearing adjusting shim.

• Replace 6th main gear, 5th main gear, or 4th main gear.
- Measure the thickness of the main gear used before and the new main gear
- Increase the thickness of the mainshaft rear bearing adjusting shim, if the difference is smaller

than 0.025 mm (0.0010 in).

- Decrease the thickness of the mainshaft rear bearing adjusting shim, if the difference is greater

than 0.025 mm (0.0010 in).

JPDIC0108ZZ

PCIB1724E

PCIB1721E

PCIB1729E

TRANSAXLE ASSEMBLY

TM-39

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

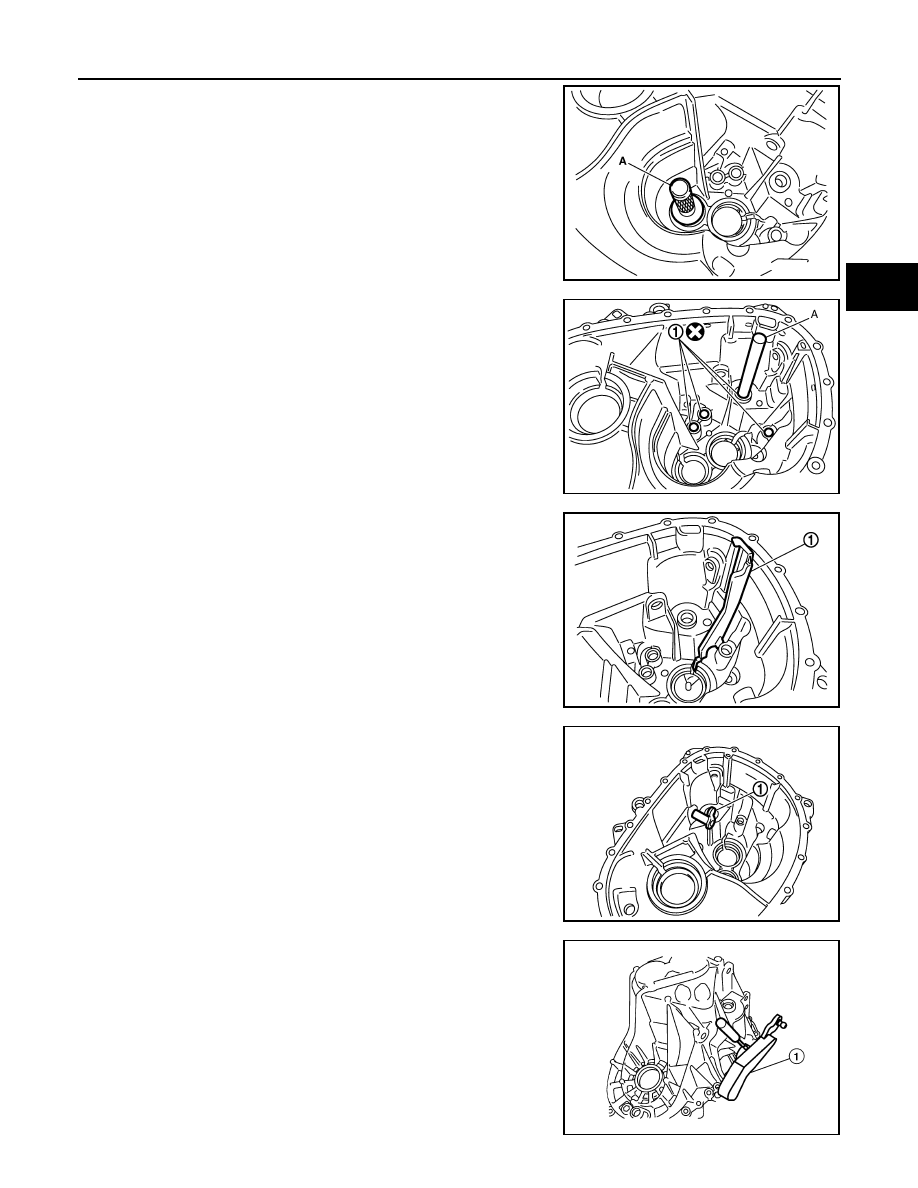

10. Install mainshaft rear bearing outer race to transaxle case, using
