TM-6

< SYSTEM DESCRIPTION >

[6MT: RS6F94R]

M/T SYSTEM

SYSTEM DESCRIPTION

M/T SYSTEM

System Diagram

INFOID:0000000009948855

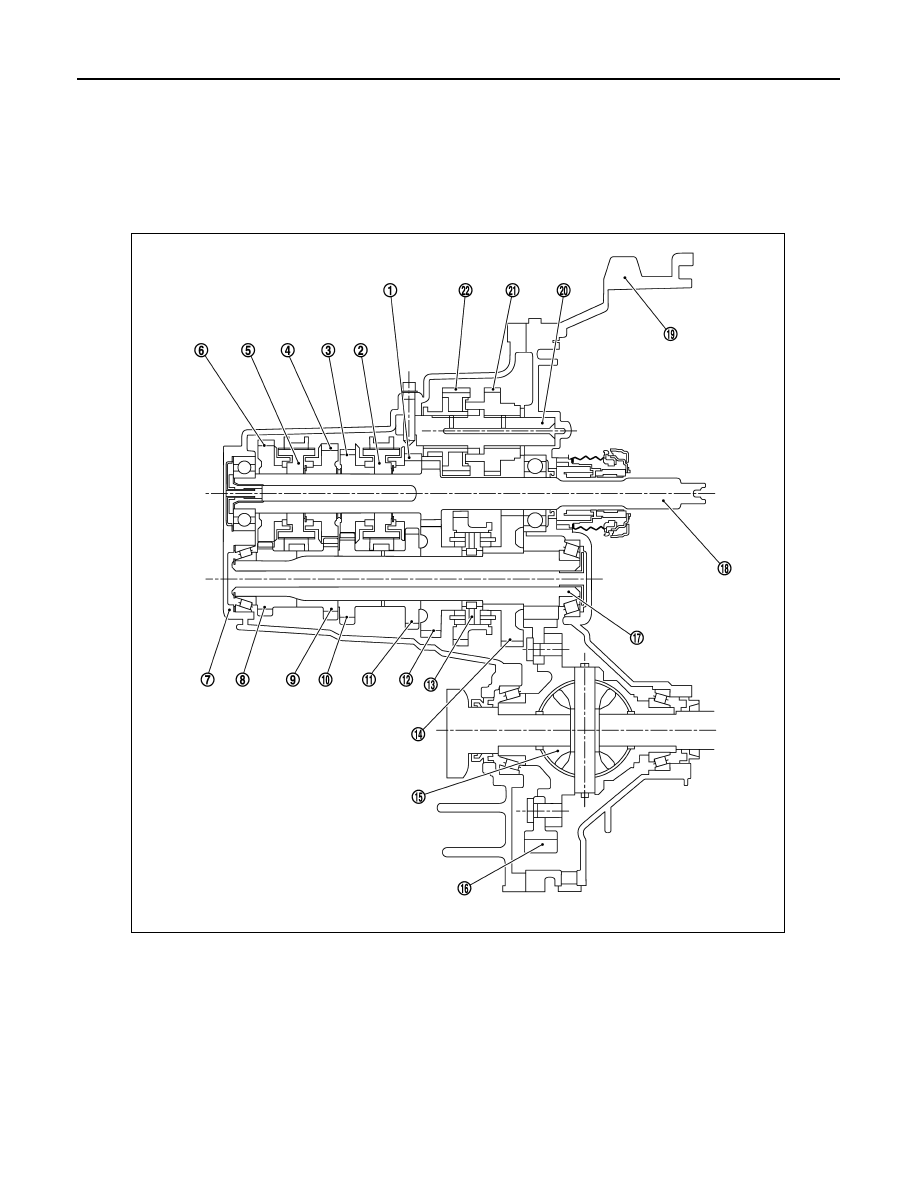

CROSS-SECTIONAL VIEW

1.

3rd input gear

2.

3rd-4th synchronizer hub assembly

3.

4th input gear

4.

5th input gear

5.

5th-6th synchronizer hub assembly

6.

6th input gear

7.

Transaxle case

8.

6th main gear

9.

5th main gear

10. 4th main gear

11.

3rd main gear

12. 2nd main gear

13. 1st-2nd synchronizer hub assembly

14. 1st main gear

15. Differential

16. Final gear

17. Mainshaft

18. Input shaft

19. Clutch housing

20. Reverse idler shaft

21. Reverse input gear

22. Reverse output gear

JPDIC0631ZZ

M/T SYSTEM

TM-7

< SYSTEM DESCRIPTION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

System Description

INFOID:0000000009948856

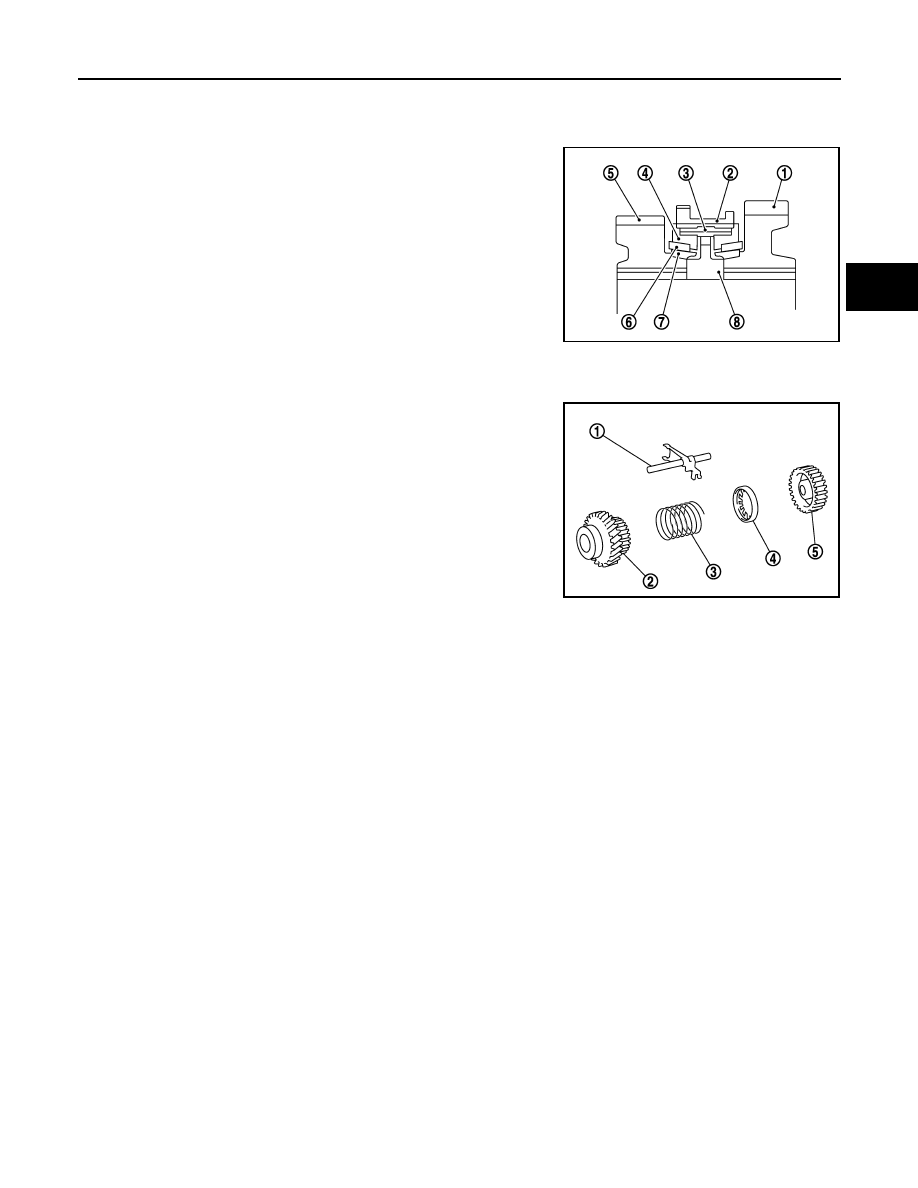

TRIPLE-CONE SYNCHRONIZER

Triple-cone synchronizer are adopted for the 1st and the 2nd gears
to reduce operating force of the shifter lever.

REVERSE GEAR NOISE PREVENTION FUNCTION (SYNCHRONIZING METHOD)

Reverse gear assembly consists of reverse input gear, return spring,
reverse baulk ring, and reverse output gear. When the shifter lever is
shifted to the reverse position, the construction allows smooth shift
operation by stopping the reverse idler shaft rotation by frictional
force of synchronizer.

1

: 1st main gear

2

: 1st-2nd coupling sleeve

3

: Insert key

4

: Outer baulk ring

5

: 2nd main gear

6

: Synchronizer cone

7

: Inner baulk ring

8

: 1st-2nd synchronizer hub

SCIA7636E

1

: Reverse fork rod

2

: Reverse output gear

3

: Return spring

4

: Reverse baulk ring

5

: Reverse input gear

SCIA7621E

Content .. 935 936 937 938 ..
