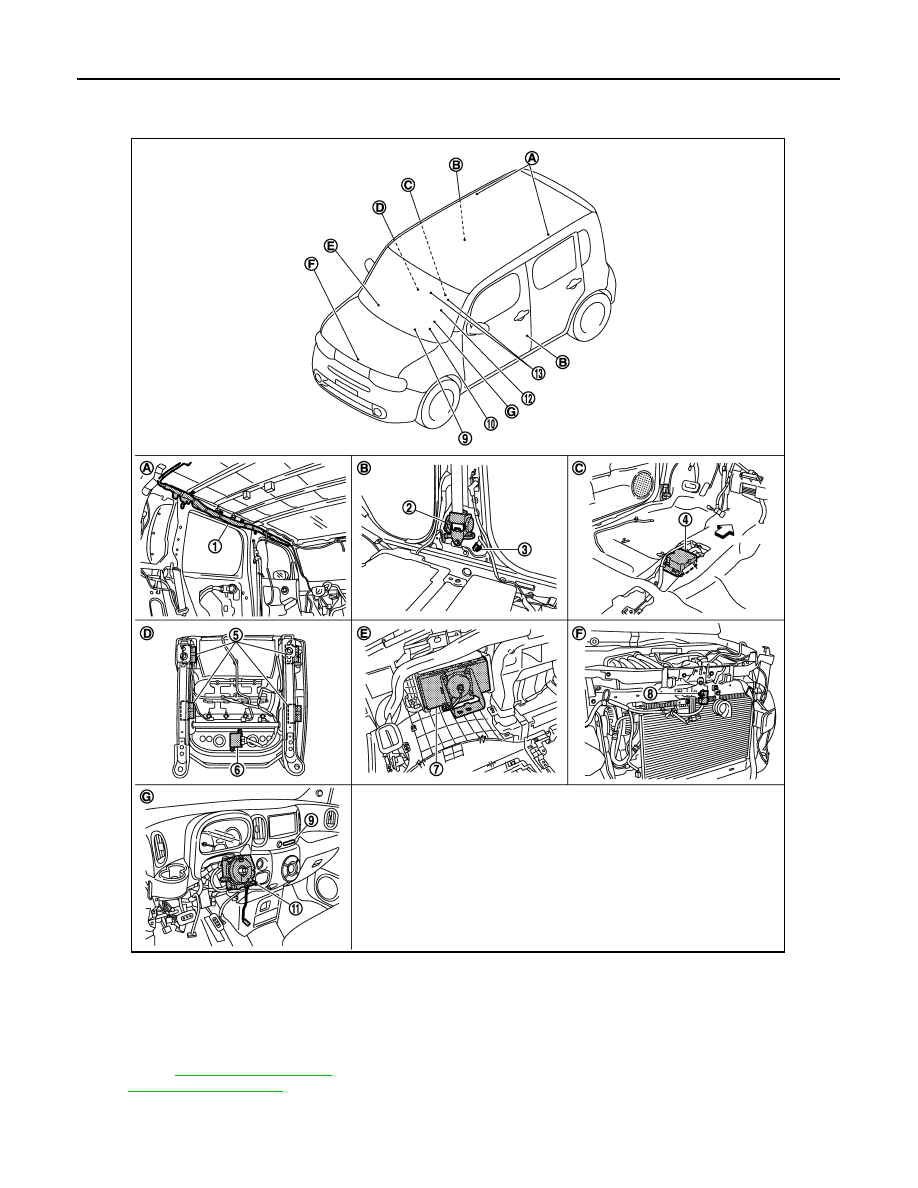

Component Parts Location

INFOID:0000000009946087

1.

Curtain air bag module LH/RH

2.

Seat belt pre-tensioner LH/RH

3.

Satellite sensor LH/RH

4.

Air bag diagnosis sensor unit

5.

Occupant Detection System seat
sensor

6.

Occupant Detection System control
unit

7.

Passenger air bag module

8.

Crash zone sensor

9.

Passenger air bag OFF indicator

10. Combination meter

Refer to

MWI-8, "METER SYSTEM :

Component Parts Location"

11.

Combination switch (spiral cable)

12. Driver air bag module

13. Seat belt buckle switch (Driver side/

Passenger side)

JMHIA1080ZZ

SRC-14

< SYSTEM DESCRIPTION >

SRS AIR BAG SYSTEM

Component Description

INFOID:0000000009946088

A.

Behind headlining

B.

Behind center pillar lower gamish

C.

Behind center console assembly

D.

Backside of passenger seat cushion
frame

E.

Behind glove box assembly

F.

View with front grille removed

G.

View with steering wheel removed

Component

Function

Air bag diagnosis sensor unit

Detects a collision and supplies power supply for deployment to air bag module and
pre-tensioner seat belt.

Air bag module
• Driver
• Passenger
• Side
• Curtain

Receives signal from air bag diagnosis sensor unit and deploys air bag.

Seat belt pre-tensioner

Receives signal from air bag diagnosis sensor unit and deploys seat belt pre-tension-
er.

Seat belt buckle switch

Controls deployment timing based on seat belt fastened or unfastened condition.

Crash zone sensor

Transmits signal to air bag diagnosis sensor unit when a frontal collision occurs.

Satellite sensor (LH/RH)

Transmits signal to air bag diagnosis sensor unit when a side collision occurs.

Occupant Detection System control unit

Detects passenger seat occupant and judges whether or not passenger seat air bag
is deployed.

Combination meter (air bag warning lamp)

Indicates air bag malfunctioning and deployment by blinking and illuminating air bag
warning lamp.

Passenger air bag OFF indicator

Indicates whether or not passenger air bag is in the activation mode based on the
judgement of Occupant Detection System.

Combination switch (spiral cable)

Supplies power supply to driver air bag module on steering wheel.

OCCUPANT DETECTION SYSTEM

SRC-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

OCCUPANT DETECTION SYSTEM

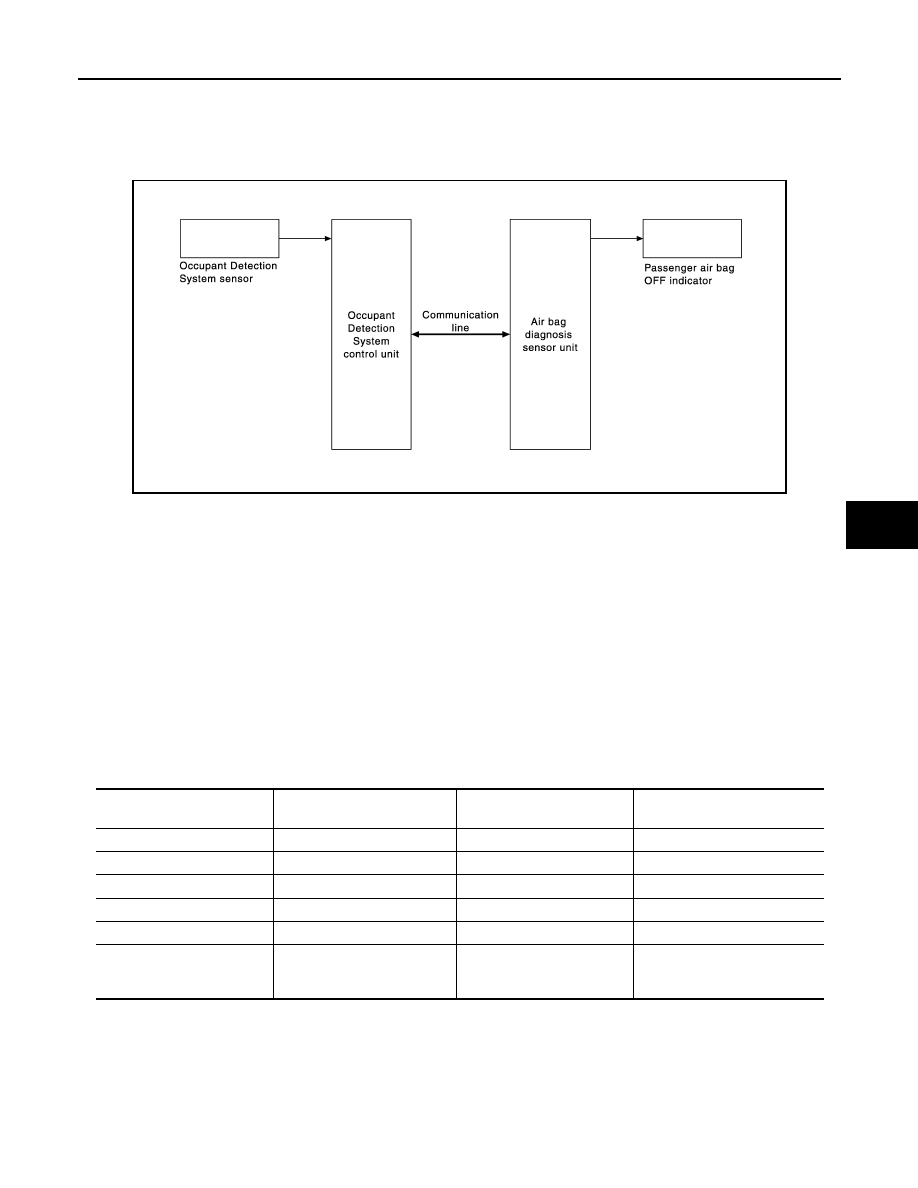

System Diagram

INFOID:0000000009946089

OCCUPANT DETECTION SYSTEM

System Description

INFOID:0000000009946090

This Occupant Detection System has the following functions.

• Suppress the deployment of passenger air bag when passenger seat is empty, or when occupied by child

and child-seat.

• Turns ON passenger air bag OFF indicator when passenger seat is occupied by child-seat and child.
• Indicates malfunction portion with blinking times of air bag warning lamp in diagnosis mode.
• Indicates the malfunctioning record by CONSULT.
• When “zero point reset” for Occupant Detection System is incomplete, CONSULT indicates that “zero point

reset” is incomplete. This function is applied to NISSAN genuine parts only.

NOTE:
• Operation of air bag diagnosis sensor unit when air bag diagnosis sensor unit receives information from

Occupant Detection System.

• Even if zero point reset is “complete”, always perform zero point reset after the removal and installation of

seat or the removal of control unit harness connector.

JMHIA1079GB

Status (passenger seat)

Passenger air bag

Passenger air bag OFF in-
dicator

Air bag warning lamp

Empty

Suppress

OFF

OFF

An object

Suppress

ON

OFF

Child/ child-seat

Suppress

ON

OFF

Adult

Enable to deploy

OFF

OFF

Malfunction

Suppress

ON

Blinking

Zero point reset
Not yet performed (NISSAN
genuine parts only)

Suppress

ON

Blinking

SRC-16

< SYSTEM DESCRIPTION >

OCCUPANT DETECTION SYSTEM

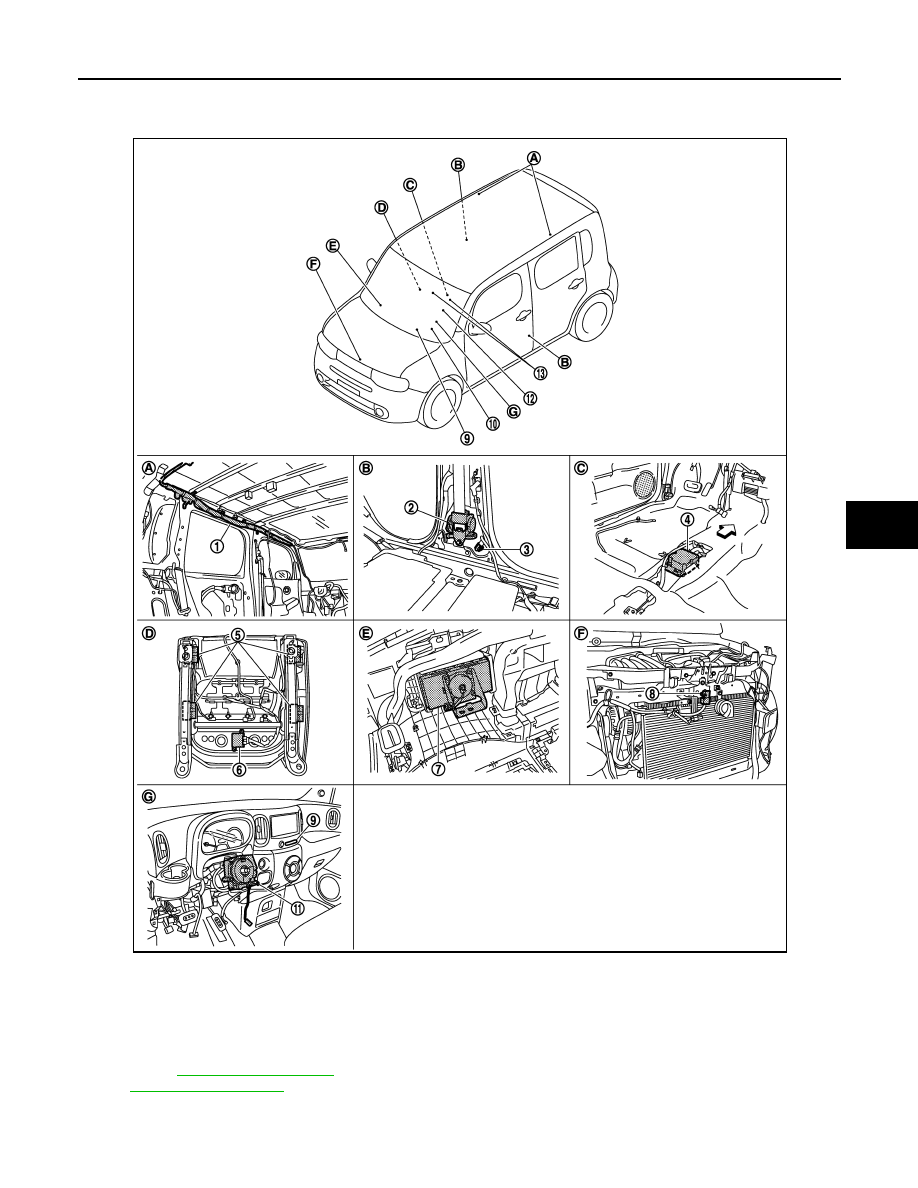

Component Parts Location

INFOID:0000000009946091

1.

Curtain air bag module LH/RH

2.

Seat belt pre-tensioner LH/RH

3.

Satellite sensor LH/RH

4.

Air bag diagnosis sensor unit

5.

Occupant Detection System seat
sensor

6.

Occupant Detection System control
unit

7.

Passenger air bag module

8.

Crash zone sensor

9.

Passenger air bag OFF indicator

10. Combination meter

Refer to

MWI-8, "METER SYSTEM :

Component Parts Location"

11.

Combination switch (spiral cable)

12. Driver air bag module

13. Seat belt buckle switch (Driver side/

Passenger side)

JMHIA1080ZZ
