SB-8

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

a.

Turn ignition switch ON. The seat belt warning lamp should illuminate.

b.

Fasten driver seat belt. The seat belt warning lamp should turn OFF.

2.

If the air bag warning lamp is blinking, perform self-diagnosis using CONSULT and air bag warning lamp.
Refer to

SRC-18, "Diagnosis Description"

.

3.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

4.

Repeat steps above if necessary to check the other seat belts.

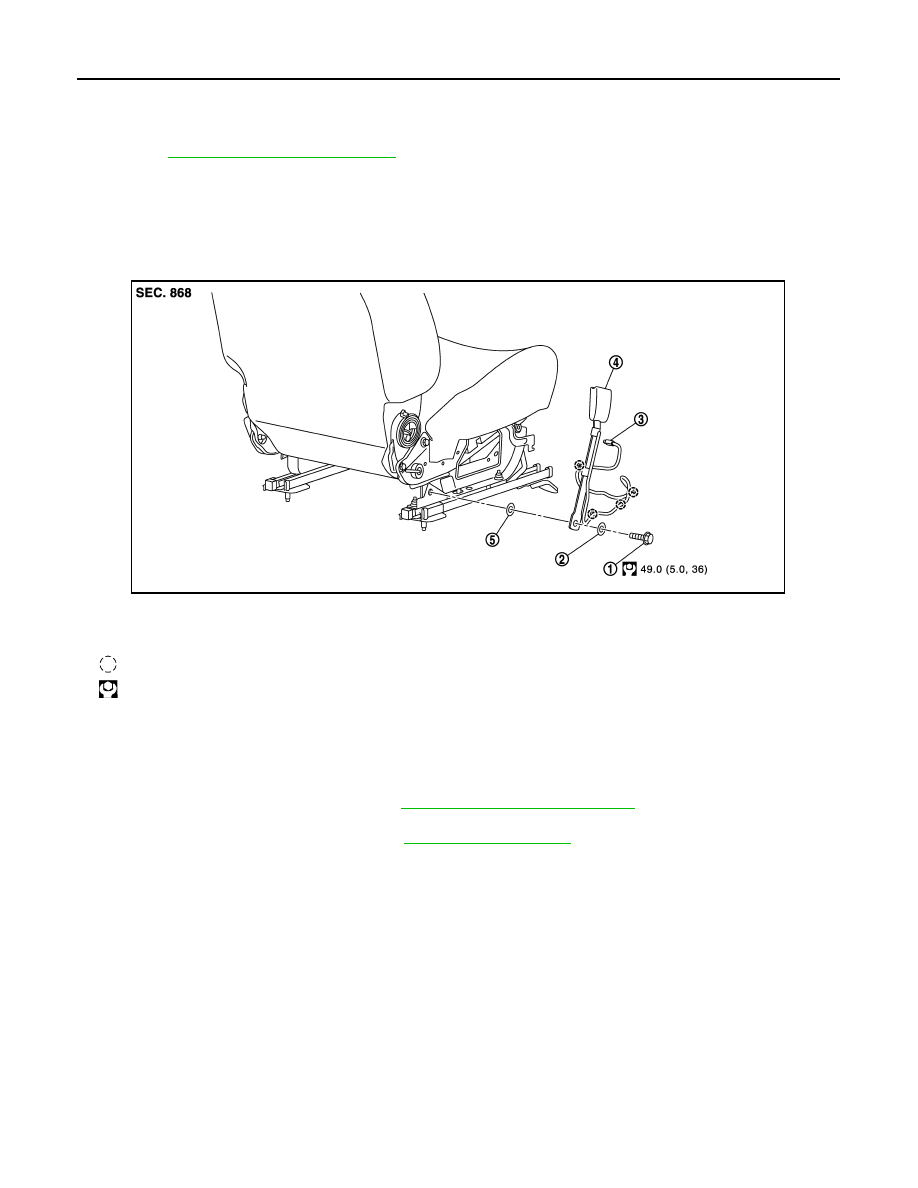

SEAT BELT BUCKLE : Exploded View

INFOID:0000000009945632

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000009945633

REMOVAL

Remove the seat belt buckle.
• Remove the front seat from vehicle. Refer to

SE-14, "Removal and Installation"

. (for ease of tool operation in

narrow space.)

• Remove seat cushion inner finisher. Refer to

SE-12, "Exploded View"

.

• Remove the seat belt buckle harness connector and harness clamp.
• Remove the fixing anchor bolt of the seat belt buckle.

INSTALLATION

Install in the reverse order of removal.

1.

Anchor bolt

2.

Wave washer

3.

Seat belt buckle harness connector

4.

Seat belt buckle

5.

Retaining washer

: Clip

: N·m (kg-m, ft-lb)

JMHIA1318GB

REAR SEAT BELT

SB-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

REAR SEAT BELT

SEAT BELT RETRACTOR

SEAT BELT RETRACTOR : Inspection

INFOID:0000000009945634

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation was noted. Seat belt
pre-tensioners should be replaced even if the seat belts were not in use during a frontal collision in
which the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioners must be replaced even if the seat belts were not in use during the collision in

which the air bags were deployed.

PRELIMINARY CHECKS

1.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

2.

Check retractor operation:

a.

Fully extend the seat belt webbing and check for twists, tears or other damage.

b.

Allow the seat belt to retract. Check that webbing returns smoothly and completely into the retractor. If the
seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth. Dirt build-up in the
loops of that upper anchors can cause the seat belts to retract slowly.

c.

Fasten the seat belt. Check that seat belt returns smoothly and completely to the retractor. If the webbing
does not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE
SET” and perform the following steps.

3.

Repeat steps above if necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:
All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the
retractor will lock and prevent the webbing from extending any further. All 3-point type seat belt retractors
except the driver seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also
called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt
is fully extended. When the webbing is then retracted partially, the ALR mode automatically locks the seat belt
in a specific position so the webbing cannot be extended any further. To cancel the ALR mode, allow the seat
belt to fully wind back into the retractor.
Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating prop-
erly.

ELR Function Stationary Check

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from
extending further.

ALR Function Stationary Check

1.

Pull out the entire length of seat belt from retractor until a click is heard.

2.

Retract the webbing partially. A clicking noise should be heard as the webbing retracts indicating that the
retractor is in the Automatic Locking Retractors (ALR) mode.

SB-10

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

3.

Grasp the seat belt and try to pull out the retractor. The webbing must lock and not extend any further. If it
does not operate normally, replace the retractor assembly.

4.

Allow the entire length of the webbing to retract to cancel the automatic locking mode.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a
large, empty parking lot). Road surface must be paved and dry. Never perform the following test on
wet or gravel roads or on public streets and highways. This could result in an accident and serious
personal injury. The driver and passenger must be prepared to brace themselves in the event that the
retractor does not lock.
1.

Fasten driver seat belt. Buckle a passenger into the seat for the belt that is to be tested.

2.

Proceed to the designated safe area.

3.

Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop
and the driver and passenger must be prepared to brace themselves in the event that the retractor does
not lock. Apply brakes firmly and make a very hard stop.

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock,
perform the retractor off-vehicle check.

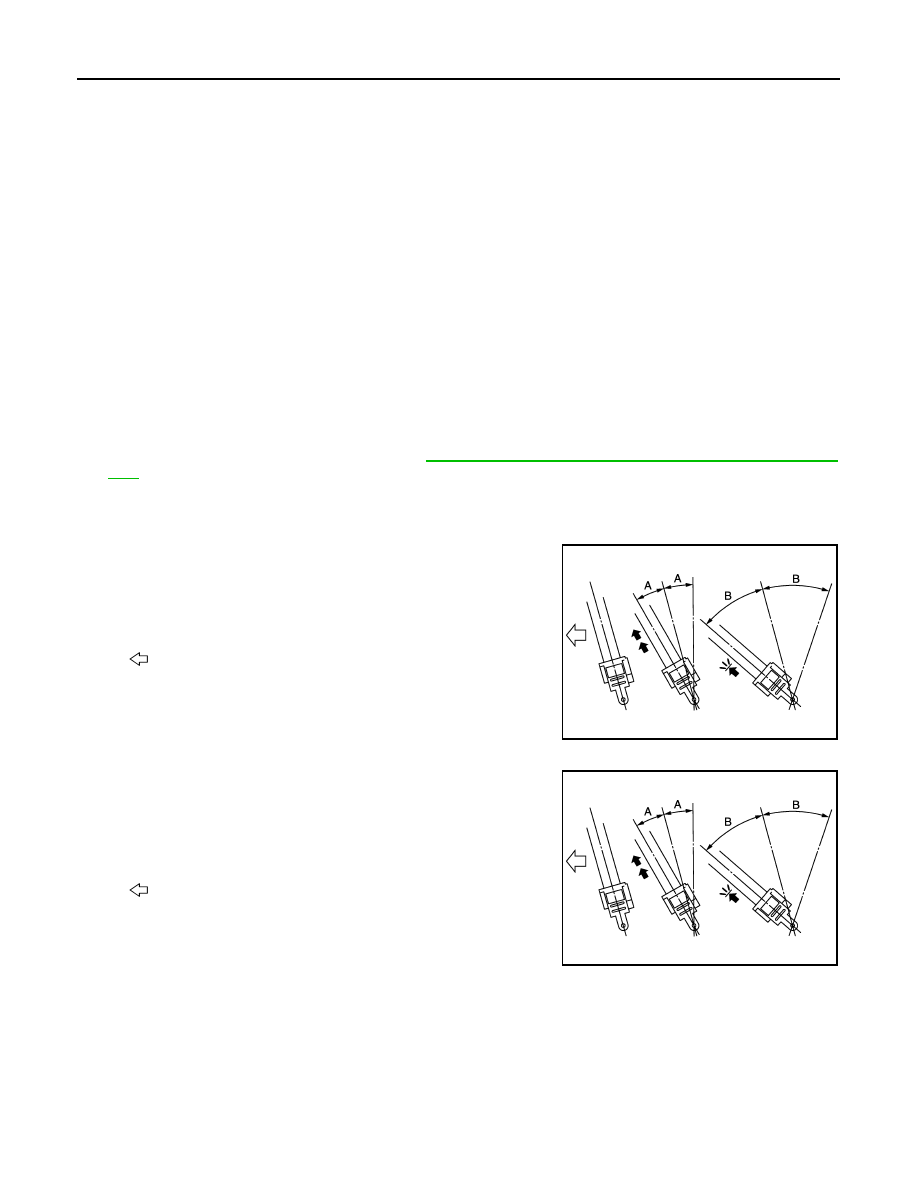

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1.

Remove the rear seat belt retractor. Refer to

SB-11, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

2.

Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without
twisting the retractor assembly as shown in the figure.

a.

Outer seat belt retractor
• The webbing can be pulled out when the angle (A) is 12

degrees or less.

• The webbing cannot be pulled out when the angle (B) is 13

degrees or more.

b.

Center seat belt retractor
• The webbing can be pulled out when the angle (A) is 12

degrees or less.

• The webbing cannot be pulled out when the angle (B) is 13

degrees or more.

3.

Replace the seat belt assembly if it does not operate normally.

A and B

: Tilting angles

: Vehicle front

JMHIA1064ZZ

A and B

: Tilting angles

: Vehicle front

JMHIA1064ZZ

REAR SEAT BELT

SB-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

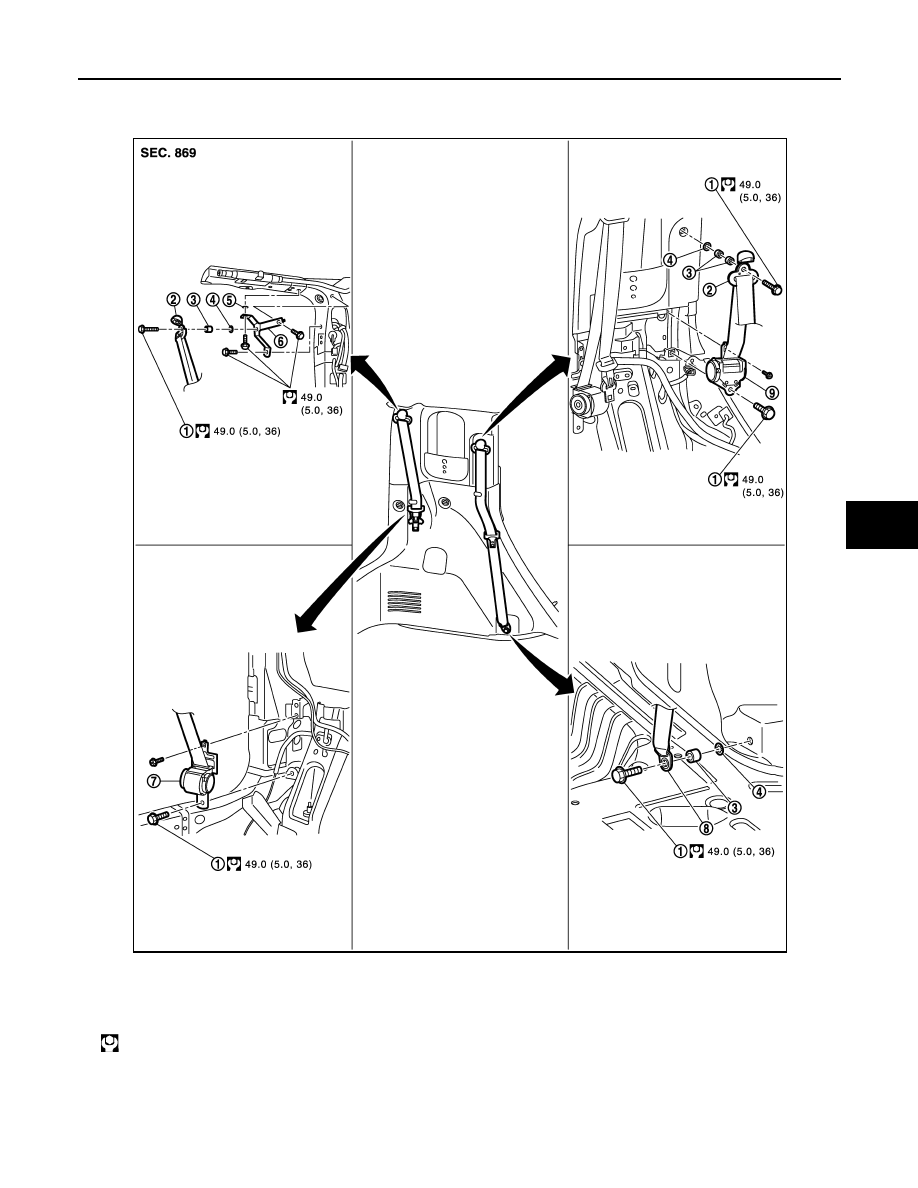

SEAT BELT RETRACTOR : Exploded View

INFOID:0000000009945635

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000009945636

REMOVAL

1.

Anchor bolt

2.

Shoulder anchor

3.

Spacer

4.

Locking washer

5.

Fiber washer

6.

Center seat belt buckle

7.

Center seat belt retractor

8.

Outer anchor

9.

Outer seat belt retractor

: N·m (kg-m, ft-lb)

JMHIA1319GB
