HARNESS LAYOUT

PG-69

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REAE DOOR HARNESS (RH SIDE)

JRMIC2021GB

PG-70

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

HARNESS LAYOUT

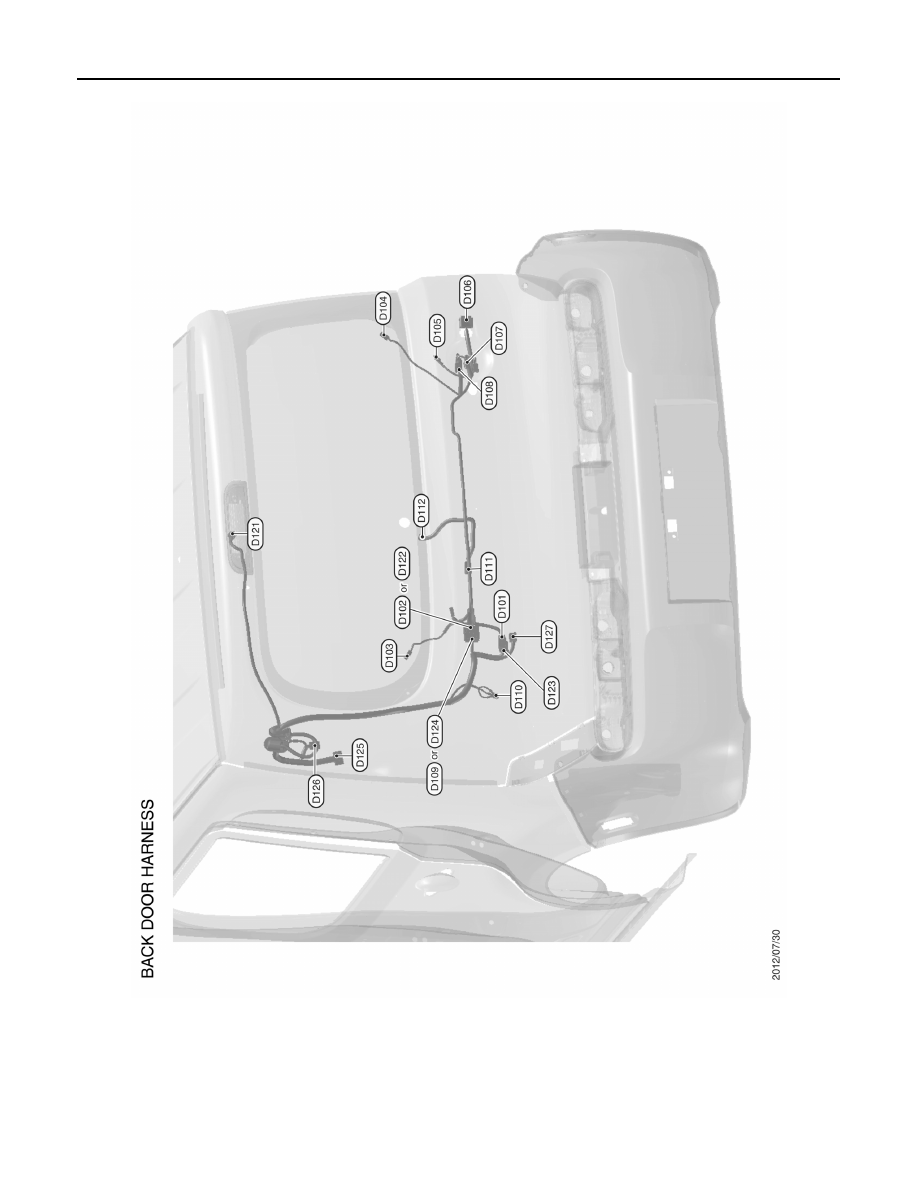

BACK DOOR HARNESS

JRMIC2022GB

PG

HARNESS LAYOUT

PG-71

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

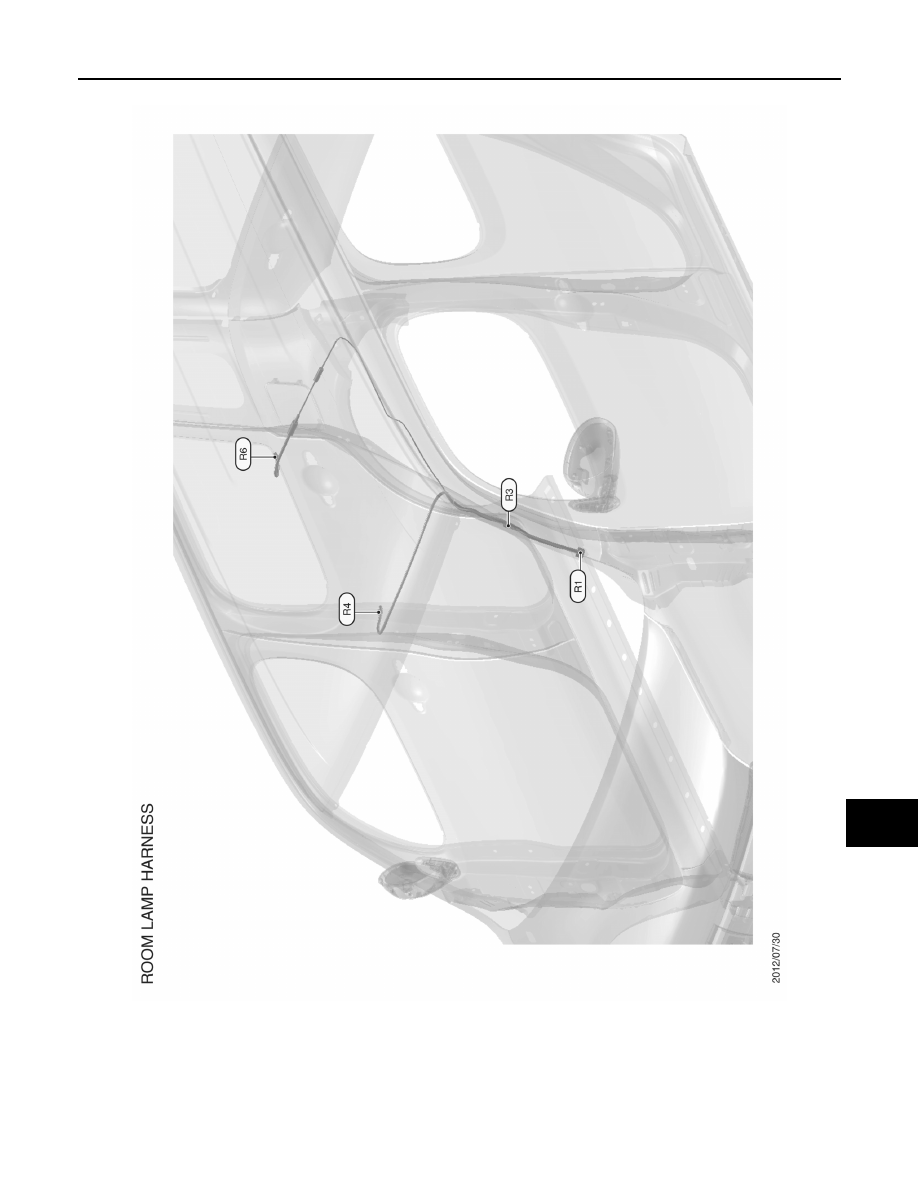

Room Lamp Harness

INFOID:0000000009945591

JRMIC2017GB

PG-72

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

HARNESS CONNECTOR

HARNESS CONNECTOR

Description

INFOID:0000000009945600

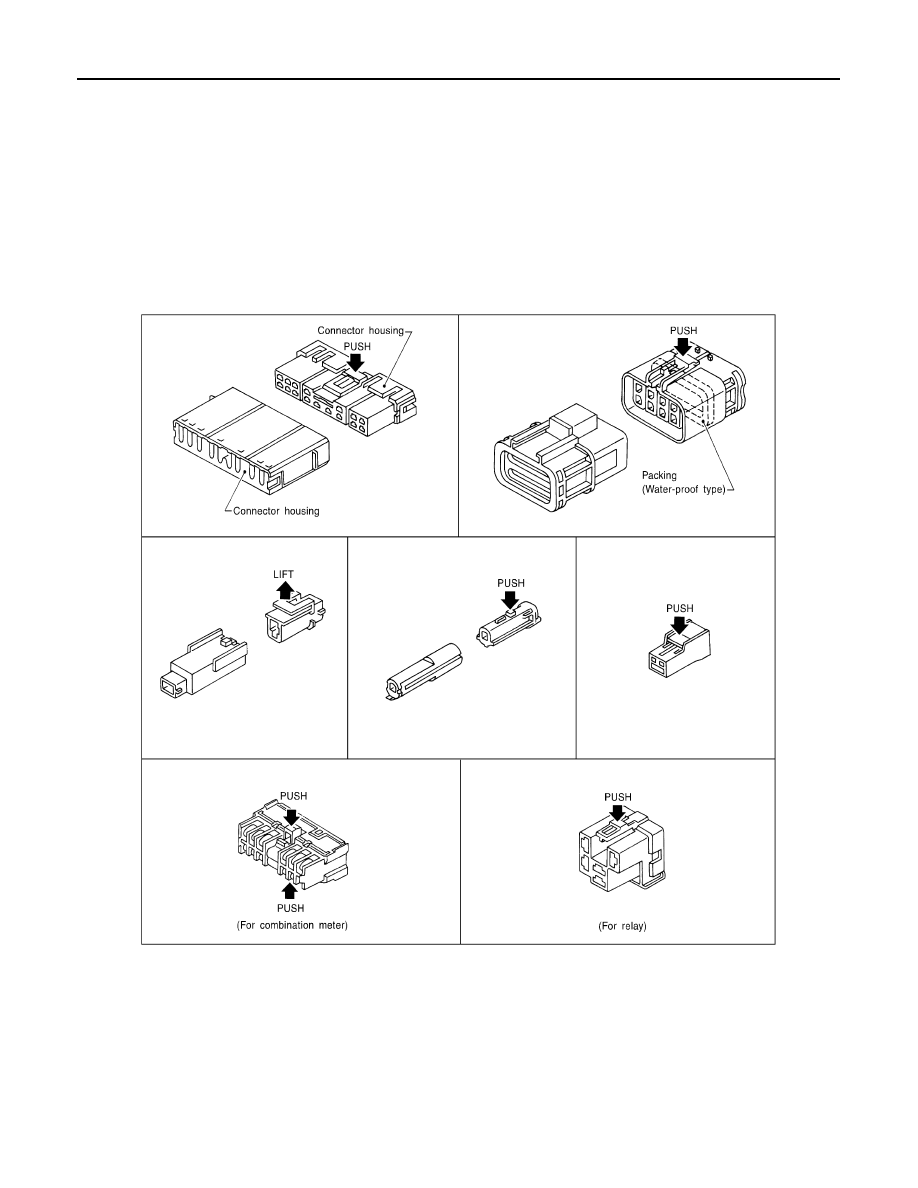

HARNESS CONNECTOR (TAB-LOCKING TYPE)

• The tab-locking type connectors help prevent accidental looseness or disconnection.
• The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the figure

below.

CAUTION:

Never pull the harness or wires when disconnecting the connector.

[Example]

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

• A new style slide-locking type connector is used on certain systems and components, especially those

related to OBD.

• The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-

tion.

• The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure

below.

SEL769DA
