Nissan Cube. Manual - part 736

PG

POWER SUPPLY ROUTING CIRCUIT

PG-25

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

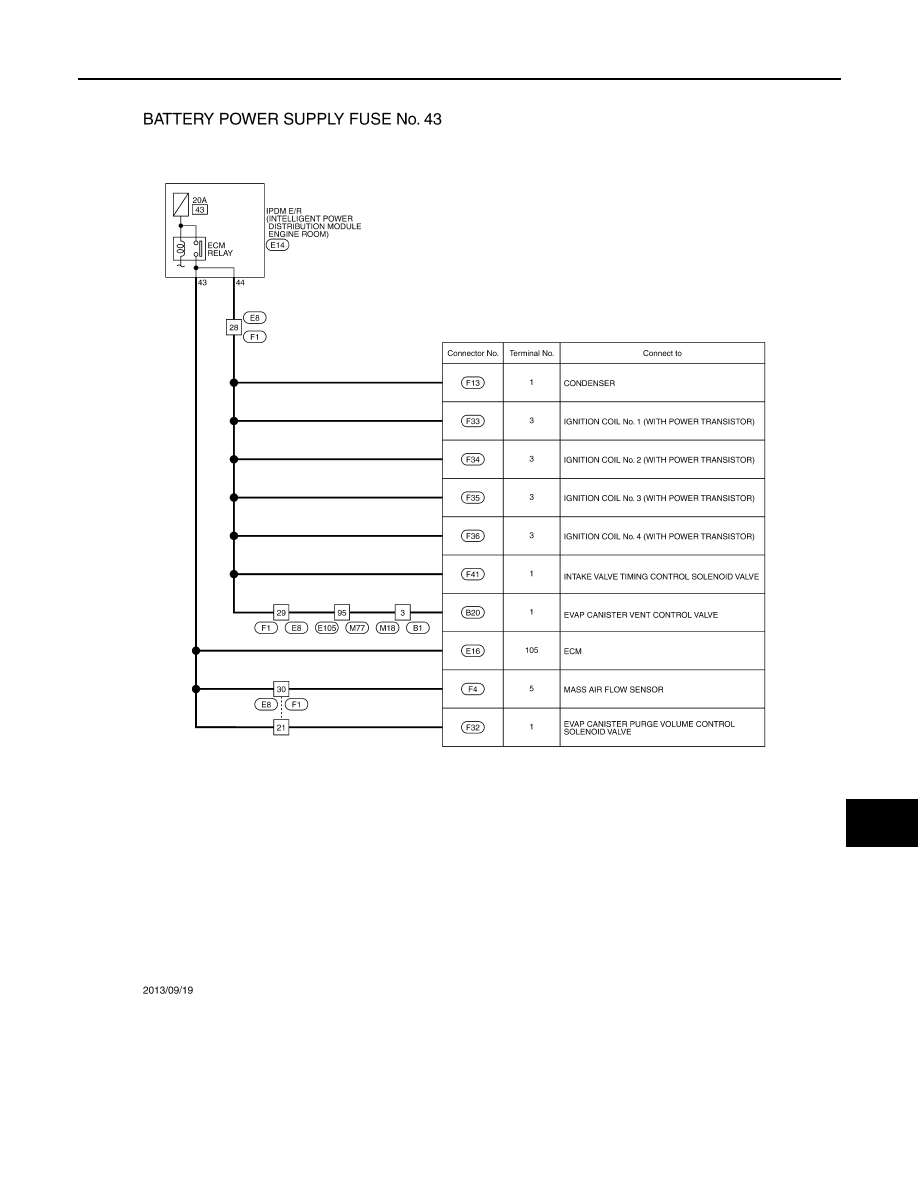

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 43 -

INFOID:0000000009945569

JRMWE7734GB

PG-26

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

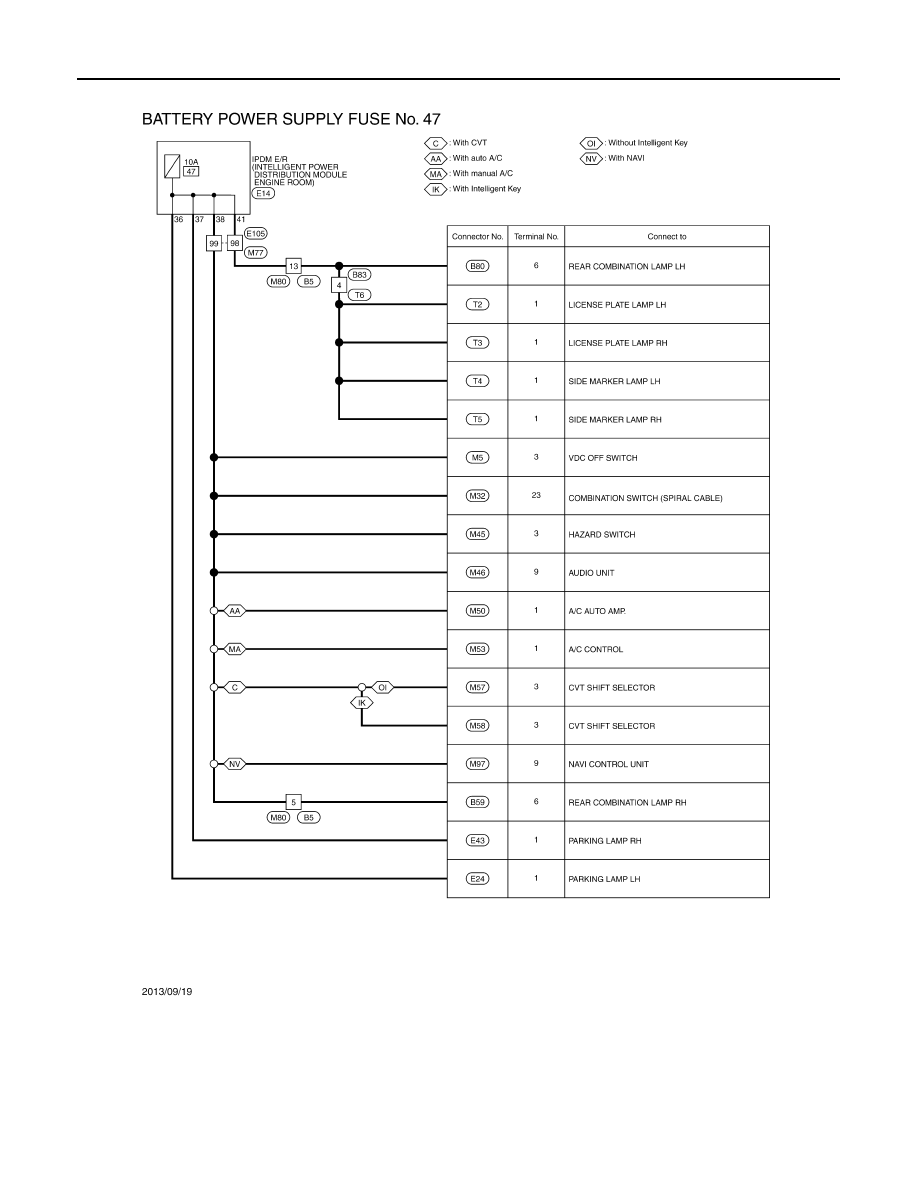

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 47 -

INFOID:0000000009945570

JRMWE7735GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-27

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

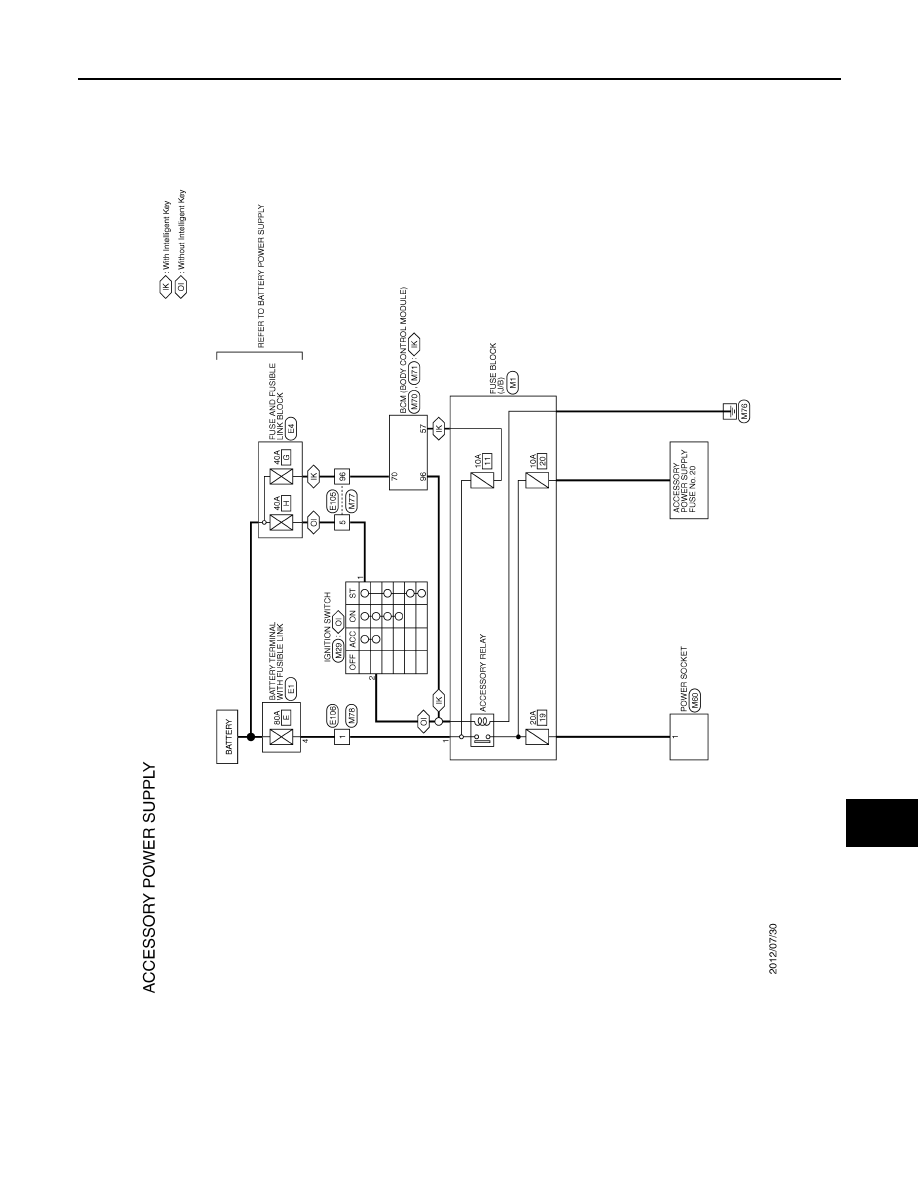

Wiring Diagram - ACCESSORY POWER SUPPLY -

INFOID:0000000009945571

JRMWD3947GB

PG-28

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

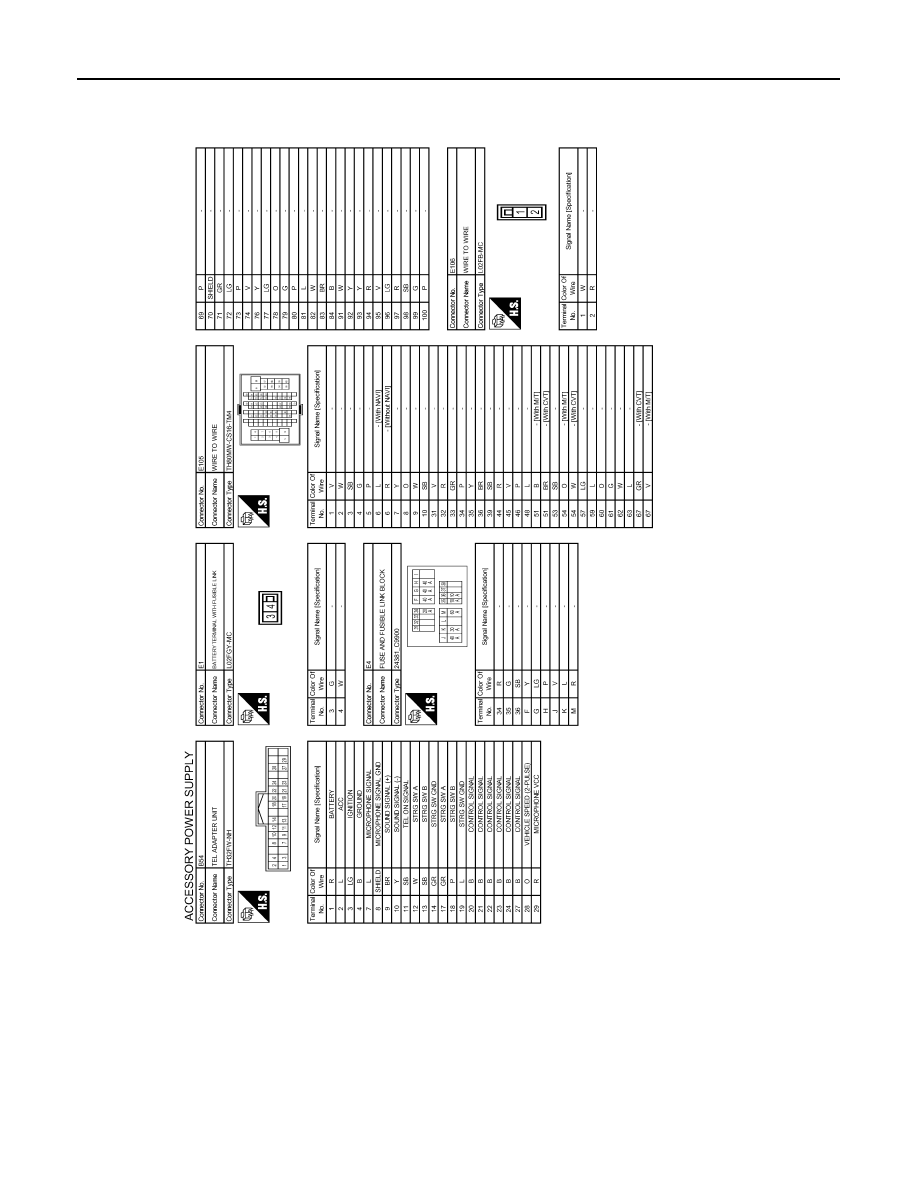

POWER SUPPLY ROUTING CIRCUIT

JRMWE7857GB
