LAN

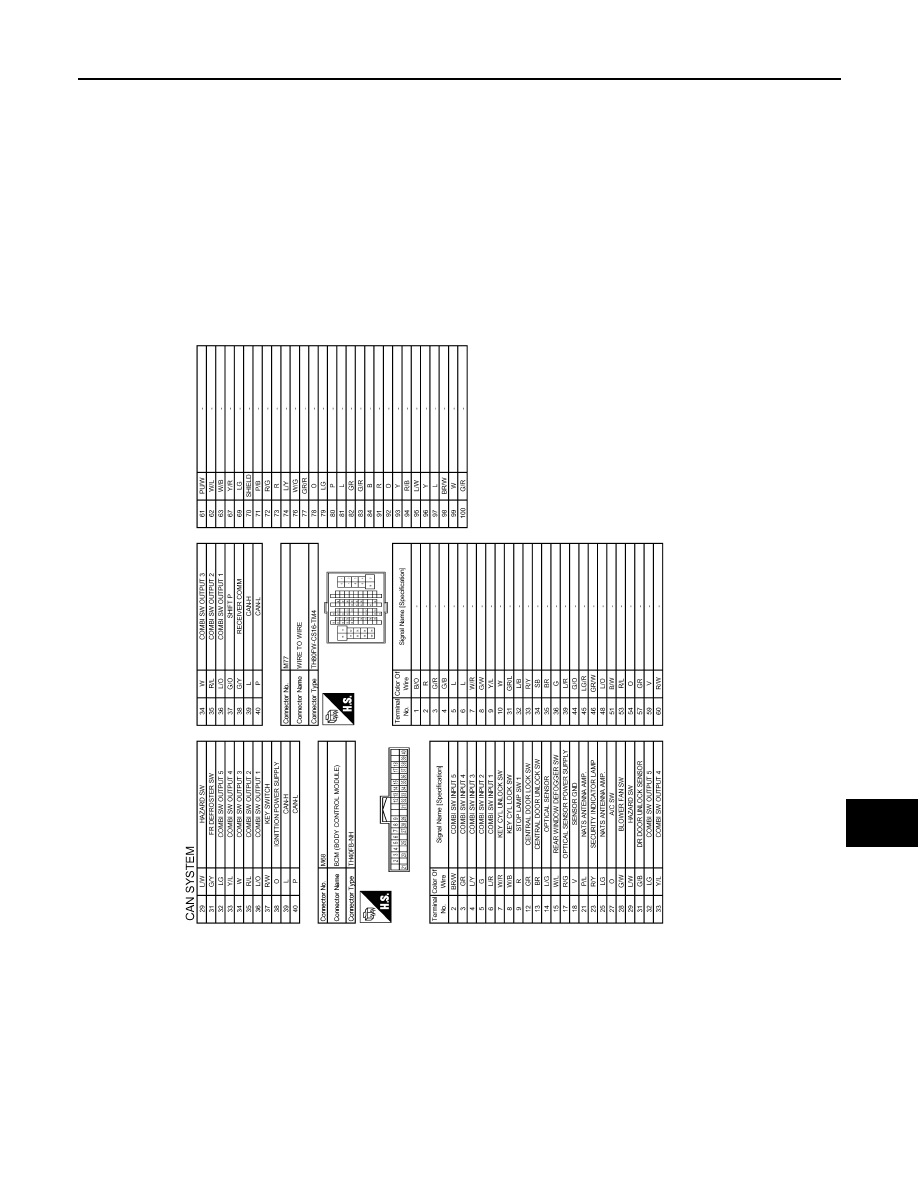

CAN COMMUNICATION SYSTEM

LAN-29

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWE7834GB

LAN-30

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

MALFUNCTION AREA CHART

MALFUNCTION AREA CHART

Main Line

INFOID:0000000009949493

Branch Line

INFOID:0000000009949494

Short Circuit

INFOID:0000000009949495

Malfunction area

Reference

Main line between IPDM E/R and data link connector

LAN-31, "Diagnosis Procedure"

Malfunction area

Reference

ECM branch line circuit

LAN-32, "Diagnosis Procedure"

ABS actuator and electric unit (control unit) branch line circuit

LAN-33, "Diagnosis Procedure"

IPDM E/R branch line circuit

LAN-34, "Diagnosis Procedure"

TCM branch line circuit

LAN-35, "Diagnosis Procedure"

Air bag diagnosis sensor unit branch line circuit

LAN-36, "Diagnosis Procedure"

Data link connector branch line circuit

LAN-37, "Diagnosis Procedure"

EPS control unit branch line circuit

LAN-38, "Diagnosis Procedure"

Combination meter branch line circuit

LAN-39, "Diagnosis Procedure"

Steering angle sensor branch line circuit

LAN-40, "Diagnosis Procedure"

BCM branch line circuit

LAN-41, "Diagnosis Procedure"

Malfunction area

Reference

CAN communication circuit

LAN-42, "Diagnosis Procedure"

LAN

MAIN LINE BETWEEN IPDM-E AND DLC CIRCUIT

LAN-31

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

MAIN LINE BETWEEN IPDM-E AND DLC CIRCUIT

Diagnosis Procedure

INFOID:0000000009949496

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the following terminals and connectors for damage, bend and loose connection (connector side
and harness side).

-

Harness connector E105

-

Harness connector M77

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1.

Disconnect the following harness connectors.

-

IPDM E/R

-

Harness connectors E105 and M77

2.

Check the continuity between the IPDM E/R harness connector and the harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the main line between the IPDM E/R and the harness connector E105.

3.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

Check the continuity between the harness connector and the data link connector.

Is the inspection result normal?

YES (Present error)>>Check CAN system type decision again.
YES (Past error)>>Error was detected in the main line between the IPDM E/R and the data link connector.
NO

>> Repair the main line between the harness connector M77 and the data link connector.

IPDM E/R harness connector

Harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

E13

27

E105

81

Existed

26

80

Existed

Harness connector

Data link connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

M77

81

M4

6

Existed

80

14

Existed

LAN-32

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

ECM BRANCH LINE CIRCUIT

ECM BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000009949497

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the terminals and connectors of the ECM for damage, bend and loose connection (unit side and
connector side).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of ECM.

2.

Check the resistance between the ECM harness connector terminals.

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the ECM branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the ECM. Refer to

EC-129, "Diagnosis Procedure"

.

Is the inspection result normal?

YES (Present error)>>Replace the ECM. Refer to

EC-16, "ADDITIONAL SERVICE WHEN REPLACING

CONTROL UNIT : Special Repair Requirement"

.

YES (Past error)>>Error was detected in the ECM branch line.
NO

>> Repair the power supply and the ground circuit.

ECM harness connector

Resistance (

)

Connector No.

Terminal No.

E16

84

83

Approx. 108 – 132
