BODY SIDE TRIM

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

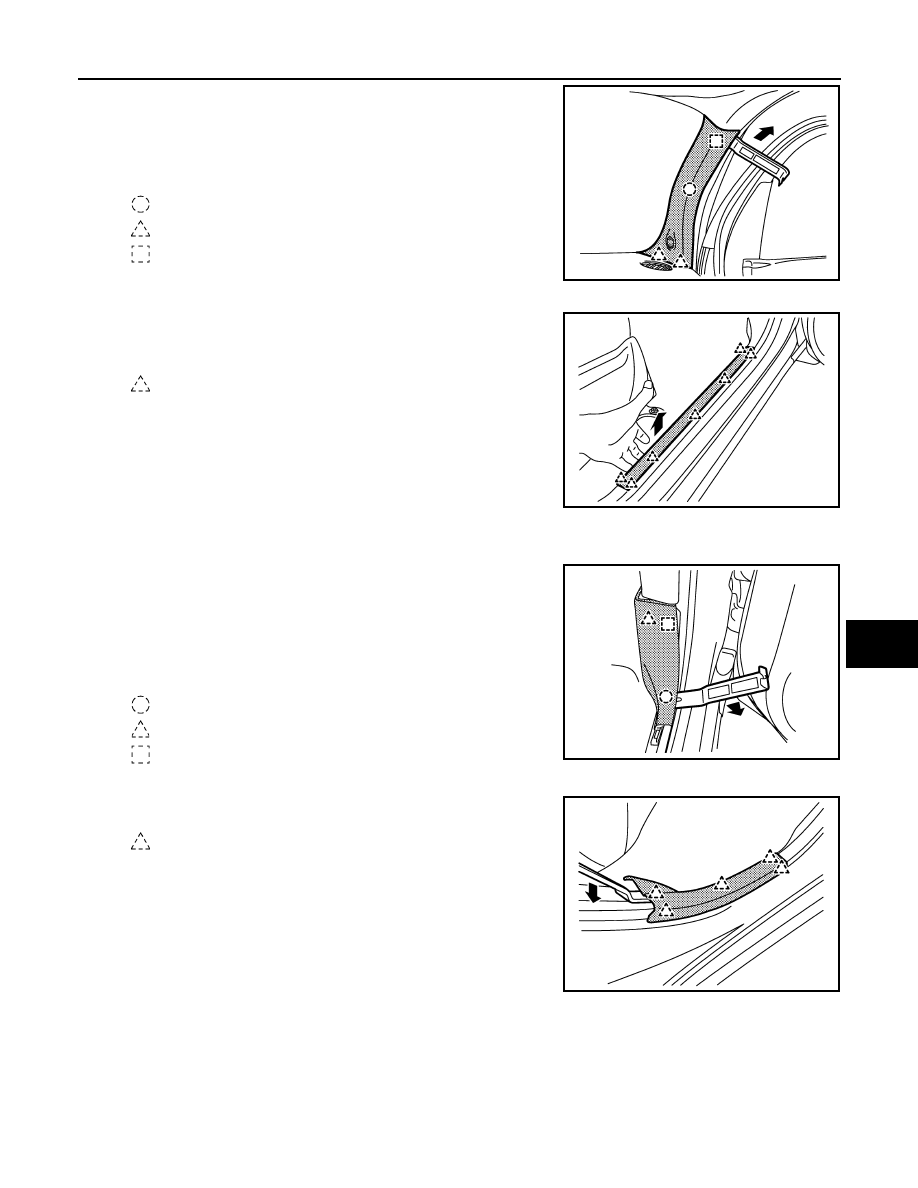

2.

Remove front pillar garnish.
• Insert a remover tool between front pillar garnish and body

panel.

• Disengage metal clip, clip and pawls.
• Pull out front pillar garnish to remove.

FRONT KICKING PLATE INNER

1.

Pull up front kicking plate to disengage the pawls.

2.

Remove front kicking plate from the body panel.

DASH SIDE FINISHER

1.

Remove front kicking plate inner.

2.

Disengage dash side finisher fixing clip and pawl with remover
tool.

3.

Pull back dash side finisher to remove it from metal clip.
NOTE:
The metal clip remain on the body side after removal of dash
side finisher.

REAR KICKING PLATE INNER

Disengage rear dash side finisher fixing pawls and remove it.

FRONT BODY SIDE WELT

1.

Remove front kicking plate inner.

2.

Remove dash side finisher.

3.

Remove front body side welt from panel flange.

REAR BODY SIDE WELT

1.

Remove rear kicking plate inner.

: Clip

: Pawl

: Metal clip

JMJIA2902ZZ

: Pawl

JMJIA2903ZZ

: Clip

: Pawl

: Metal clip

JMJIA3028ZZ

: Pawl

JMJIA2890ZZ

INT-18

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

2.

Remove rear body side welt from panel flange.

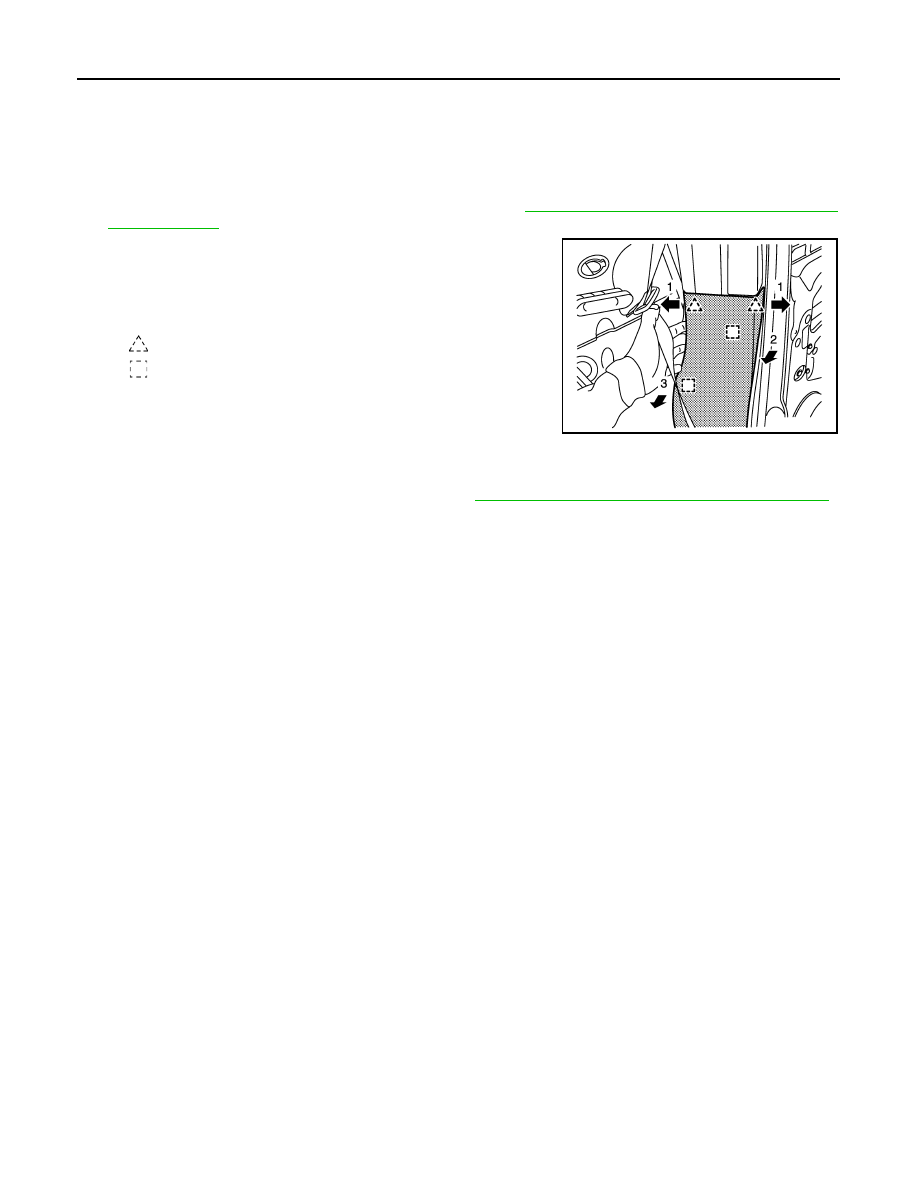

CENTER PILLAR LOWER GARNISH

1.

Remove front kicking plate inner.

2.

Remove rear kicking plate inner.

3.

Remove front and rear body side welt.

4.

Remove front seatbelt floor anchor bolts (LH/RH). Refer to

SB-7, "SEAT BELT RETRACTOR : Removal

and Installation"

.

5.

Pull center pillar lower garnish crosswise to disengage the fixing
pawls as shown in the figure by the arrow 1.

6.

Pull back center pillar lower garnish to disengage the fixing
metal clips.

7.

Remove center pillar lower garnish from body panel.

CENTER PILLAR UPPER GARNISH

1.

Remove center pillar lower garnish.

2.

Remove front seatbelt shoulder anchor bolt. Refer to

SB-6, "SEAT BELT RETRACTOR : Exploded View"

.

3.

Remove front and rear body side welt.

4.

Remove the bolt cover and the bolt behind that cover.

5.

Pull up center pillar upper garnish to remove.

INSTALLATION

CAUTION:

When installing, check that clips, pawls and metal clips are securely fitted in panel holes on body, and
then press them in.

: Pawl

: Metal clip

JMJIA2891ZZ

FLOOR TRIM

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

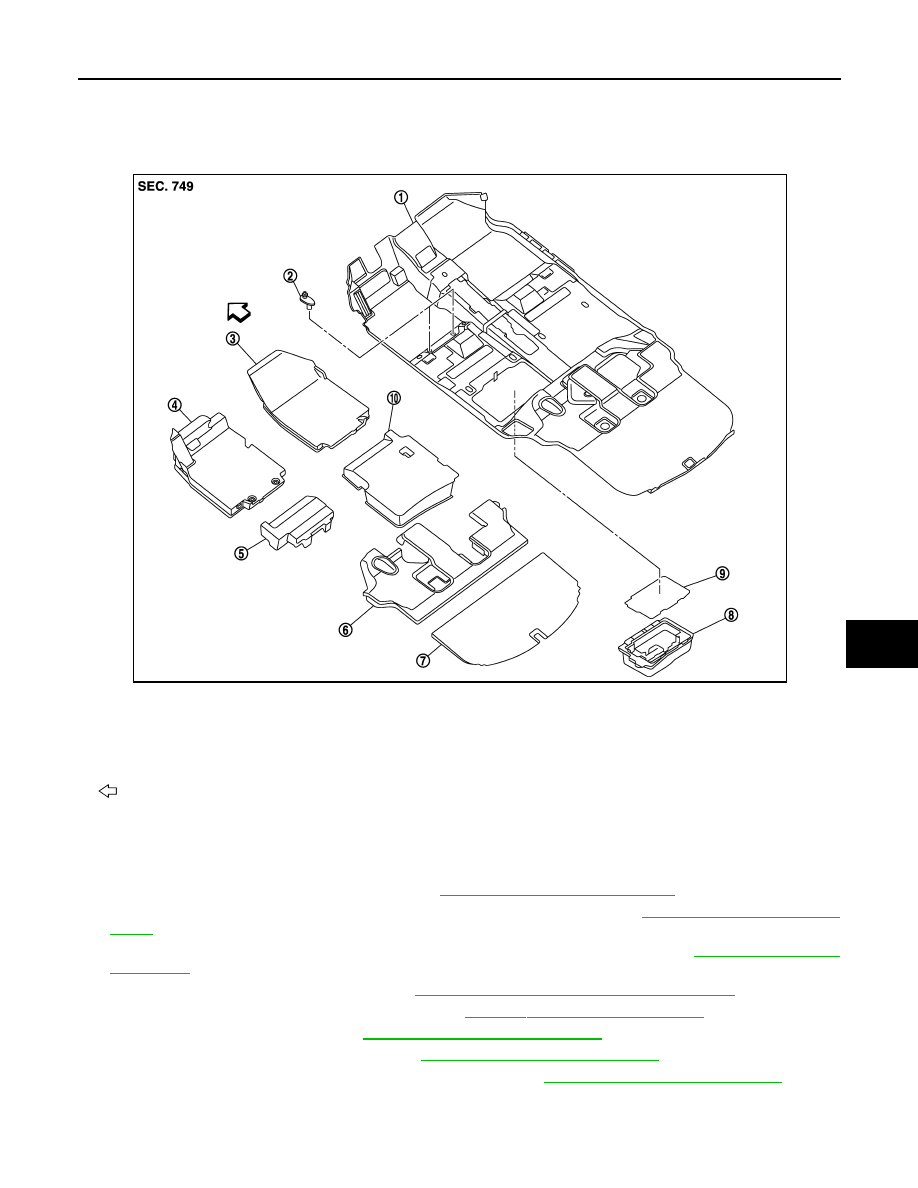

FLOOR TRIM

Exploded View

INFOID:0000000009949270

Removal and Installation

INFOID:0000000009949271

REMOVAL

1.

Remove front seat assembly (LH/RH). Refer to

SE-14, "Removal and Installation"

.

2.

Remove rear seat cushion and seatback assembly (with rear seat). Refer to

SE-18, "Removal and Instal-

lation"

.

3.

Remove instrument lower cover, glove box lid and instrument lower panel. Refer to

IP-14, "Removal and

Installation"

.

4.

Remove front seatbelt anchor bolt. Refer to

SB-8, "SEAT BELT BUCKLE : Exploded View"

.

5.

Remove front and rear kicking plate inner. Refer to

INT-16, "Removal and Installation"

.

6.

Remove dash side finisher. Refer to

INT-16, "Removal and Installation"

.

7.

Remove center pillar lower garnish. Refer to

INT-16, "Removal and Installation"

.

8.

Remove front body side welt and rear body side welt. Refer to

INT-16, "Removal and Installation"

.

1.

Floor trim

2.

Floor hook

3.

Front floor spacer RH

4.

Front floor spacer LH

5.

Rear floor spacer LH

6.

Luggage floor spacer front

7.

Luggage floor spacer rear

8.

Tool box

9.

Tool box cover

10.

Rear floor spacer RH

: Vehicle front

JMJIA3030ZZ

INT-20

< REMOVAL AND INSTALLATION >

FLOOR TRIM

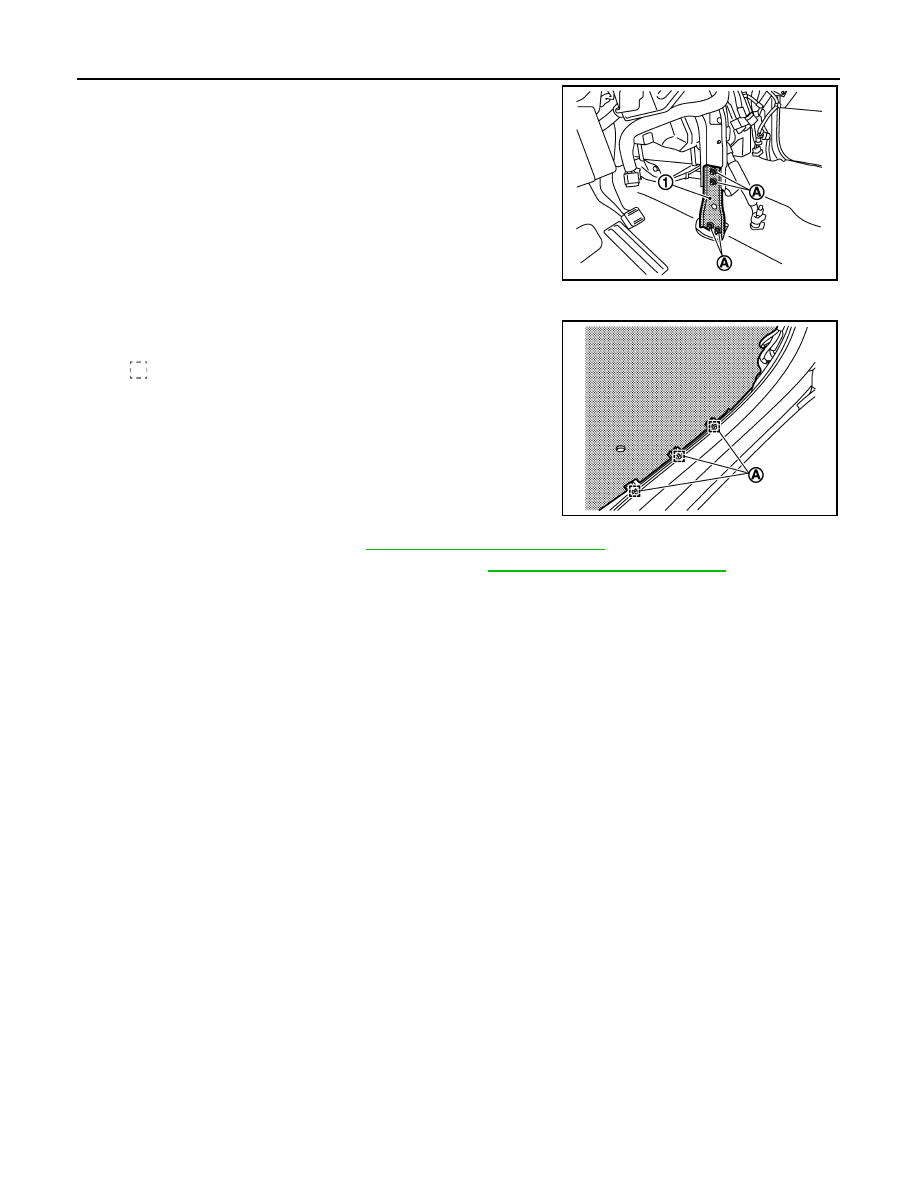

9.

Remove front floor bracket (1) mounting nuts (A) and then
remove front floor bracket.

10. Disconnect airbag harness connector and remove drain hose.
11. Remove floor carpet fixing clip (A).

12. Remove luggage rear plate. Refer to

INT-24, "Removal and Installation"

.

13. Remove luggage side lower finisher (LH/RH). Refer to

INT-24, "Removal and Installation"

.

14. Remove floor carpet through the back door.

INSTALLATION

Install in the reverse order of removal.

JMJIA3037ZZ

: Metal clip

JMJIA2905ZZ
