HRN-6

< REMOVAL AND INSTALLATION >

HORN

REMOVAL AND INSTALLATION

HORN

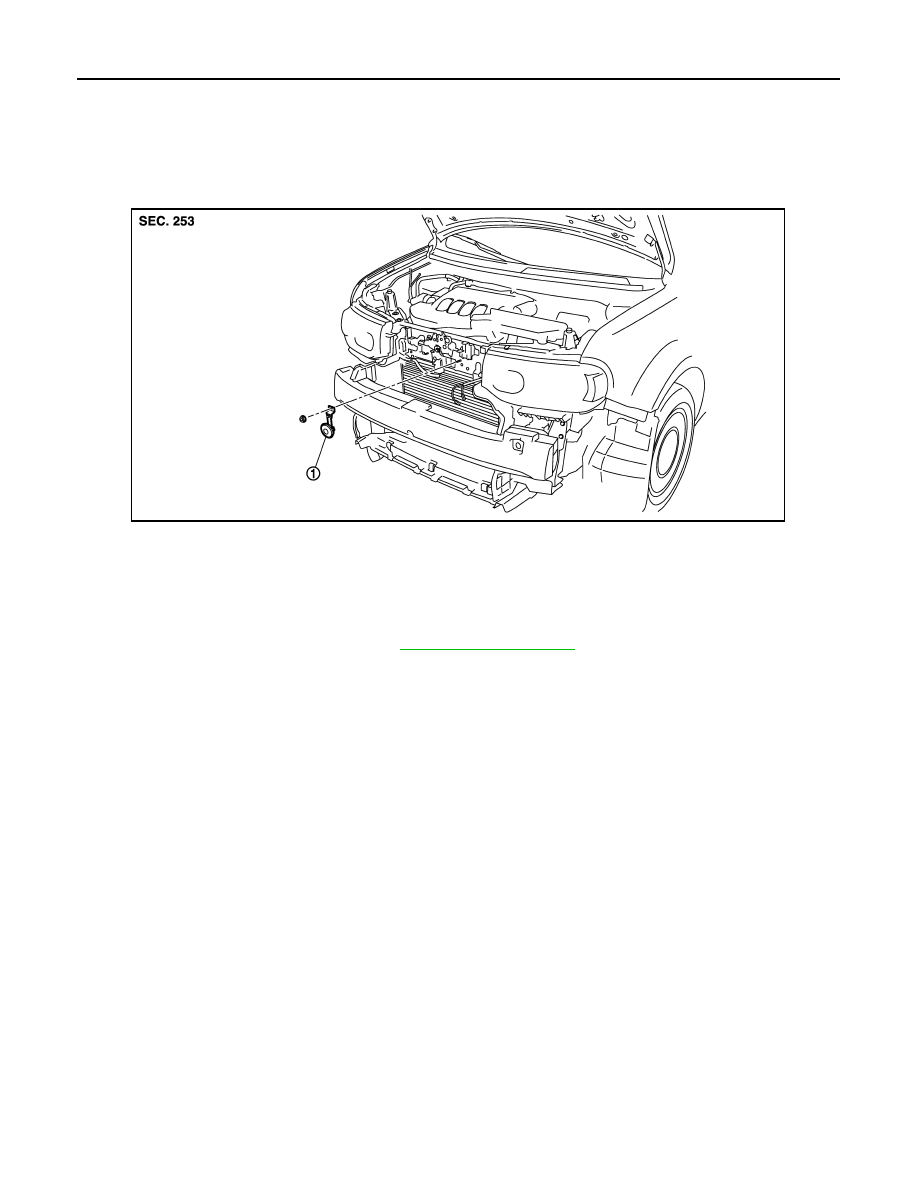

Exploded View

INFOID:0000000009949465

Removal and Installation

INFOID:0000000009949466

REMOVAL

1.

Remove the front bumper fascia. Refer to

EXT-11, "Exploded View"

.

2.

Disconnect the horn connectors.

3.

Remove the horn mounting nut, and remove the horn from the vehicle.

INSTALLATION

Install in the reverse order of removal.

1.

Horn

JPLIA1766ZZ

INL-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

INL

A

B

INL

N

O

P

CONTENTS

INTERIOR LIGHTING SYSTEM

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORK FLOW  .........

3

Work Flow  .................................................................

3

SYSTEM DESCRIPTION  ..............................

6

INTERIOR ROOM LAMP CONTROL SYSTEM

.....

6

System Diagram ........................................................

6

System Description  ...................................................

6

Component Parts Location ........................................

8

Component Description ............................................

8

INTERIOR ROOM LAMP BATTERY SAVER
SYSTEM ..............................................................

9

System Diagram ........................................................

9

System Description  ...................................................

9

Component Parts Location ......................................

10

Component Description ..........................................

10

ILLUMINATION CONTROL SYSTEM ................

11

System Diagram ......................................................

11

System Description  .................................................

11

Component Parts Location ......................................

12

Component Description ...........................................

12

DIAGNOSIS SYSTEM (BCM) (WITH INTELLI-
GENT KEY SYSTEM) .........................................

13

COMMON ITEM  .........................................................

13

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .....................................................

13

INT LAMP  ..................................................................

14

INT LAMP : CONSULT Function (BCM - INT
LAMP) .....................................................................

15

BATTERY SAVER  .....................................................

16

BATTERY SAVER : CONSULT Function (BCM -
BATTERY SAVER)  .................................................

16

DIAGNOSIS SYSTEM (BCM) (WITHOUT IN-
TELLIGENT KEY SYSTEM)  .............................

18

COMMON ITEM  .........................................................

18

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

18

INT LAMP ...................................................................

18

INT LAMP : CONSULT Function (BCM - INT
LAMP) ......................................................................

19

BATTERY SAVER  .....................................................

20

BATTERY SAVER : CONSULT Function (BCM -
BATTERY SAVER) ..................................................

20

DTC/CIRCUIT DIAGNOSIS  .........................

22

POWER SUPPLY AND GROUND CIRCUIT  ....

22

BCM (BODY CONTROL SYSTEM) (WITH INTEL-
LIGENT KEY SYSTEM)  .............................................

22

BCM (BODY CONTROL SYSTEM) (WITH INTEL-
LIGENT KEY SYSTEM) : Diagnosis Procedure  ......

22

BCM (BODY CONTROL SYSTEM) (WITHOUT IN-
TELLIGENT KEY SYSTEM)  ......................................

22

BCM (BODY CONTROL SYSTEM) (WITHOUT
INTELLIGENT KEY SYSTEM) : Diagnosis Proce-
dure .........................................................................

22

INTERIOR ROOM LAMP POWER SUPPLY
CIRCUIT ............................................................

24

Description ...............................................................

24

Component Function Check  ....................................

24

Diagnosis Procedure  ...............................................

24

INTERIOR ROOM LAMP CONTROL CIRCUIT

...

26

Description ...............................................................

26

Component Function Check  ....................................

26

Diagnosis Procedure  ...............................................

26

INL-2

PUSH-BUTTON IGNITION SWITCH ILLUMI-
NATION CIRCUIT  ..............................................

28

Description ..............................................................

28

Component Function Check  ...................................

28

Diagnosis Procedure  ..............................................

28

INTERIOR ROOM LAMP CONTROL SYSTEM

...

30

Wiring Diagram - INTERIOR ROOM LAMP -  .........

30

ILLUMINATION ..................................................

37

Wiring Diagram - ILLUMINATION -  ........................

37

ECU DIAGNOSIS INFORMATION ..............

45

BCM (BODY CONTROL MODULE)  ..................

45

WITH INTELLIGENT KEY .........................................

45

WITH INTELLIGENT KEY : Reference Value  ........

45

WITH INTELLIGENT KEY : Wiring Diagram -
BCM -  .....................................................................

65

WITH INTELLIGENT KEY : Fail-safe .....................

76

WITH INTELLIGENT KEY :
DTC Inspection Priority Chart ..............................

77

WITH INTELLIGENT KEY : DTC Index  .................

78

WITHOUT INTELLIGENT KEY  .................................

80

WITHOUT INTELLIGENT KEY : Reference Value ...

80

WITHOUT INTELLIGENT KEY : Wiring Diagram -
BCM -  .....................................................................

94

WITHOUT INTELLIGENT KEY : Fail-safe .............

102

WITHOUT INTELLIGENT KEY :
DTC Inspection Priority Chart .............................

103

WITHOUT INTELLIGENT KEY : DTC Index .........

103

SYMPTOM DIAGNOSIS  ...........................

105

INTERIOR LIGHTING SYSTEM SYMPTOMS ..

105

Symptom Table .....................................................

105

PRECAUTION ...........................................

106

PRECAUTIONS  ................................................

106

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

106

Precautions for Removing of Battery Terminal  .....

106

REMOVAL AND INSTALLATION .............

107

MAP LAMP  .......................................................

107

Exploded View  ......................................................

107

Removal and Installation .......................................

107

Replacement .........................................................

107

ROOM LAMP ....................................................

109

Exploded View  ......................................................

109

Removal and Installation .......................................

109

Replacement .........................................................

109

LUGGAGE ROOM LAMP .................................

110

Exploded View  ......................................................

110

Removal and Installation .......................................

110

Replacement .........................................................

110

SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................

111

SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................

111

Bulb Specifications ................................................

111

DIAGNOSIS AND REPAIR WORK FLOW

INL-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009950911

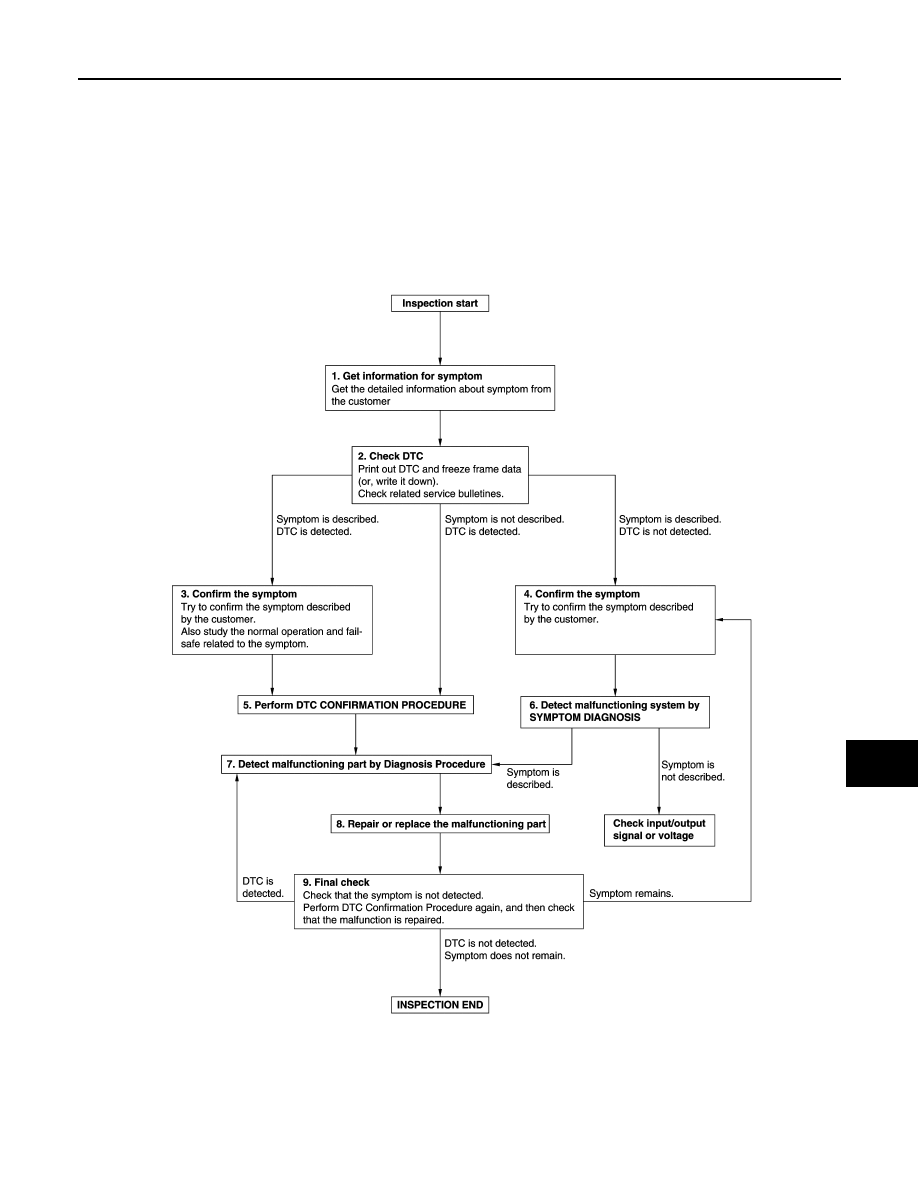

OVERALL SEQUENCE

DETAILED FLOW

JMKIA8652GB
