CONDENSER

HA-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

CAUTION:

• Check that liquid tank bracket is securely installed at protrusion of condenser. (Check that liquid

tank bracket does not move to a position below center of liquid tank.)

• Replace O-rings of the A/C piping with new ones. Then apply compressor oil to them when installing.
• Perform lubricant adjusting procedure before installing new liquid tank. Refer to

HA-26, "Lubricant

Adjusting Procedure for Components Replacement Except Compressor"

.

• Check for leakages when recharging refrigerant. Refer to

HA-22, "Leak Test"

.

REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSOR : Removal and Installation

INFOID:0000000009950359

CAUTION:

Perform lubricant return operation before each refrigeration system disassembly. However, if a large
amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to

HA-

26, "Perform Lubricant Return Operation"

.

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant. Refer to

HA-24, "Recy-

cle Refrigerant"

.

2.

Clean refrigerant pressure sensor and its surrounding area, and then remove dust and rust from refriger-
ant pressure sensor.

CAUTION:

Be sure to clean carefully.

3.

Disconnect refrigerant pressure sensor connector.

4.

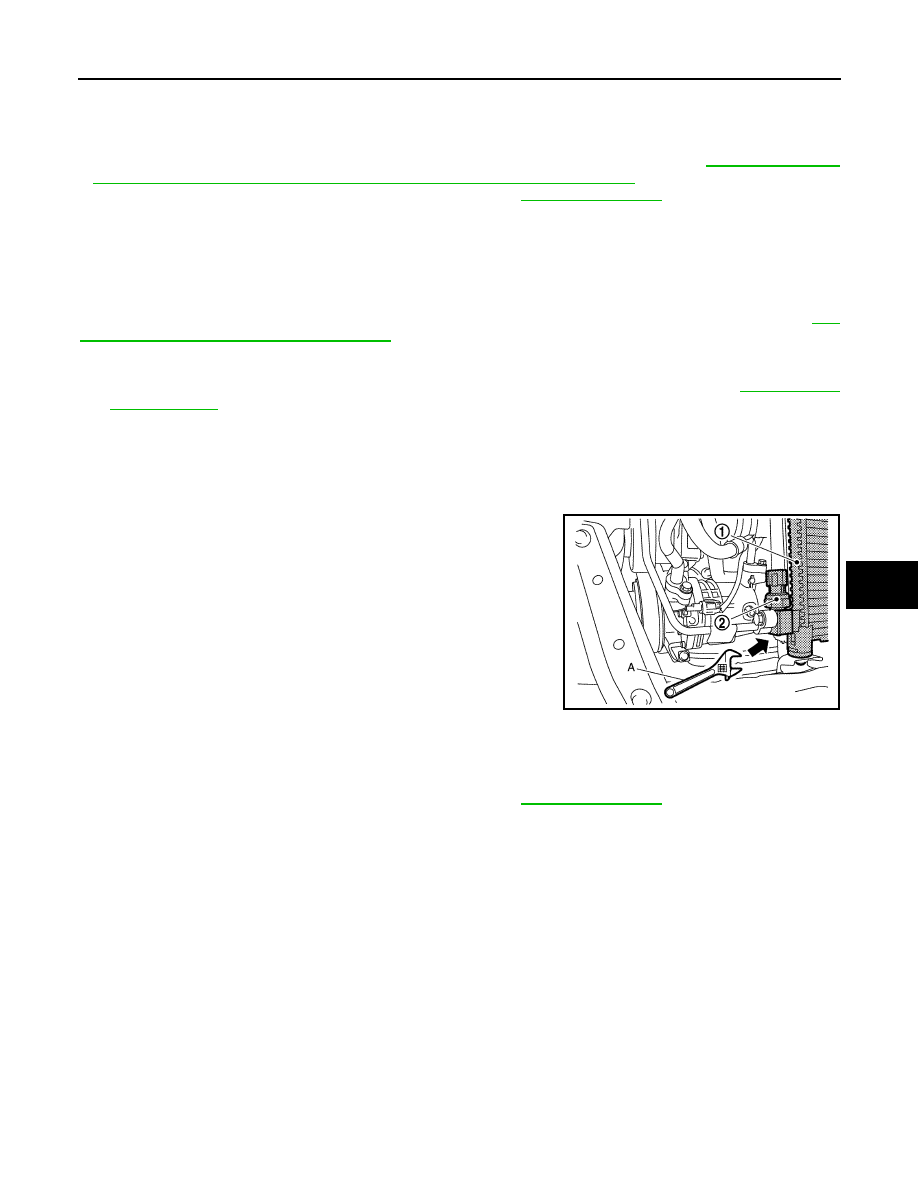

Use a adjustable wrench (A) or other tool to hold the refrigerant
pressure sensor mounting block, and then remove the refriger-
ant pressure sensor (2) from the condenser (1).

CAUTION:

• Be careful not to damage liquid tank.
• Be careful not to damage core surface of condenser.
• Cap or wrap the joint of the condenser and liquid tank

with suitable material such as vinyl tape to avoid the entry
of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-ring with new one. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant. Refer to

HA-22, "Leak Test"

.

JPIIA1708ZZ

HA-42

< REMOVAL AND INSTALLATION >

A/C UNIT ASSEMBLY

A/C UNIT ASSEMBLY

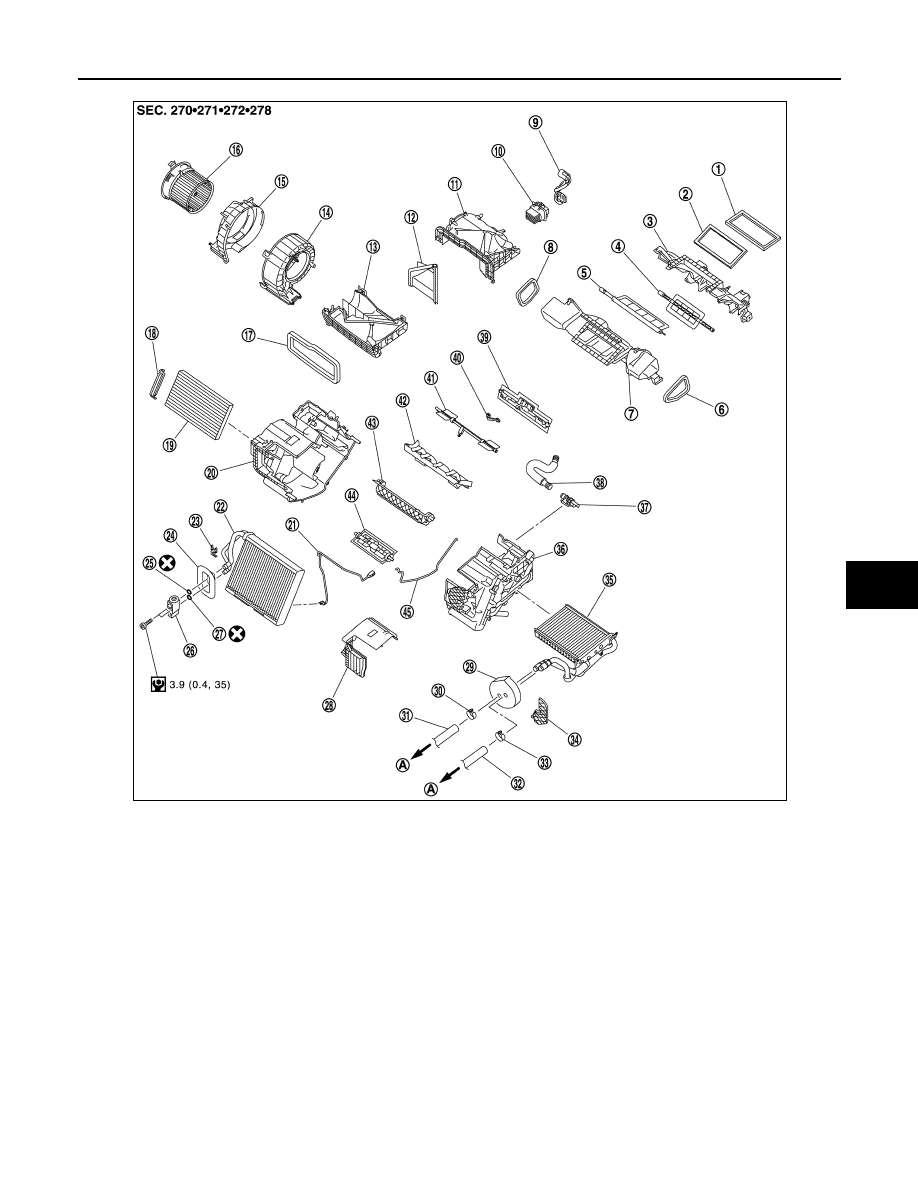

Exploded View (Automatic Air Conditioner)

INFOID:0000000009950360

REMOVAL

DISASSEMBLY

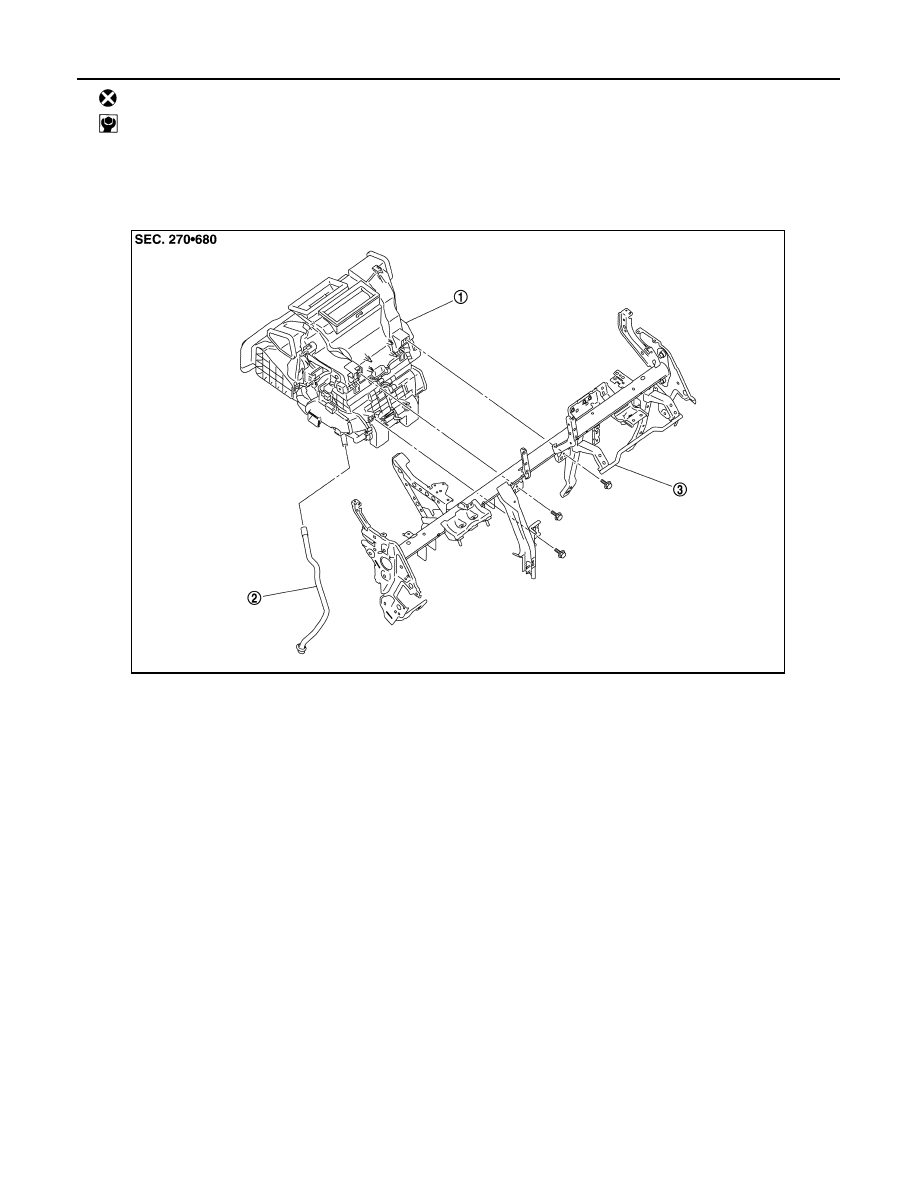

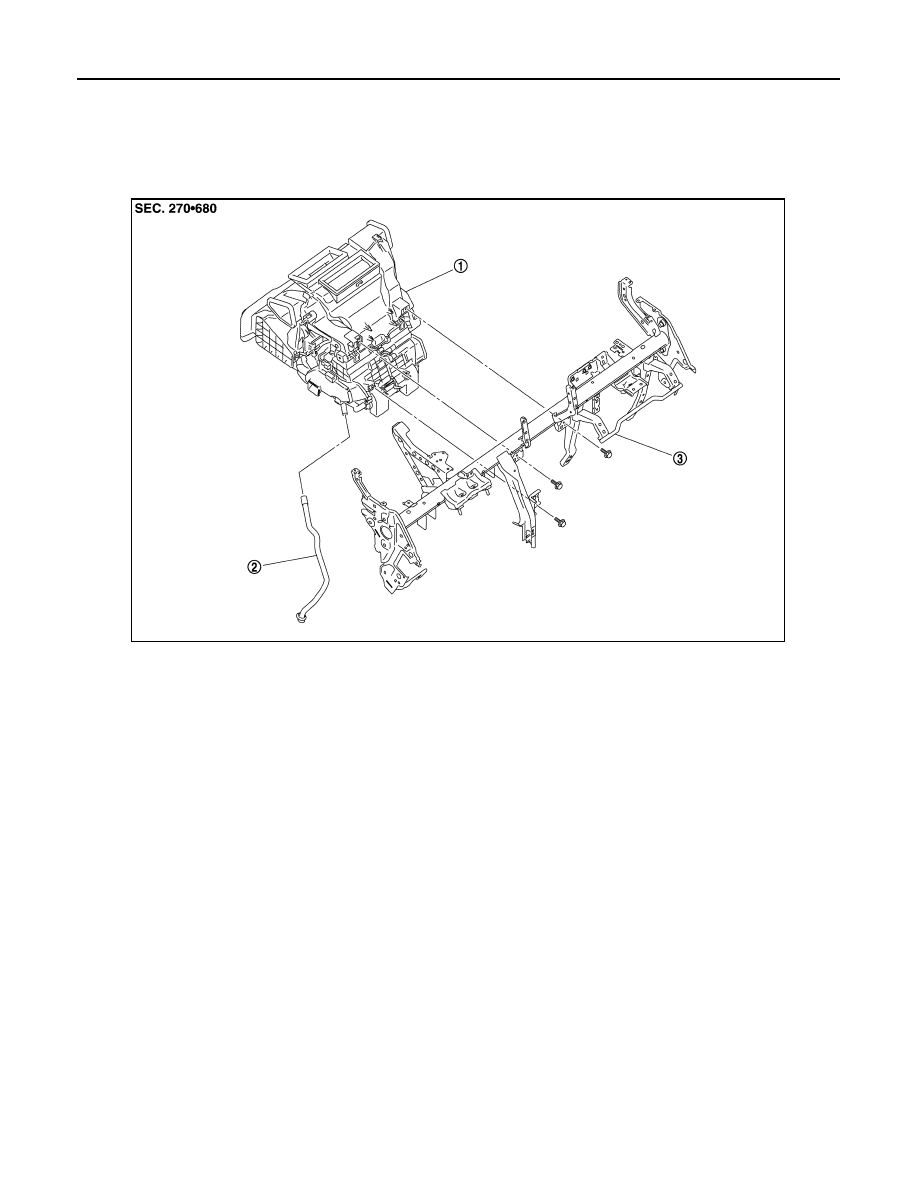

1.

A/C unit assembly

2.

Drain hose

3.

Steering member

JPIIA1694ZZ

A/C UNIT ASSEMBLY

HA-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

1.

Ventilator seal

2.

Defroster seal

3.

Upper attachment case

4.

Sub defroster door

5.

Center ventilator and defroster door  6.

Side ventilator seal LH

7.

Lower attachment case

8.

Side ventilator seal RH

9.

Sub harness

10. Power transistor

11.

Upper intake case

12. Intake door

13. Lower intake case

14.

Blower case LH

15. Blower case RH

16. Blower motor

17.

Intake seal

18. Filter cover

19. In-cabin microfilter

20.

A/C unit case RH

21. Intake sensor

22. Evaporator

23.

Plate

24. Expansion valve grommet

25. O-ring

26.

Expansion valve

27. O-ring

28. Evaporator cover

29.

Heater pipe grommet

30. Clamp

31. Heater hose

32.

Heater hose

33. Clamp

34. Heater pipe support

35.

Heater core

36. A/C unit case LH

37. Aspirator

38.

Aspirator hose

39. Foot door

40. Foot door rod

41.

Side ventilator door

42. Air mix door guide

43. Upper air mix door

44.

Lower air mix door

45. Case packing

A.

To water outlet

JPIIA1695GB

HA-44

< REMOVAL AND INSTALLATION >

A/C UNIT ASSEMBLY

Exploded View (Manual Air Conditioner)

INFOID:0000000009950361

REMOVAL

DISASSEMBLY

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

1.

A/C unit assembly

2.

Drain hose

3.

Steering member

JPIIA1694ZZ
