HA-1

VENTILATION, HEATER & AIR CONDITIONER

C

D

E

F

G

H

J

K

L

M

SECTION

HA

A

B

HA

N

O

P

CONTENTS

HEATER & AIR CONDITIONING SYSTEM

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

SYSTEM DESCRIPTION  ..............................

5

REFRIGERATION SYSTEM  ...............................

5

System Diagram ........................................................

5

System Description  ...................................................

5

Component Parts Location ........................................

6

Component Description .............................................

6

SYMPTOM DIAGNOSIS  ...............................

8

REFRIGERATION SYSTEM SYMPTOMS  ..........

8

Trouble Diagnosis For Unusual Pressure  .................

8

Symptom Table  .........................................................

8

NOISE .................................................................

10

Symptom Table  .......................................................

10

PRECAUTION ..............................................

11

PRECAUTIONS ..................................................

11

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

11

Precautions for Removing of Battery Terminal  .......

11

Precaution for Procedure without Cowl Top Cover

....

12

Precautions For Refrigerant System Service  ..........

12

PREPARATION ...........................................

16

PREPARATION ..................................................

16

Special Service Tool  ...............................................

16

Commercial Service Tool  ........................................

19

Sealant or/and Lubricant  .........................................

19

PERIODIC MAINTENANCE .........................

20

DESCRIPTION ...................................................

20

Service Equipment  ..................................................

20

REFRIGERANT .................................................

22

Description ...............................................................

22

Leak Test .................................................................

22

Recycle Refrigerant  .................................................

24

Charge Refrigerant  ..................................................

24

LUBRICANT ......................................................

26

Description ...............................................................

26

Inspection ................................................................

26

Perform Lubricant Return Operation  .......................

26

Lubricant Adjusting Procedure for Components
Replacement Except Compressor ...........................

26

Lubricant Adjusting Procedure for Compressor
Replacement ...........................................................

27

PERFORMANCE TEST  ....................................

29

Inspection ................................................................

29

REMOVAL AND INSTALLATION  ...............

31

COMPRESSOR .................................................

31

Exploded View .........................................................

31

COMPRESSOR ..........................................................

32

COMPRESSOR : Removal and Installation ............

32

MAGNET CLUTCH  ....................................................

33

MAGNET CLUTCH : Removal and Installation  .......

33

Inspection ................................................................

34

COOLER PIPE AND HOSE  ..............................

35

Exploded View .........................................................

35

HIGH-PRESSURE FLEXIBLE HOSE  ........................

35

HIGH-PRESSURE FLEXIBLE HOSE : Removal
and Installation  ........................................................

35

LOW-PRESSURE FLEXIBLE HOSE .........................

36

LOW-PRESSURE FLEXIBLE HOSE : Removal
and Installation  ........................................................

36

HIGH-PRESSURE PIPE  ............................................

37

HA-2

HIGH-PRESSURE PIPE : Removal and Installa-
tion ..........................................................................

37

CONDENSER ....................................................

39

Exploded View  ........................................................

39

CONDENSER ............................................................

39

CONDENSER : Removal and Installation  ..............

39

LIQUID TANK ............................................................

40

LIQUID TANK : Removal and Installation ...............

40

REFRIGERANT PRESSURE SENSOR ....................

41

REFRIGERANT PRESSURE SENSOR : Remov-
al and Installation ....................................................

41

A/C UNIT ASSEMBLY .......................................

42

Exploded View (Automatic Air Conditioner) ............

42

Exploded View (Manual Air Conditioner)  ................

44

A/C UNIT ASSEMBLY  ..............................................

46

A/C UNIT ASSEMBLY : Removal and Installation ...

46

EVAPORATOR ..........................................................

48

EVAPORATOR : Removal and Installation .............

48

HEATER CORE  .........................................................

48

HEATER CORE : Removal and Installation ............

48

EXPANSION VALVE  .........................................

49

Exploded View  ........................................................

49

Removal and Installation .........................................

49

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

51

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

51

Compressor ............................................................

51

Lubricant .................................................................

51

Refrigerant ..............................................................

51

Engine Idling Speed ................................................

51

Belt Tension  ............................................................

51

DIAGNOSIS AND REPAIR WORKFLOW

HA-3

< BASIC INSPECTION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009950322

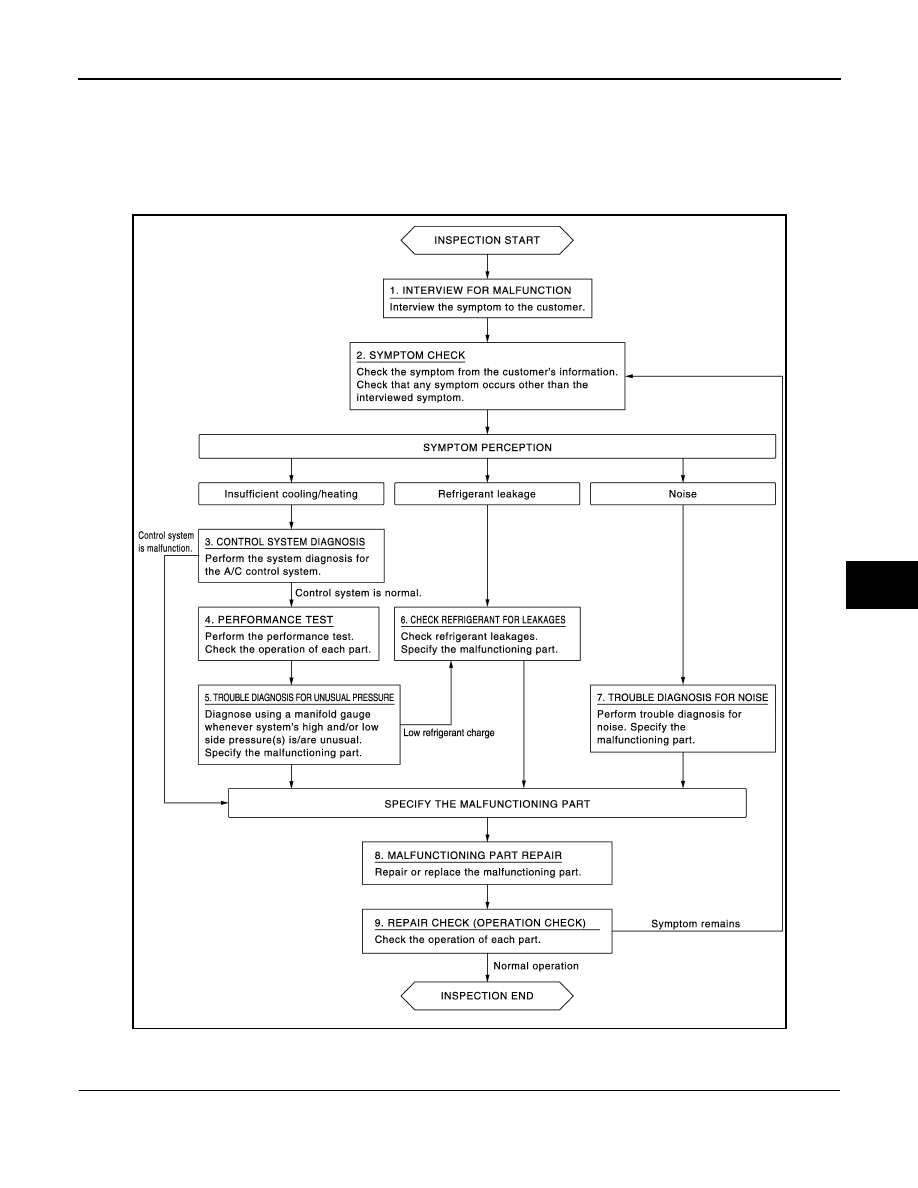

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Interview the symptom to the customer.

NNIIA0143GB

HA-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

>> GO TO 2.

2.

SYMPTOM CHECK

Check the symptom from the customer's information. Check that any symptom occurs other than the inter-
viewed symptom.

Insufficient cooling/heating>>GO TO 3.
Refrigerant leakage>>GO TO 6.
Noise >> GO TO 7.

3.

CONTROL SYSTEM DIAGNOSIS

Perform the system diagnosis for the A/C control system. Refer to

HAC-5, "Work Flow"

 (AUTOMATIC AIR

CONDITIONER) or

HAC-133, "Work Flow"

 (MANUAL AIR CONDITIONER).

Is A/C control system normal?

YES

>> GO TO 4.

NO

>> GO TO 8.

4.

PERFORMANCE TEST

Perform the performance test. Check the operation of each part. Refer to

HA-29, "Inspection"

.

>> GO TO 5.

5.

TROUBLE DIAGNOSIS FOR UNUSUAL PRESSURE

Diagnose using a manifold gauge whenever system's high and/or low side pressure(s) is/are unusual. Specify
the malfunctioning part. Refer to

HA-8, "Symptom Table"

.

Low refrigerant charge>>GO TO 6.
Except above>>GO TO 8.

6.

CHECK REFRIGERANT FOR LEAKAGES

Check refrigerant for leakages. Specify the malfunctioning part. Refer to

HA-22, "Leak Test"

.

>> GO TO 8.

7.

TROUBLE DIAGNOSIS FOR NOISE

Perform trouble diagnosis for noise. Specify the malfunctioning part. Refer to

HA-10, "Symptom Table"

.

>> GO TO 8.

8.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 9.

9.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.

Does it operate normally?

YES

>> INSPECTION END

NO

>> GO TO 2.
