switch and wait at least 30 seconds.
NOTE:

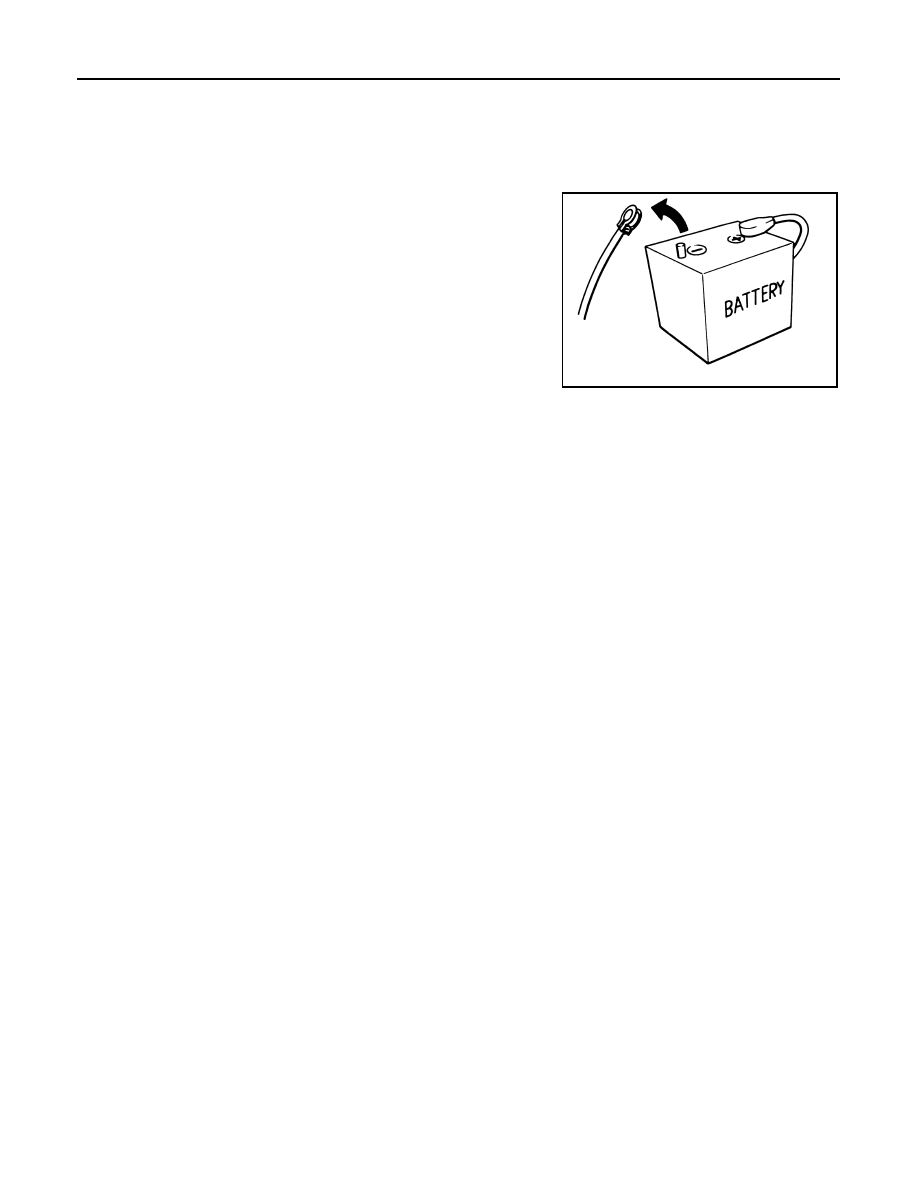

ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

• For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

Removal and Installation

INFOID:0000000009948773

CAUTION:

• Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat

resistance, corrosion resistance, and shape.

• Perform the operation with the exhaust system fully cooled down because the system will be hot

just after engine stops.

• Be careful not to cut your hand on the heat insulator edge.

SEF289H

PREPARATION

EX-3

< PREPARATION >

PREPARATION

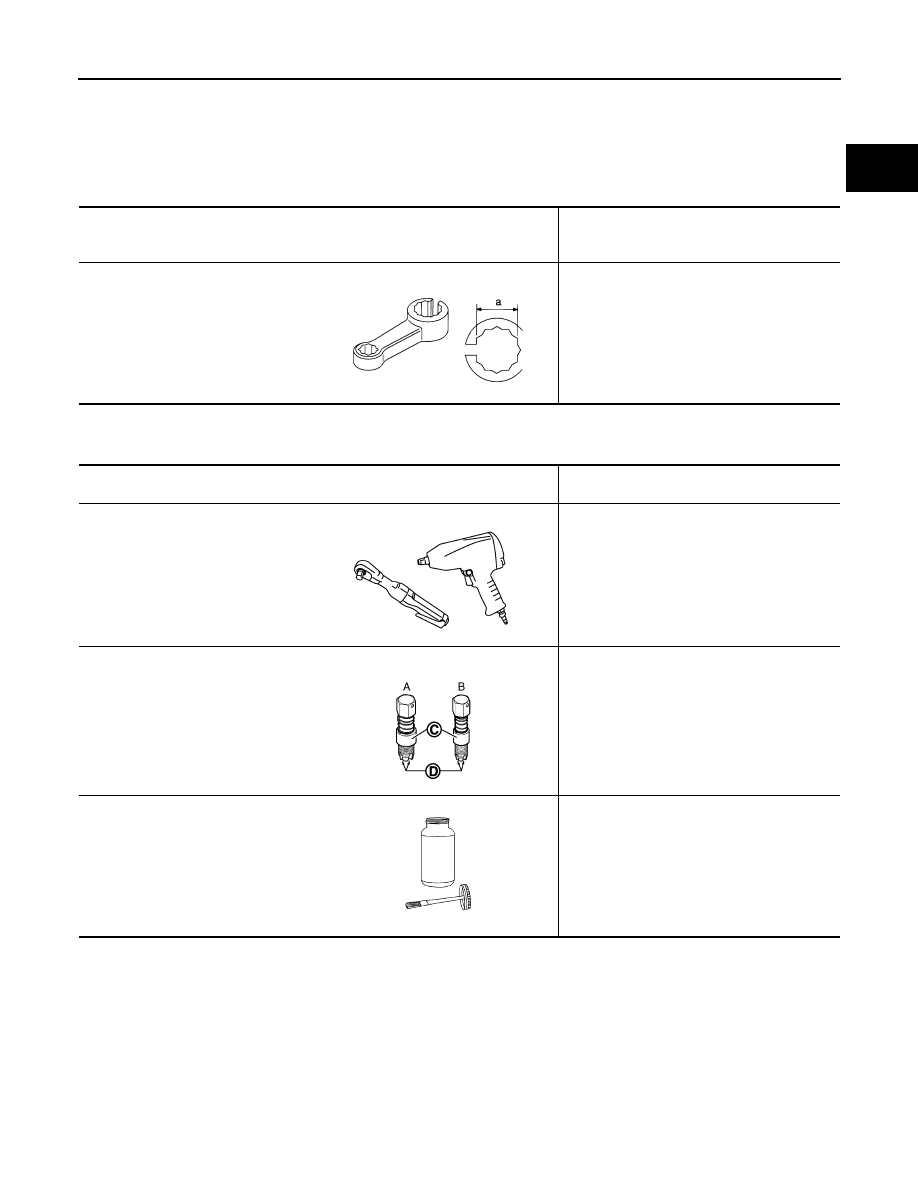

Special Service Tools

INFOID:0000000009948774

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009948775

Tool number
(Kent-Moore No.)
Tool name

Description

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 2
a: For 22 mm (0.87 in) width hexagon nut

S-NT636

(Kent-Moore No.)
Tool name

Description

(

—

)

Power tool

Loosening nuts and bolts

A: (J-43897-18)
B: (J-43897-12)
Heated oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below.)
A: J-43897-18 [18 mm (0.71 in) dia.] for zir-
conia heated oxygen sensor
B: J-43897-12 [12 mm (0.47 in) dia.] for tita-
nia heated oxygen sensor
C: Mating surface shave cylinder
D: Flutes

(

—

)

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating heated oxygen sensor thread
cleaner when reconditioning exhaust system
threads

PBIC0190E

JPBIA0238ZZ

AEM489

EX-4

< PERIODIC MAINTENANCE >

EXHAUST SYSTEM

PERIODIC MAINTENANCE

EXHAUST SYSTEM

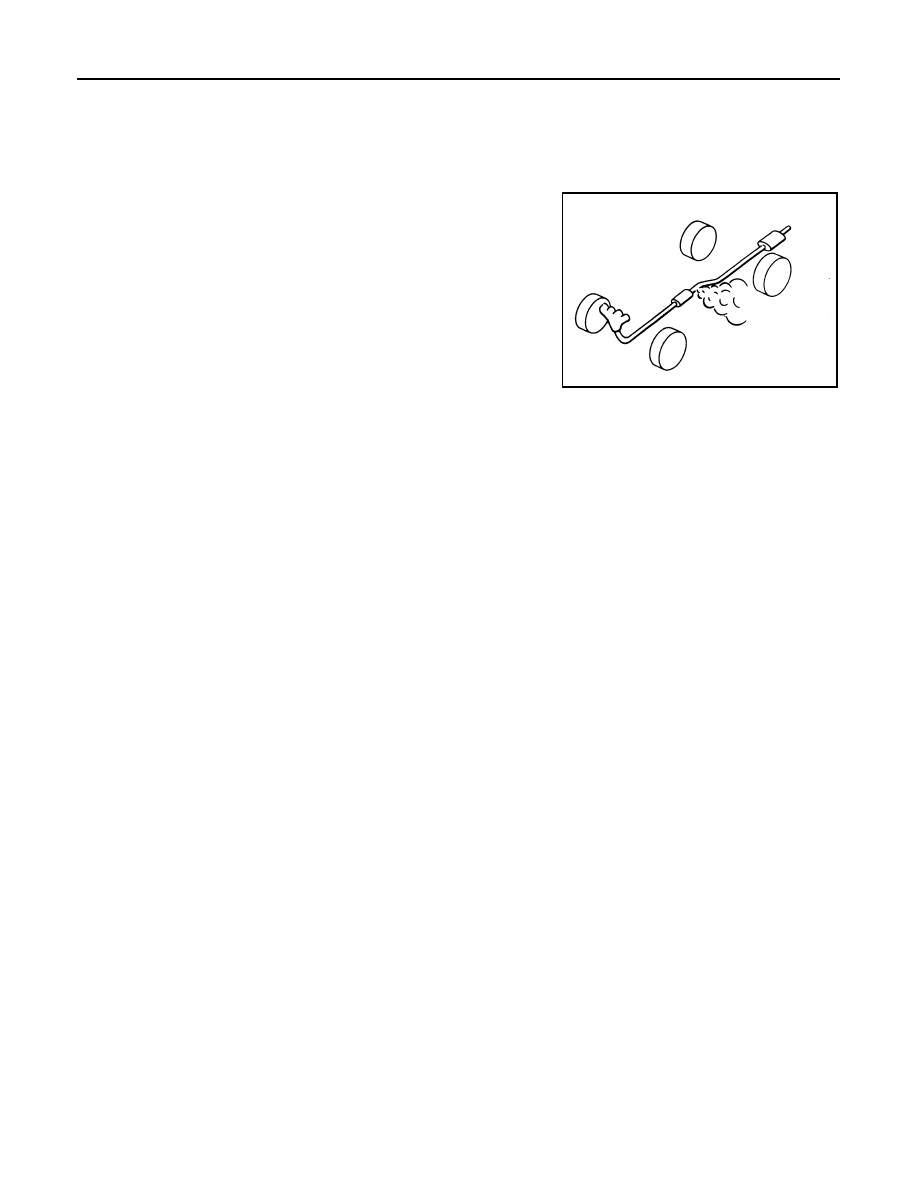

Inspection

INFOID:0000000009948776

Check exhaust pipes, muffler, and mounting for improper attach-
ment, leakage, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

SMA211A
