OIL PAN (LOWER)

OIL PAN (LOWER)

Exploded View

INFOID:0000000009944937

Removal and Installation

INFOID:0000000009944938

REMOVAL

1.

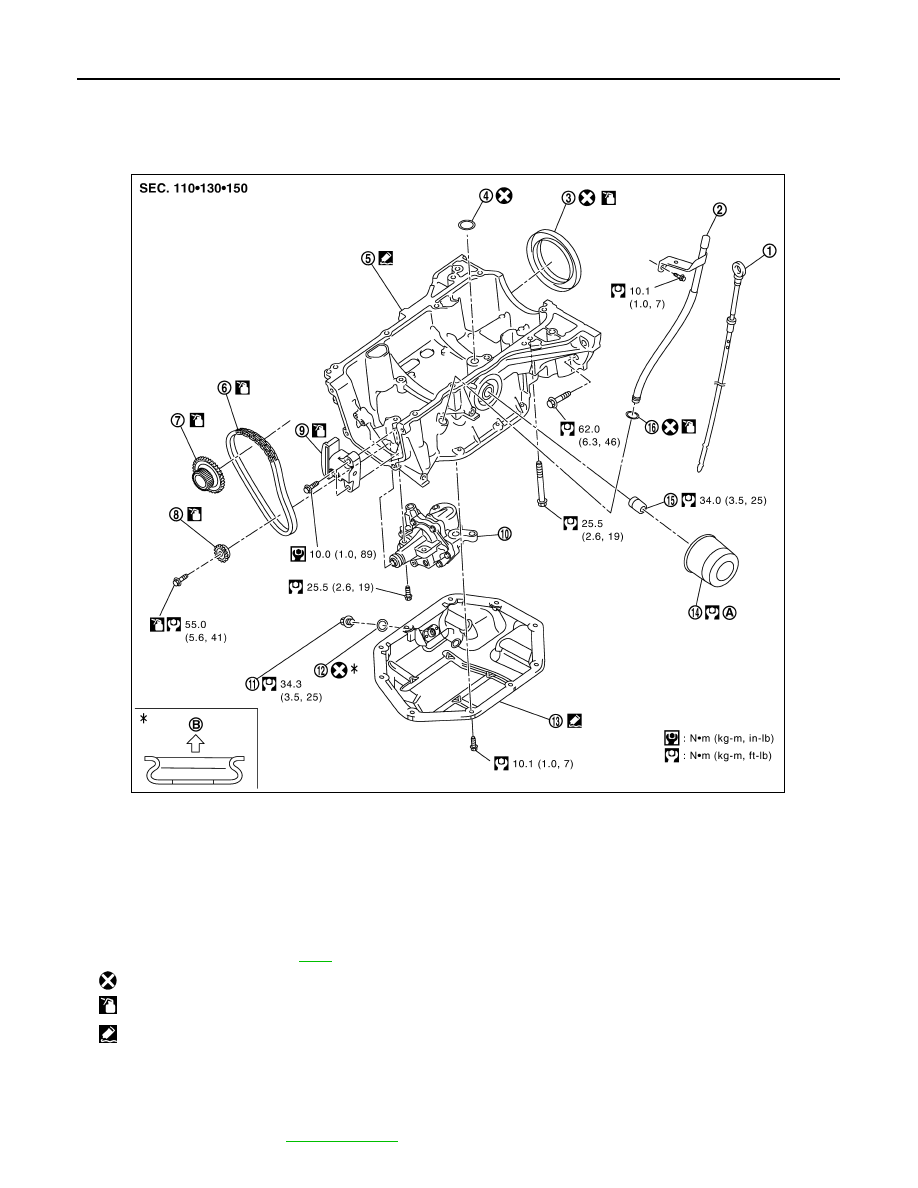

Drain engine oil. Refer to

LU-9, "Draining"

.

1.

Oil level gauge

2.

Oil level gauge guide

3.

Rear oil seal

4.

O-ring

5.

Oil pan (upper)

6.

Oil pump drive chain

7.

Crankshaft sprocket

8.

Oil pump sprocket

9.

Oil pump chain tensioner

10. Oil pump

11.

Drain plug

12. Drain plug washer

13. Oil pan (lower)

14. Oil filter

15. Connector bolt

16. O-ring

A.

Comply with the assembly proce-
dure when tightening. Refer to

LU-11

B.

Oil pan side

: Always replace after every disassembly.

: Should be lubricated with oil.

: Sealing point

PBIC4463J

OIL PAN (LOWER)

EM-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

2.

Remove oil pan (lower) with the following procedure:

a.

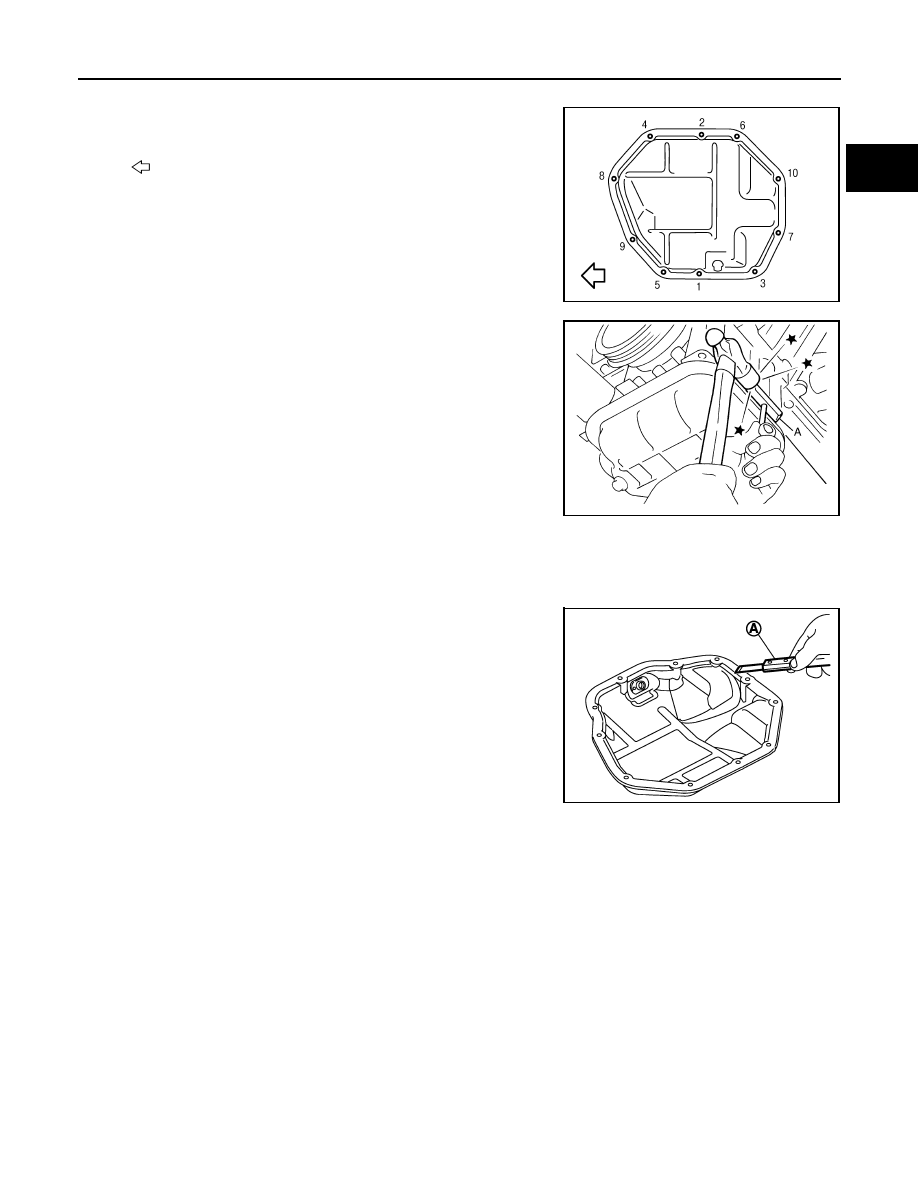

Loosen mounting bolts in the order of 10 to 1 as shown in the
figure.

b.

Insert seal cutter [SST: KV10111100 (J-37228)] (A) between oil
pan (upper) and oil pan (lower).

CAUTION:

• Be careful not to damage the mating surface.
• Never insert a screwdriver. This damages the mating sur-

faces.

c.

Slide the seal cutter [SST: KV10111100 (J-37228)] by tapping on
the side of tool with a hammer.

d.

Remove oil pan (lower).

INSTALLATION

CAUTION:

Do not reuse drain plug washer.

1.

Install oil pan (lower) as follows:

a.

Use a scraper (A) to remove old liquid gasket from mating sur-
faces.
• Also remove old liquid gasket from mating surface of oil pan

(upper).

• Remove old liquid gasket from the bolt holes and threads.

CAUTION:

Never scratch or damage the mating surface when cleaning
off old liquid gasket.

: Engine front

PBIC3146J

JPBIA0276ZZ

PBIC3953E

EM-34

< REMOVAL AND INSTALLATION >

OIL PAN (LOWER)

b.

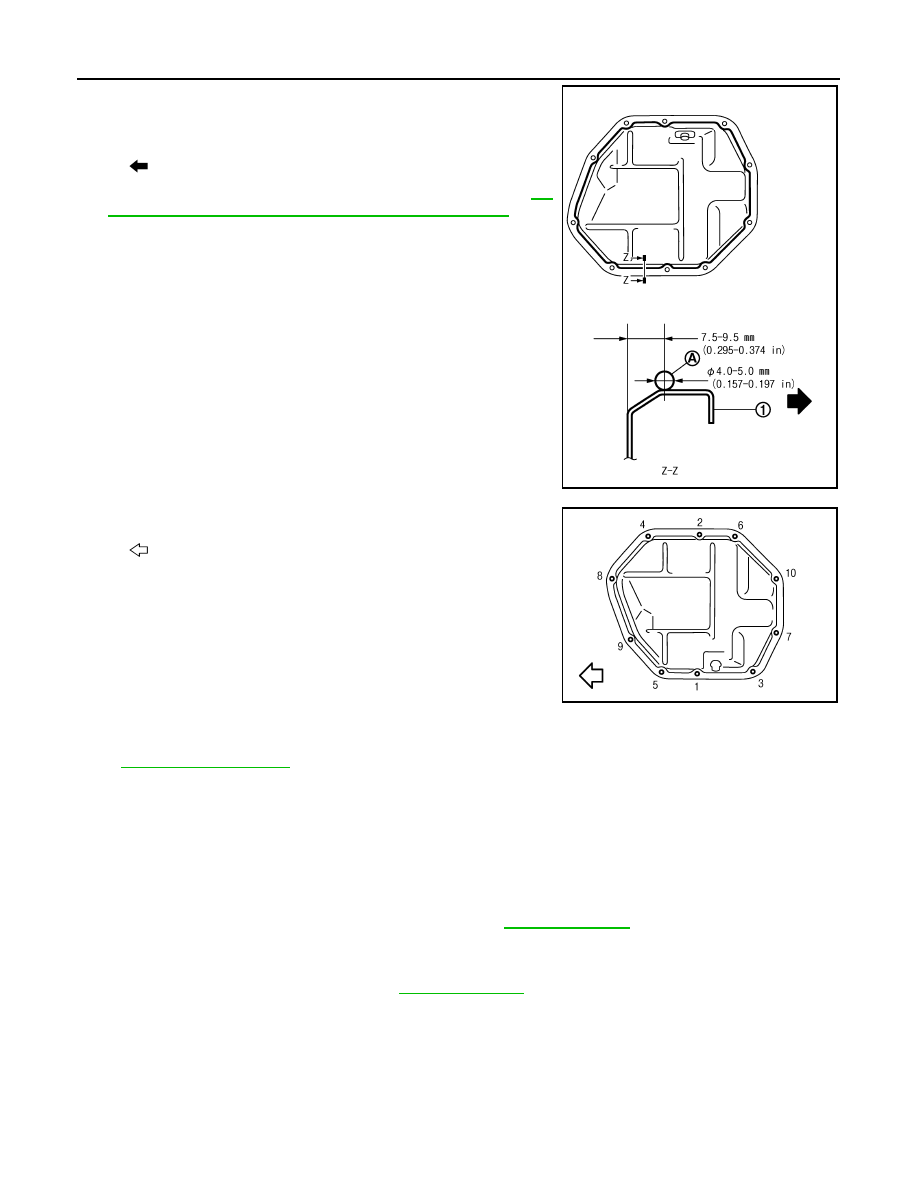

Apply a continuous bead of liquid gasket (A) with a tube presser
(commercial service tool) as shown in the figure.

Use Genuine RTV Silicon Sealant or equivalent. Refer to

GI-

22, "Recommended Chemical Products and Sealants"

.

CAUTION:

Attaching should be done within 5 minutes after liquid gas-
ket application.

c.

Tighten bolts in the order of 1 to 10 as shown in the figure.

2.

Install oil pan drain plug.
• Refer to the figure of components of former page for installation direction of drain plug washer. Refer to

EM-32, "Exploded View"

.

3.

Install in the reverse order of removal after this step.

Inspection

INFOID:0000000009944939

INSPECTION AFTER REMOVAL

Clean oil strainer if any object attached.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level and adjust engine oil. Refer to

LU-8, "Inspection"

.

2.

Start engine, and check there is no leakage of engine oil.

3.

Stop engine and wait for 10 minutes.

4.

Check the engine oil level again. Refer to

LU-8, "Inspection"

.

1

: Oil pan (lower)

: Engine outside

PBIC4590E

: Engine front

PBIC3146J

FUEL INJECTOR AND FUEL TUBE

EM-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

FUEL INJECTOR AND FUEL TUBE

Exploded View

INFOID:0000000009944940

CAUTION:

Never remove or disassemble parts unless instructed as shown in the figure.

Removal and Installation

INFOID:0000000009944941

WARNING:

• Put a “CAUTION: FLAMMABLE” sign in the workshop.
• Be sure to work in a well ventilated area and furnish workshop with a CO

2

 fire extinguisher.

• Never smoke while servicing fuel system. Keep open flames and sparks away from the work area.

REMOVAL

1.

Release the fuel pressure. Refer to

EC-478, "Inspection"

.

2.

Remove intake manifold. Refer to

EM-26, "Exploded View"

.

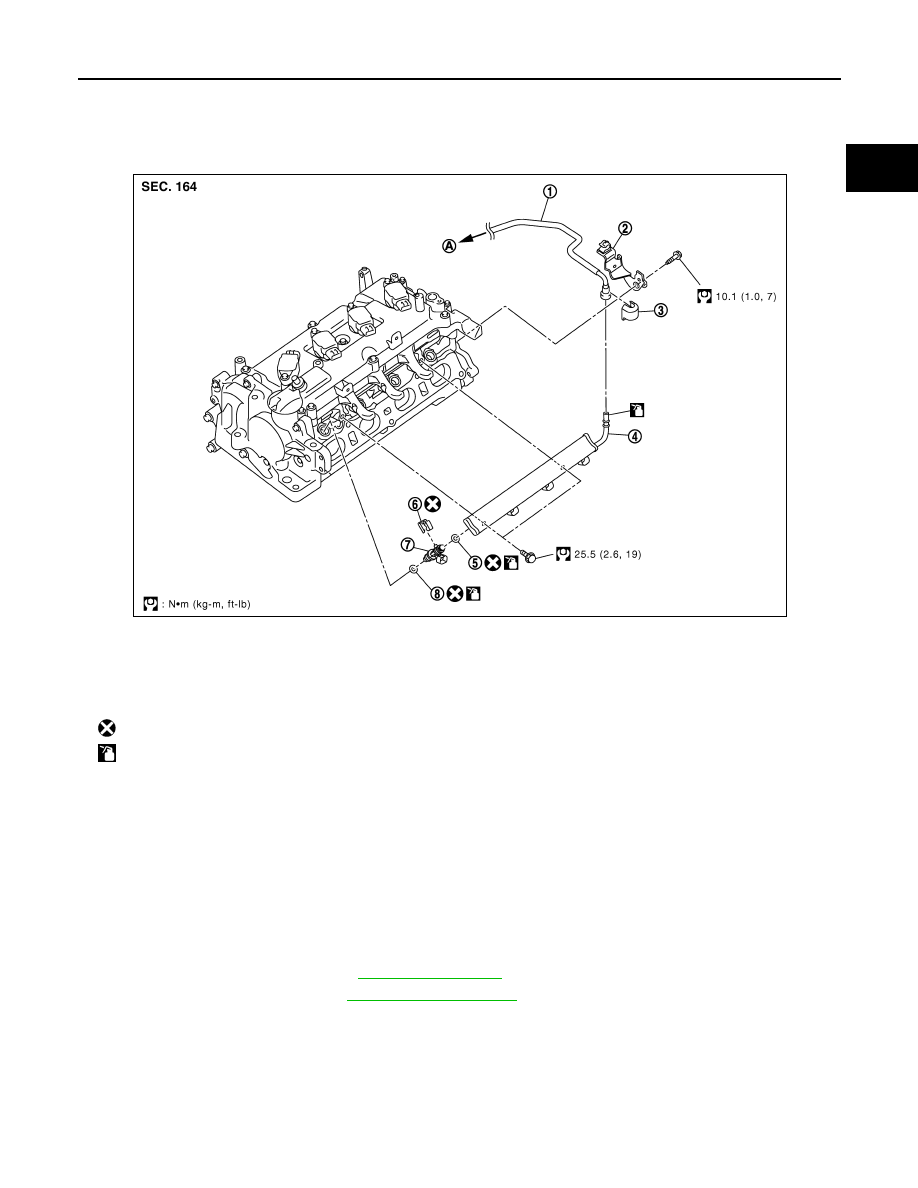

1.

Fuel feed tube

2.

Bracket

3.

Quick connector cap

4.

Fuel tube

5.

O-ring (black)

6.

Clip

7.

Injector

8.

O-ring (green)

A.

To centralized under-floor piping

: Always replace after every disassembly.

: Should be lubricated with oil.

PBIC3537J
