EM-8

< PRECAUTION >

PRECAUTIONS

• After 30 minutes or more have passed from the installation, fill engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe them.

PREPARATION

EM-9

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

PREPARATION

PREPARATION

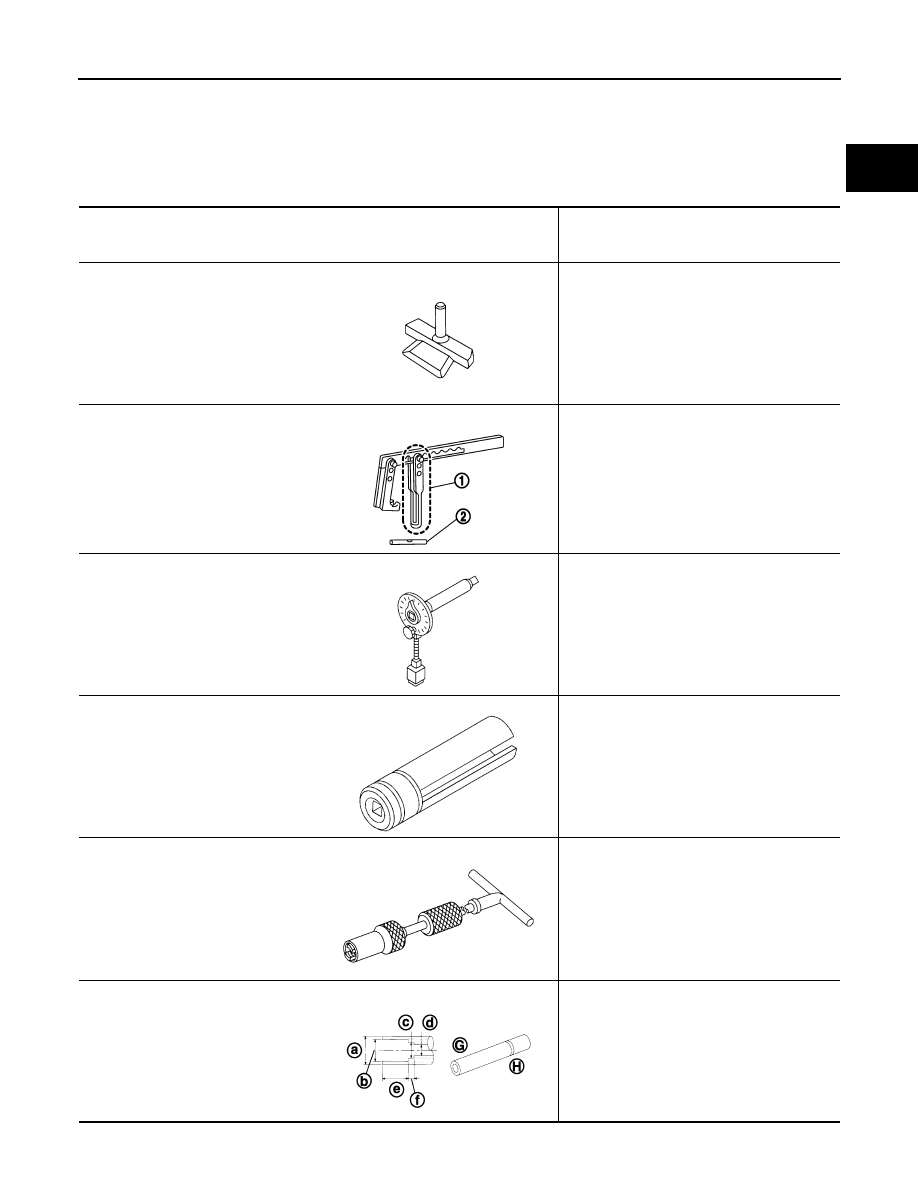

Special Service Tools

INFOID:0000000009944913

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV10111100
(J-37228)
Seal cutter

Removing oil pan (upper and lower) etc.

KV10116200
(J-26336-A)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2. KV10109220
(

—

)

Adapter

Disassembling and assembling valve mecha-
nism
Part (1) is a component of KV10116200 (J-
26336-A), but Part (2) is not so.

KV10112100
(BT8653-A)
Angle wrench

Tightening bolts for main bearing cap, cylinder
head, etc.

KV10117100
(J-3647-A)
Heated oxygen sensor wrench

Loosening or tightening air fuel ratio sensor 1
For 22 mm (0.87 in) width hexagon nut

KV10107902
(J-38959)
Valve oil seal puller

Removing valve oil seal

KV10115600
(J-38958)
Valve oil seal drift

Installing valve oil seal
Use side A (G).
a: 20 (0.79) dia.             d: 8 (0.31) dia.
b: 13 (0.51) dia.             e: 10.7 (0.421)
c: 10.3 (0.406) dia.         f: 5 (0.20)
H: Side B
                                                   Unit: mm (in)

S-NT046

PBIC1650E

S-NT014

NT379

NT011

JPBIA0396ZZ

EM-10

< PREPARATION >

PREPARATION

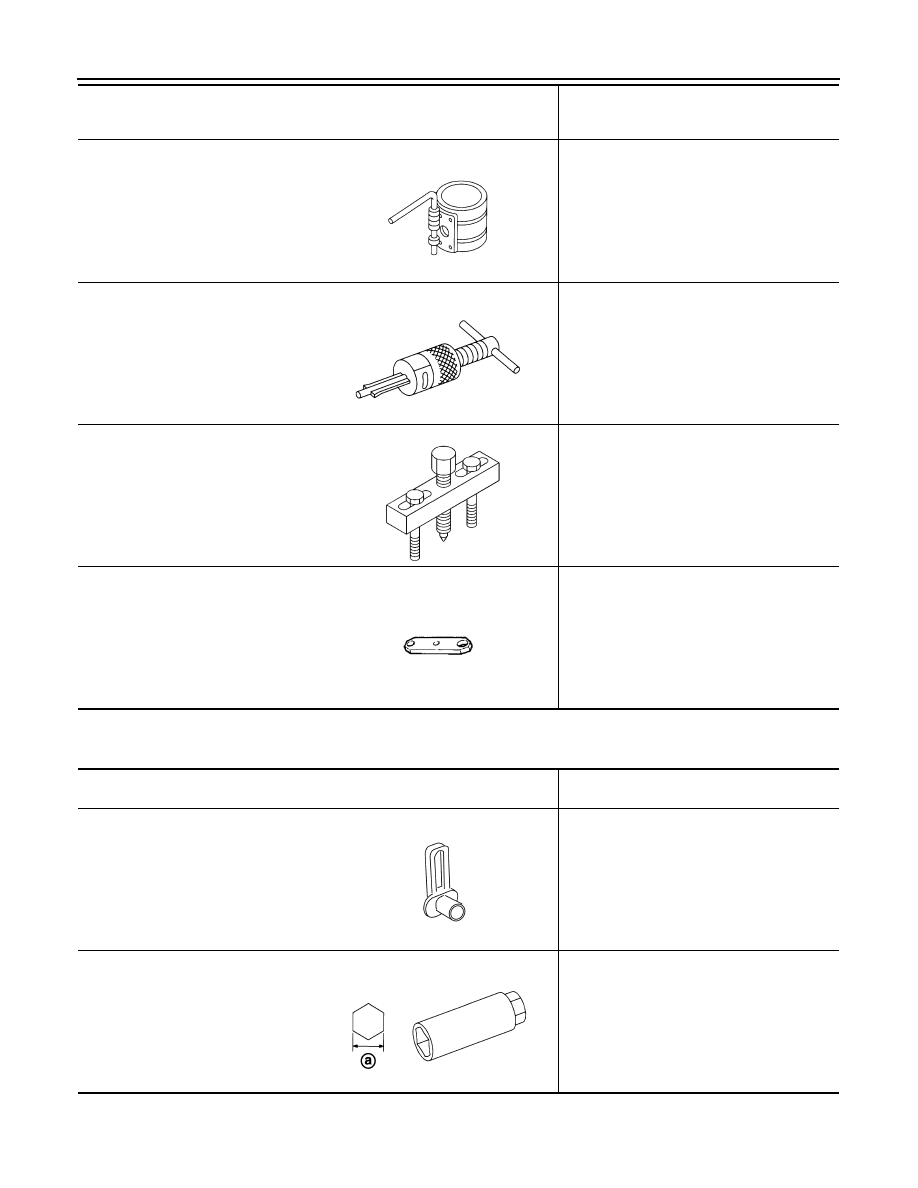

Commercial Service Tools

INFOID:0000000009944914

EM03470000
(J-8037)
Piston ring compressor

Installing piston assembly into cylinder bore

ST16610001
(J-23907)
Pilot bushing puller

Removing pilot converter

KV11103000
(

—

)

Pulley puller

Removing crankshaft pulley

KV11105210
(J-44716)
Stopper plate

Fixing drive plate

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT044

S-NT045

NT676

ZZA0009D

(Kent-Moore No.)
Tool name

Description

(J-45488)
Quick connector release

Removing fuel tube quick connectors in en-
gine room

(

—

)

Spark plug wrench

Removing and installing spark plug
a: 14 mm (0.55 in)

PBIC0198E

JPBIA0399ZZ

PREPARATION

EM-11

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

(

—

)

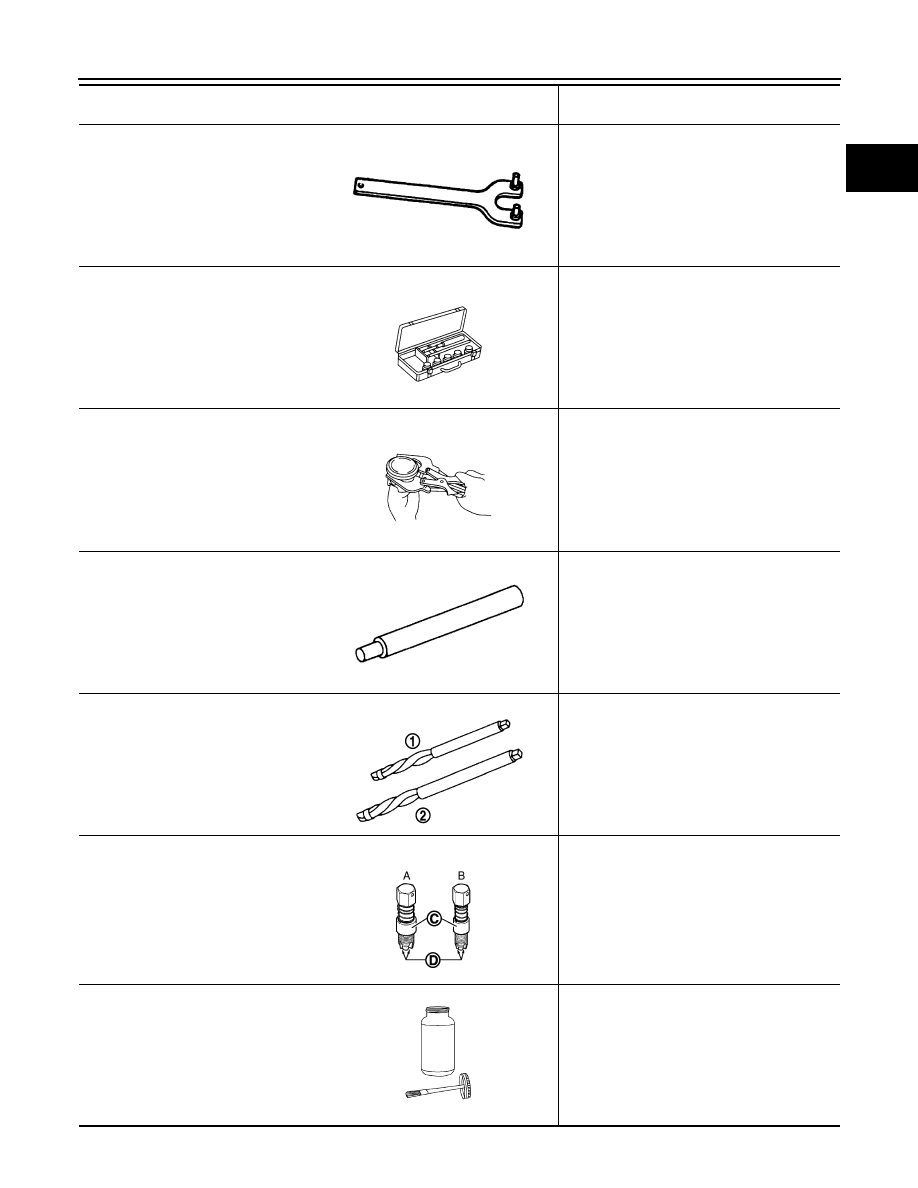

Pulley holder

Crankshaft pulley removing and installing

(

—

)

Valve seat cutter set

Finishing valve seat dimensions

(

—

)

Piston ring expander

Removing and installing piston ring

(

—

)

Valve guide drift

Removing and installing valve guide

(

—

)

Valve guide reamer

1: Reaming valve guide inner hole
2: Reaming hole for oversize valve guide

(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new air fuel ratio sensor
(Use with anti-seize lubricant shown below.)
A: J-43897-18 [18 mm (0.71 in) dia.] for zir-
conia heated oxygen sensor
B: J-43897-12 [12 mm (0.47 in) dia.] for tita-
nia heated oxygen sensor
C: Mating surface shave cylinder
D: Flutes

(

—

)

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

(Kent-Moore No.)
Tool name

Description

ZZA1010D

S-NT048

S-NT030

PBIC4012E

PBIC4013E

JPBIA0238ZZ

AEM489
