EVAPORATIVE EMISSION SYSTEM

Component Parts Location

INFOID:0000000009947221

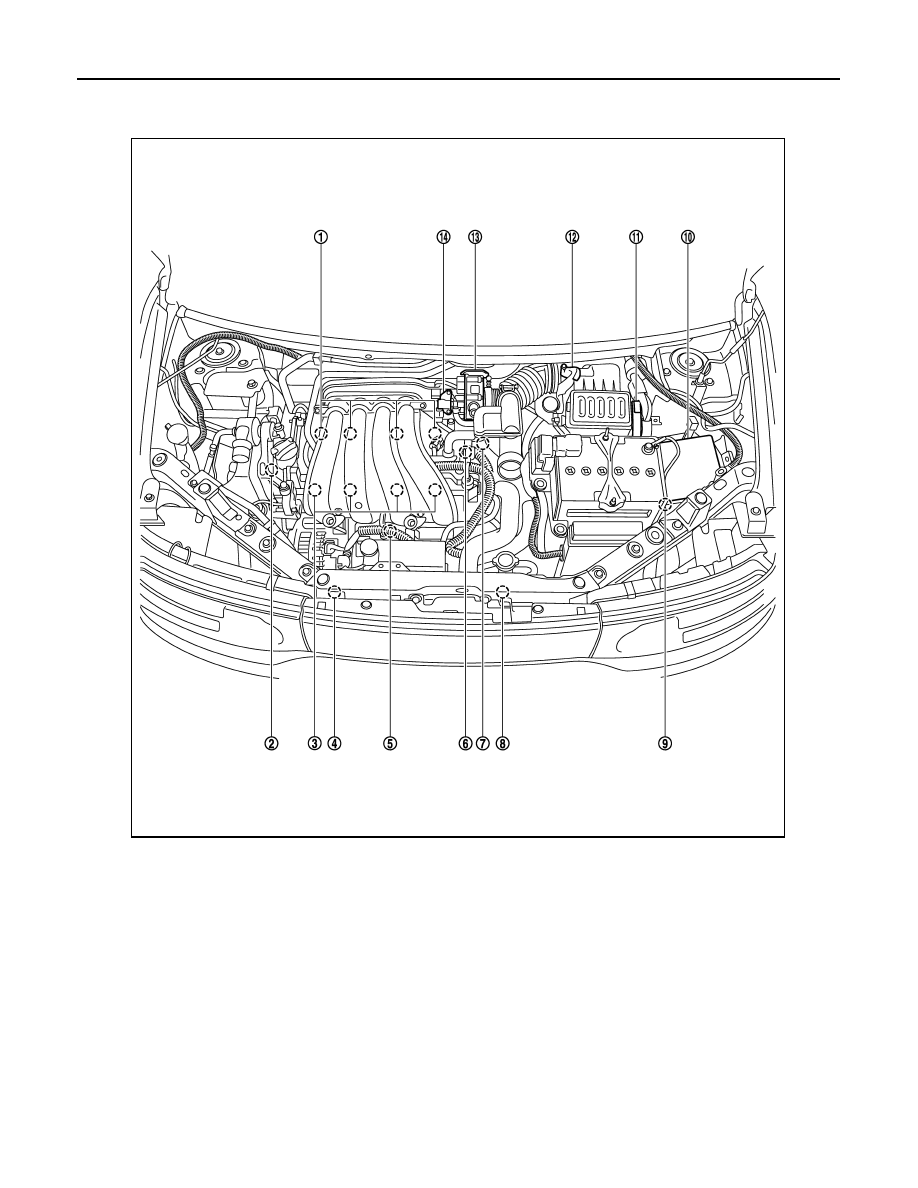

1.

Ignition coil (with power transistor)
and spark plug

2.

Intake valve timing control solenoid
valve

3.

Fuel injector

4.

Refrigerant pressure sensor

5.

Knock sensor

6.

Camshaft position sensor (PHASE)

7.

Engine coolant temperature sensor

8.

Cooling fan motor

9.

Battery current sensor

10. IPDM E/R

11.

ECM

12. Mass air flow sensor (with intake air

temperature sensor)

13. Electric throttle control actuator

(with built in throttle position sensor
and throttle control motor)

14. EVAP canister purge volume control

solenoid valve

JMBIA2296ZZ

EVAPORATIVE EMISSION SYSTEM

EC-87

< SYSTEM DESCRIPTION >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

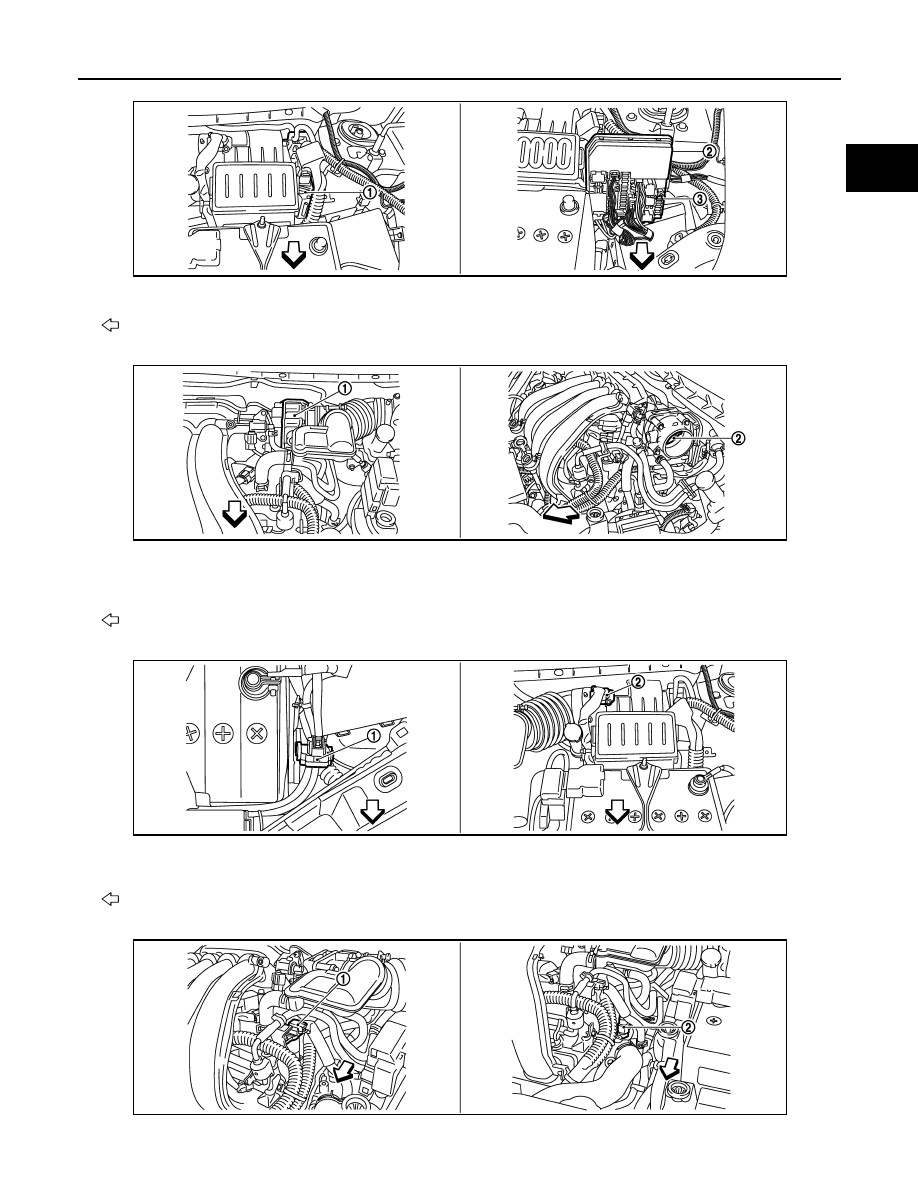

1.

ECM

2.

IPDM E/R

3.

Fuel pump fuse (15 A)

Vehicle front

1.

Electric throttle control actuator
(with built-in position sensor, throttle
control motor)

2.

Throttle valve

Vehicle front

1.

Battery current sensor

2.

Mass air flow sensor
(with Intake air temperature sensor)

Vehicle front

JMBIA2297ZZ

JMBIA2298ZZ

JMBIA2299ZZ

JMBIA2300ZZ

EC-88

< SYSTEM DESCRIPTION >

[MR18DE]

EVAPORATIVE EMISSION SYSTEM

1.

Camshaft position sensor (PHASE)

2.

Engine coolant temperature sensor

Vehicle front

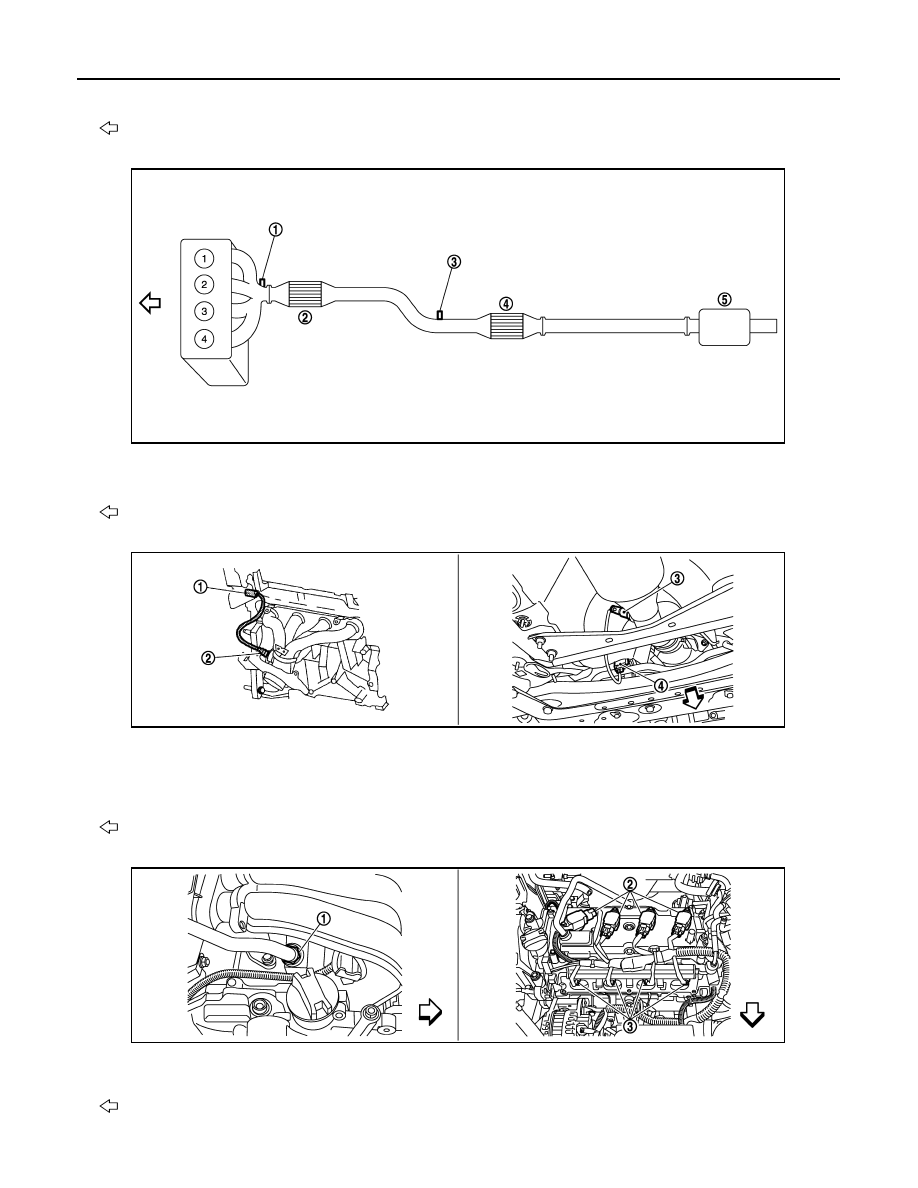

1.

Air fuel ratio (A/F) sensor 1

2.

Three way catalyst (Manifold)

3.

Heated oxygen sensor 2

4.

Three way catalyst (under floor)

5.

Muffler

Vehicle front

1.

Air fuel ratio (A/F) sensor 1 harness
connector

2.

Air fuel ratio (A/F) sensor 1

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

Vehicle front

1.

PCV valve

2.

Ignition coil (with power transistor)
and spark plug

3.

Fuel injector

Vehicle front

JMBIA2192ZZ

JMBIA2301ZZ

JMBIA2302ZZ

EVAPORATIVE EMISSION SYSTEM

EC-89

< SYSTEM DESCRIPTION >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

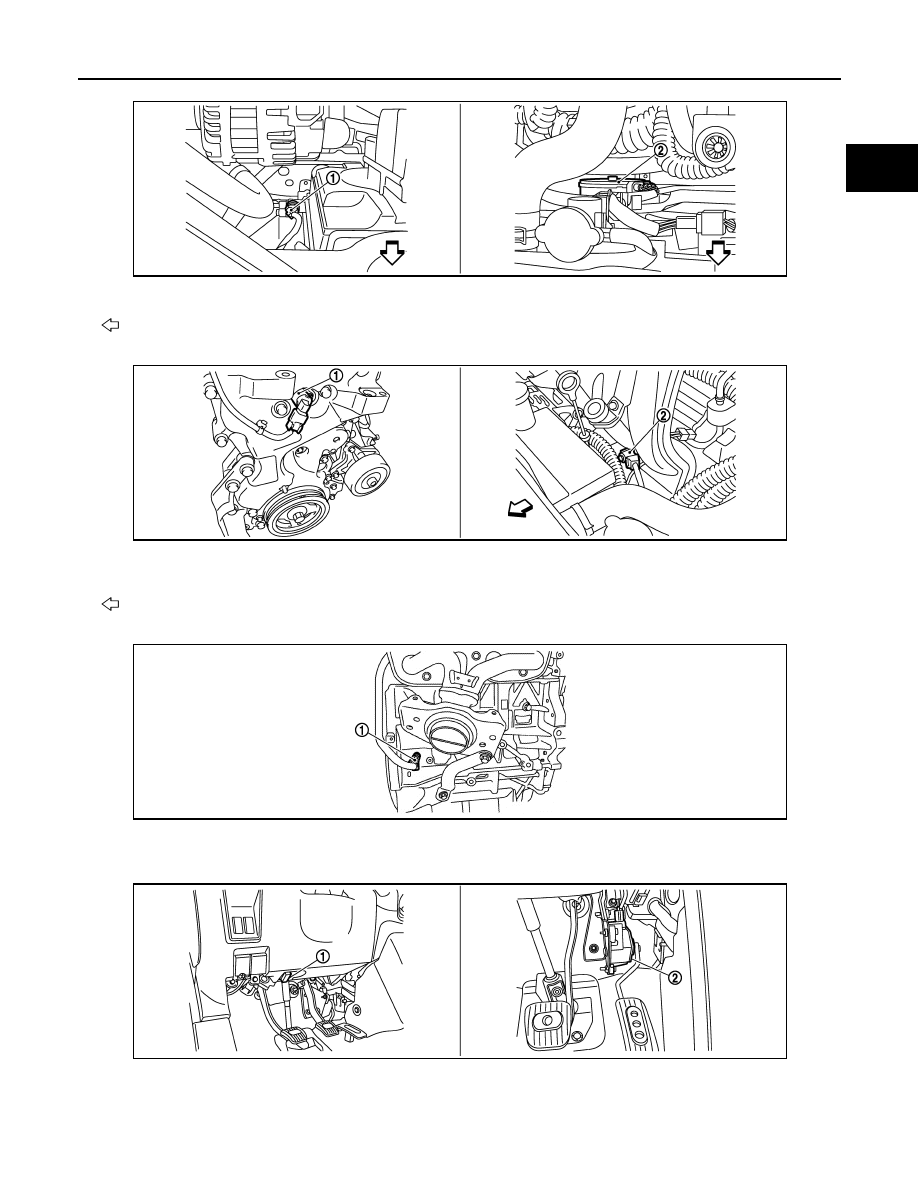

1.

Refrigerant pressure sensor

2.

Cooling fan motor

Vehicle front

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

Vehicle front

1.

Crankshaft position sensor (POS)

1.

Data link connector

2.

Accelerator pedal position sensor

JMBIA2303ZZ

JMBIA2304ZZ

JMBIA2305ZZ

JMBIA2306ZZ
