DLK-374

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR LOCK

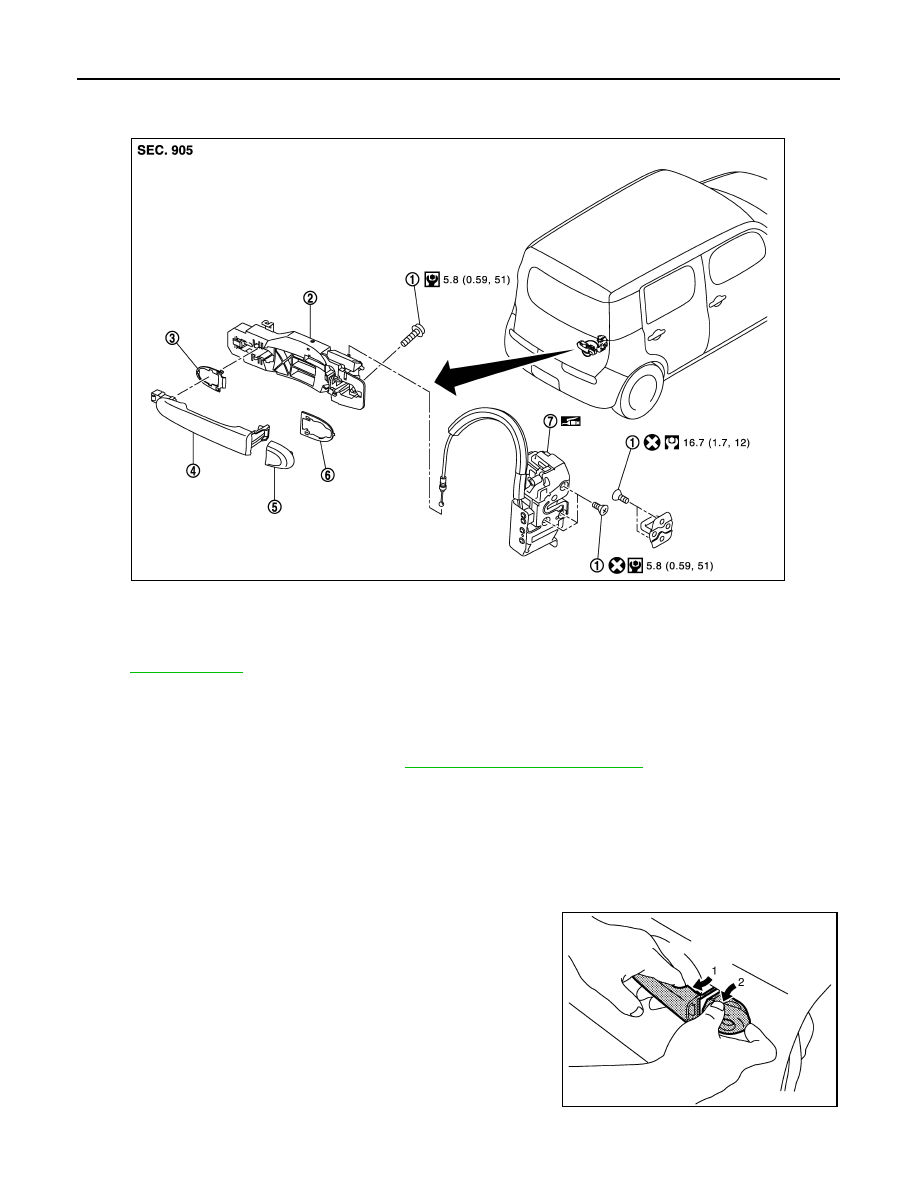

OUTSIDE HANDLE : Exploded View

INFOID:0000000009950832

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009950833

REMOVAL

1.

Remove back door finisher lower. Refer to

INT-27, "Removal and Installation"

.

2.

Remove sealing screeen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

3.

Disconnect back door antenna and back door request switch connector and remove harness clamp (with
intelligent key system) on outside handle bracket.

4.

Remove mounting bolt of outside handle bracket.

5.

While pulling outside handle, remove outside habdle escutch-
eon.

JMKIA3962GB

1.

TORX bolt

2.

Outside handle bracket

3.

Rear gasket

4.

Outside handle

5.

Outside handle escutcheon

6.

Front gasket

7.

Back door lock assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0560ZZ

BACK DOOR LOCK

DLK-375

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

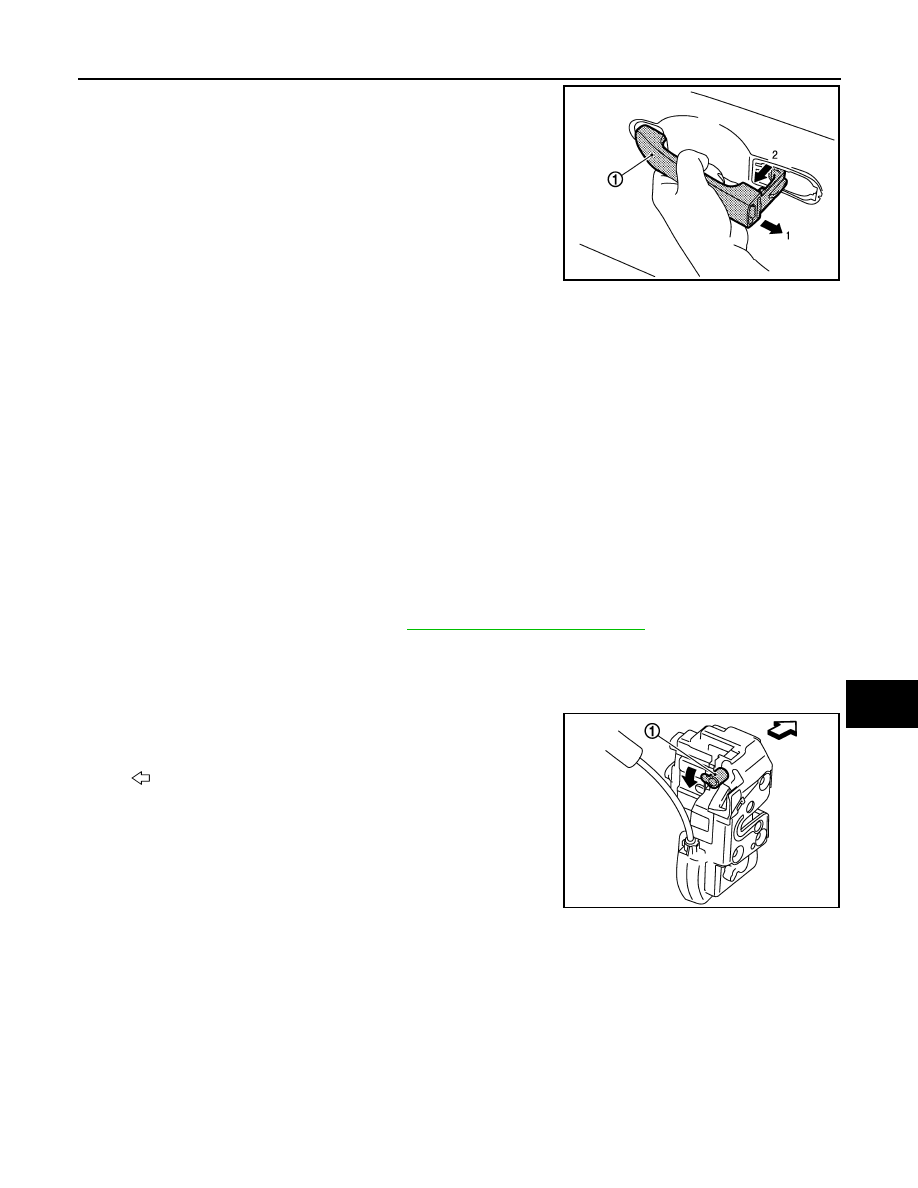

6.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

7.

Remove front gasket and rear gasket.

8.

While pulling outside handle bracket, slide toward rear of vehicle to remove outside handle bracket.

9.

Reach in to separate outside handle cable connection on outside handle bracket.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check back door open/close operation after installation.
• Check door lock cable is properly engaged with outside handle bracket.

EMERGENCY LEVER

EMERGENCY LEVER : Unlock procedures

INFOID:0000000009950834

UNLOCK PROCEDURES

NOTE:
If back door lock cannot be unlocked due to a malfunction or battery discharge, follow the procedures to
unlock back door.
1.

Remove back door finisher lower. Refer to

INT-27, "Removal and Installation"

.

2.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

3.

From inside the vehicle, rotate emergency lever (1) toward lower
direction and unlock.

JMKIA0524ZZ

: Vehicle front

JMKIA3964ZZ

DLK-376

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

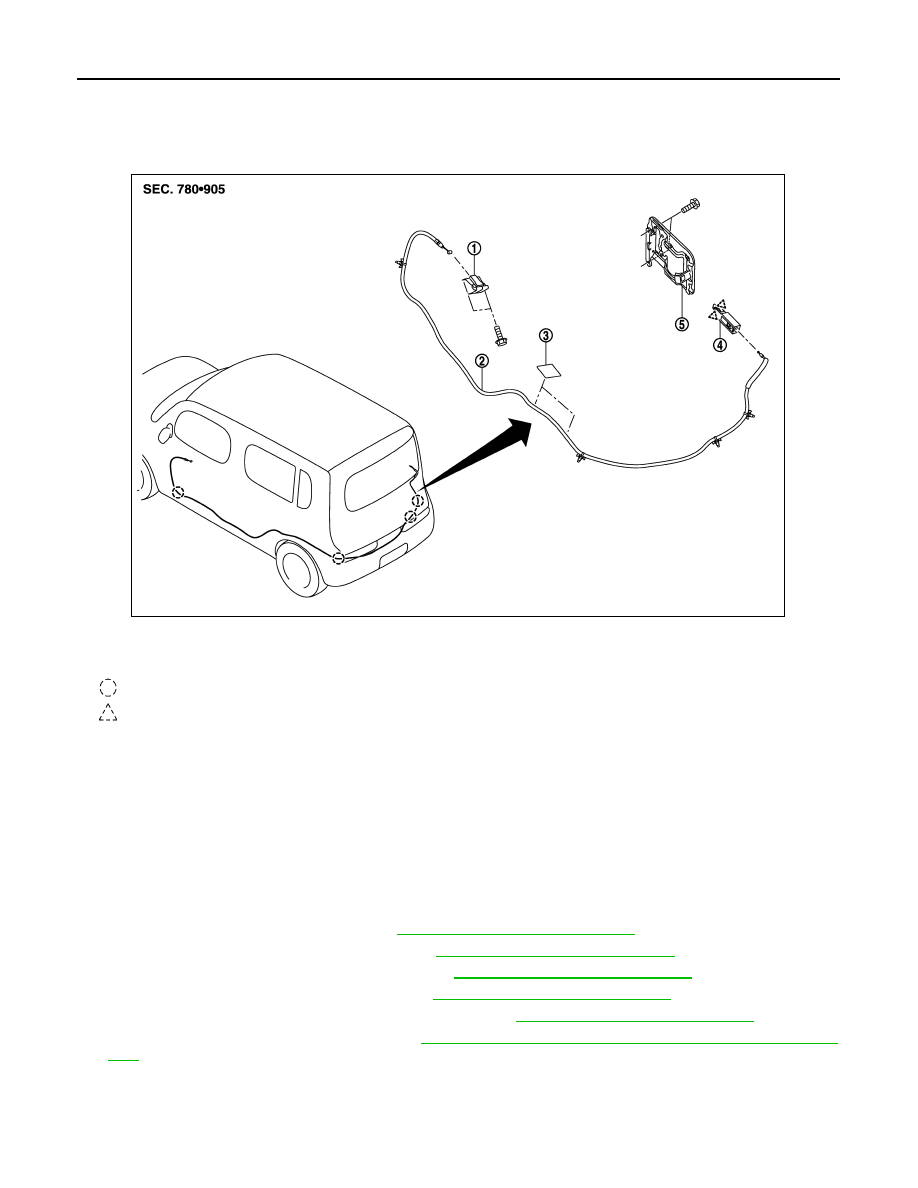

Exploded View

INFOID:0000000009950835

Removal and Installation

INFOID:0000000009950836

REMOVAL

FUEL FILLER LID

1.

Fully open fuel filler lid.

2.

Remove mounting screws, and then remove fuel filler lid.

FUEL FILLER LID OPENER CABLE

1.

Fully open fuel filler lid.

2.

Remove dash side finisher (LH). Refer to

INT-16, "Removal and Installation"

.

3.

Remove front kicking plate inner (LH). Refer to

INT-16, "Removal and Installation"

.

4.

Remove center pillar lower garnish (LH). Refer to

INT-16, "Removal and Installation"

.

5.

Remove rear kicking plate inner (LH). Refer to

INT-16, "Removal and Installation"

.

6.

Remove luggage side finisher (LH) (upper/lower). Refer to

INT-24, "Removal and Installation"

.

7.

Remove center seat belt retractor. Refer to

SB-11, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

8.

Remove mounting bolts, and then remove fuel filler lid opener handle.

9.

Remove fuel filler lid opener cable from fuel filler lid opener handle.

10. Push fuel filler lid lock assembly front the vehicle, while pushing the pawls.

1.

Fuel filler lid opener handle

2.

Fuel filler lid opener cable

3.

Cable protector

4.

Fuel filler lid lock assembly

5.

Fuel filler lid assembly

: Clip

: Pawl

JMKIA4028ZZ

FUEL FILLER LID OPENER

DLK-377

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

11. Remove fuel filler lid opener cable from fuel filler lid lock assembly.

12. Pull up floor trim. Refer to

INT-19, "Removal and Installation"

.

13. Remove fuel filler lid opener cable mounting clips.

14. Remove fuel filler lid opener cable.

INSTALLATION

Install in the reverse order of removal.
