DLK-338

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

HOOD

INSTALLATION

Install in the reverse order of removal.

RADIATOR CORE SUPPORT

DLK-339

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

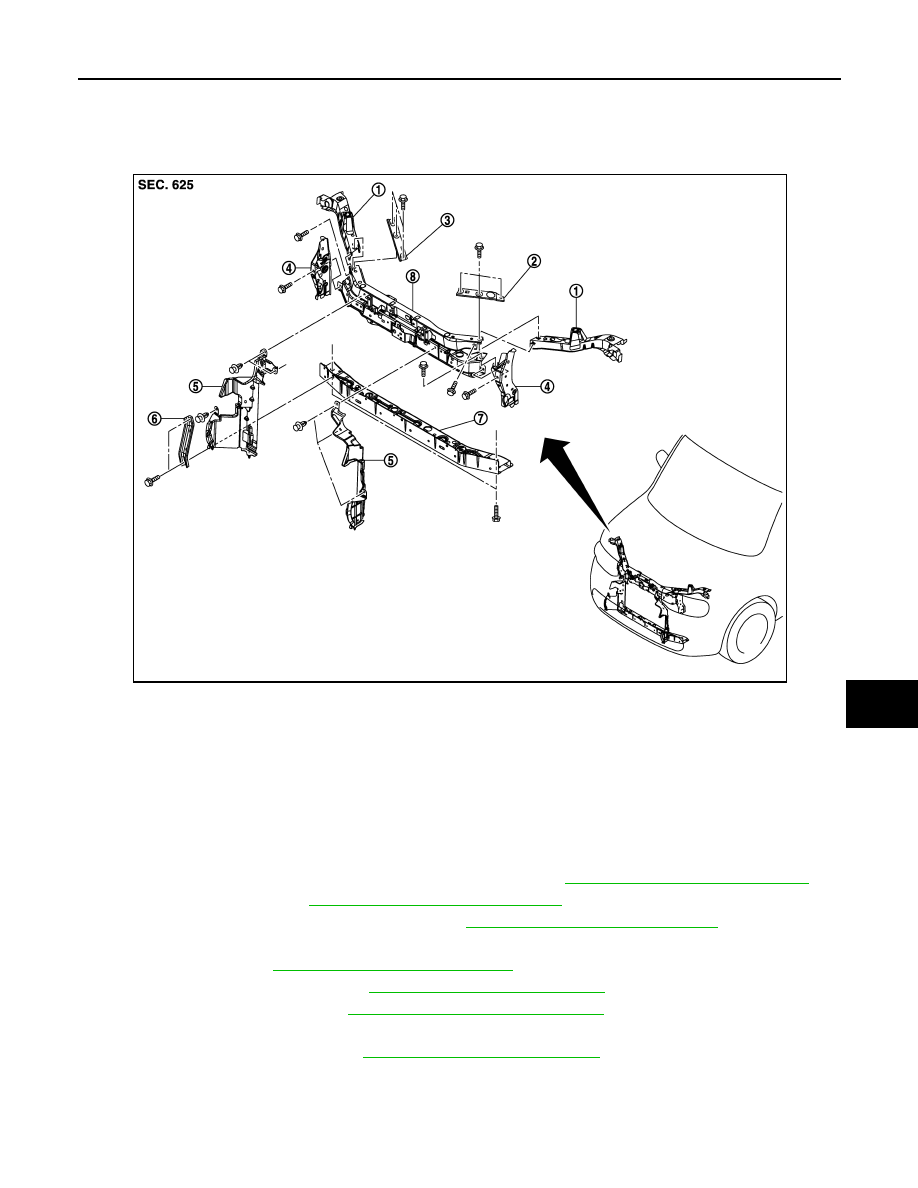

RADIATOR CORE SUPPORT

Exploded View

INFOID:0000000009950780

Removal and Installation

INFOID:0000000009950781

RADIATOR CORE SUPPORT UPPER

REMOVAL

1.

Remove front bumper fascia and bumper reinforcement. Refer to

EXT-12, "Removal and Installation"

.

2.

Remove hood lock. Refer to

DLK-363, "Removal and Installation"

.

3.

Remove front combination lamps (LH/RH). Refer to

EXL-191, "Removal and Installation"

.

4.

Remove air guide.

5.

Remove horn. Refer to

HRN-6, "Removal and Installation"

.

6.

Remove crash zone sensor. Refer to

SR-22, "Removal and Installation"

.

7.

Remove ambient sensor. Refer to

HAC-123, "Removal and Installation"

.

8.

Disconnect all harness from radiator core support upper.

9.

Remove air duct assembly. Refer to

EM-24, "Removal and Installation"

.

10. Remove radiator core support upper bracket (LH/RH).

11. Remove mounting bolts, and then remove radiator core support upper.

INSTALLATION

1.

Radiator core support side

2.

Radiator core support upper bracket
(LH)

3.

Radiator core support upper bracket
(RH)

4.

Radiator core reinforcement side

5.

Air guide

6.

Radiator core lower stay

7.

Radiator core support lower

8.

Radiator core support upper

JMKIA3625ZZ

DLK-340

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

RADIATOR CORE SUPPORT

Install in the reverse order of removal.

CAUTION:

• After installation, adjust the following parts.
- Front combination lamp: Refer to

EXL-187, "Aiming Adjustment Procedure"

.

RADIATOR CORE SUPPORT LOWER

REMOVAL

1.

Remove front bumper fascia and bumper reinforcement. Refer to

EXT-12, "Removal and Installation"

.

2.

Remove air guide.

3.

Remove radiator core lower stay.

4.

Remove clips of fender protector.

5.

Remove floor under cover. Refer to

EXT-22, "Removal and Installation"

.

6.

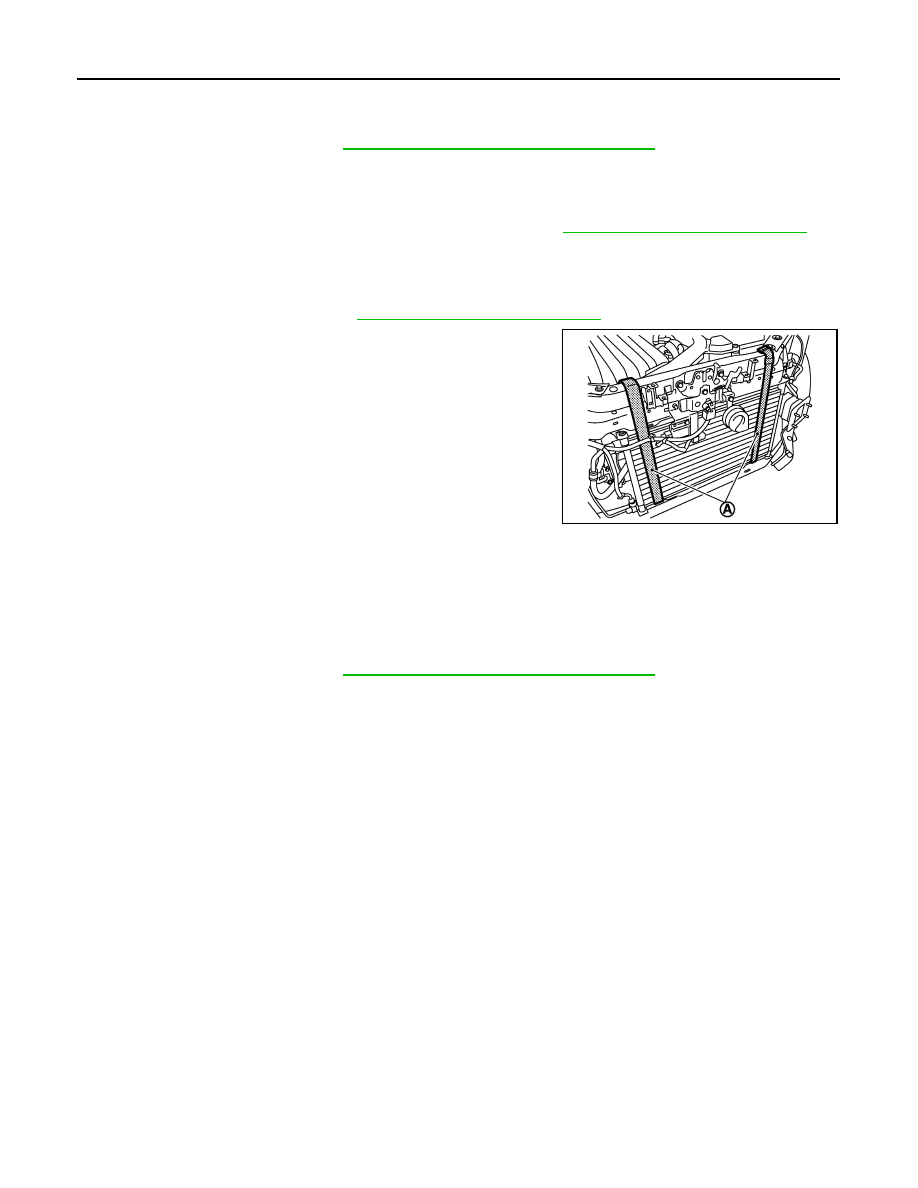

Use a belts (A) to suspend it to prevent it from falling.

CAUTION:

Never damage radiator and condenser.

7.

Remove mounting bolts, and then remove radiator core support lower.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• After installation, adjust the following parts.
- Front combination lamp: Refer to

EXL-187, "Aiming Adjustment Procedure"

.

JMKIA3809ZZ

FRONT FENDER

DLK-341

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

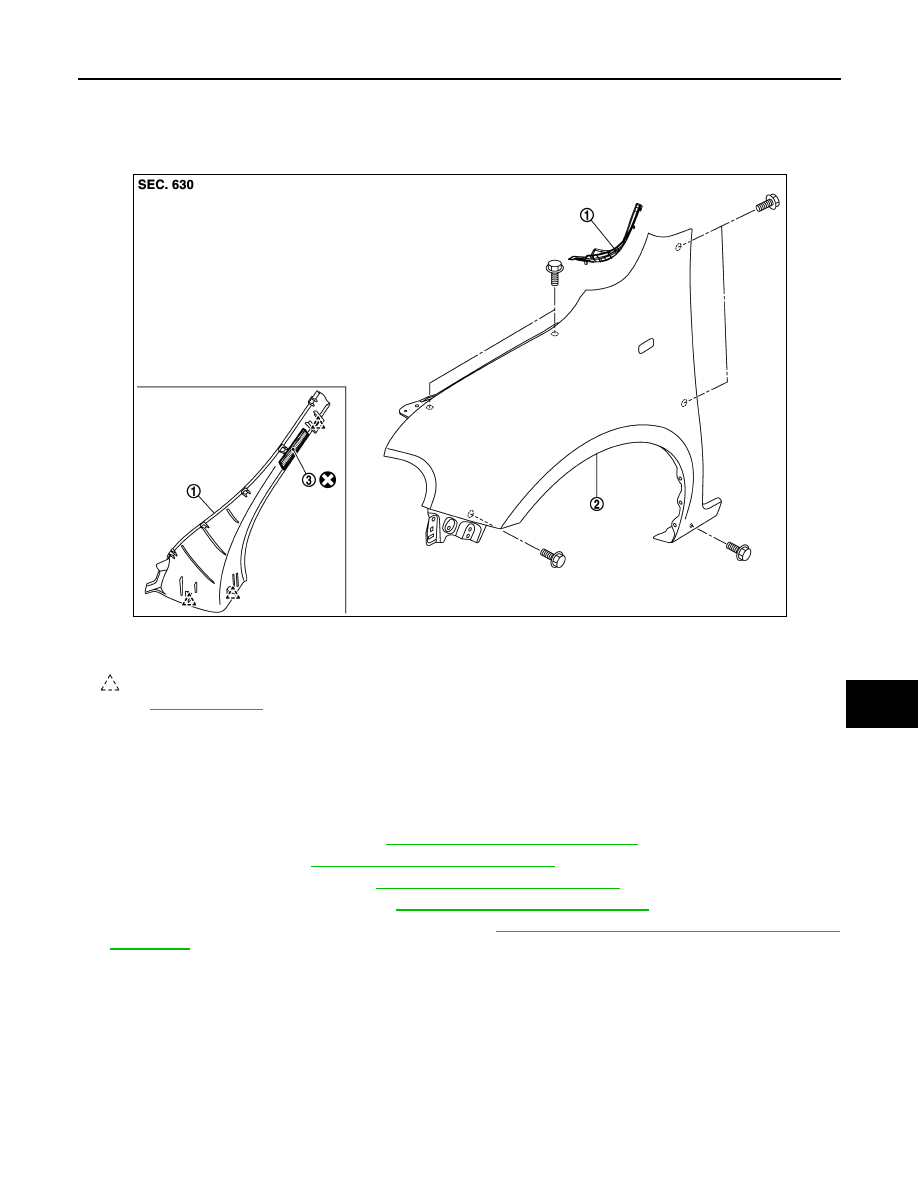

FRONT FENDER

Exploded View

INFOID:0000000009950782

Removal and Installation

INFOID:0000000009950783

CAUTION:

Use a shop cloth to protect the body from being damaged during removal and installation.

REMOVAL

1.

Remove side turn signal lamp. Refer to

EXL-198, "Removal and Installation"

.

2.

Remove front grille. Refer to

EXT-17, "Removal and Installation"

.

3.

Remove front bumper fascia. Refer to

EXT-12, "Removal and Installation"

.

4.

Remove front combination lamp. Refer to

EXL-191, "Removal and Installation"

.

5.

Remove clips and screws of fender protector. Refer to

EXT-21, "FENDER PROTECTOR : Removal and

Installation"

.

6.

Remove front fender cover.

7.

Remove mounting bolts and remove front fender.

CAUTION:

An viscous urethane foam is installed on the back surface of front fender. When removing the
front fender, be careful to not deform the front fender while performing the procedure and remov-
ing the viscous urethane foam a little at a time.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

1.

Front fender cover

2.

Front fender assembly

3.

Doube-faced adhesive tape [t : 2.0
mm (0.079 in)]

: Pawl

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3626ZZ
