POWER DOOR LOCK SYSTEM

P range interlock door lock can be selected for M/T models, but automatic door lock/unlock function does not
operate.

 With CONSULT

The ON/OFF switching of the automatic door lock function and the type selection of the automatic door lock/
unlock function can be performed at the WORK SUPPORT setting of CONSULT.

 Without CONSULT

The automatic door lock function ON/OFF can be switched by performing the following operation.

1.

Close all doors (door switch OFF)

2.

Turn ignition switch ON

3.

Press and hold the door lock and unlock switch for 5 seconds or more in the lock direction within 20 sec-
onds after turning the ignition switch ON.

4.

The switching complete when the hazard lamp blinks.

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (UNLOCK OPERATION)

The automatic door lock/unlock function is the function that unlocks all doors linked with the key position or
shift position. It has 2 types as per the following items.

IGN OFF Interlock Door Unlock*

1

All doors are unlocked when the power supply position is changed from ON to OFF.
BCM outputs the unlock signal to all door lock actuators when it detects that the power supply position is
changed from ignition switch ON to OFF.

P Range Interlock Door Unlock*

2

All doors are unlocked when shifting the selector lever from any position other than the P to P position.
BCM outputs the unlock signal to all door lock actuators when it detects that the ignition switch is in the ON
position and the shift signal received from TCM via CAN communication is shifted from any position other than
the P to P position.

Setting change of Automatic Door Lock/Unlock Function

The unlock operation setting of the automatic door lock/unlock function can be changed.
NOTE:
P range interlock door lock can be selected for M/T models, but automatic door lock/unlock function does not
operate.

 With CONSULT

The ON/OFF switching of the automatic door lock/unlock function and the type selection of the automatic door
lock/unlock function can be performed at the WORK SUPPORT setting of CONSULT.

 Without CONSULT

The automatic door lock/unlock function ON/OFF can be switched by performing the following operation.

1.

Close all doors below (door switch OFF)

2.

Turn ignition switch ON

3.

Press and hold the door lock and unlock switch for 5 seconds or more in the unlock direction within 20
seconds after turning the power supply position ON.

4.

The switching is complete when the hazard lamp blinks.

*

1

: This function is set to ON before delivery.

*

2

: This function does not operate on M/T models.

OFF

→

 ON

: 2 blinks

ON

→

 OFF

: 1 blink

OFF

→

 ON

: 2 blinks

ON

→

 OFF

: 1 blink

POWER DOOR LOCK SYSTEM

DLK-15

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

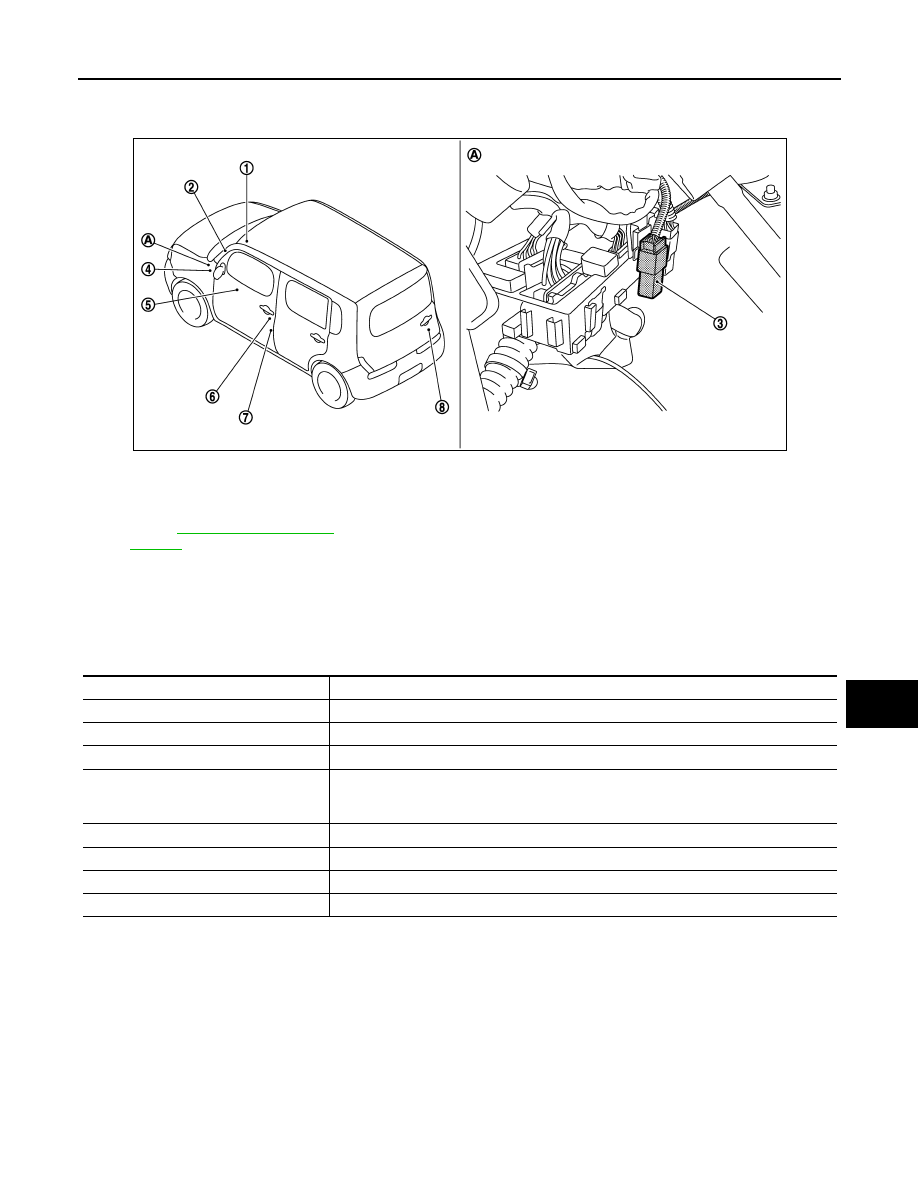

Component Parts Location

INFOID:0000000009950440

Component Description

INFOID:0000000009950441

*: With CVT models

1.

Push-button ignition switch (push
switch)

2.

Combination meter

3.

Back door lock actuator relay

4.

BCM
Refer to

BCS-10, "Component Parts

Location"

5.

Power window main switch
(door lock and unlock switch)

6.

Front door lock assembly (driver
side)

7.

Front door switch (driver side)

8.

Back door lock assembly

A.

Behind the instrument lower panel
LH (Left side)

JMKIA4335ZZ

Item

Function

BCM

Controls the door lock function

Door lock and unlock switch

Inputs lock or unlock signal to BCM

Door lock actuator

Inputs lock/unlock signal from BCM and locks/unlocks each door

Door key cylinder switch

Built-in driver side door lock assembly
• Inputs lock or unlock signal to power window main switch
• Power window main switch transmits door lock/unlock signal to BCM

Combination meter

Transmits vehicle speed signal to CAN communication line

TCM*

Transmits shift position signal to BCM via CAN communication line

Back door lock actuator relay

Controls the back door lock/unlock operation

Push-button ignition switch

Inputs push-button ignition switch ON/OFF condition to BCM

DLK-16

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

INTELLIGENT KEY SYSTEM

INTELLIGENT KEY SYSTEM

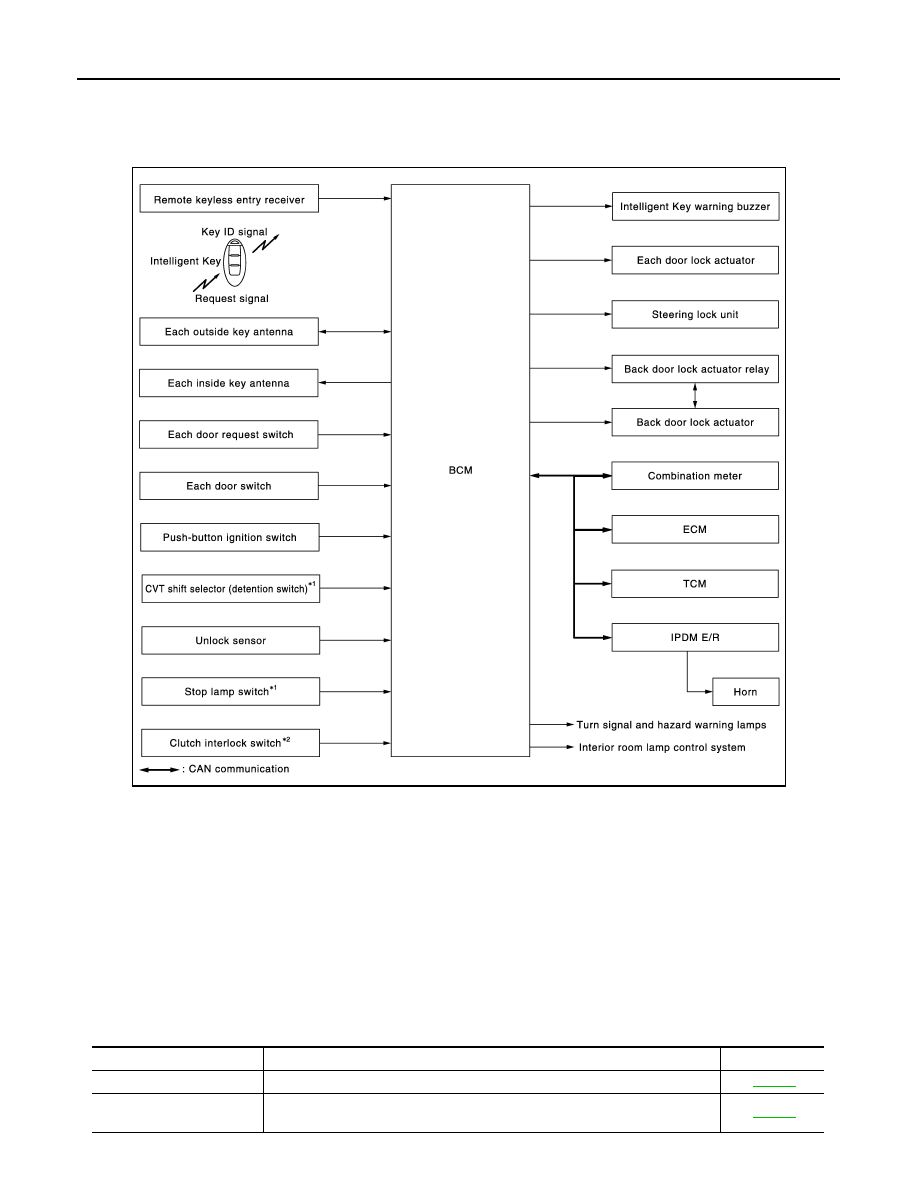

INTELLIGENT KEY SYSTEM : System Diagram

INFOID:0000000009950442

*

1

: With CVT models

*

2

: With M/T models

INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000009950443

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-
tion using two-way communication between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key

• The settings for each function can be changed with CONSULT.
• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

JMKIA4008GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the request switch

DLK-20

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the In-
telligent Key

DLK-25

INTELLIGENT KEY SYSTEM

DLK-17

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Key reminder

The key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle

DLK-30

Warning

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver

DLK-32

Engine start

The engine can be turned on while carrying the Intelligent Key

SEC-11

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state

INL-6

Panic alarm

When Intelligent Key panic alarm button is pressed, horn sounds

SEC-21

Function

Description

Refer
