IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

DEF-99

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

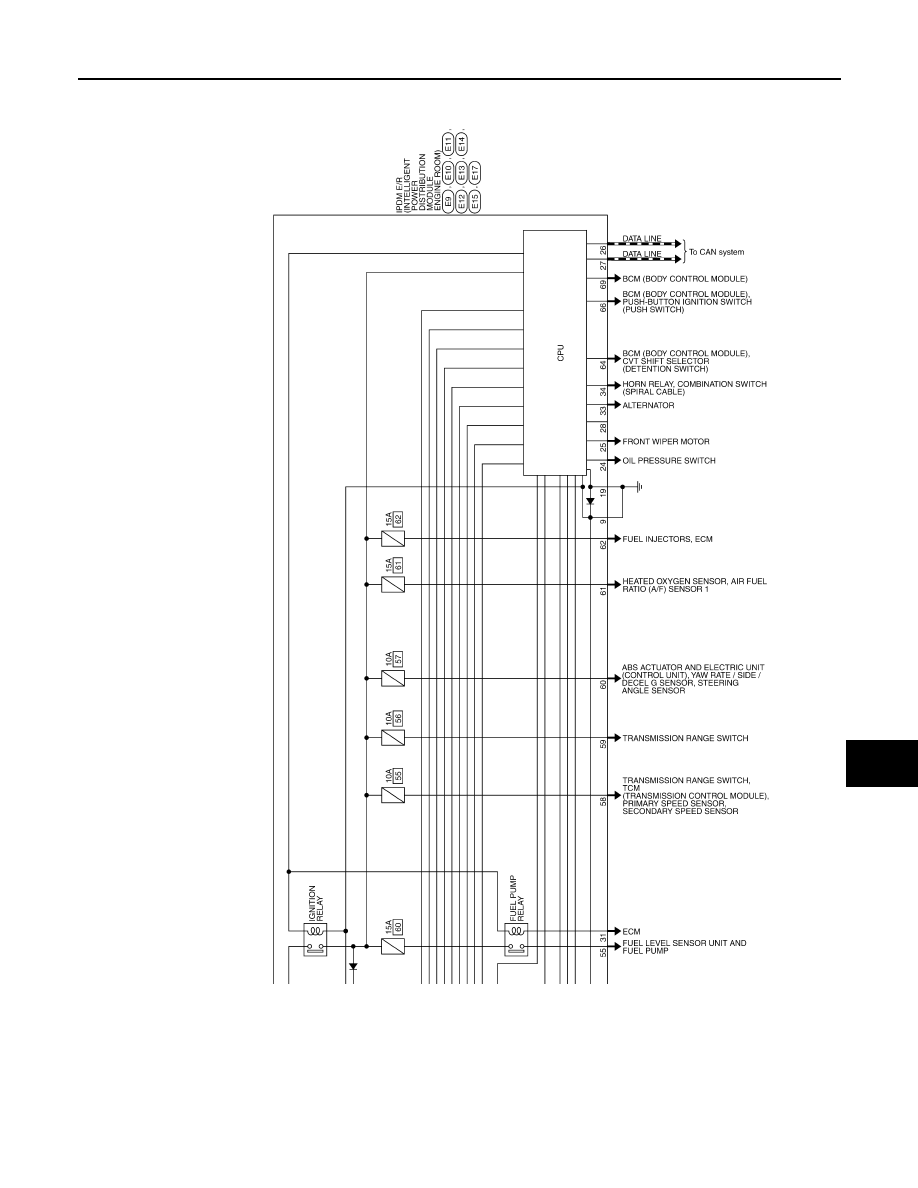

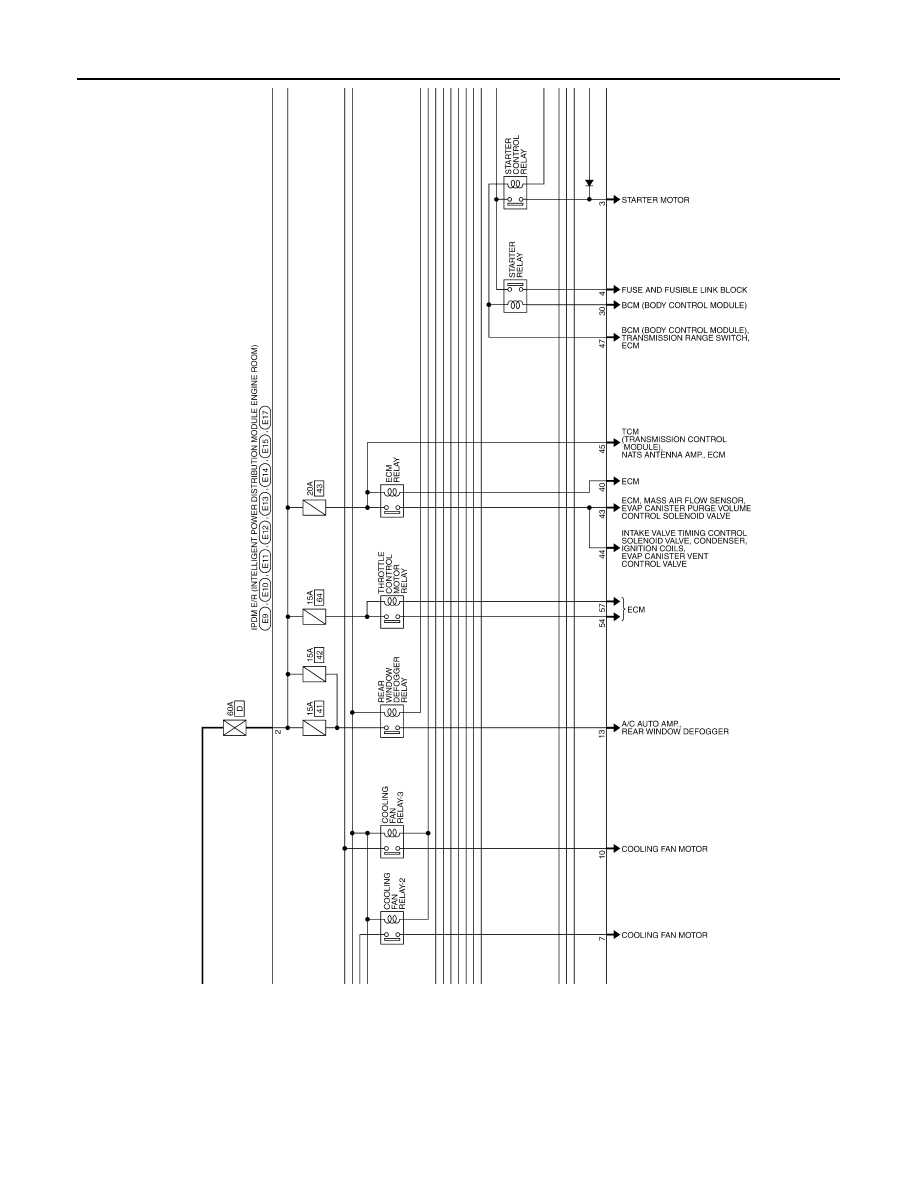

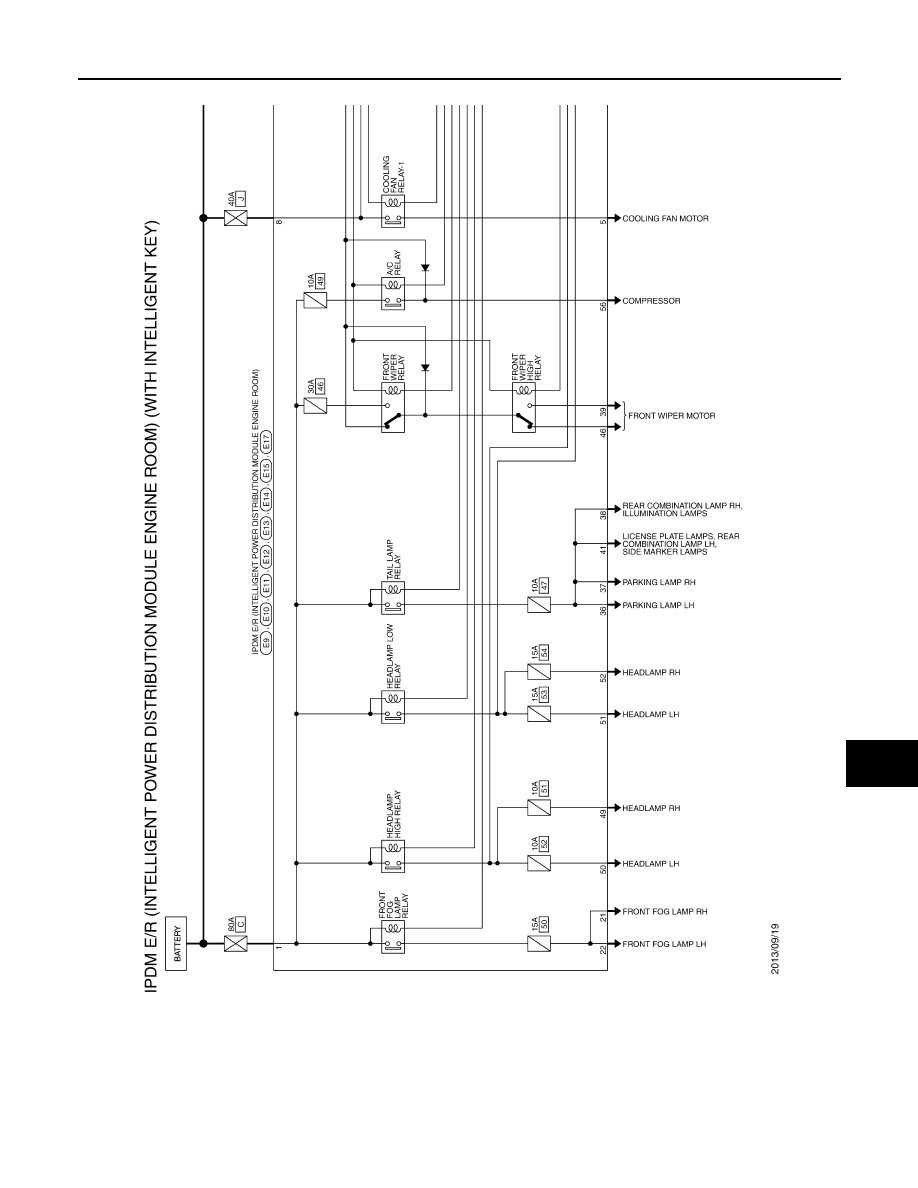

WITH INTELLIGENT KEY : Wiring Diagram — IPDM E/R —

INFOID:0000000010246440

JRMWE7720GB

DEF-100

< ECU DIAGNOSIS INFORMATION >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

JRMWE7721GB

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

DEF-101

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

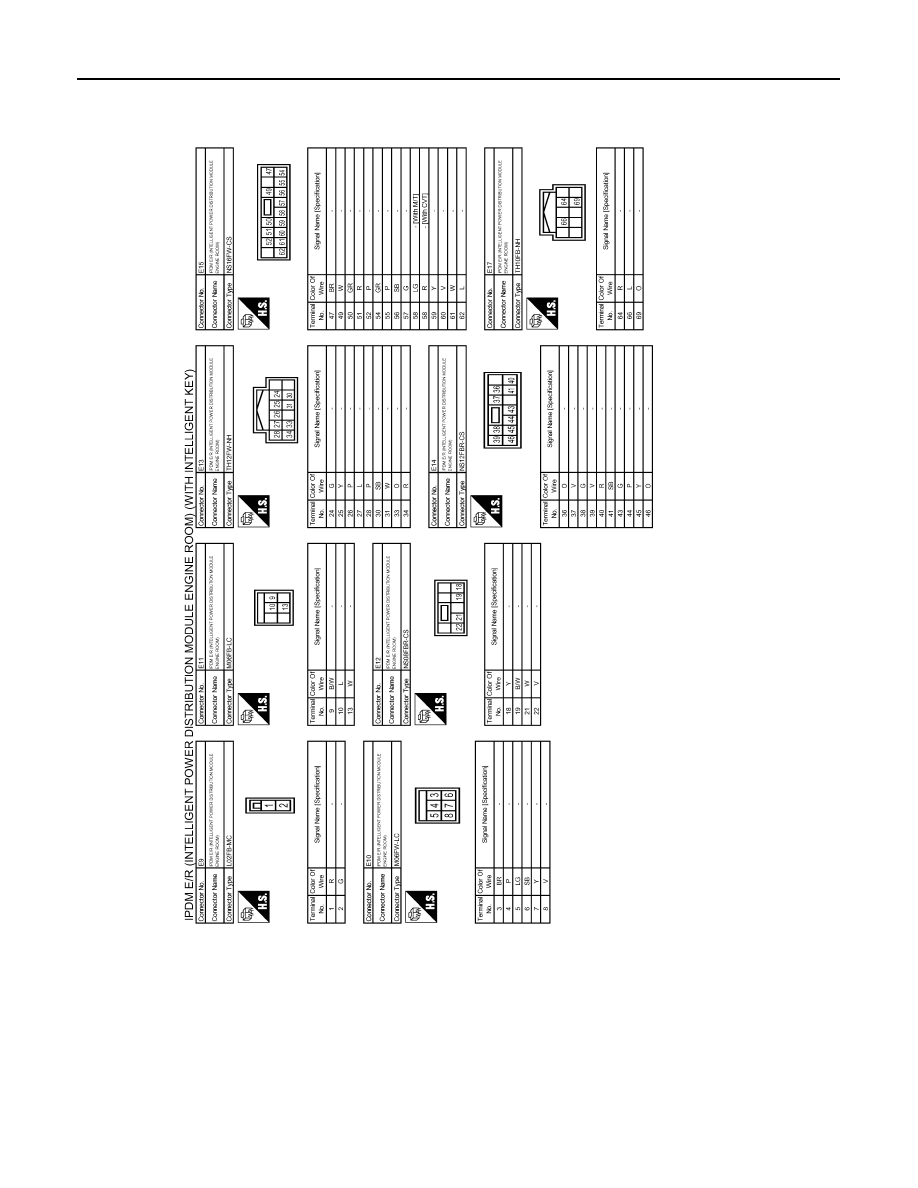

JRMWE7722GB

DEF-102

< ECU DIAGNOSIS INFORMATION >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

WITH INTELLIGENT KEY : Fail-Safe

INFOID:0000000010246441

CAN COMMUNICATION CONTROL

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.

If No CAN Communication Is Available With ECM

JRMWE7835GB
