BRC-18

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

ABS

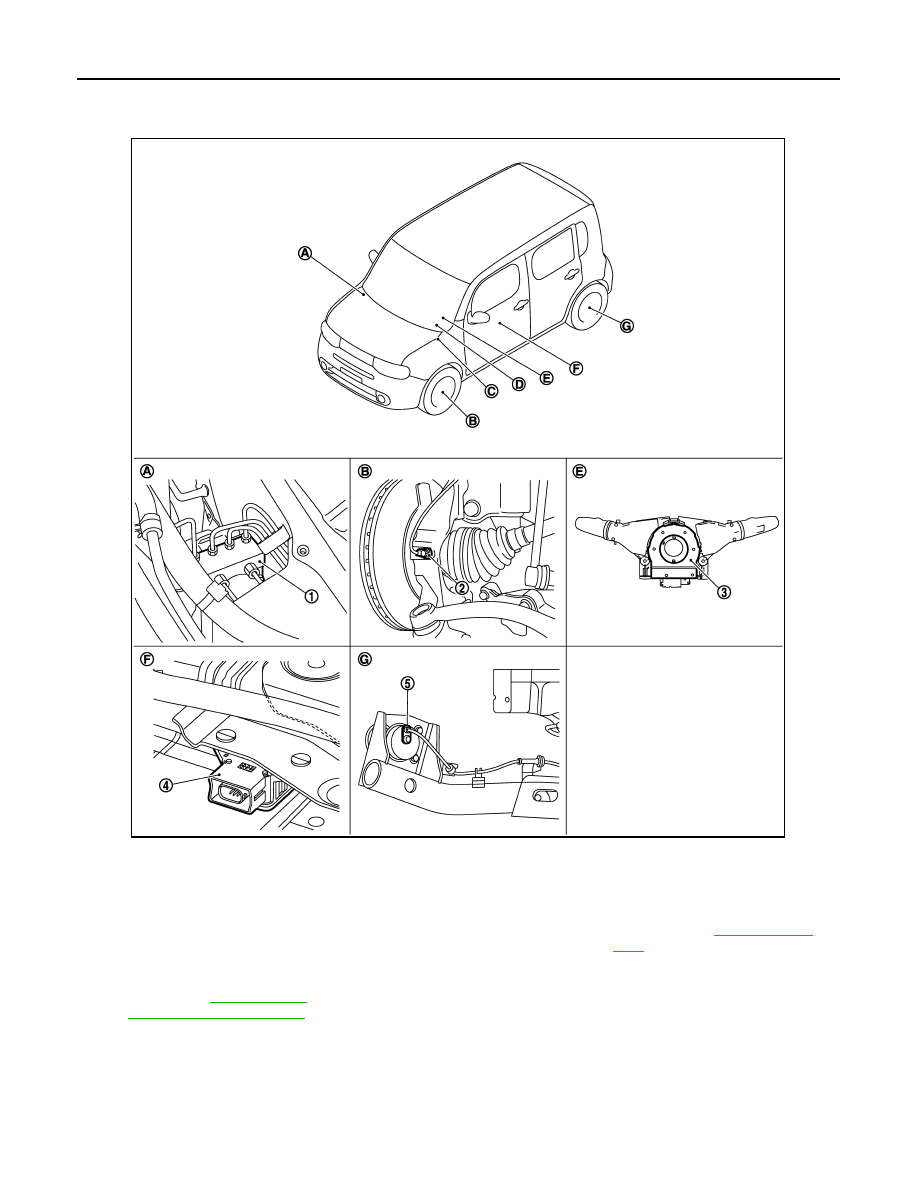

Component Parts Location

INFOID:0000000009949912

1.

ABS actuator and electric unit (con-
trol unit)

2.

Front wheel sensor

3.

Steering angle sensor

4.

Yaw rate/side G sensor

5.

Rear wheel sensor

A.

Engine room right side

B.

Steering knuckle

C.

VDC OFF switch:

IP-13, "Exploded

View"

D.

ABS warning lamp, brake warning
lamp, VDC OFF indicator lamp, VDC
warning lamp:

MWI-6, "METER

SYSTEM : System Description"

E.

Back of spiral cable assembly

F.

Under front (left side) seat

G.

Rear axle

JPFIC0062ZZ

ABS

BRC-19

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000009949913

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-39, "Description"

Motor

Actuator relay (main relay)

BRC-57, "Description"

Solenoid valve

BRC-51, "Description"

Pressure sensor

BRC-59, "Description"

VDC switch-over valve (CV1, CV2)

BRC-70, "Description"

VDC switch-over valve (SV1, SV2)

BRC-72, "Description"

Wheel sensor

BRC-28, "Description"

Yaw rate/side G sensor

BRC-64, "Description"

Steering angle sensor

BRC-61, "Description"

VDC OFF switch

BRC-81, "Description"

ABS warning lamp

BRC-83, "Description"

Brake warning lamp

BRC-84, "Description"

VDC OFF indicator lamp

BRC-86, "Description"

VDC warning lamp

BRC-87, "Description"

BRC-20

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

EBD

EBD

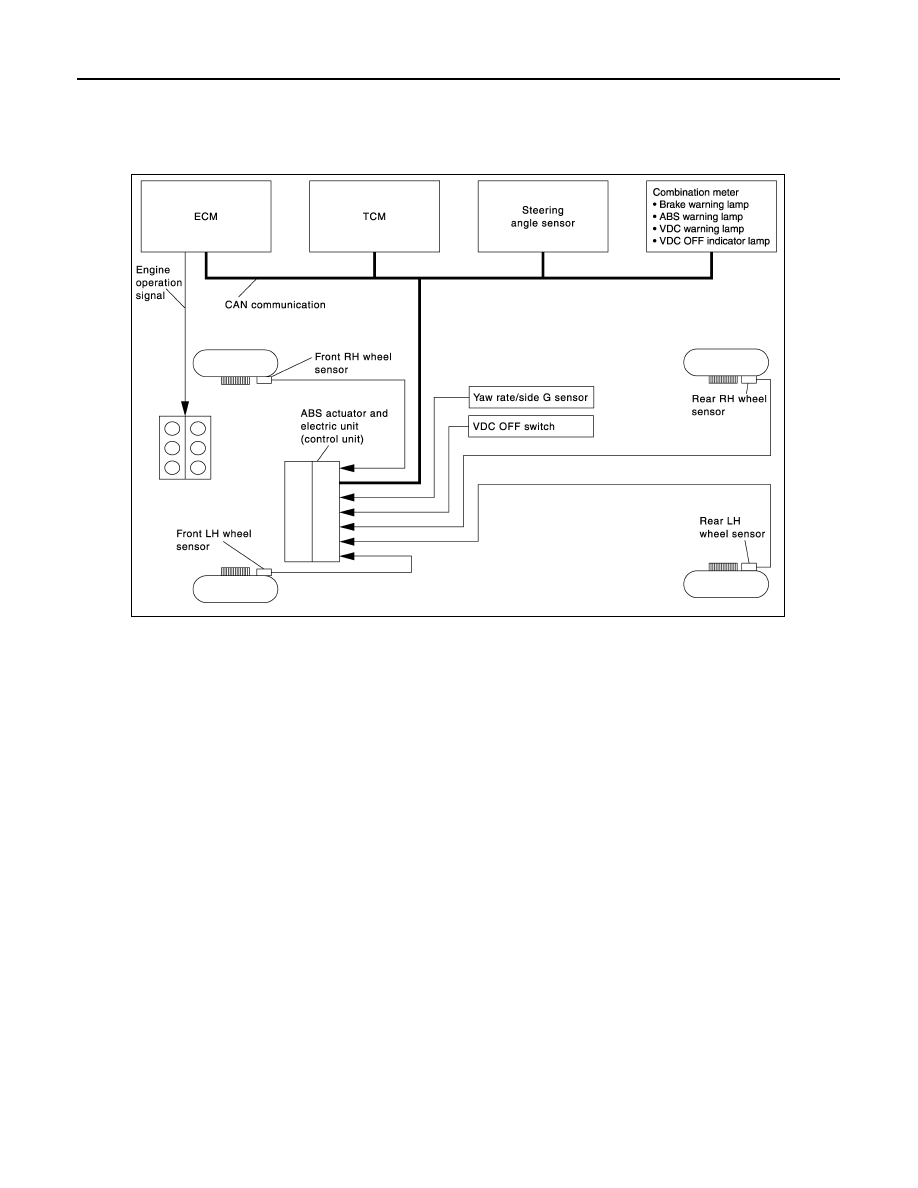

System Diagram

INFOID:0000000009949914

System Description

INFOID:0000000009949915

• Electric Brake force Distribution is a following function. ABS actuator and electric unit (control unit) detects

subtle slippages between the front and rear wheels during braking. Then is electronically controls the rear
braking force (brake fluid pressure) to reducing and reduces rear wheel slippage. Accordingly it improves
vehicle stability.

• Electrical system diagnosis by CONSULT is available.

JSFIA0850GB

EBD

BRC-21

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

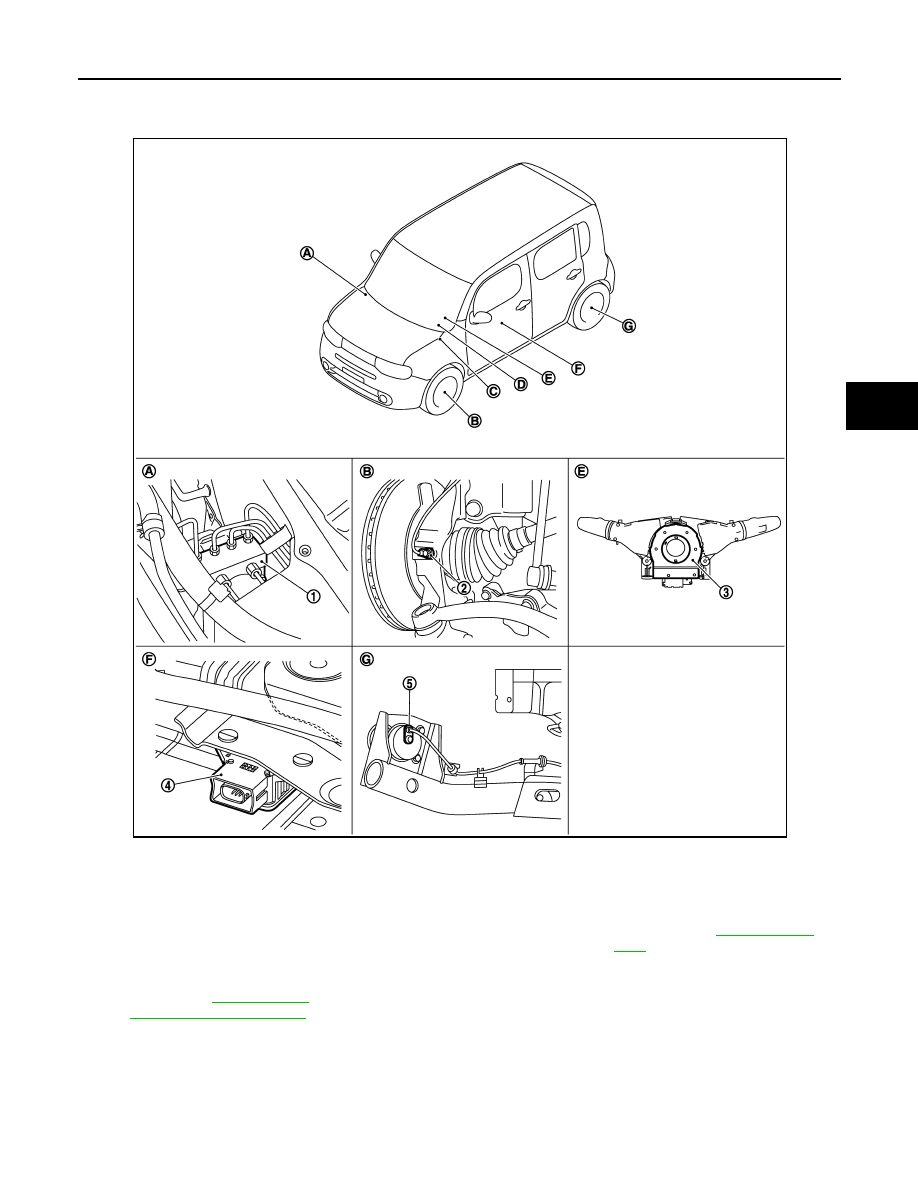

Component Parts Location

INFOID:0000000009949916

1.

ABS actuator and electric unit (con-
trol unit)

2.

Front wheel sensor

3.

Steering angle sensor

4.

Yaw rate/side G sensor

5.

Rear wheel sensor

A.

Engine room right side

B.

Steering knuckle

C.

VDC OFF switch:

IP-13, "Exploded

View"

D.

ABS warning lamp, brake warning
lamp, VDC OFF indicator lamp, VDC
warning lamp:

MWI-6, "METER

SYSTEM : System Description"

E.

Back of spiral cable assembly

F.

Under front (left side) seat

G.

Rear axle

JPFIC0062ZZ
