Nissan Cube. Manual - part 62

BCS

COMBINATION SWITCH READING SYSTEM

BCS-97

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

NOTE:

Headlamp has a dual system switch.

COMBINATION SWITCH READING FUNCTION

Description

• BCM reads the status of the combination switch at 10 ms interval normally.

NOTE:
BCM reads the status of the combination switch at 60 ms interval when BCM is controlled at low power con-
sumption control mode.

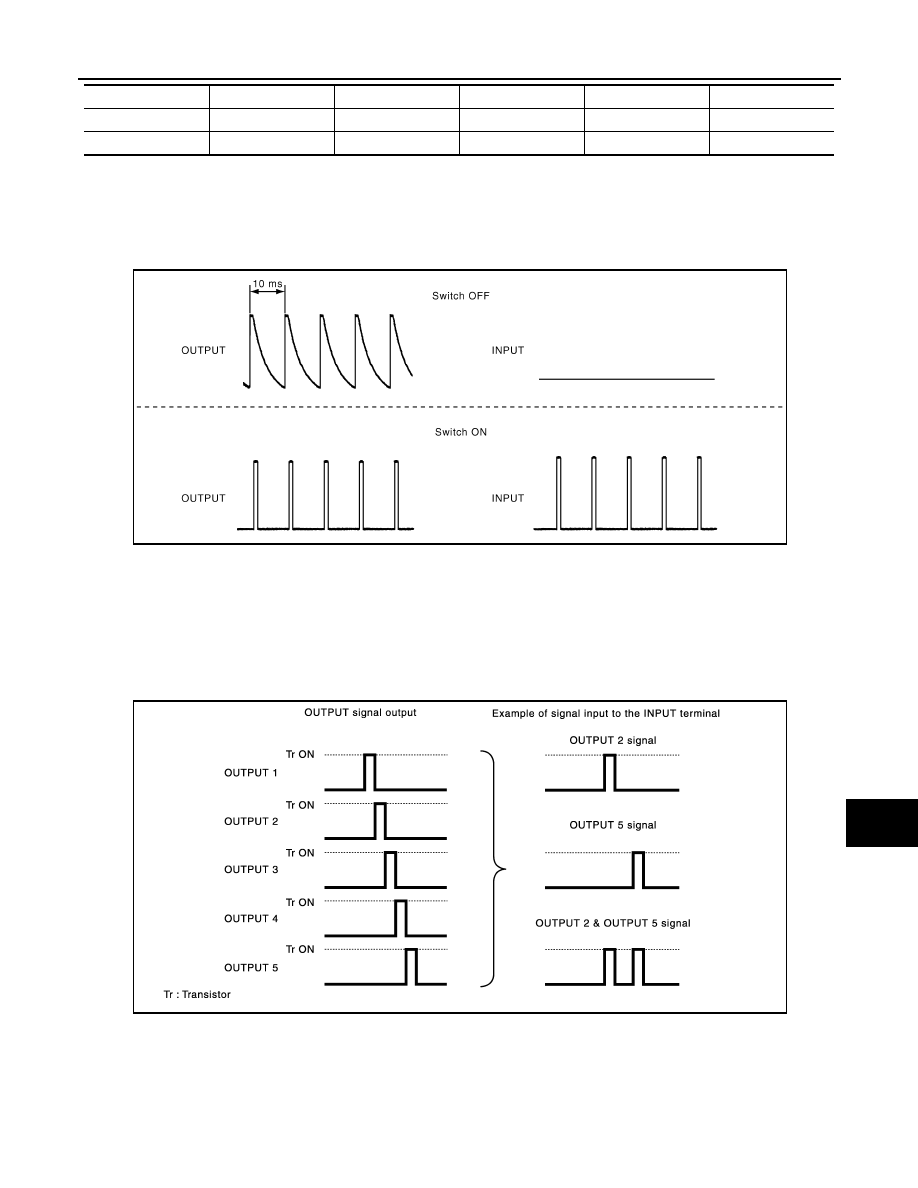

• BCM operates as follows and judges the status of the combination switch.
- It operates the transistor on OUTPUT side in the following order: OUTPUT 1

→

 2

→

 3

→

 4

→

 5, and outputs

voltage waveform.

- The voltage waveform of OUTPUT corresponding to the formed circuit is input into the interface on INPUT

side if any (1 or more) switches are ON.

- It reads this change of the voltage as the status signal of the combination switch.

Operation Example

In the following operation example, the combination of the status signals of the combination switch is replaced
as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.

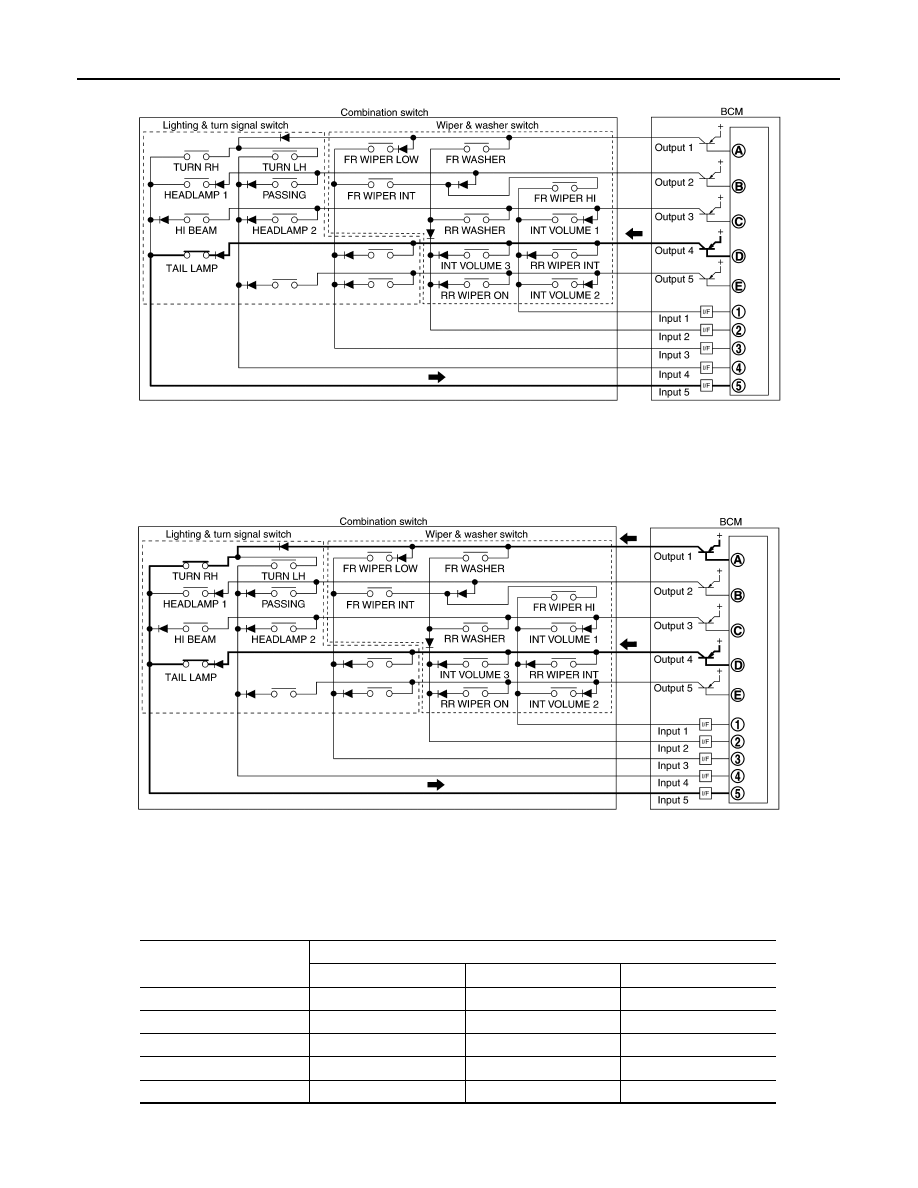

Example 1: When a switch (TAIL LAMP switch) is turned ON

OUTPUT 4

RR WIPER INT

INT VOLUME 3

—

—

TAIL LAMP

OUTPUT 5

INT VOLUME 2

RR WIPER

—

—

—

System

INPUT 1

INPUT 2

INPUT 3

INPUT 4

INPUT 5

JPMIA0609GB

JMMIA0326GB

BCS-98

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

COMBINATION SWITCH READING SYSTEM

• The circuit between OUTPUT 4 and INPUT 5 is formed when the TAIL LAMP switch is turned ON.

• BCM detects the combination switch status signal “5D” when the signal of OUTPUT 4 is input to INPUT 5.
• BCM judges that the TAIL LAMP switch is ON when the signal “5D” is detected.

Example 2: When some switches (TURN RH switch, TAIL LAMP switch) are turned ON

• The circuits between OUTPUT 1 and INPUT 5 and between OUTPUT 4 and INPUT 5 are formed when the

TURN RH switch and TAIL LAMP switch are turned ON.

• BCM detects the combination switch status signal “5AD” when the signals of OUTPUT 1 and OUTPUT 4 are

input to INPUT 5.

• BCM judges that the TURN RH switch and TAIL LAMP switch are ON when the signal “5AD” is detected.

WIPER INTERMITTENT DIAL POSITION

BCM judges the wiper intermittent dial 1 - 7 by the status of INT VOLUME 1, 2 and 3 switches.

JMMIA1039GB

JMMIA1040GB

Wiper intermittent

dial position

Switch status

INT VOLUME 1

INT VOLUME 2

INT VOLUME 3

1

ON

ON

ON

2

ON

ON

OFF

3

ON

OFF

OFF

4

OFF

OFF

OFF

5

OFF

OFF

ON

BCS

COMBINATION SWITCH READING SYSTEM

BCS-99

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

NOTE:

For details of wiper intermittent dial position, refer to

WW-6, "System Description"

.

6

OFF

ON

ON

7

OFF

ON

OFF

Wiper intermittent

dial position

Switch status

INT VOLUME 1

INT VOLUME 2

INT VOLUME 3

BCS-100

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SIGNAL BUFFER SYSTEM

SIGNAL BUFFER SYSTEM

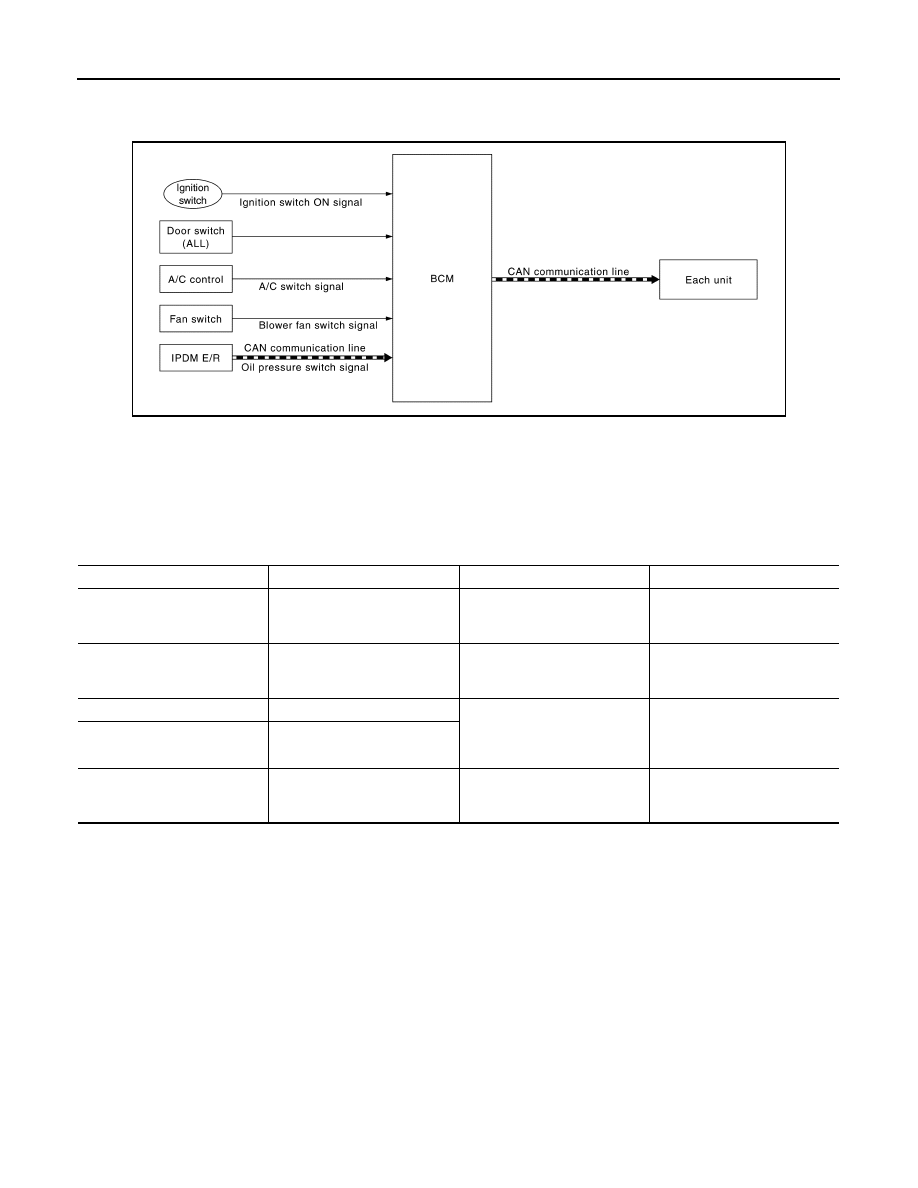

System Diagram

INFOID:0000000009949760

System Description

INFOID:0000000009949761

OUTLINE

BCM has the signal transmission function that outputs/transmits each input/received signal to each unit.

SIGNAL TRANSMISSION FUNCTION LIST

JMMIA1056GB

Signal name

Input

Output

Description

Ignition switch ON signal

Ignition switch

IPDM E/R (CAN)

Inputs the ignition switch signal
and transmits it with CAN com-
munication.

Door switch signal

Any door switch

• Combination meter (CAN)
• IPDM E/R (CAN)

Inputs the door switch signal
and transmits it with CAN com-
munication.

Blower fan on signal

Fan switch

ECM (CAN)

Inputs each signals, and trans-
mits the blower fan on signal
and A/C on signal via CAN com-
munication.

A/C on signal

A/C control

Oil pressure switch signal

IPDM E/R (CAN)

Combination meter (CAN)

Transmits the received oil pres-
sure switch signal with CAN
communication.
