AV

ANTENNA BASE

AV-65

< REMOVAL AND INSTALLATION >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA BASE

Exploded View

INFOID:0000000009949586

Removal and Installation

INFOID:0000000009949587

REMOVAL

1.

Remove luggage side upper finisher. Refer to

INT-24, "Exploded View"

.

2.

Remove assist grip and headlining clips. Refer to

INT-21, "Exploded View"

.

3.

Pull headlining (rear). Obtain a service area.

4.

Remove antenna base mounting nut.

5.

Remove antenna base.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

If the antenna base mounting nut is tightened looser than the specified torque, then this will lower the
sensitivity of the antenna. On the other hand, if the nut is tightened tighter than the specified torque,
then this will deform the roof panel.

JSNIA1962GB

1.

Antenna rod

2.

Antenna base

Refer to

GI-4, "Components"

 for symbols in the figure.

AV-66

< REMOVAL AND INSTALLATION >

[AUDIO WITHOUT NAVIGATION]

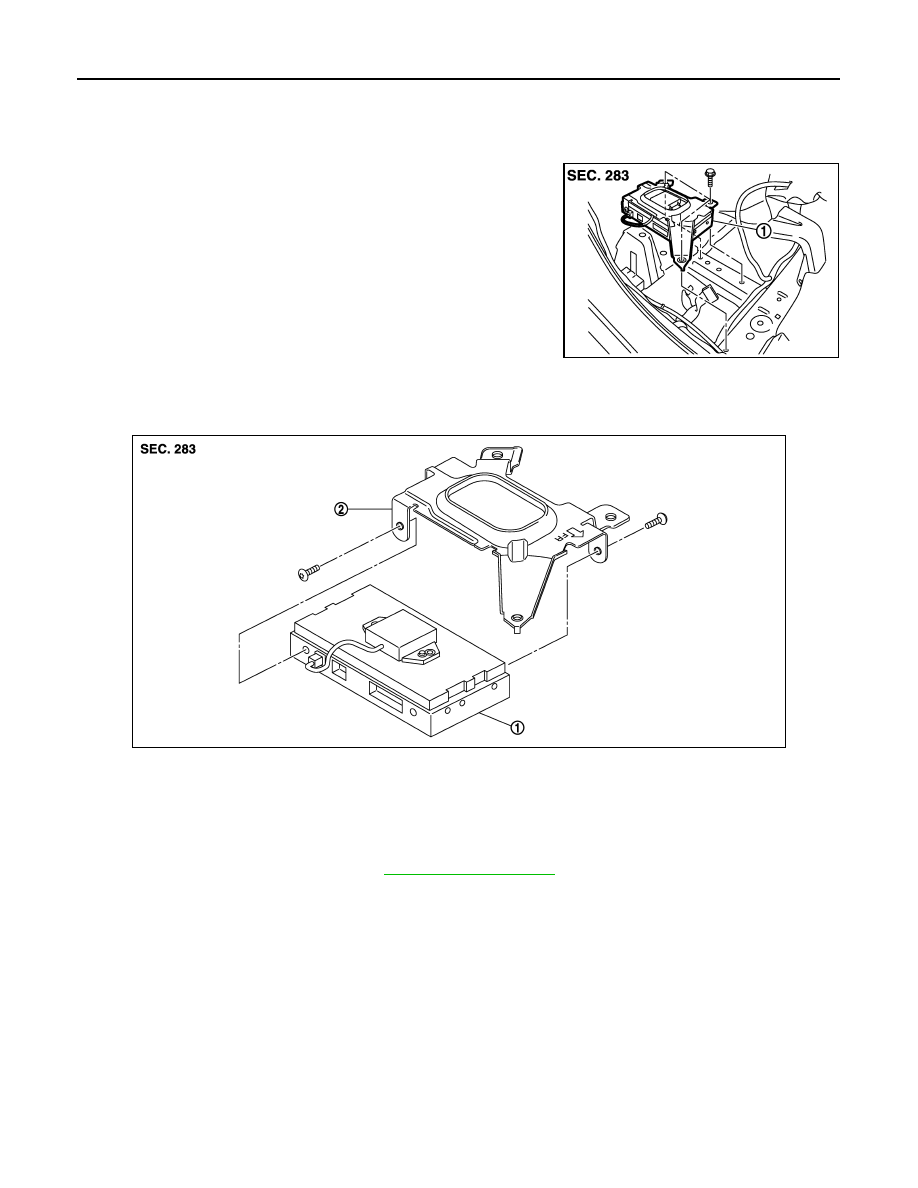

TEL ADAPTER UNIT

TEL ADAPTER UNIT

Exploded View

INFOID:0000000009949588

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009949589

REMOVAL

1.

Remove front floor spacer RH. Refer to

INT-19, "Exploded View"

.

2.

Disconnect TEL adapter unit connector.

3.

Remove TEL adapter unit screws, then remove TEL adapter unit.

4.

Remove bracket screws, and then remove TEL adapter unit.

INSTALLATION

Install in the reverse order of removal.

JPNIA1702ZZ

1.

TEL adapter unit

JPNIA1703ZZ

1.

TEL adapter unit

2.

Bracket

AV

MICROPHONE

AV-67

< REMOVAL AND INSTALLATION >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Exploded View

INFOID:0000000009949590

Removal and Installation

INFOID:0000000009949591

REMOVAL

1.

Remove front pillar garnish LH and center pillar upper garnish LH. Refer to

INT-16, "Exploded View"

.

2.

Remove sunvisor assy, map lamp assy, assist grip LH, and inside mirror cover. Refer to

INT-21,

"Exploded View"

.

3.

Pull headlining (left front). Obtain a service area.

4.

Remove microphone connector and pawl to remove microphone.

INSTALLATION

Install in the reverse order of removal.

JPNIA1704ZZ

1.

Microphone

AV-68

< REMOVAL AND INSTALLATION >

[AUDIO WITHOUT NAVIGATION]

STEERING SWITCH

STEERING SWITCH

Exploded View

INFOID:0000000009949592

Refer to

ST-9, "Exploded View"

.

Removal and Installation

INFOID:0000000009949593

REMOVAL

Refer to

ST-9, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.
