HANDS-FREE PHONE SYSTEM

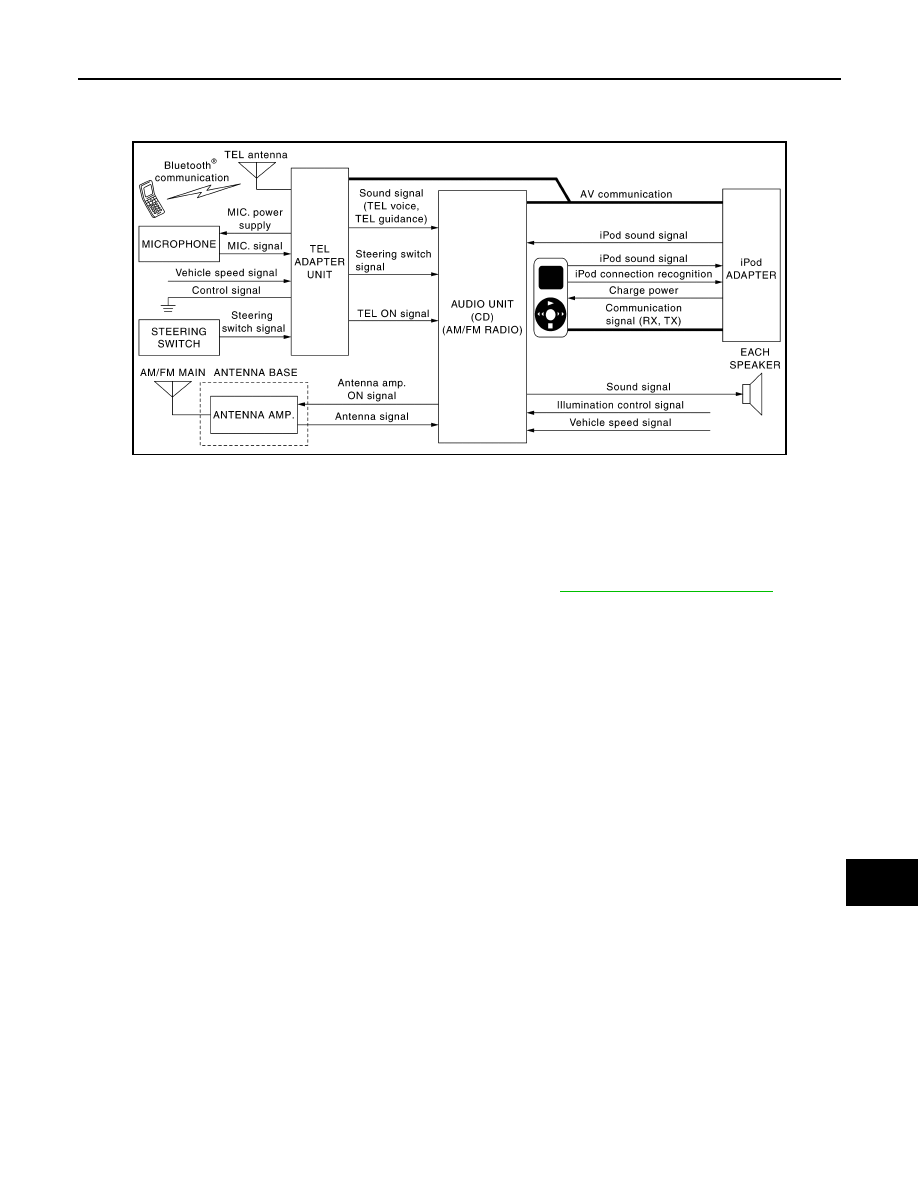

System Diagram

INFOID:0000000009949537

iPod

®

 is a trademark of Apple inc., registered in the U.S. and other countries.

System Description

INFOID:0000000009949538

• The connection between cellular phone and TEL adapter unit is performed with Bluetooth

®

 communication.

• The voice guidance signal is input from the TEL adapter unit to the audio unit and output to the front door

speaker when operating the telephone.

• TEL adapter unit has the on board self-diagnosis function. Refer to

AV-15, "Diagnosis Description"

.

WHEN RECEIVING A CALL

TEL voice signal received with the cellular phone is input from TEL antenna via TEL adapter unit to audio unit
with Bluetooth

®

 communication and output to the front door speaker. The operation is performed with the

steering switch or voice recognition function.

WHEN A CALL IS ORIGINATED

Speech sound (TEL voice signal) is input from the microphone to the TEL adapter unit. It is input from the TEL
antenna via Bluetooth

®

 communication to the cellular phone. It is transmitted to the phone on the other side.

The operation is performed with the steering switch or voice recognition function.

JSNIA5425GB

AV-10

< SYSTEM DESCRIPTION >

[AUDIO WITHOUT NAVIGATION]

HANDS-FREE PHONE SYSTEM

Component Parts Location

INFOID:0000000009949539

Component Description

INFOID:0000000009949540

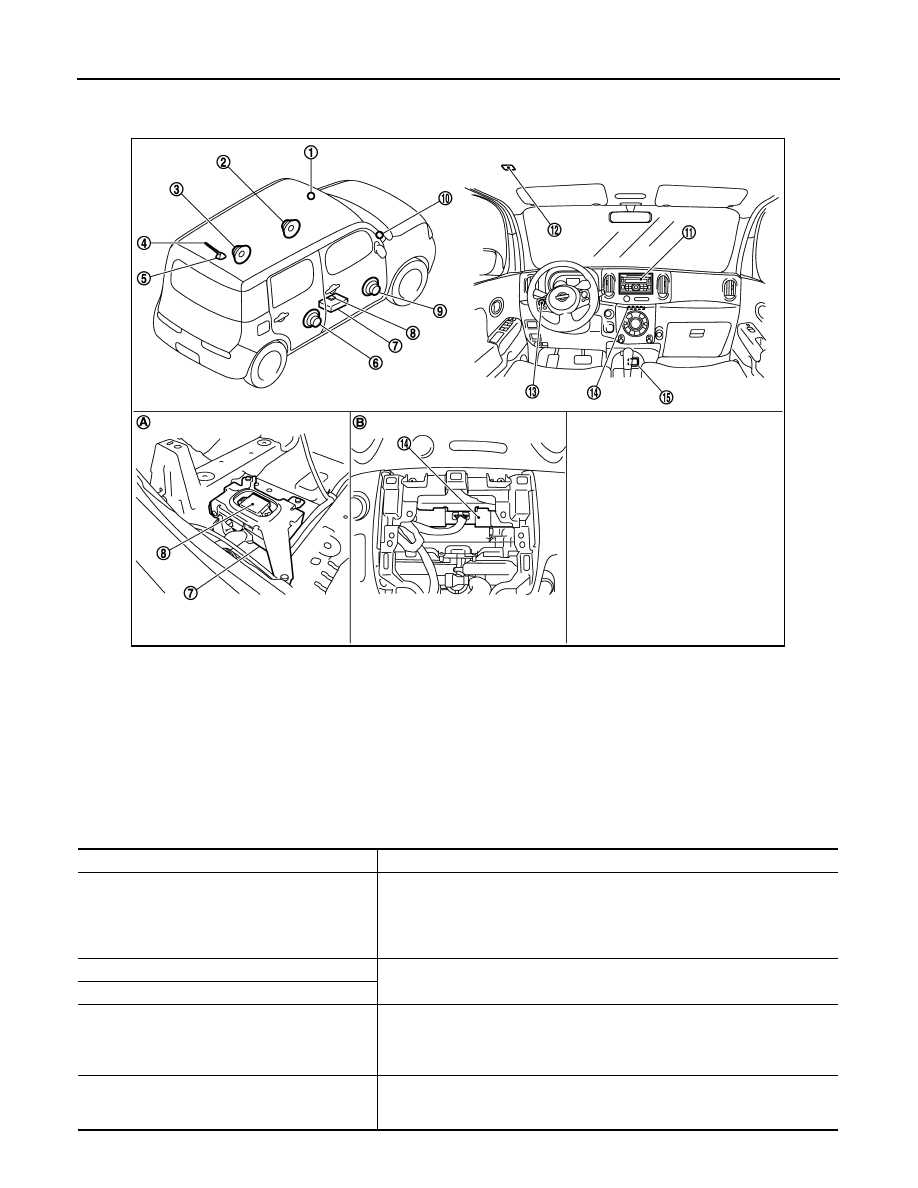

1.

Tweeter LH

2.

Front door speaker LH

3.

Rear door speaker LH

4.

Antenna rod

5.

Antenna base (antenna amp.)

6.

Rear door speaker RH

7.

TEL adapter unit

8.

TEL antenna

9.

Front door speaker RH

10. Tweeter RH

11. Audio unit

12. Microphone

13. Steering switch

14. iPod adapter

15. iPod connector

A.

Floor spacer removed condition

B.

A/C finisher removed condition

JSNIA2734ZZ

Part name

Description

Audio unit

• Inputs TEL voice signal or voice guidance signal from TEL adapter unit and

outputs it to the front door speaker during reception.

• Audio unit and TEL adapter unit exchange data by AV communication.
• Inputs steering switch signal (operation signal) from steering switch through

TEL adapter unit.

Front door speaker

Receives TEL voice and voice guidance signals from audio unit.

Tweeter

Steering switch

• The hands-free phone system can be operated.
• Steering switch signal (operation signal) is output to TEL adapter unit
• Steering switch signal (operation signal) is output to audio unit through TEL

adapter unit.

Microphone

• Uses when operating the hands-free phone.
• Outputs microphone signal (TEL voice signal) to the TEL adapter unit.
• The power (microphone VCC) is supplied from the TEL adapter unit.

AV

HANDS-FREE PHONE SYSTEM

AV-11

< SYSTEM DESCRIPTION >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TEL adapter unit

• Inputs the TEL voice signal from TEL antenna during reception and outputs

into the audio unit.

• Inputs the TEL voice signal from microphone during speech recognition and

outputs it to the TEL antenna.

TEL antenna

Connects with the cellular phone via Bluetooth

®

 communication and communi-

cates the TEL voice signal.

Part name

Description

AV-12

< SYSTEM DESCRIPTION >

[AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (AUDIO UNIT)

DIAGNOSIS SYSTEM (AUDIO UNIT)

Diagnosis Description

INFOID:0000000009949541

AUDIO UNIT SELF-DIAGNOSIS FUNCTION

Self-diagnosis mode can check the following items.
• Display all icons and segments
• Audio unit hardware/software/CD mechanism/EEPROM versions
• Satellite radio version
• Audio CD changer version
• iPod hardware/software versions

Operation Procedure

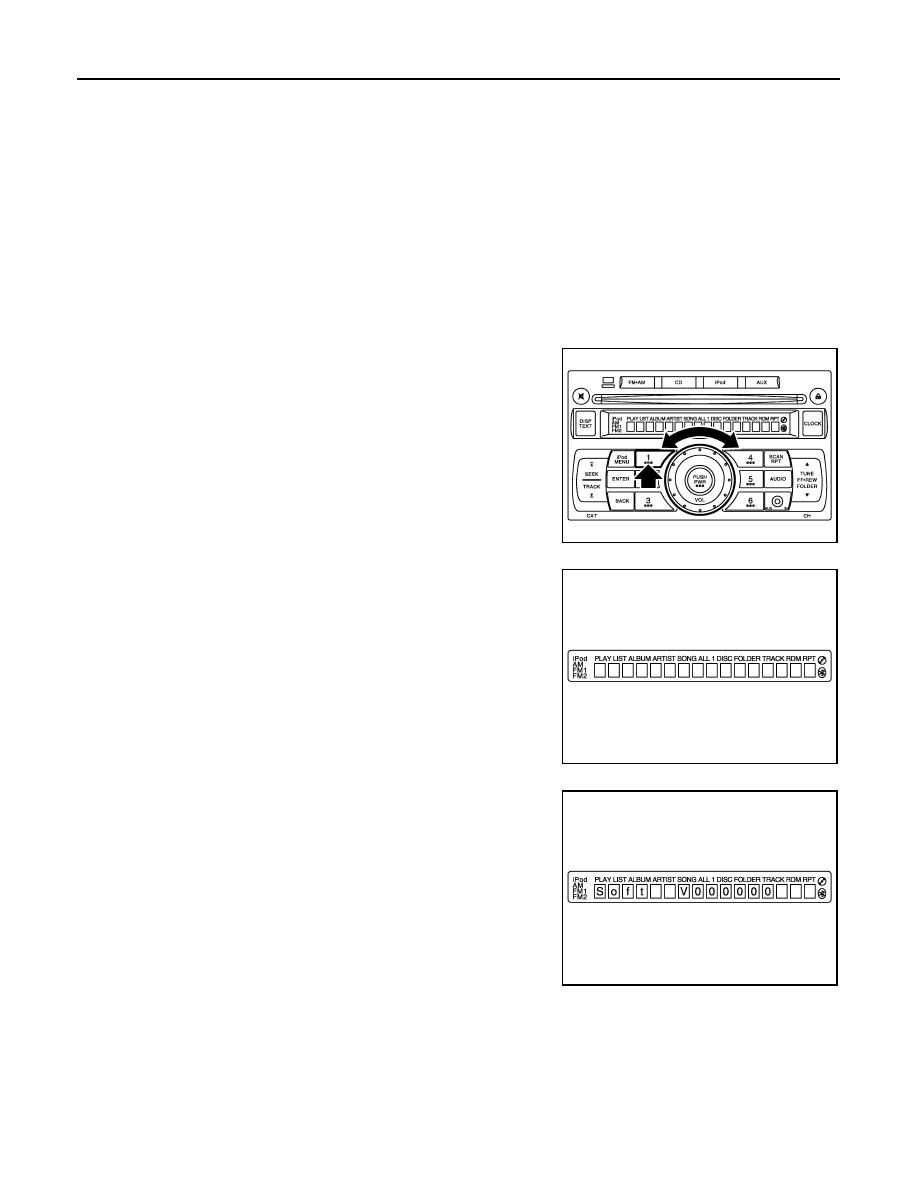

1.

Turn ignition switch to the ON position.

2.

Turn the audio unit off.

3.

While pressing the “1” button, turn the volume control dial clock-
wise or counterclockwise 30 clicks or more. When the self-diag-
nosis mode is started, a short beep will be heard.

4.

Initially, all display segments will be illuminated.

5.

Press the “DISP TEXT” switch to enter version diagnostics.
“Soft” (audio software version) is displayed.

JPNIA1650ZZ

JPNIA1651ZZ

JPNIA1652ZZ
