SE-34

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

UNIT DISASSEMBLY AND ASSEMBLY

FRONT SEAT

DRIVER SIDE

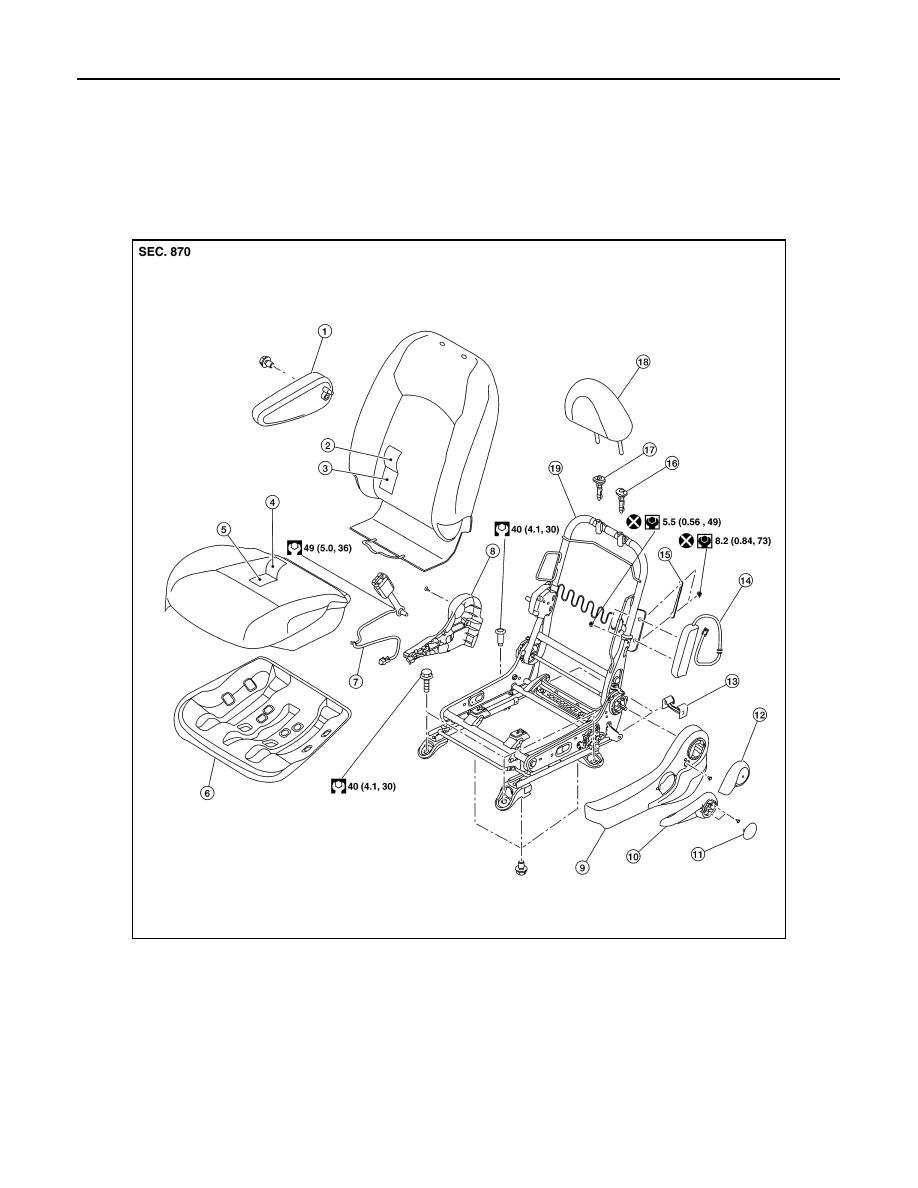

DRIVER SIDE : Exploded View

INFOID:0000000009567631

DRIVER SEAT WITH LIFT

ALJIA1238ZZ

1.

Armrest

2.

Seatback trim

3.

Seatback pad

4.

Seat cushion trim

5.

Seat cushion pad

6.

Seat cushion frame

7.

Seat belt buckle

8.

Seat cushion outer finisher (RH)

9.

Seat cushion outer finisher (LH)

10. Lift lever

11. Lift lever finisher

12. Recline lever

13. Slide finisher rear (LH/RH)

14. Side air bag module

15. Chute rod

16. Headrest holder (locked)

17. Headrest holder (free)

18. Headrest

19. Seat frame

FRONT SEAT

SE-35

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

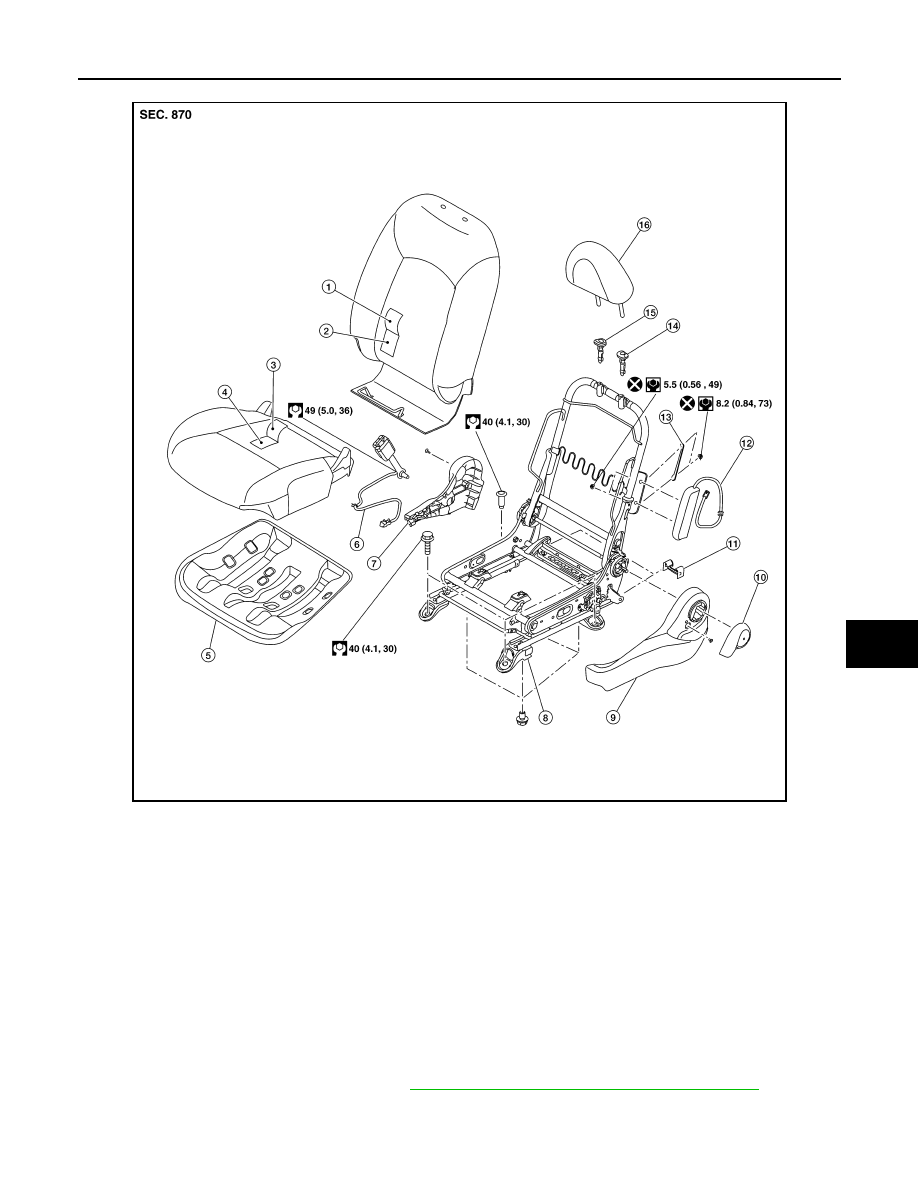

DRIVER SEAT WITHOUT LIFT

DRIVER SIDE : Seatback

INFOID:0000000009567495

WARNING:

• Always work from the side or back of the seatback, do not work in front of seat.

• Do not damage the, chute, connectors, retainers, clips, module harness or the side air bag module.

DISASSEMBLY

1. Remove the driver side front seat. Refer to

SE-20, "DRIVER SIDE : Removal and Installation"

.

2. Remove the headrest.

ALJIA1237ZZ

1.

Seatback trim

2.

Seatback pad

3.

Seat cushion trim

4.

Seat cushion pad

5.

Seat cushion frame

6.

Seat belt buckle

7.

Seat cushion outer finisher (RH) 8.

Seat frame

9.

Seat cushion outer finisher (LH)

10. Recline lever

11. Slide finisher rear (LH/RH)

12. Side air bag module

13. Chute rod

14. Headrest holder (locked)

15. Headrest holder (free)

16. Headrest

SE-36

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

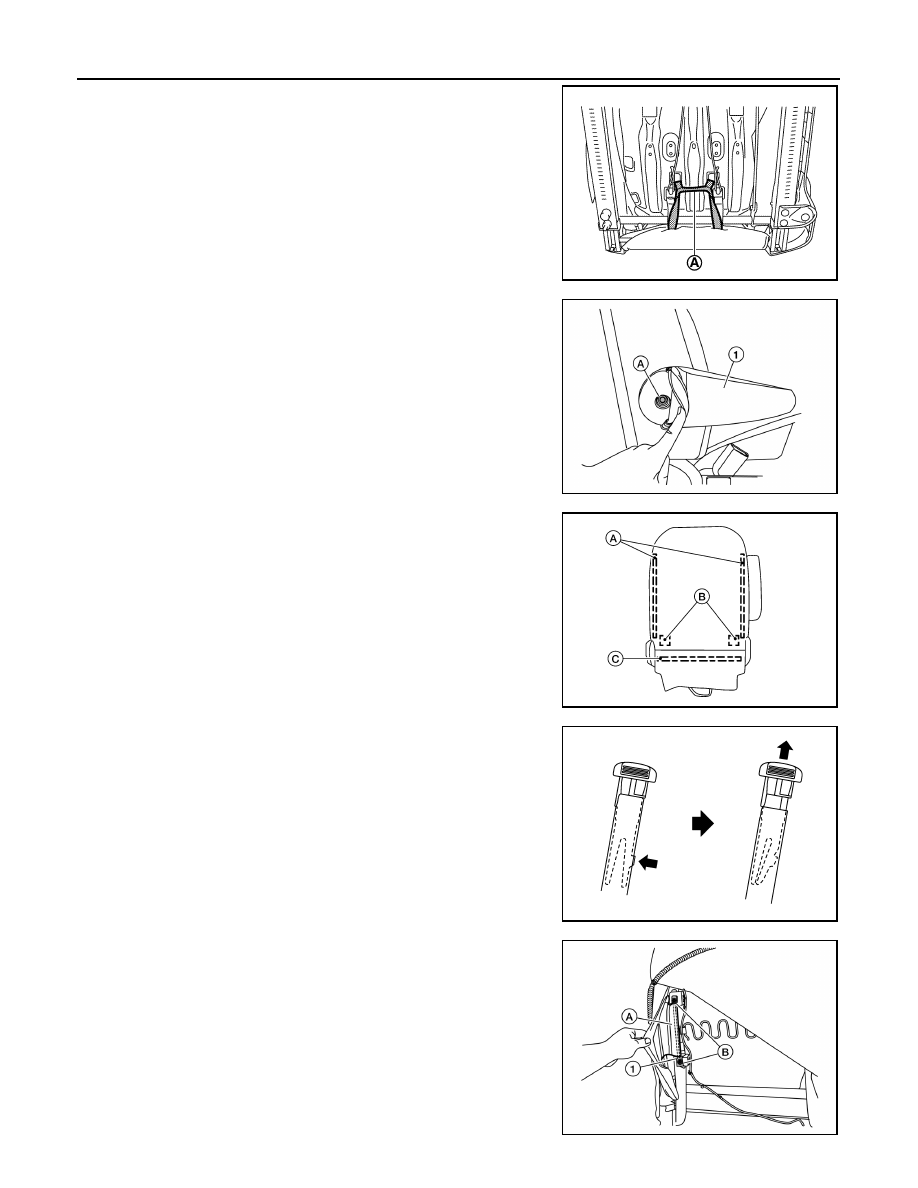

3. Release trim strap (A) from the seat cushion frame.

4. Remove the armrest (1) (if equipped).
a. Unzip the armrest to access armrest bolt (A).
b. Remove armrest bolt (A) and armrest (1).

5. Release the J-hook retainer (C), unzip seatback zippers (A) and

release J-clips (B).

6. Release the headrest holder locks as shown and remove.

CAUTION:

Before removing the headrest holder, check its orientation

(front/rear and right/left).

7. Remove and discard the chute rod nuts (B), then route the chute

rod (1) through the opening and remove it from the chute (A).

CAUTION:

Do not reuse the chute rod nuts.

JMJIA6015ZZ

ALJIA0994ZZ

AWJIA1114ZZ

JMJIA4073ZZ

ALJIA0992ZZ

FRONT SEAT

SE-37

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

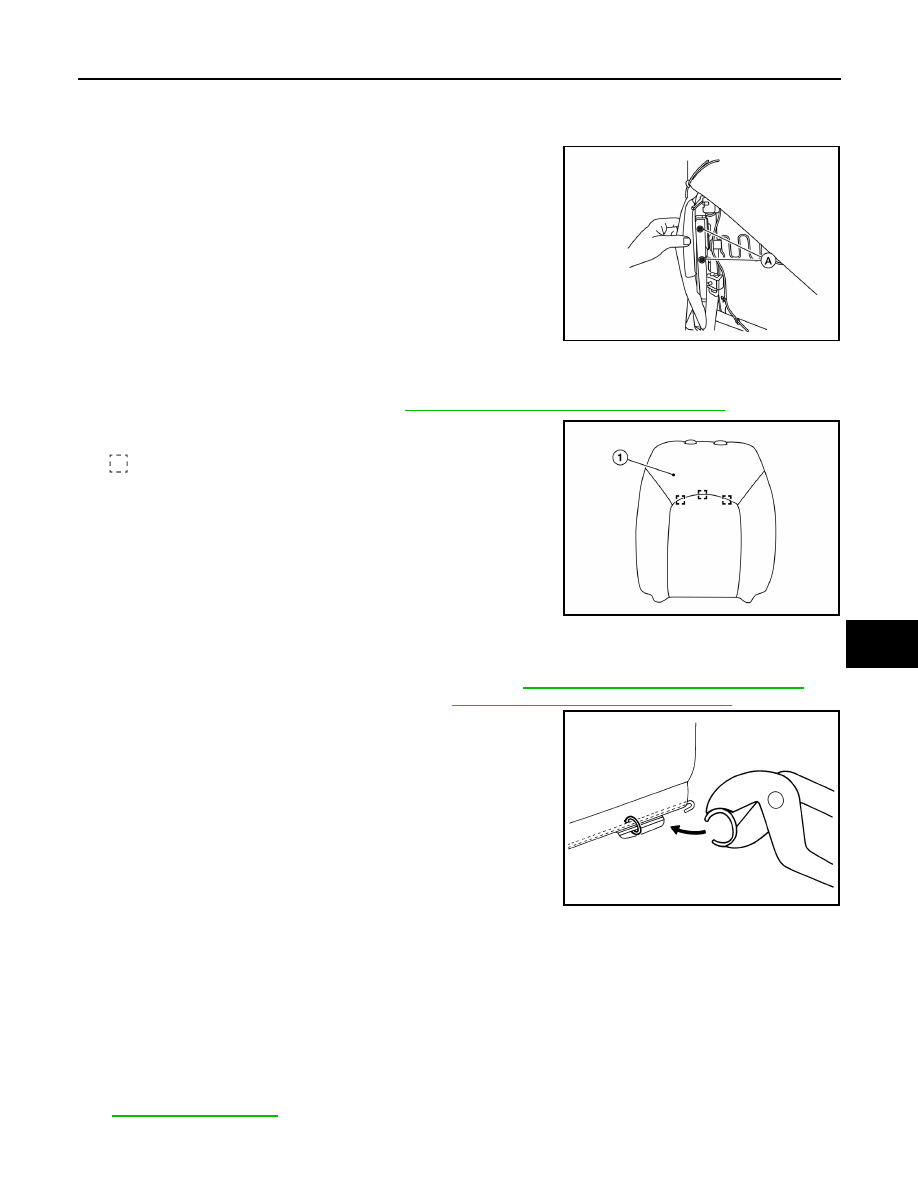

8. Unclip the side air bag module harness from the seat frame.

NOTE:

Take note of harness routing and attachment location for correct installation.

9. Remove and discard the side air bag module nuts (A).

CAUTION:

Do not reuse the side air bag module nuts.

10. Release the side air bag module studs from the seat frame and lift the seatback trim and seatback pad

from the seat frame.

11. Remove the side air bag module. Refer to

SE-24, "DRIVER SIDE : Side Air Bag Module"

.

12. Remove the hog rings and separate the seatback trim (1) from

the seatback pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Tighten the side air bag module nuts to specification. Refer to

SE-34, "DRIVER SIDE : Exploded View"

.

• Tighten the chute rod nuts to specification. Refer to

SE-34, "DRIVER SIDE : Exploded View"

.

• Install new hog rings on the seatback trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat-

back trim and seatback pad wires.

• Use NISSAN standard hog rings and tools to assemble.

CAUTION:

• Do not reuse the side air bag module nuts.

• Do not reuse the chute rod nuts.

• Inspect seatback pad, seatback trim and seatback trim chutes. Replace if damaged.

• Smooth out all wrinkles during assembly.

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

• When installing the side air bag module, make sure there are no wrinkles and the chute is not folded,

twisted or pinched.

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer

to

SRC-14, "Description"

.
