LUGGAGE TRIM

INT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

: Pawl

7. Release the harness connector from cargo room lamp (RH only) and remove luggage side lower finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation.

• When installing luggage side clip, press luggage side clip so that upper side stamp mark faces

toward passenger room, and then completely engage luggage side clip pawls.

LUGGAGE SIDE UPPER FINISHER
LUGGAGE SIDE UPPER FINISHER : Removal and Installation

INFOID:0000000008969718

REMOVAL

1. Remove luggage side lower finisher. Refer to

INT-34, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

2. Remove seat belt lower anchor bolt.

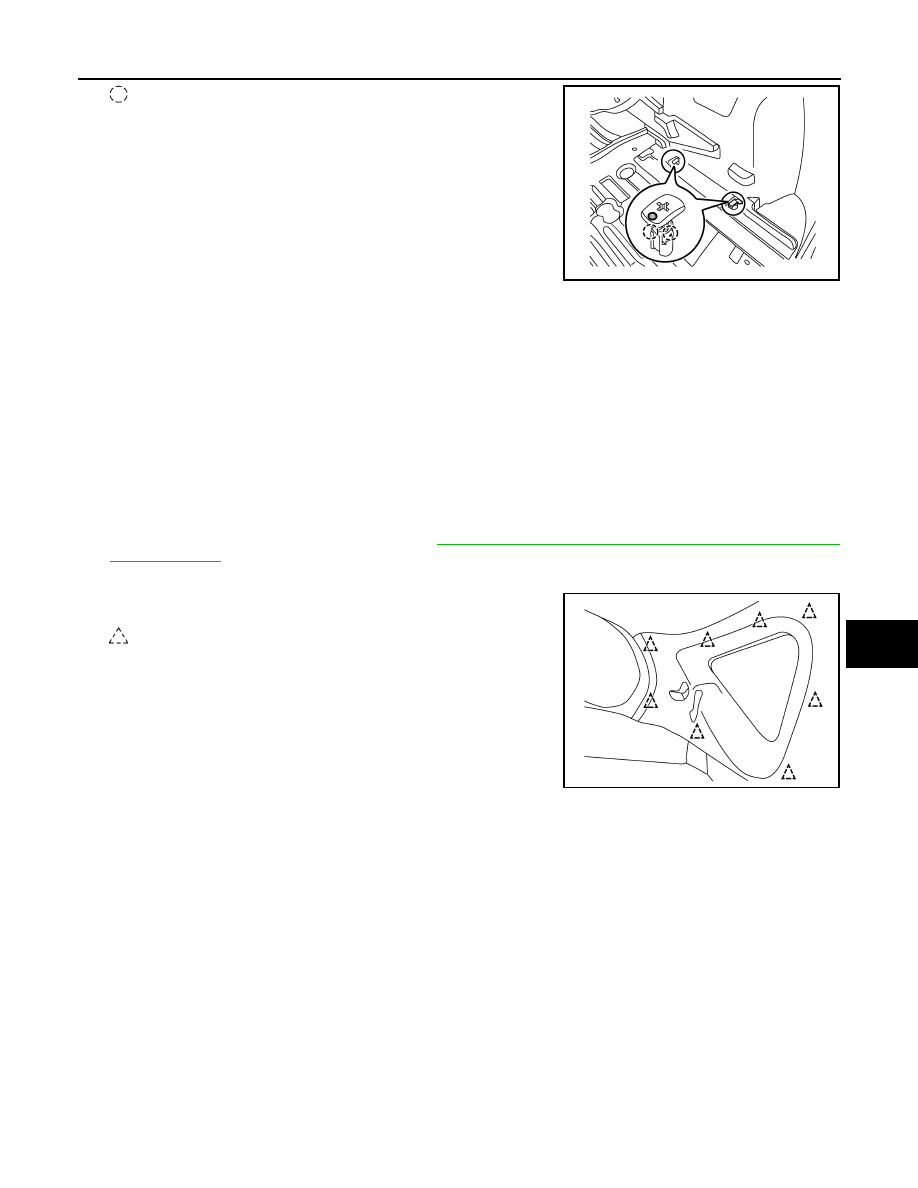

3. Release luggage side upper finisher clips using a suitable tool

and remove luggage side upper finisher.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation.

• When installing luggage side upper finisher, check that clips are placed in body holes.

AWJIA1095ZZ

AWJIA1097ZZ

INT-36

< REMOVAL AND INSTALLATION >

BACK DOOR TRIM

BACK DOOR TRIM

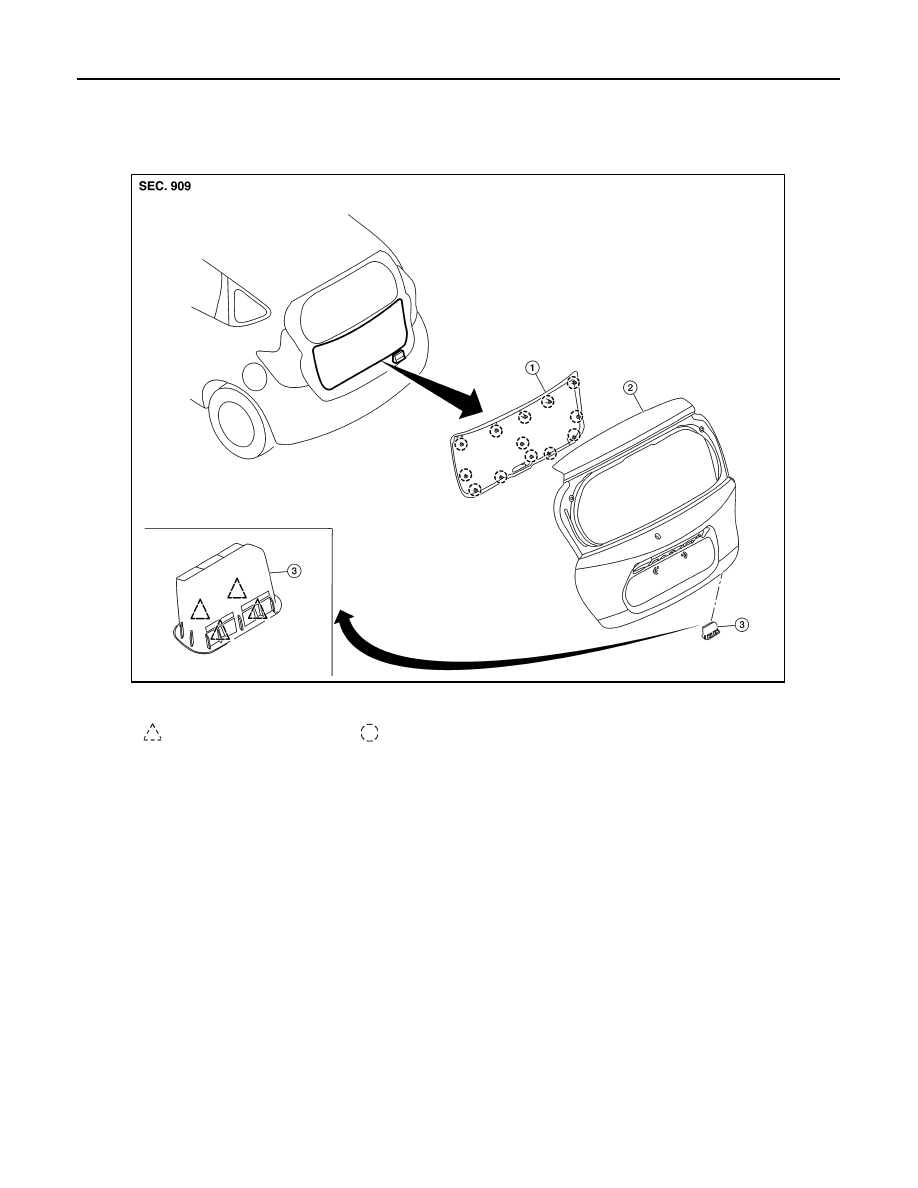

Exploded View

INFOID:0000000008969719

BACK DOOR INNER FINISHER
BACK DOOR INNER FINISHER : Removal and Installation

INFOID:0000000008969720

REMOVAL

1. Release back door inner finisher clips using a suitable tool and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation.

• When installing back door inner finisher, check that locate pin and clips are placed in body panel

holes.

BACK DOOR PULL HANDLE
BACK DOOR PULL HANDLE : Removal and Installation

INFOID:0000000008969721

REMOVAL

1. Release pawls using a suitable tool and remove.

INSTALLATION

1. Back door inner finisher

2. Back door panel

3. Back door pull handle

Clip

Pawl

AWJIA1103ZZ

BACK DOOR TRIM

INT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Installation is in the reverse order of removal.

CAUTION:

• Visually check the pawls for deformation and damage during installation.

• When installing, confirm upper and lower orientation of back door pull handle, then install it.

• When installing back door pull handle, check that pawls are placed in body panel holes.
