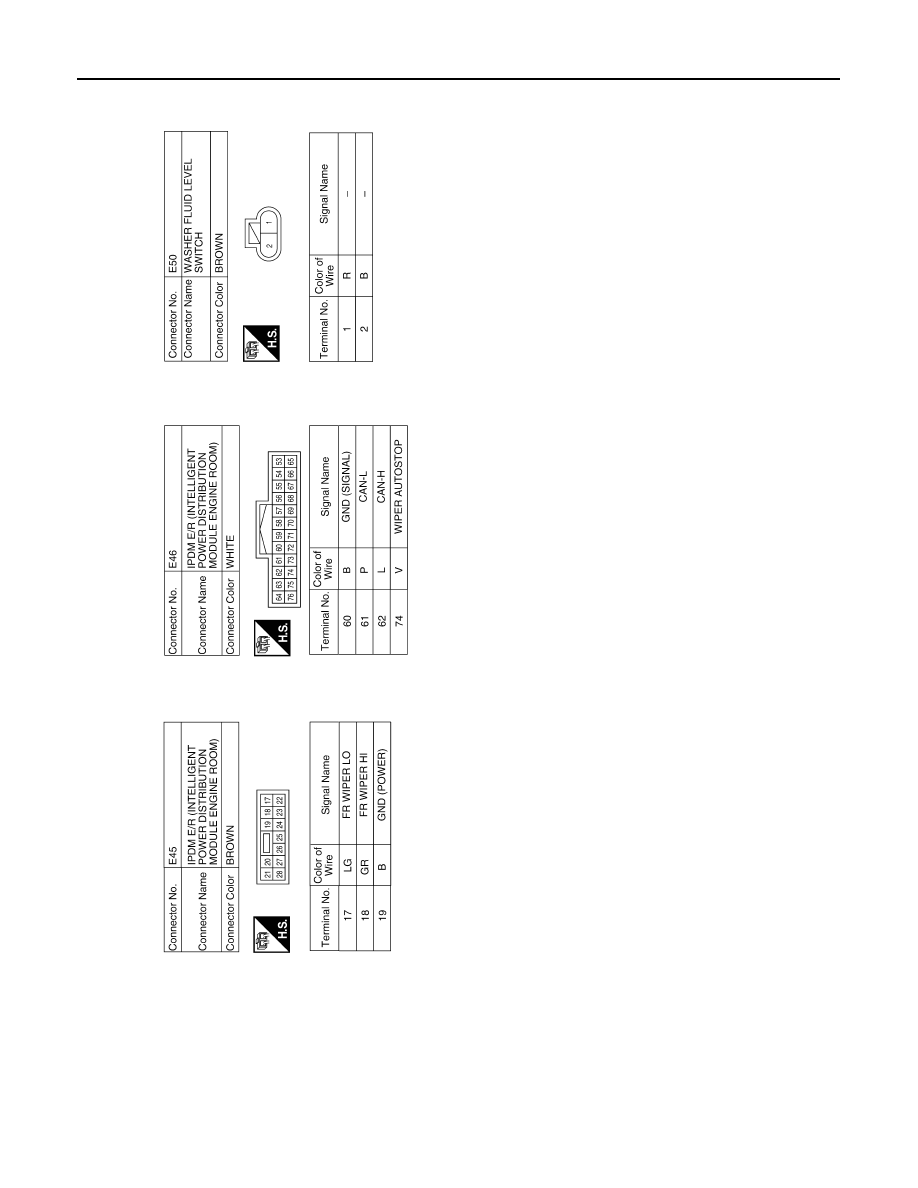

WW-26

< WIRING DIAGRAM >

FRONT WIPER AND WASHER SYSTEM

ABLIA4042GB

DIAGNOSIS AND REPAIR WORKFLOW

WW-27

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009269559

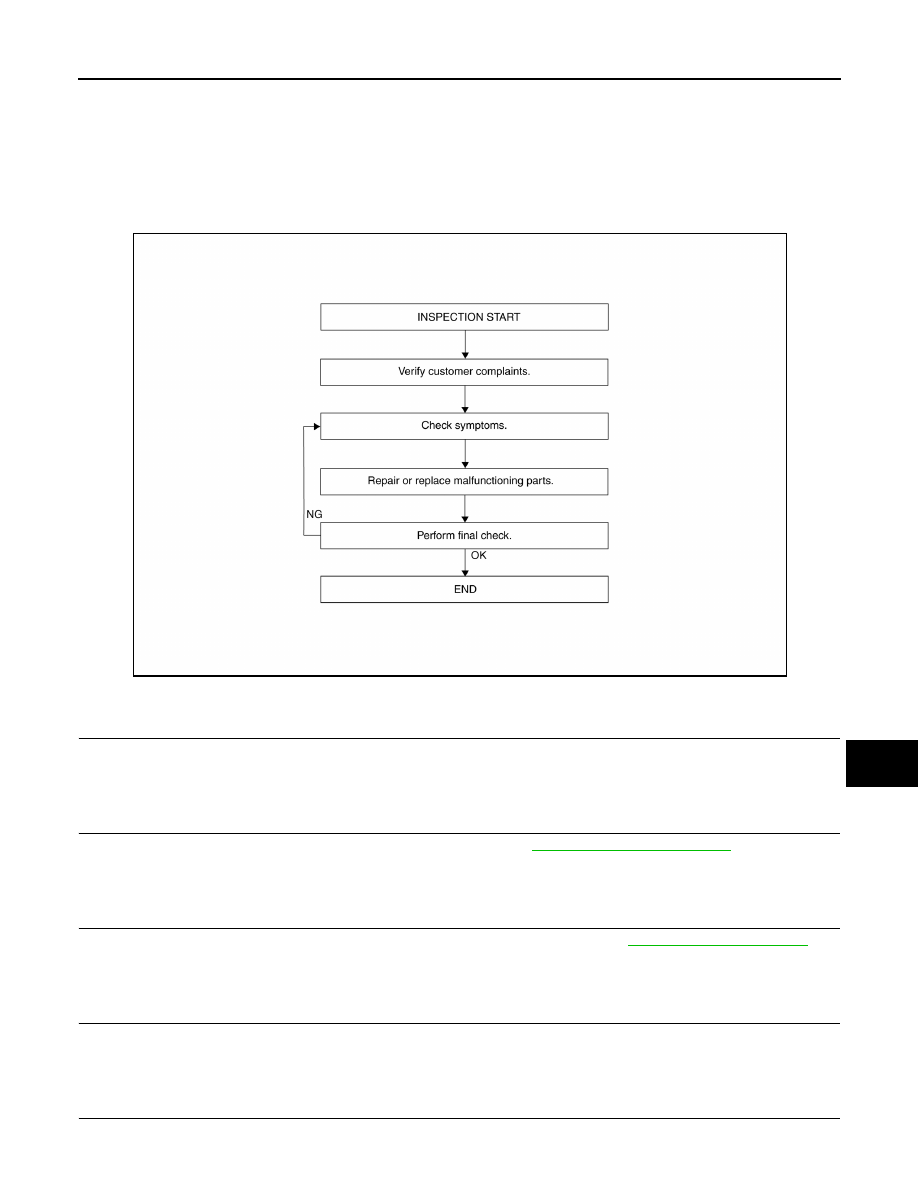

WORK FLOW

DETAILED FLOW

1.

 REVIEW CUSTOMER COMPLAINT

Review customer complaint. Try to obtain detailed information about the conditions when the symptom occurs.

>> GO TO 2

2.

 VERIFY THE SYMPTOM

Verify the symptom by performing an operational check. Refer to

WW-6, "System Description"

.

>> GO TO 3

3.

PERFORM TROUBLE DIAGNOSIS BY SYMPTOM

Diagnose the vehicle by performing the appropriate trouble diagnosis. Refer to

WW-39, "Symptom Table"

.

>> GO TO 4

4.

 REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace the specific parts.

>> GO TO 5

5.

 FINAL CHECK

Perform a final inspection of the system.

AWLIA1887GB

WW-28

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

Is the inspection result normal?

YES

>> Inspection End.

NO

>> GO TO 2.

WIPER AND WASHER FUSE

WW-29

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

DTC/CIRCUIT DIAGNOSIS

WIPER AND WASHER FUSE

Description

INFOID:0000000009269560

Diagnosis Procedure

INFOID:0000000009269561

1.

 CHECK FUSES

Check that the following fuses are not blown.

Is the fuse blown?

YES

>> Replace the fuse after repairing the affected circuit.

NO

>> Inspection End.

Component

Capacity

Fuse No.

Location

Front wiper motor

30 A

39

IPDM E/R

Front washer motor

10 A

6

Fuse block (J/B)

Component

Capacity

Fuse No.

Location

Front wiper motor

30 A

39

IPDM E/R

Front washer motor

10 A

6

Fuse block (J/B)
