WW-2

FRONT WIPER MOTOR GROUND CIRCUIT ...

Diagnosis Procedure ..............................................

WASHER MOTOR CIRCUIT .............................

Diagnosis Procedure ..............................................

WASHER SWITCH ............................................

Description ..............................................................

Component Inspection ............................................

SYMPTOM DIAGNOSIS .............................

WIPER AND WASHER SYSTEM SYMPTOMS

...

Symptom Table ......................................................

FRONT WIPER DOES NOT OPERATE ............

Description ..............................................................

Diagnosis Procedure ..............................................

NORMAL OPERATING CONDITION ................

Description ..............................................................

REMOVAL AND INSTALLATION ...............

FRONT WIPER ..................................................

Exploded View ........................................................

WIPER ARM ..............................................................

WIPER ARM : Removal and Installation ................

WIPER ARM : Adjustment ......................................

WIPER BLADE ..........................................................

WIPER BLADE : Removal and Installation .............

WIPER REFILL .........................................................

WIPER REFILL : Removal and Installation ............

WIPER DRIVE ASSEMBLY ......................................

WIPER DRIVE ASSEMBLY : Removal and Instal-
lation .......................................................................

WIPER DRIVE ASSEMBLY : Disassembly and
Assembly ................................................................

WASHER TANK ................................................

Exploded View ........................................................

Removal and Installation .........................................

WASHER PUMP ................................................

Exploded View ........................................................

Removal and Installation .........................................

WASHER NOZZLE & TUBE .............................

Washer System Layout ...........................................

Exploded View ........................................................

WASHER NOZZLE ....................................................

WASHER NOZZLE : Removal and Installation .......

WASHER NOZZLE : Inspection and Adjustment ....

WASHER TUBE ........................................................

WASHER TUBE : Removal and Installation ...........

WIPER AND WASHER SWITCH ......................

Removal and Installation .........................................

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

Specifications ..........................................................

PRECAUTIONS

WW-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009501753

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000009269542

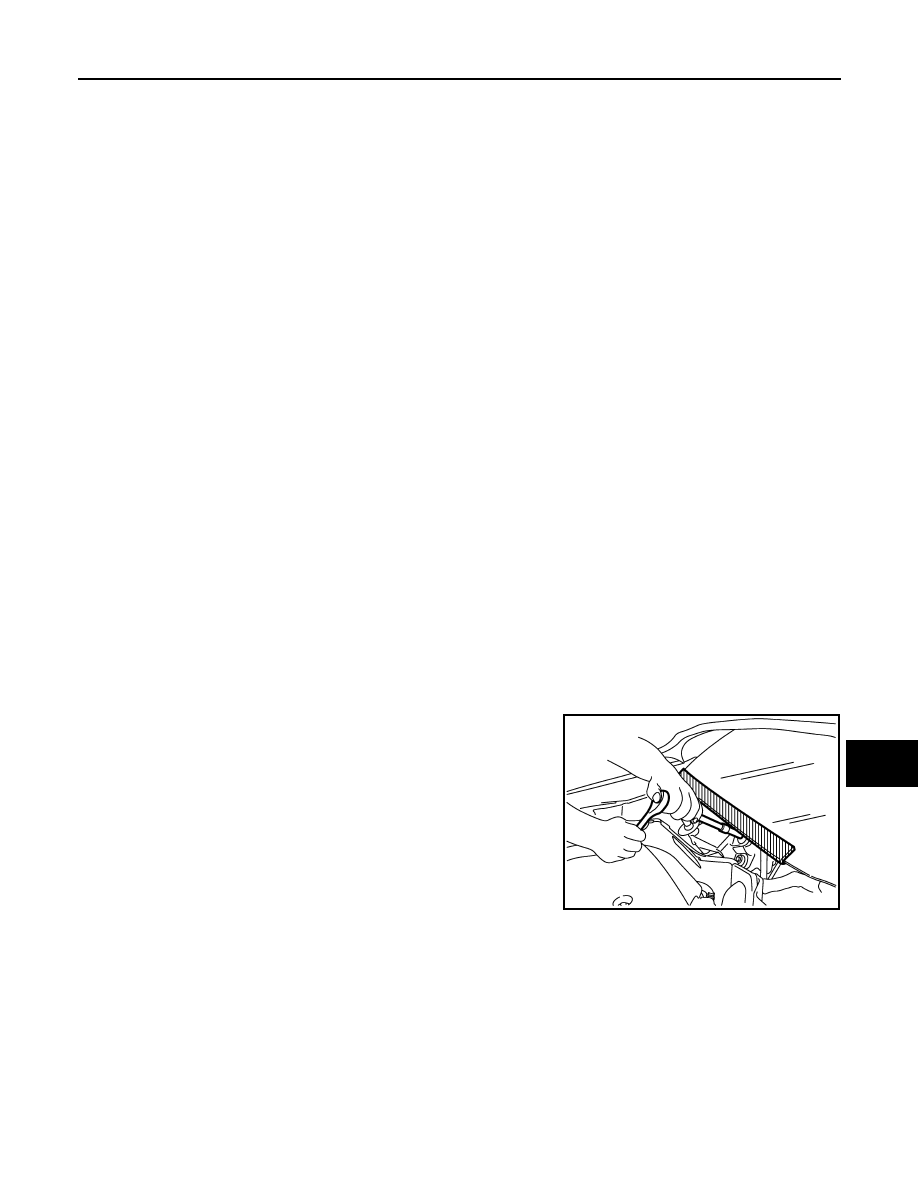

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

PIIB3706J

WW-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tool

INFOID:0000000009269543

Tool name

Description

Washer nozzle adjuster

Adjusting washer nozzle

JSLIA0149ZZ

COMPONENT PARTS

WW-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

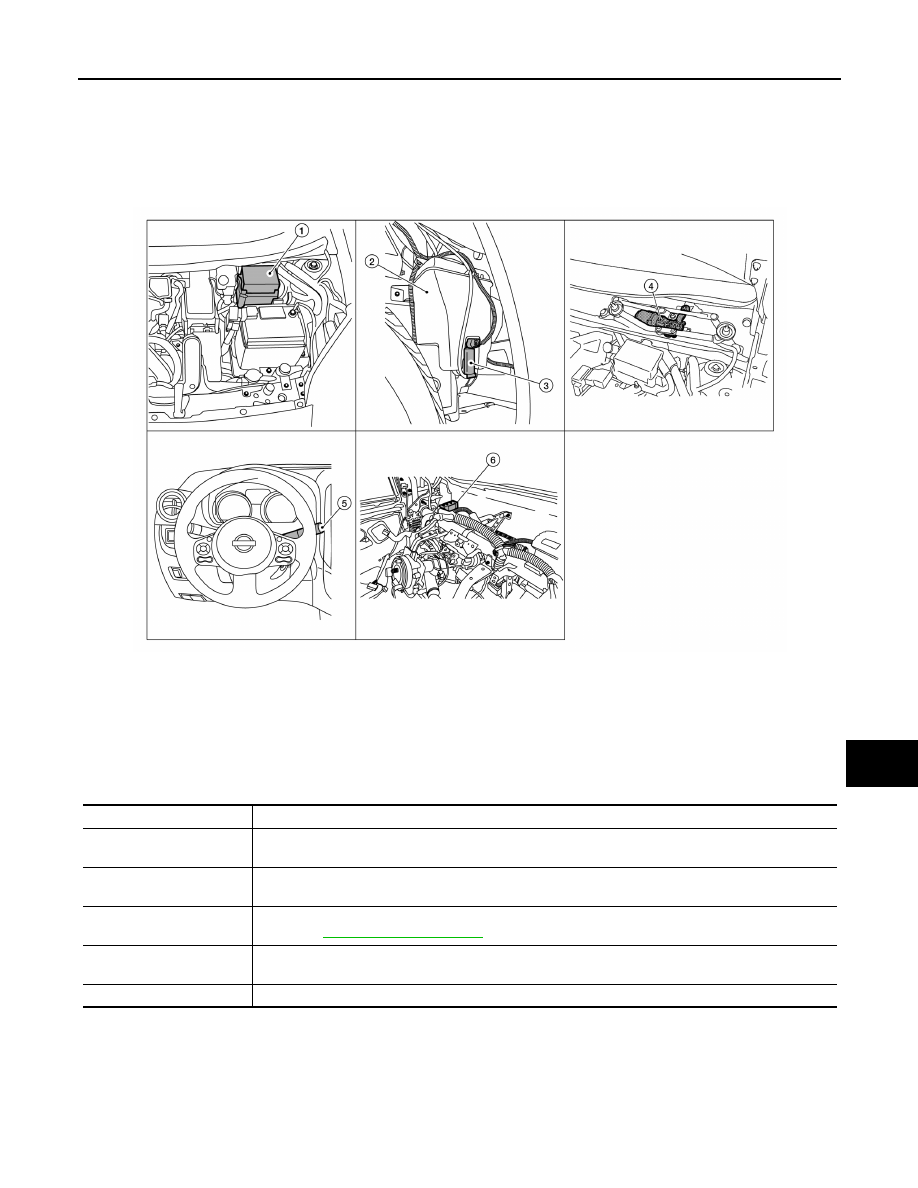

Component Parts Location

INFOID:0000000009269544

Component Description

INFOID:0000000009269545

1.

IPDM E/R

2.

Windshield washer tank
(view with RF fender protector removed)

3.

Front washer motor
(view with RF fender protector removed)

4.

Front wiper motor
(view with cowl top removed)

5.

Combination switch (wiper and washer switch) 6.

BCM
(view with instrument panel removed)

AWLIA1890ZZ

Component

Function

BCM

• Monitors combination switch status by performing the combination switch reading function.
• Sends front wiper relay and front wiper high relay ON signals to IPDM E/R.

IPDM E/R

• Controls front wiper relay and front wiper high relay.
• Performs the auto stop control of the front wiper.

Combination switch
(Wiper and washer switch)

• Provides input for wiper and washer control to BCM.
• Refer to

WW-6, "System Description"

for more information.

Front wiper motor

• Drives windshield wipers in HI or LO mode.
• Sends wiper stop signal to IPDM E/R.

Front washer motor

Pumps windshield washer fluid to windshield in wash mode.
