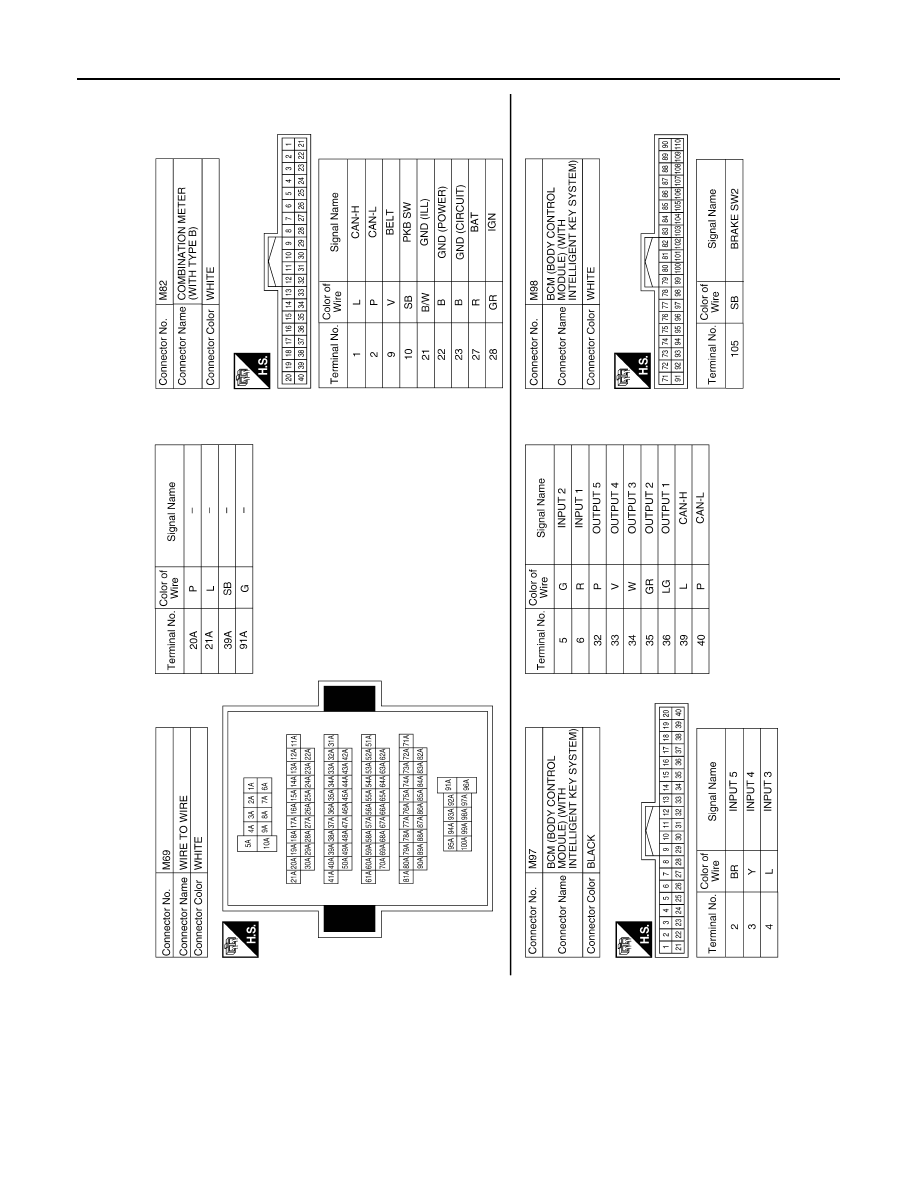

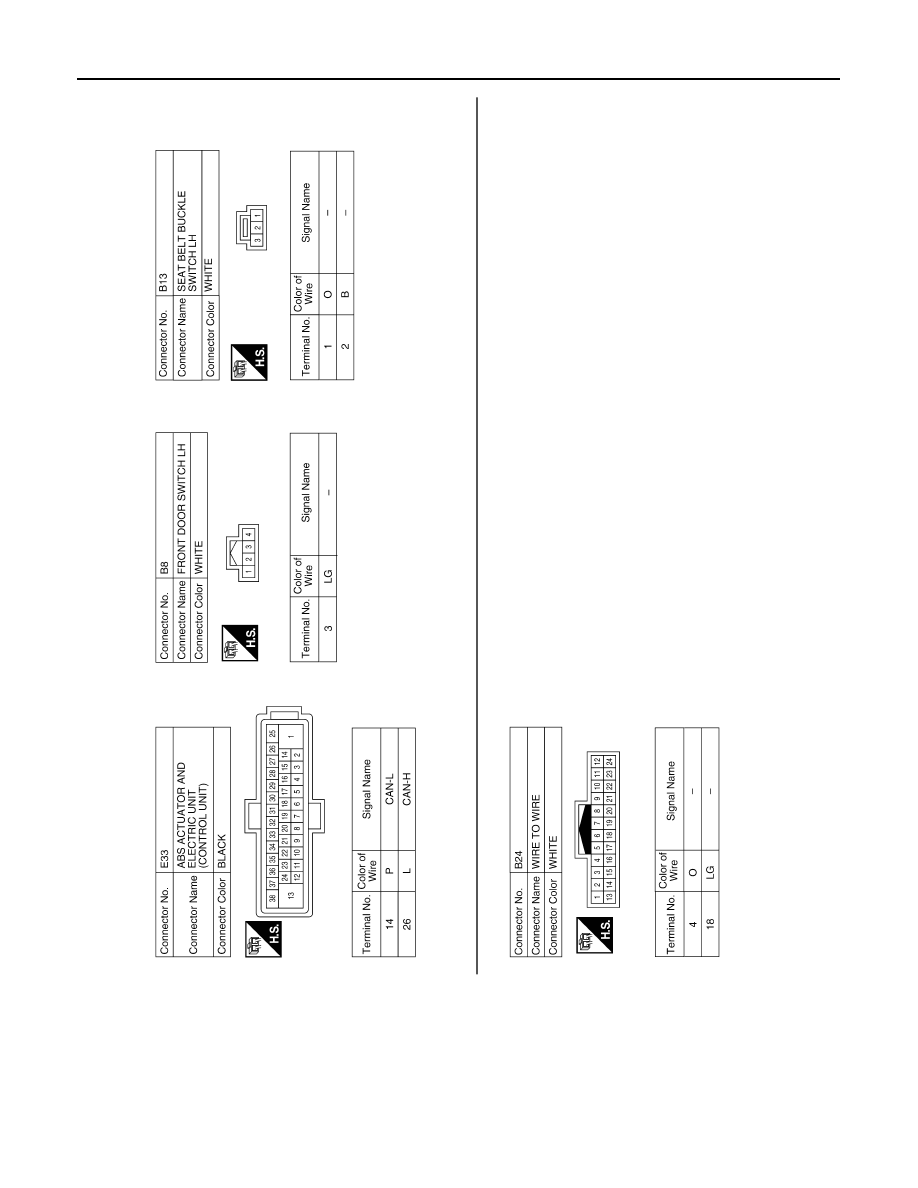

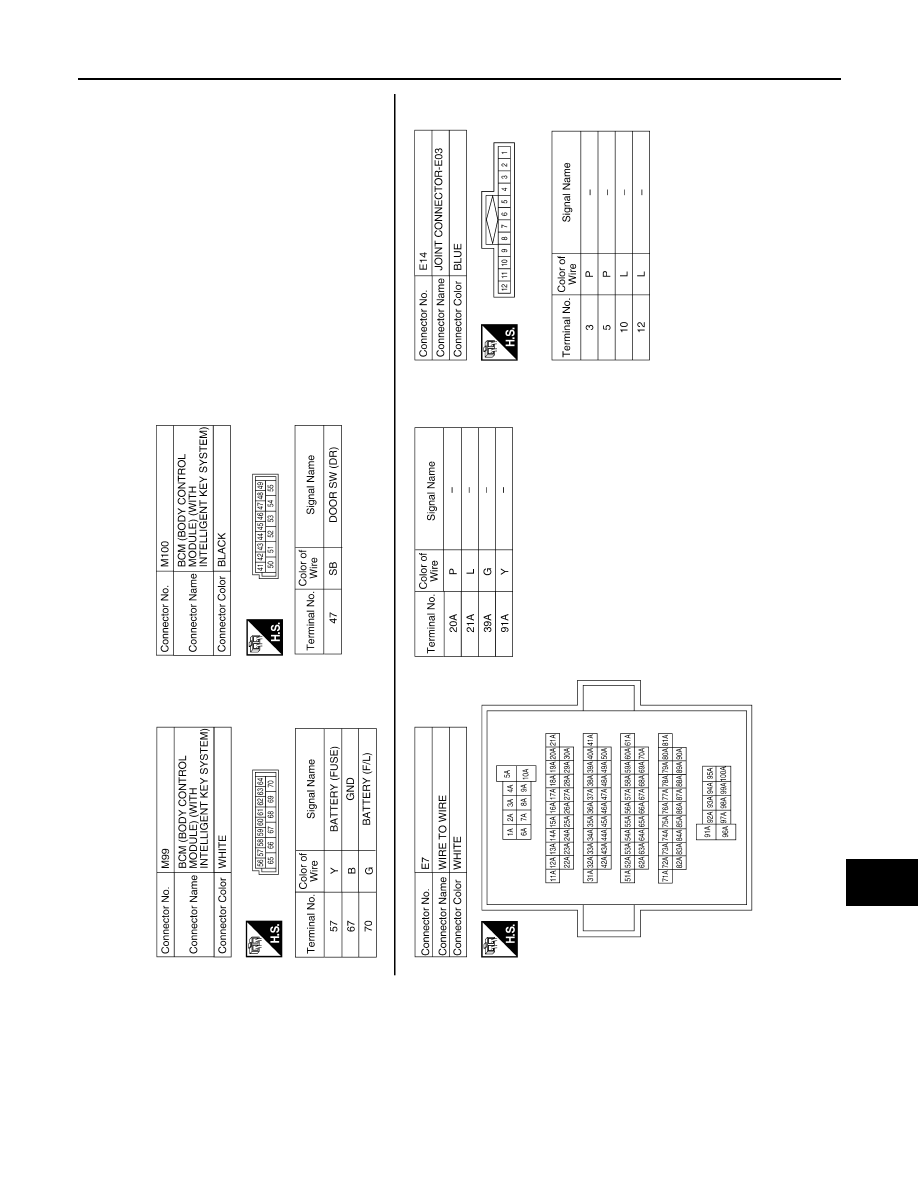

< WIRING DIAGRAM >

WARNING CHIME SYSTEM

ABNIA4568GB

WCS

WARNING CHIME SYSTEM

WCS-27

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA4586GB

WCS-28

< WIRING DIAGRAM >

WARNING CHIME SYSTEM

ABNIA4587GB

WCS

DIAGNOSIS AND REPAIR WORKFLOW

WCS-29

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009269296

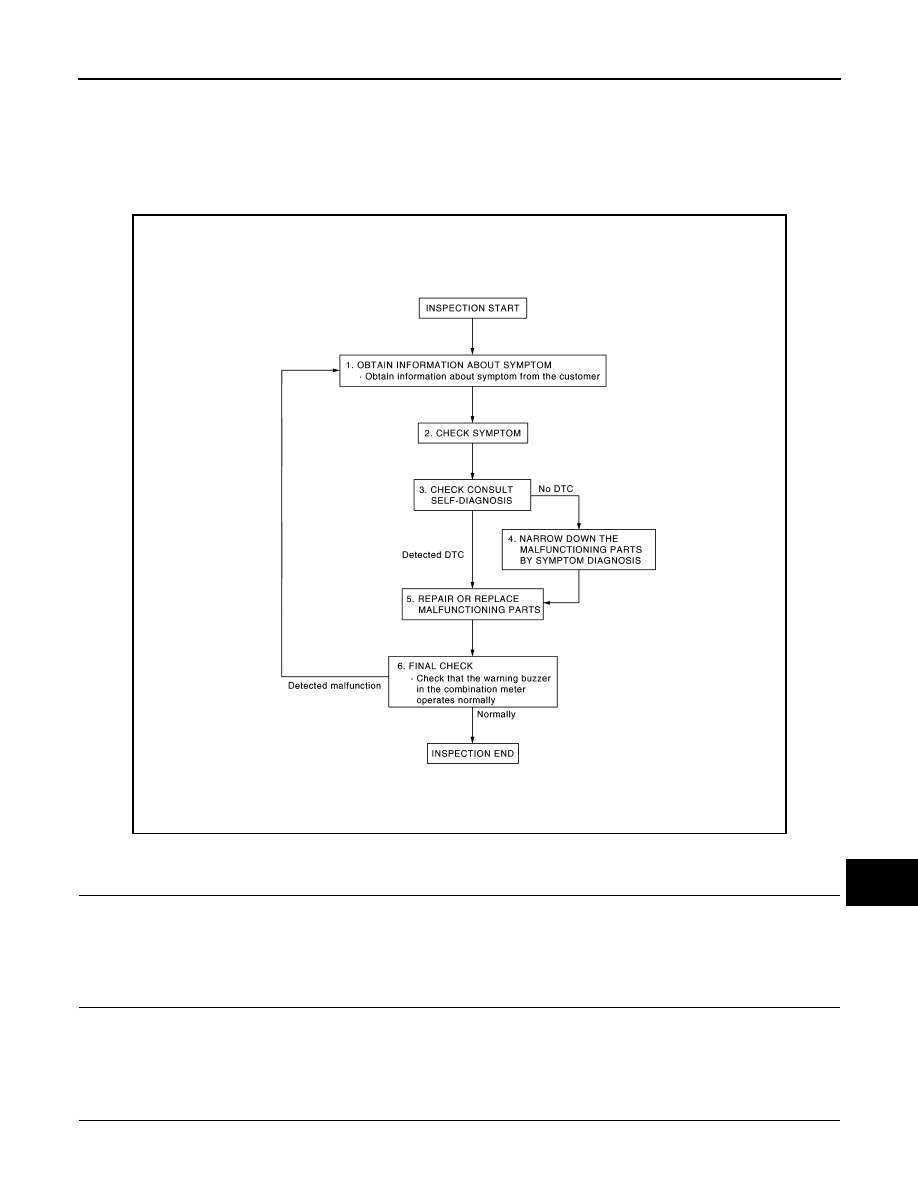

OVERALL SEQUENCE

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under

which the malfunction occurred.

>> GO TO 2.

2.

CHECK SYMPTOM

• Check the symptom based on the information obtained from the customer.

• Check if any other malfunctions are present.

>> GO TO 3.

3.

CHECK CONSULT SELF-DIAGNOSIS RESULTS

AWNIA2375GB
