Nissan Versa Sedan. Manual - part 889





DUCT AND GRILLE

VTL-5

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REMOVAL AND INSTALLATION

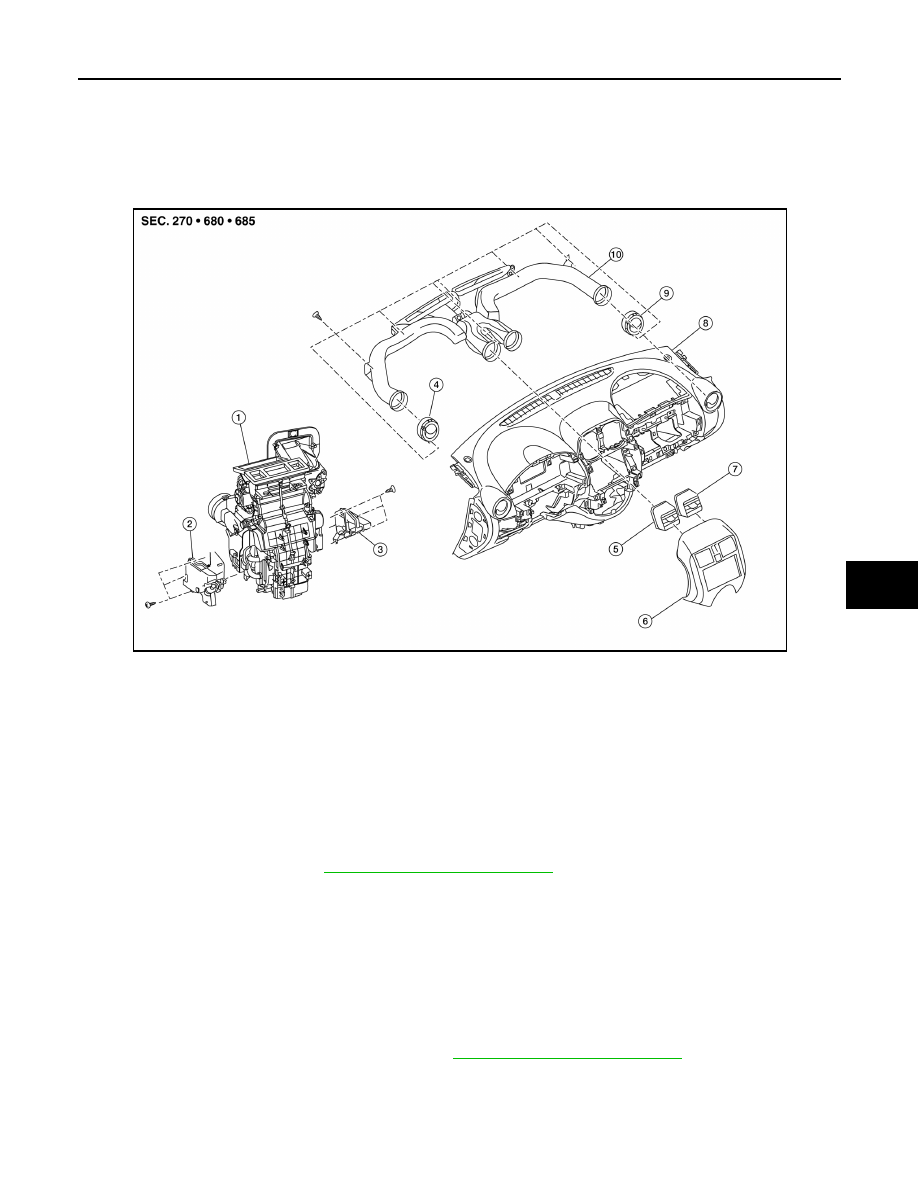

DUCT AND GRILLE

Exploded View

INFOID:0000000009269713

CENTER VENTILATOR GRILLE
CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009269714

REMOVAL

1. Remove cluster lid C. Refer to

IP-21, "Removal and Installation"

.

2. Release the tabs and remove the center ventilator grille from cluster lid C.

INSTALLATION

Installation is in the reverse order of removal.

SIDE VENTILATOR GRILLE
SIDE VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009269715

REMOVAL

1. Remove the instrument panel assembly. Refer to

IP-15, "Removal and Installation"

2. Remove the center ventilator duct assembly.
3. Remove the side ventilator grille screw and remove the side ventilator grille from the instrument panel

assembly.

1.

A/C unit assembly

2.

Foot duct (LH)

3.

Foot duct (RH)

4.

Side ventilator grille (LH)

5.

Center ventilator grille (LH)

6.

Cluster lid C

7.

Center ventilator grille (LH)

8.

Instrument panel assembly

9.

Side ventilator grille (RH)

10. Center ventilator duct assembly

ALIIA0474ZZ

VTL-6

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

INSTALLATION

Installation is in the reverse order of removal.

CENTER VENTILATOR DUCT
CENTER VENTILATOR DUCT : Removal and Installation

INFOID:0000000009269716

REMOVAL

1. Remove the instrument panel assembly. Refer to

IP-15, "Removal and Installation"

.

2. Remove the center ventilator duct assembly screws and the center ventilator duct assembly from the

instrument panel assembly.

INSTALLATION

Installation is in the reverse order of removal.

FOOT DUCT
FOOT DUCT : Removal and Installation

INFOID:0000000009269717

LEFT SIDE

Removal

1. Remove the A/C unit assembly. Refer to

HA-40, "Removal and Installation"

.

2. Remove the foot duct (LH) screws and the foot duct (LH).

Installation

Installation is in the reverse order of removal.

RIGHT SIDE

Removal

1. Remove the instrument panel assembly. Refer to

IP-15, "Removal and Installation"

.

2. Remove the foot duct (RH) screws and the foot duct (RH).

Installation

Installation is in the reverse order of removal.

BLOWER MOTOR

VTL-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

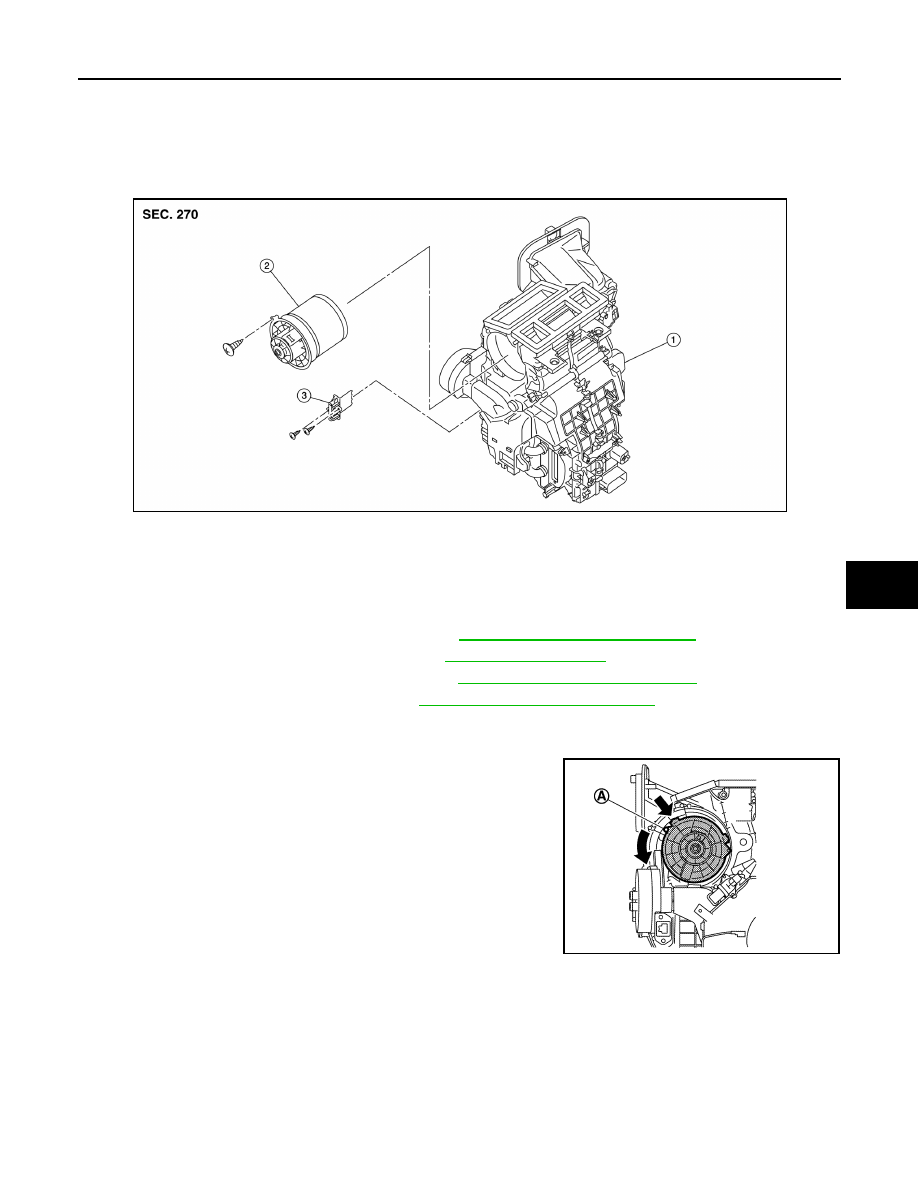

BLOWER MOTOR

Exploded View

INFOID:0000000009269718

Removal and Installation

INFOID:0000000009269719

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-63, "Removal and Installation"

.

2. Remove the lower knee protector (LH). Refer to

IP-14, "Exploded View"

.

3. Remove the accelerator pedal assembly. Refer to

ACC-3, "Removal and Installation"

.

4. Remove the brake pedal assembly. Refer to

BR-19, "Removal and Installation"

.

5. Disconnect the harness connectors from the blower motor.
6. Disconnect the harness connector from the thermo control amp.
7. Remove the blower motor screw (A).
8. Press the flange holding hook and turn blower motor counter-

clockwise.

9. Remove the blower motor.

INSTALLATION

Installation is in the reverse order of removal.

1.

A/C unit assembly

2.

Blower motor

3.

Blower fan resistor

AWIIA1465ZZ

JMIIA1741ZZ

WCS

WCS-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

WCS

A

O

P

CONTENTS

WARNING CHIME SYSTEM

HOW TO USE THIS MANUAL ......................

3

APPLICATION NOTICE  ......................................

3

Information ................................................................

3

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

4

SYSTEM DESCRIPTION  ..............................

5

COMPONENT PARTS  ........................................

5

Component Parts Location ........................................

5

Component Description .............................................

5

SYSTEM ..............................................................

7

WARNING CHIME SYSTEM  .......................................

7

WARNING CHIME SYSTEM : System Diagram .......

7

WARNING CHIME SYSTEM : System Description

......

7

LIGHT REMINDER WARNING CHIME  .......................

7

LIGHT REMINDER WARNING CHIME : System
Diagram ...................................................................
..

7

LIGHT REMINDER WARNING CHIME : System
Description ..............................................................
..

7

SEAT BELT WARNING CHIME  ..................................

8

SEAT BELT WARNING CHIME : System Diagram

......

8

SEAT BELT WARNING CHIME : System Descrip-
tion ..........................................................................
..

8

KEY WARNING CHIME (WITHOUT INTELLIGENT
KEY) ...........................................................................
..

8

KEY WARNING CHIME (WITHOUT INTELLI-
GENT KEY) : System Diagram  ...............................
..

8

KEY WARNING CHIME (WITHOUT INTELLI-
GENT KEY) : System Description ...........................
..

8

PARKING BRAKE RELEASE WARNING CHIME .....

9

PARKING BRAKE RELEASE WARNING CHIME
: System Diagram  ....................................................
.

9

PARKING BRAKE RELEASE WARNING CHIME
: System Description ................................................
.

9

DIAGNOSIS SYSTEM (COMBINATION
METER) .............................................................

10

TYPE A .......................................................................

10

TYPE A : Diagnosis Description  ..............................

10

TYPE A : CONSULT Function .................................

11

TYPE B .......................................................................

13

TYPE B : Diagnosis Description  ..............................

13

TYPE B : CONSULT Function .................................

14

DIAGNOSIS SYSTEM (BCM) (WITH INTELLI-
GENT KEY SYSTEM) .......................................

18

COMMON ITEM  .........................................................

18

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

18

BUZZER .....................................................................

19

BUZZER : CONSULT Function (BCM - BUZZER) ....

19

DIAGNOSIS SYSTEM (BCM) (WITHOUT IN-
TELLIGENT KEY SYSTEM)  .............................

20

COMMON ITEM  .........................................................

20

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

20

BUZZER .....................................................................

21

BUZZER : CONSULT Function (BCM - BUZZER) ....

21

ECU DIAGNOSIS INFORMATION ..............

22

BCM, COMBINATION METER  .........................

22

List of ECU Reference .............................................

22

WIRING DIAGRAM ......................................

23
