Nissan Versa Sedan. Manual - part 884

TM-442

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

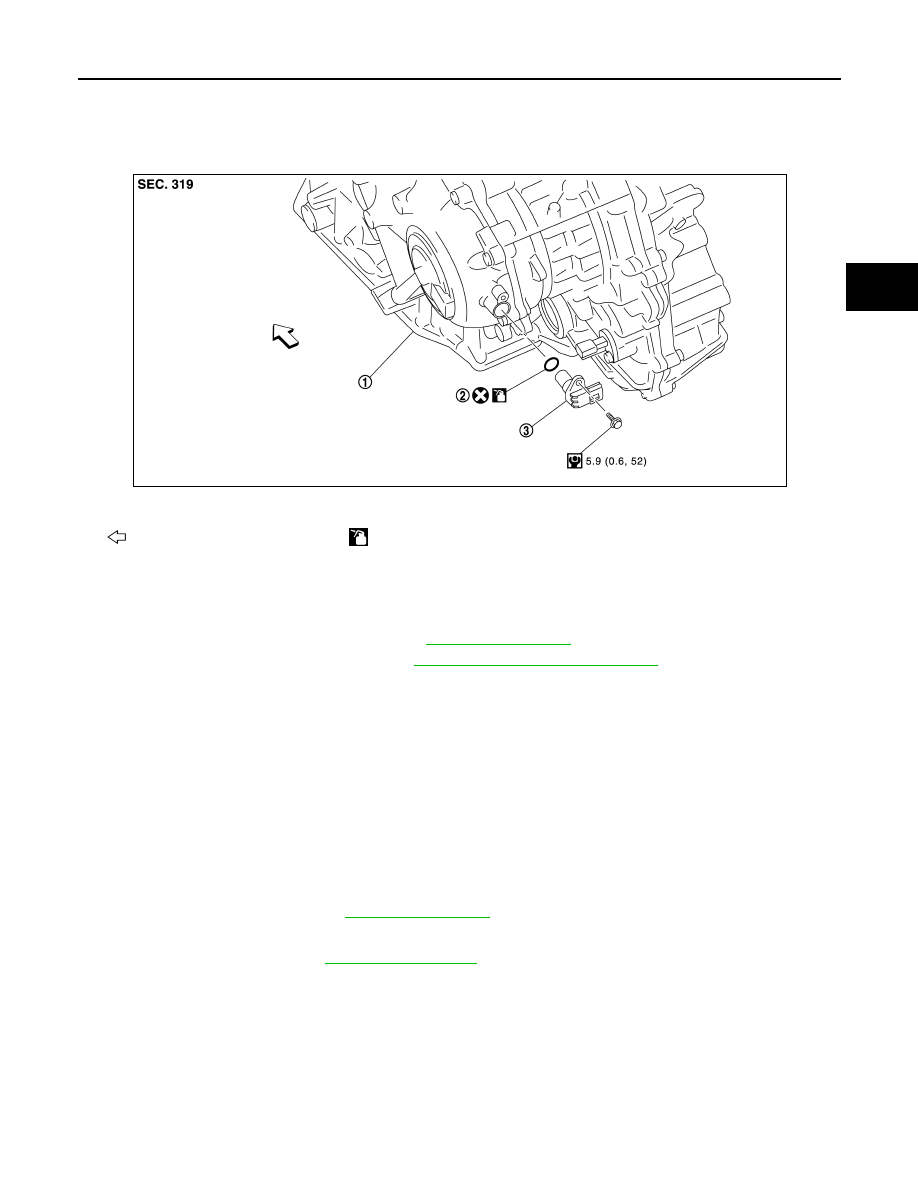

PRIMARY SPEED SENSOR

PRIMARY SPEED SENSOR

Exploded View

INFOID:0000000009268261

Removal and Installation

INFOID:0000000009268262

REMOVAL

1. Remove the front LH wheel and tire. Refer to

WT-39, "Adjustment"

.

2. Remove the LH fender protector. Refer to

EXT-26, "Removal and Installation"

.

3. Disconnect the harness connector from  primary speed sensor.
4. Remove the primary speed sensor.
5. Remove the O-ring from the primary speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.

Inspection and Adjustment

INFOID:0000000009268263

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-426, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-427, "Adjustment"

.

1.

Transaxle assembly

2.

O-ring

3.

Primary speed sensor

Front

: Genuine NISSAN CVT Fluid NS-3

JSDIA1880GB

SECONDARY SPEED SENSOR

TM-443

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

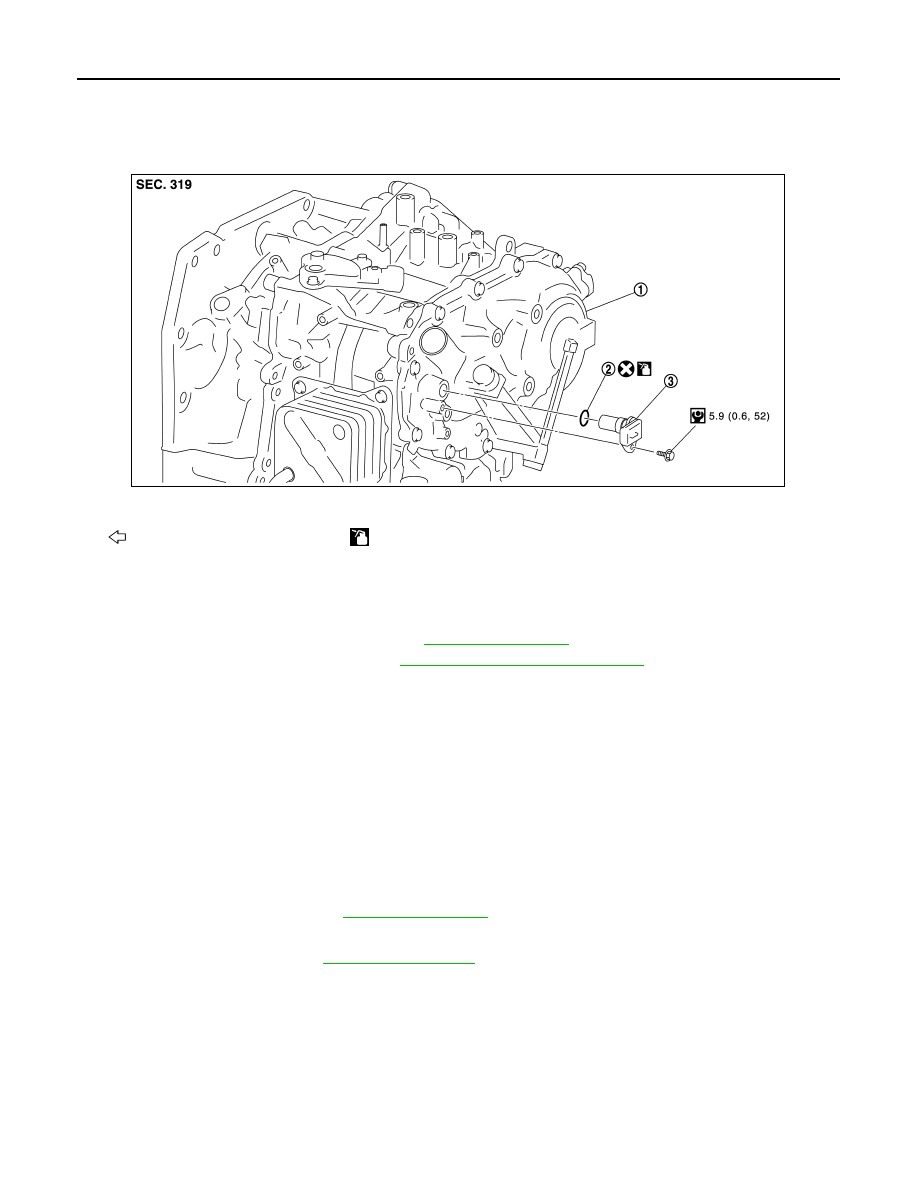

SECONDARY SPEED SENSOR

Exploded View

INFOID:0000000009268264

Removal and Installation

INFOID:0000000009268265

REMOVAL

1. Remove the front LH wheel and tire. Refer to

WT-39, "Adjustment"

.

2. Remove the fender protector (LH). Refer to

EXT-26, "Removal and Installation"

.

3. Disconnect the harness connector from secondary speed sensor.
4. Remove the secondary speed sensor.
5. Remove the O-ring from the secondary speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.

Inspection and Adjustment

INFOID:0000000009268266

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-426, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-427, "Adjustment"

.

1.

Transaxle assembly

2.

O-ring

3.

Secondary speed sensor

Front

: Genuine NISSAN CVT Fluid NS-3

JSDIA1881GB

TM-444

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

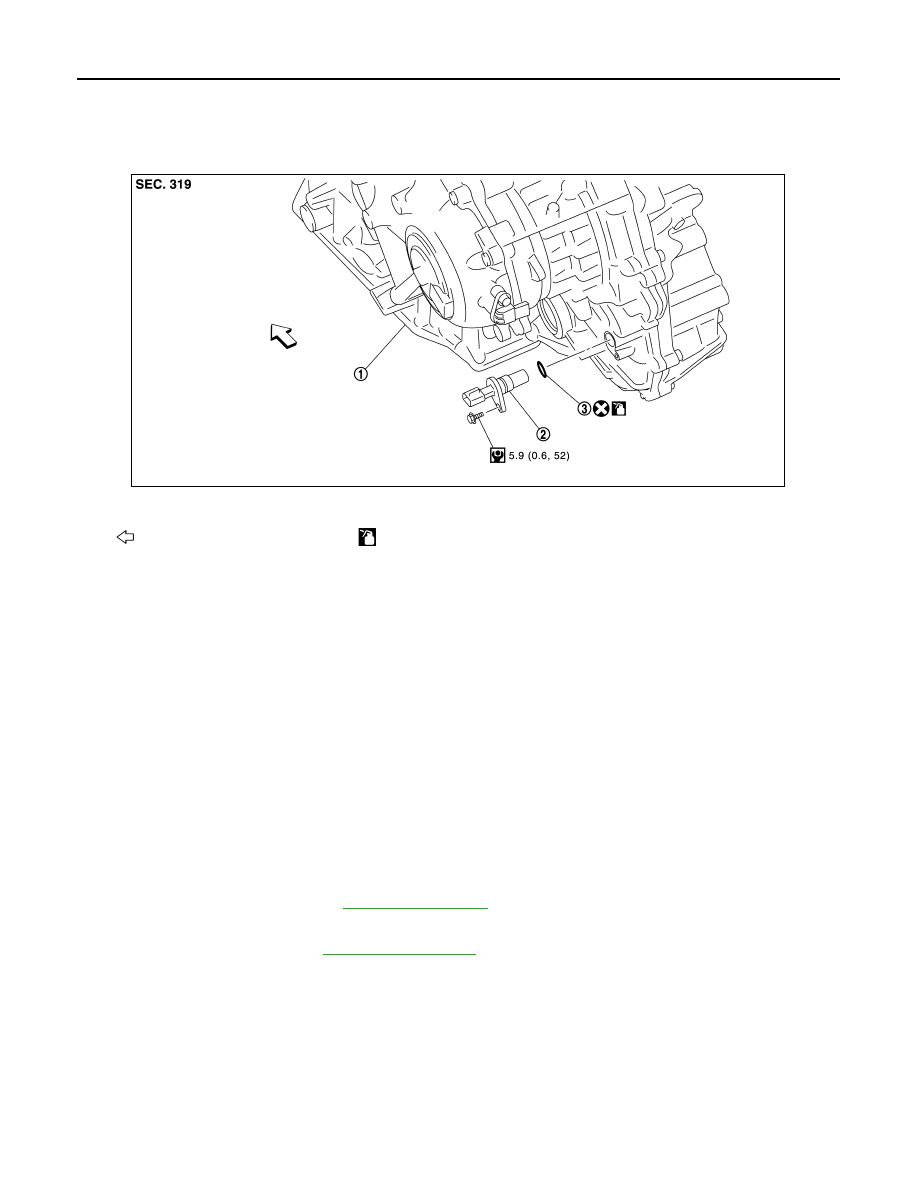

OUTPUT SPEED SENSOR

OUTPUT SPEED SENSOR

Exploded View

INFOID:0000000009268267

Removal and Installation

INFOID:0000000009268268

REMOVAL

1. Disconnect the harness connector from output speed sensor.

NOTE:

Lift up the vehicle and perform the work from rear of the transaxle assembly.

2. Remove the output speed sensor.
3. Remove the O-ring from the output speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.

Inspection and Adjustment

INFOID:0000000009268269

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-426, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Check the CVT fluid level. Refer to

TM-427, "Adjustment"

.

1.

Transaxle assembly

2.

Output speed sensor

3.

O-ring

Front

Genuine NISSAN CVT Fluid NS-3

JSDIA1882GB

DIFFERENTIAL SIDE OIL SEAL

TM-445

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

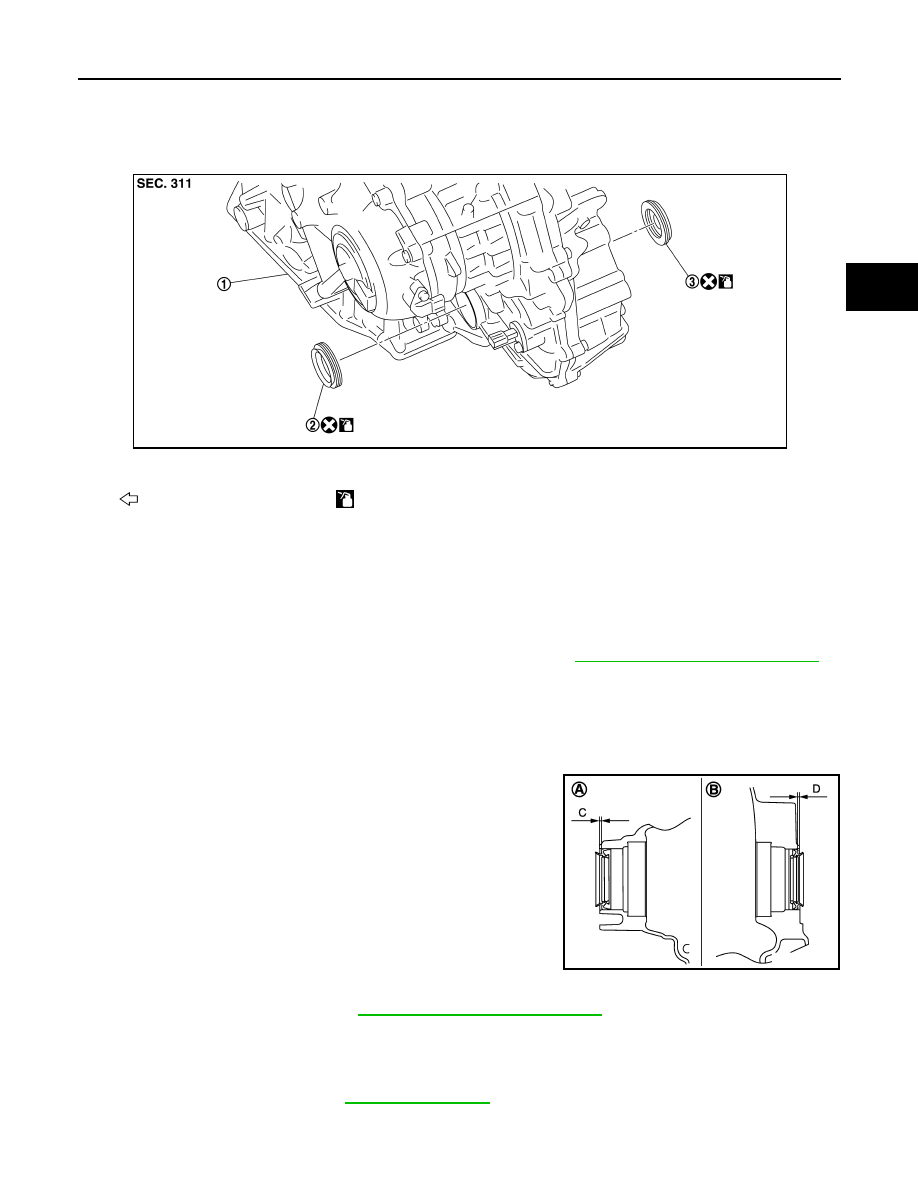

DIFFERENTIAL SIDE OIL SEAL

Exploded View

INFOID:0000000009268270

Removal and Installation

INFOID:0000000009268271

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove the front drive shaft from the transaxle assembly. Refer to

FAX-15, "Removal and Installation"

2. Remove the differential side oil seal using suitable tool.

CAUTION:

When removing the differential side oil seal, be careful not to scratch the oil seal mating surfaces

of the transaxle case and converter housing.

INSTALLATION

1. Drive the differential side oil seal into the transaxle case side (A)

and converter housing side (B) using suitable tool to the speci-

fied dimension.

CAUTION:

• Be careful not to scratch the lip of the differential side oil seal

when press-fitting it.

• Do not reuse differential side oil seal.

• Apply Genuine NISSAN CVT Fluid NS-3 to the differential side

oil seal lip and around the oil seal.

2. Install the front drive shaft. Refer to

FAX-15, "Removal and Installation"

.

Inspection and Adjustment

INFOID:0000000009268272

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-426, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

1.

Transaxle assembly

2.

Differential side oil seal (left side)

3.

Differential side oil seal (right side)

Front

Genuine NISSAN CVT Fluid NS-3

JSDIA1888ZZ

Dimension (C)

: 1.8

± 0.5 mm (0.071 ± 0.020 in).

Dimension (D)

: 1.8

± 0.5 mm (0.071 ± 0.020 in).

JSDIA1836ZZ
