TM-238

< REMOVAL AND INSTALLATION >

[4AT: RE4F03C]

CONTROL CABLE

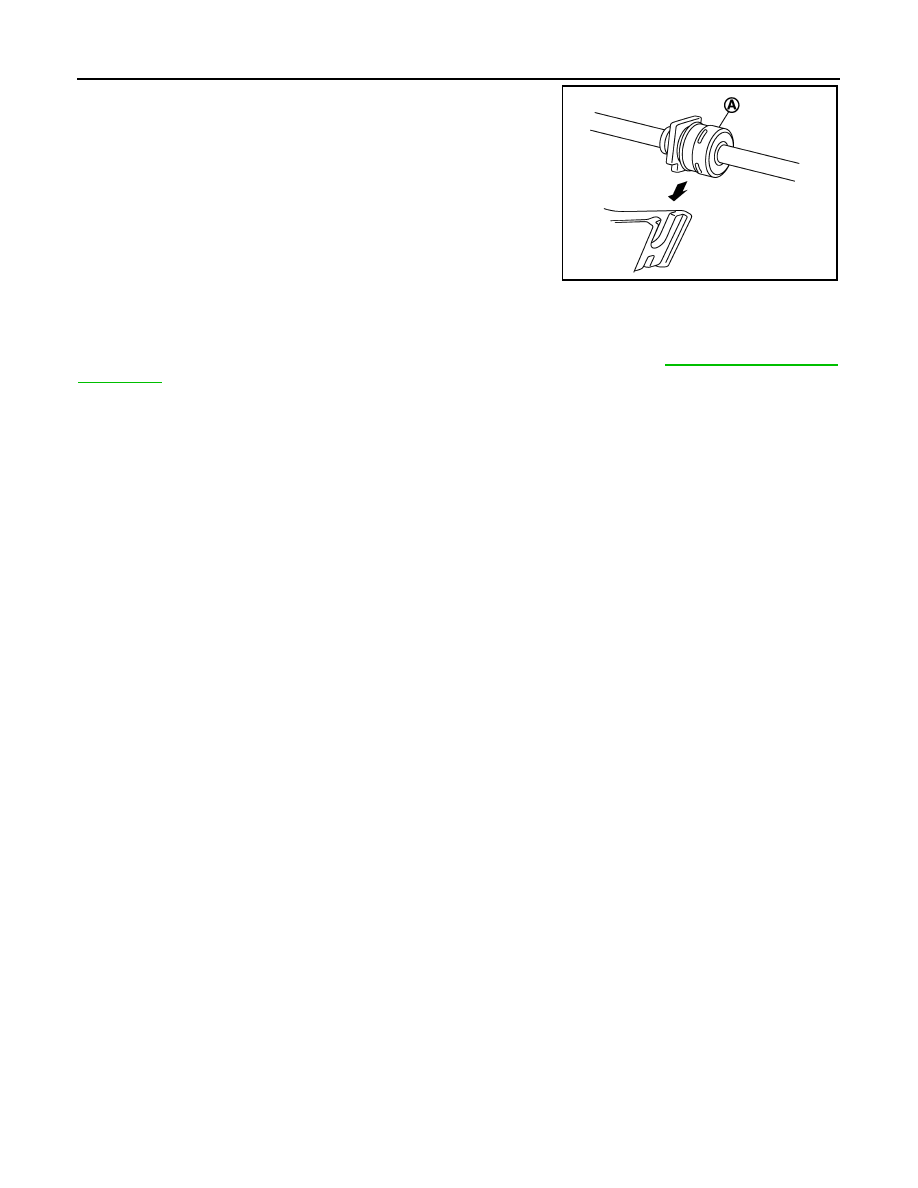

2. Install the socket (A) onto the shift selector assembly.

CAUTION:

• Insert the socket into the shift selector assembly, then

push it firmly in place.

• Check that pulling on the socket does not disconnect it.

Inspection

INFOID:0000000009268021

INSPECTION AFTER INSTALLATION

 Check the A/T position. If a malfunction is found, adjust the A/T position. Refer to

TM-235, "Inspection and

Adjustment"

.

JSDIA1810ZZ

KEY INTERLOCK CABLE

TM-239

< REMOVAL AND INSTALLATION >

[4AT: RE4F03C]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

KEY INTERLOCK CABLE

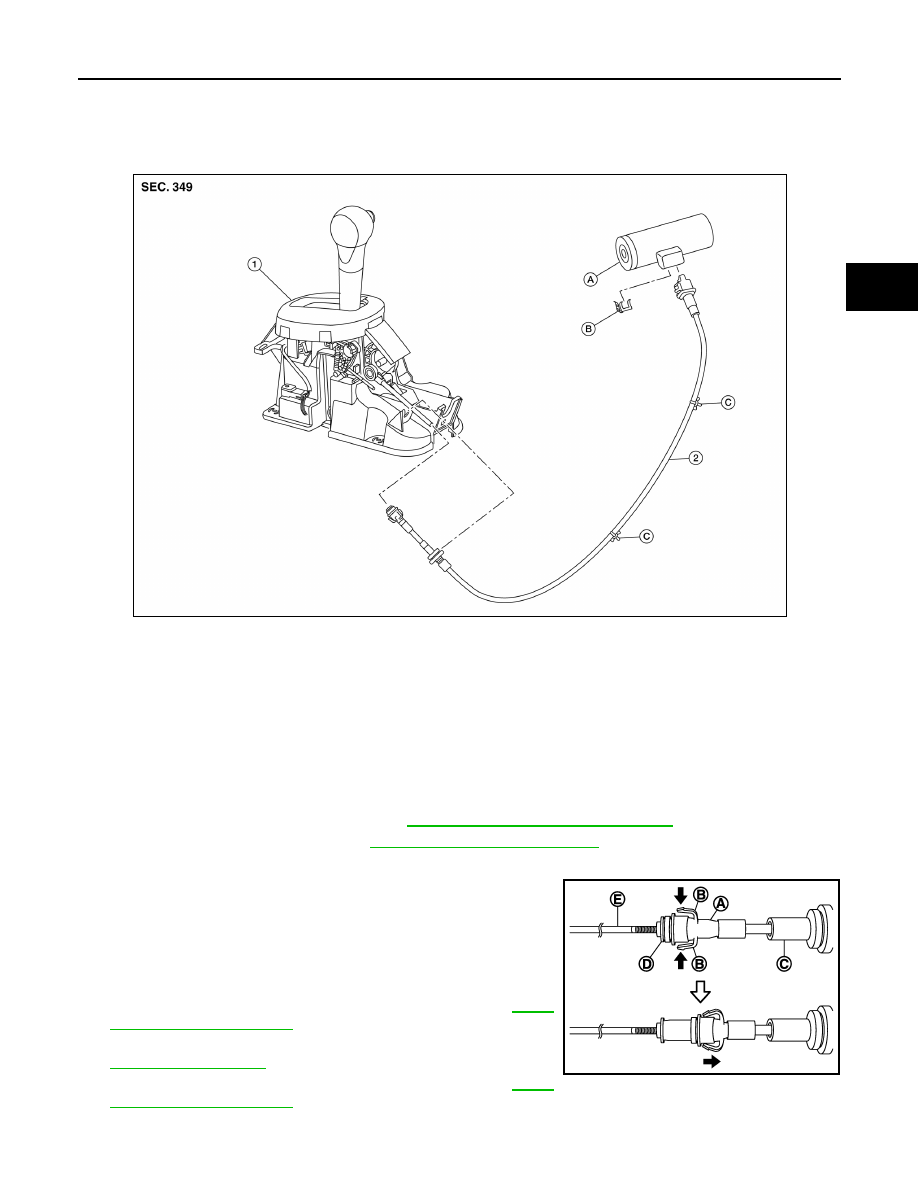

Exploded View

INFOID:0000000009268022

Removal and Installation

INFOID:0000000009268023

CAUTION:

Always apply the parking brake before performing removal and installation.

REMOVAL

1. Move the shift selector to the “N” position.
2. Remove the shift selector handle. Refer to

TM-234, "Disassembly and Assembly"

.

3. Remove the center console. Refer to

IP-23, "Removal and Installation"

.

4. Move the shift selector to the “P” position.
5. Press the pawls (B) of the key interlock cable slider (A) while

sliding it in the direction of the casing cap (C), and separate the

adjusting holder (D) and slider.

6. Remove the key interlock cable from the shift selector assembly.
7. Remove the instrument lower panel LH. Refer to

IP-20,

"Removal and Installation"

.

8. Remove the steering column upper and lower covers. Refer to

ST-9, "Exploded View"

.

9. Remove the center console lower (if equipped). Refer to

IP-25,

"Removal and Installation"

.

1.

A/T shift selector assembly

2.

Key interlock cable

A:

Key cylinder

B:

Lock plate

C:

Clip

ALDIA0262ZZ

(E)

: Key interlock rod

JSDIA1797ZZ

TM-240

< REMOVAL AND INSTALLATION >

[4AT: RE4F03C]

KEY INTERLOCK CABLE

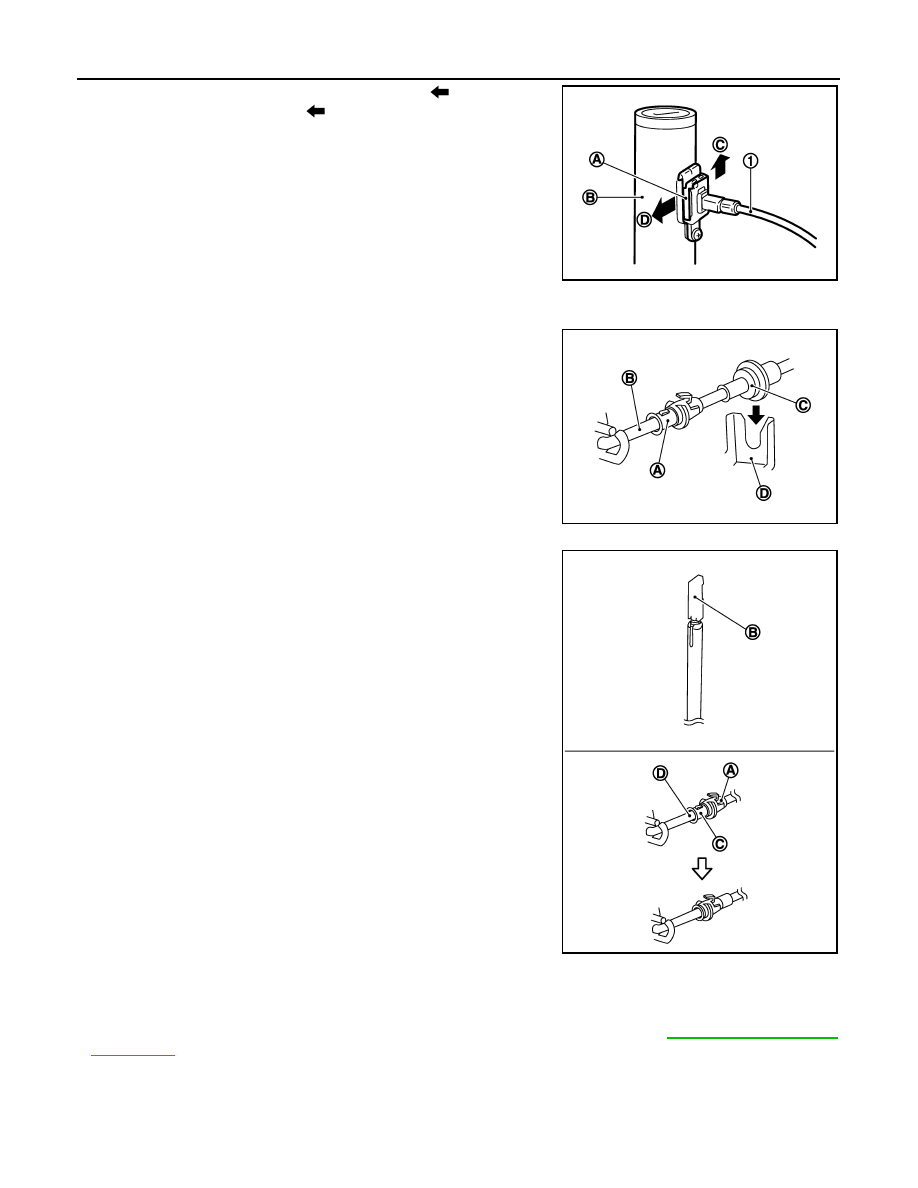

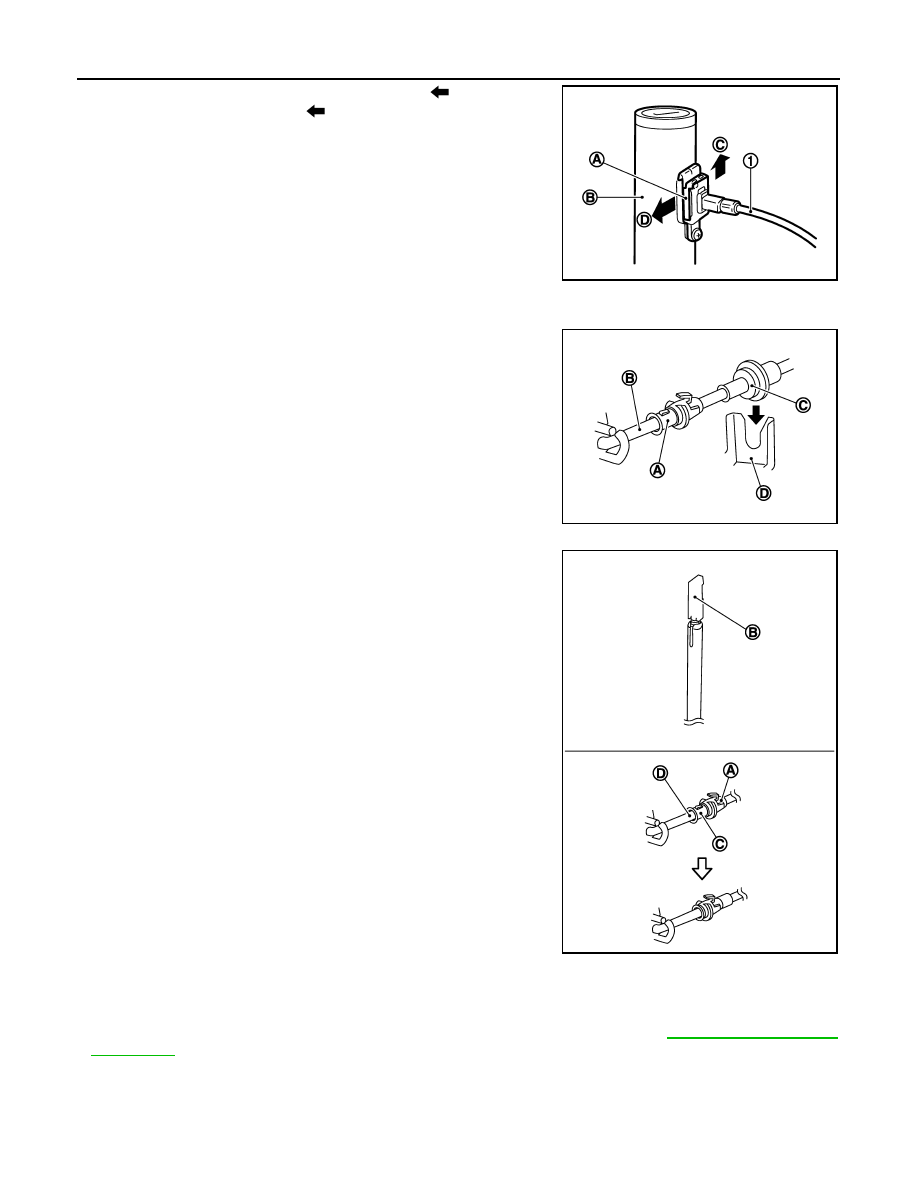

10. Lift lock plate (A) in the direction of the arrow (

C) and remove

in the direction of the arrow (

D).

11. Remove the key interlock cable from the key cylinder.
12. Disengage the clips and remove the key interlock cable from the

vehicle.

INSTALLATION

Installation is in the reverse order of removal.

• Temporarily install the adjust holder (A) to the key interlock rod (B).

• Install the casing cap (C) to the cable bracket (D) on the shift

selector assembly.

CAUTION:

• Do not bend or twist key interlock cable excessively when

installing.

• After installing key interlock cable to cable bracket (D) on

shift selector assembly, make sure casing cap (C) is firmly

secured in cable bracket (D) on shift selector assembly.

• If casing cap (C) is loose [less than 39.2 N (4.0 kg, 8.8 lb)

removing force], replace key interlock cable.

• Slide the slider (A) toward the key interlock rod (D) while pressing

the pull lock (B) down to securely connect the adjust holder (C)

with the key interlock rod (D).

CAUTION:

• Do not press tabs when holding slider (A).

• Do not apply any side-to-side force to key interlock rod (D)

when sliding slider (A).

Inspection

INFOID:0000000009268024

INSPECTION AFTER INSTALLATION

• Check the A/T operation. If a malfunction is found, adjust the A/T position. Refer to

TM-235, "Inspection and

Adjustment"

.

• Make sure the key can be removed only when the shift selector is in the “P” position.

• Make sure the ignition switch will not turn to LOCK position when the shift selector is not in the “P” position.

(1)

: Key interlock cable

(B)

: Key cylinder

JSDIA1798ZZ

JSDIA1799ZZ

JSDIA1800ZZ

TCM

TM-241

< REMOVAL AND INSTALLATION >

[4AT: RE4F03C]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

TCM

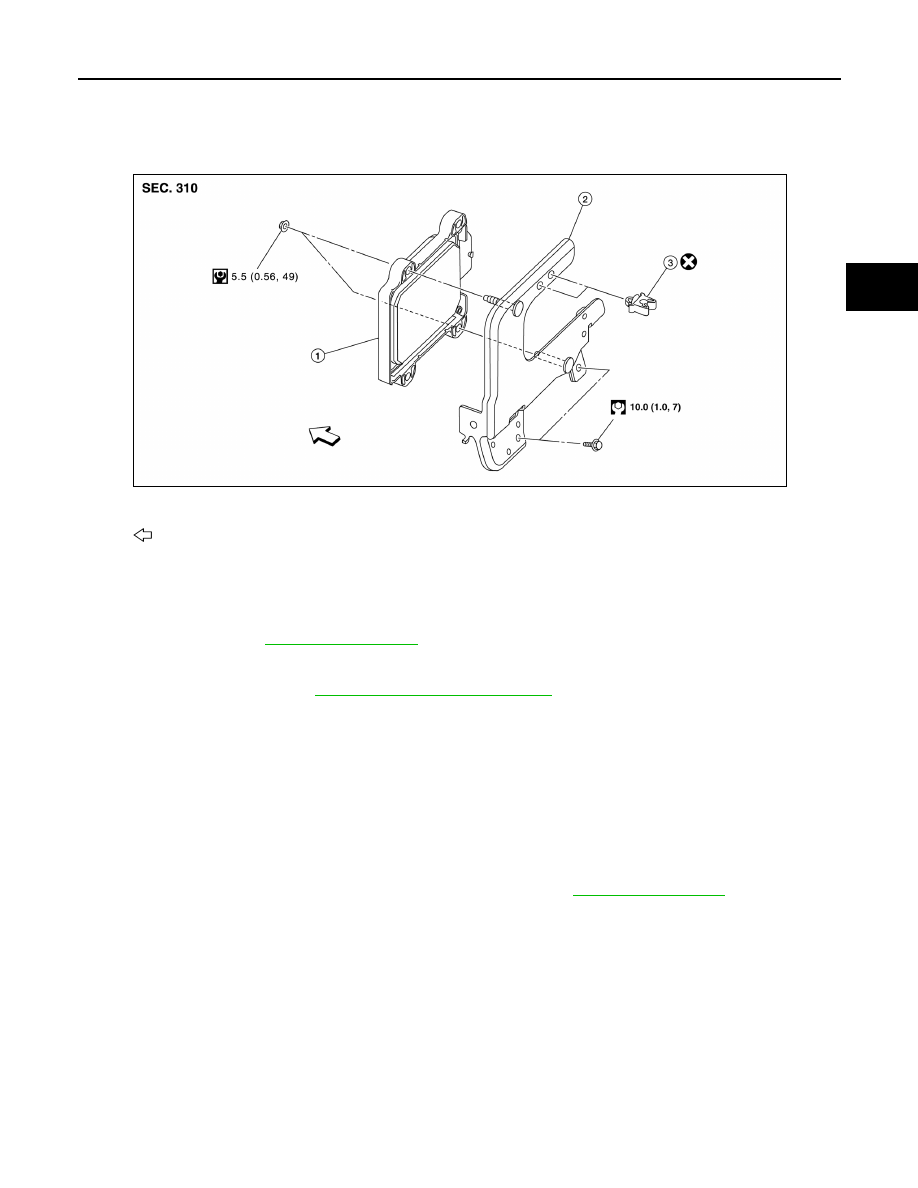

Exploded View

INFOID:0000000009268025

Removal and Installation

INFOID:0000000009268026

NOTE:

When replacing the TCM and transaxle assembly as a set, replace the transaxle assembly first and then

replace the TCM. Refer to

TM-123, "Description"

.

REMOVAL

1. Remove the battery. Refer to

PG-63, "Removal and Installation"

.

2. Disconnect the harness connector from the TCM.
3. Remove the TCM and bracket as an assembly.
4. Remove the TCM from the bracket, if necessary.

INSTALLATION

Installation is in the reverse order of removal.

Adjustment

INFOID:0000000009268027

ADJUSTMENT AFTER INSTALLATION

Perform “ADDITIONAL SERVICE WHEN REPLACING TCM”. Refer to

TM-123, "Description"

.

1.

TCM

2.

Bracket

3.

Clips

Front

AWBIA1481ZZ
