Nissan Versa Sedan. Manual - part 789





TM-62

< PRECAUTION >

[4AT: RE4F03C]

PRECAUTIONS

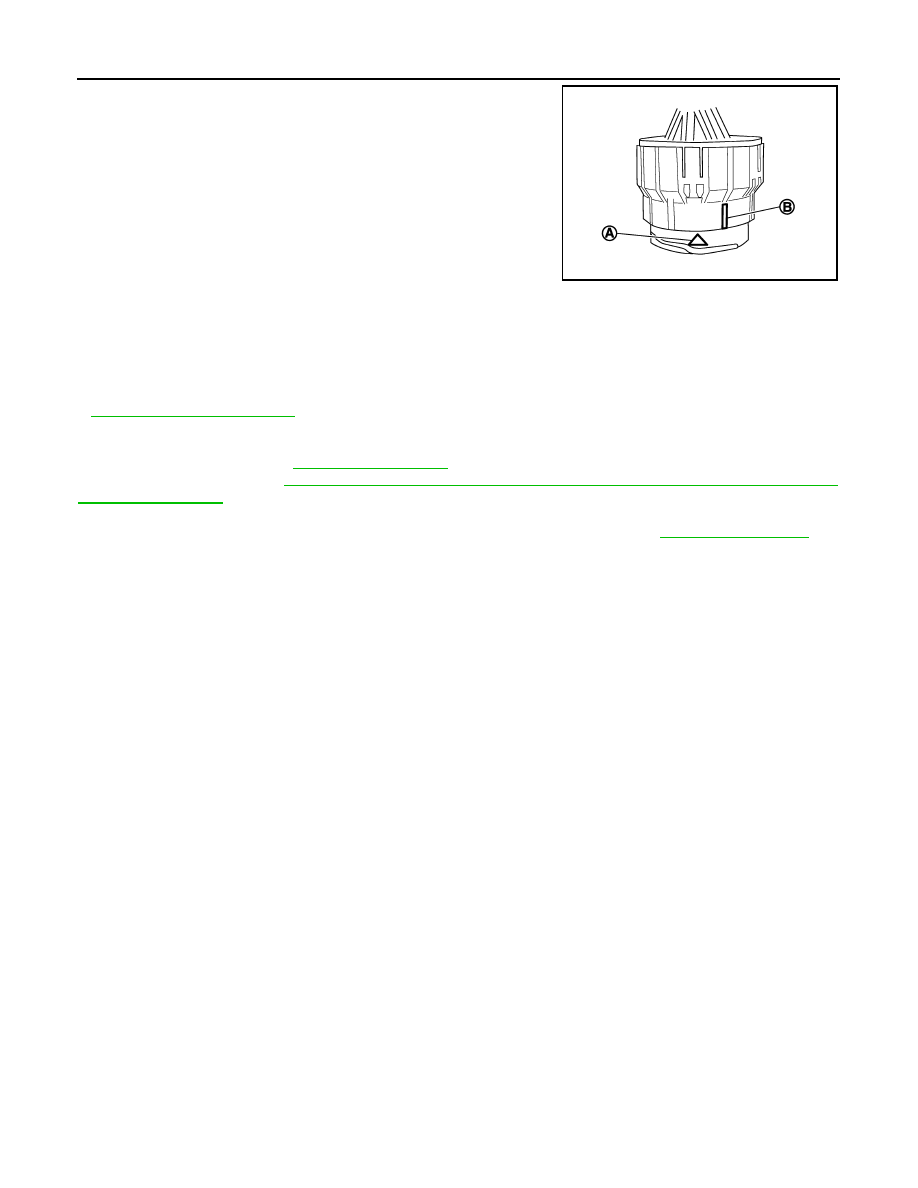

• Securely align marking (A) on A/T assembly harness con-

nector terminal body with bayonet ring slit (B). Then, be

careful not to make a half fit condition as shown in the fig-

ure.

• Do not mistake the slit of bayonet ring for other dent por-

tion.

Service Notice or Precaution

INFOID:0000000009267818

OBD SELF-DIAGNOSIS

• A/T self-diagnosis is performed by the TCM in combination with the ECM. The results can be read through

the blinking pattern of the A/T CHECK indicator or the malfunction indicator Lamp (MIL). Refer to the table

on “SELF-DIAGNOSTIC RESULTS” for the indicator used to display each self-diagnostic result. Refer to

TM-93, "CONSULT Function"

.

• The self-diagnostic results indicated by the MI are automatically stored in both the ECM and TCM memories.

Always perform the procedure on “How to Erase DTC” to complete the repair and avoid unnecessary

blinking of the MI. Refer to

TM-90, "Description"

.

For details of OBD, refer to

TM-91, "DIAGNOSIS DESCRIPTION : 1 Trip Detection Diagnosis and 2 Trip

Detection Diagnosis"

.

• Certain systems and components, especially those related to OBD, may use the new style slide-lock-

ing type harness connector. For description and how to disconnect, refer to

GI-53, "Description"

.

JPDIA0296ZZ

PREPARATION

TM-63

< PREPARATION >

[4AT: RE4F03C]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PREPARATION

PREPARATION

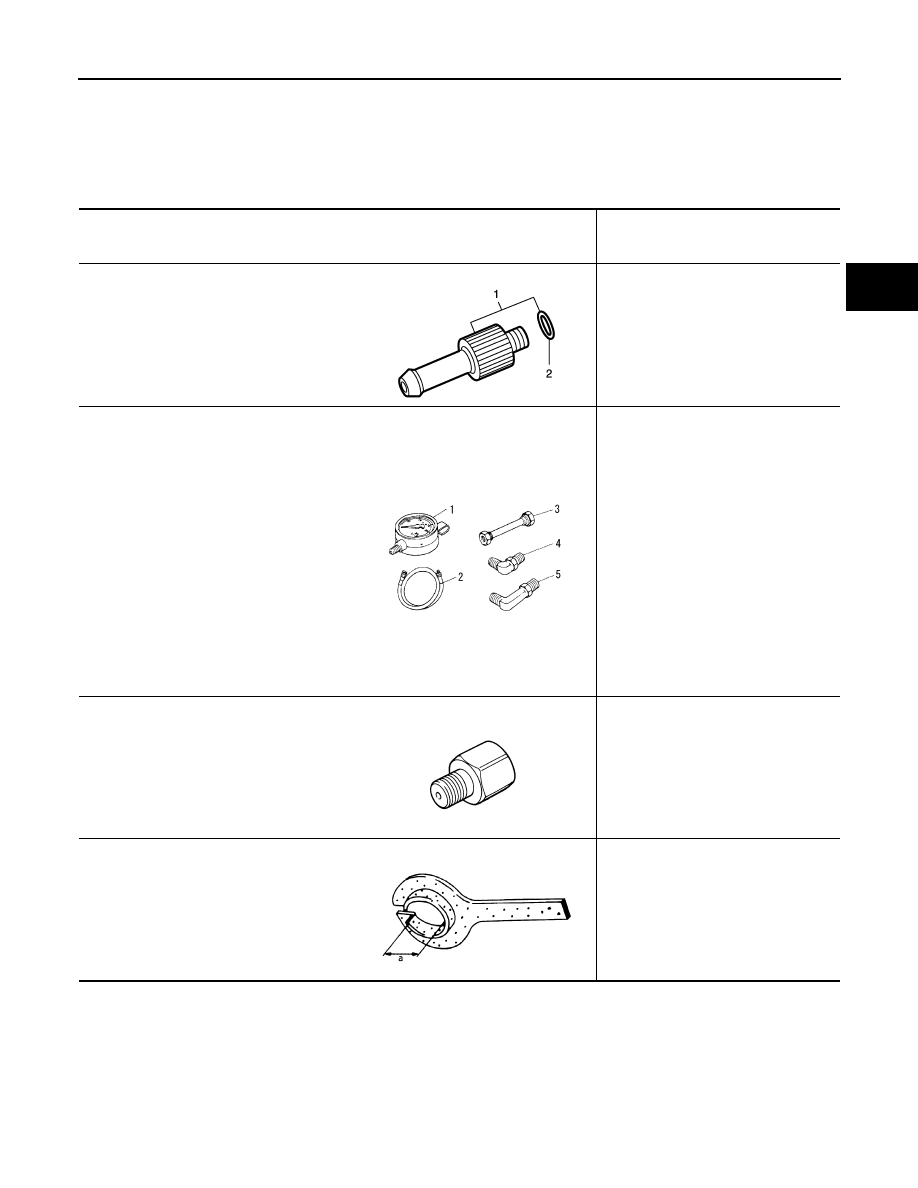

Special Service Tools

INFOID:0000000009267819

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

*: The O-ring is a unit part and is set as a SST.

Commercial Service Tools

INFOID:0000000009267820

Tool number
(Kent-Moore No.)
Tool name

Description

1.

KV311039S0
(

)

Charging pipe set

2.

KV31103920*
(

)

O-ring

A/T fluid changing and adjustment

ST2505S001
(J-34301)
Oil pressure gauge set
1. ST25051001
(J-34301)
Oil pressure gauge
2. ST25052000
(J-34301)
Hose
3. ST25053000
(J-25695-3)
Joint pipe
4. ST25054000
(J-25695-4)
Adapter
5. ST25055000
(J-25695-5)
Adapter

Measuring line pressure

KV31103600
(

)

Joint pipe adapter
(With ST25054000)

Measuring line pressure

KV38107900
(

)

Protector
a: 32 mm (1.26 in) dia.

Installing drive shaft

JSDIA1844ZZ

SCIA3695J

ZZA1227D

PDIA1183J

TM-64

< PREPARATION >

[4AT: RE4F03C]

PREPARATION

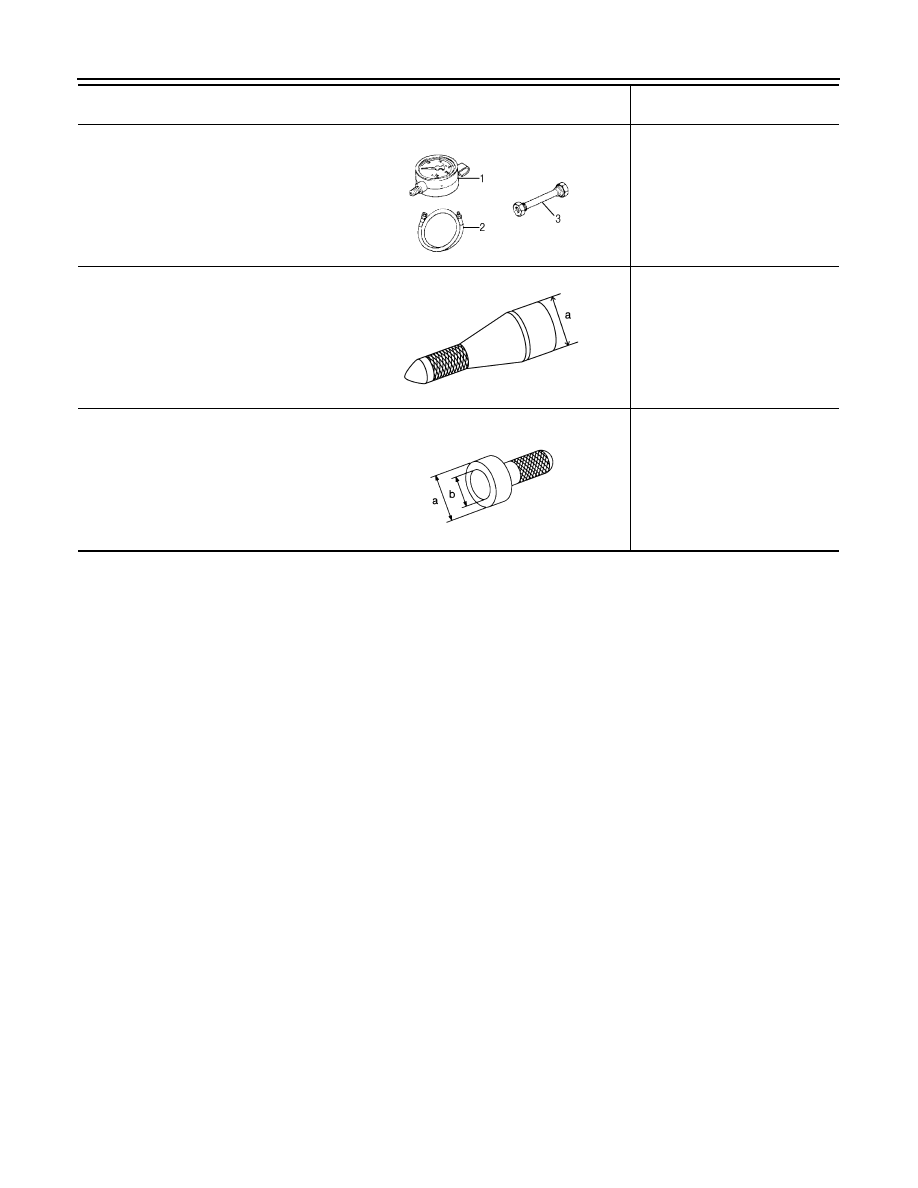

Tool number
Tool name

Description

Oil pressure gauge set
1. Oil pressure gauge
2. Hose
3. Joint pipe

Measuring line pressure

31197EU50A
Drive plate location guide
a: 25 mm (0.98in) dia.

Installing transaxle assembly

Drift
a: 56 mm (2.20 in) dia.
b: 50 mm (1.97 in) dia.

Installing differential side oil seal

SCIA8373J

JPDIA0676ZZ

NT115

COMPONENT PARTS

TM-65

< SYSTEM DESCRIPTION >

[4AT: RE4F03C]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

A/T CONTROL SYSTEM

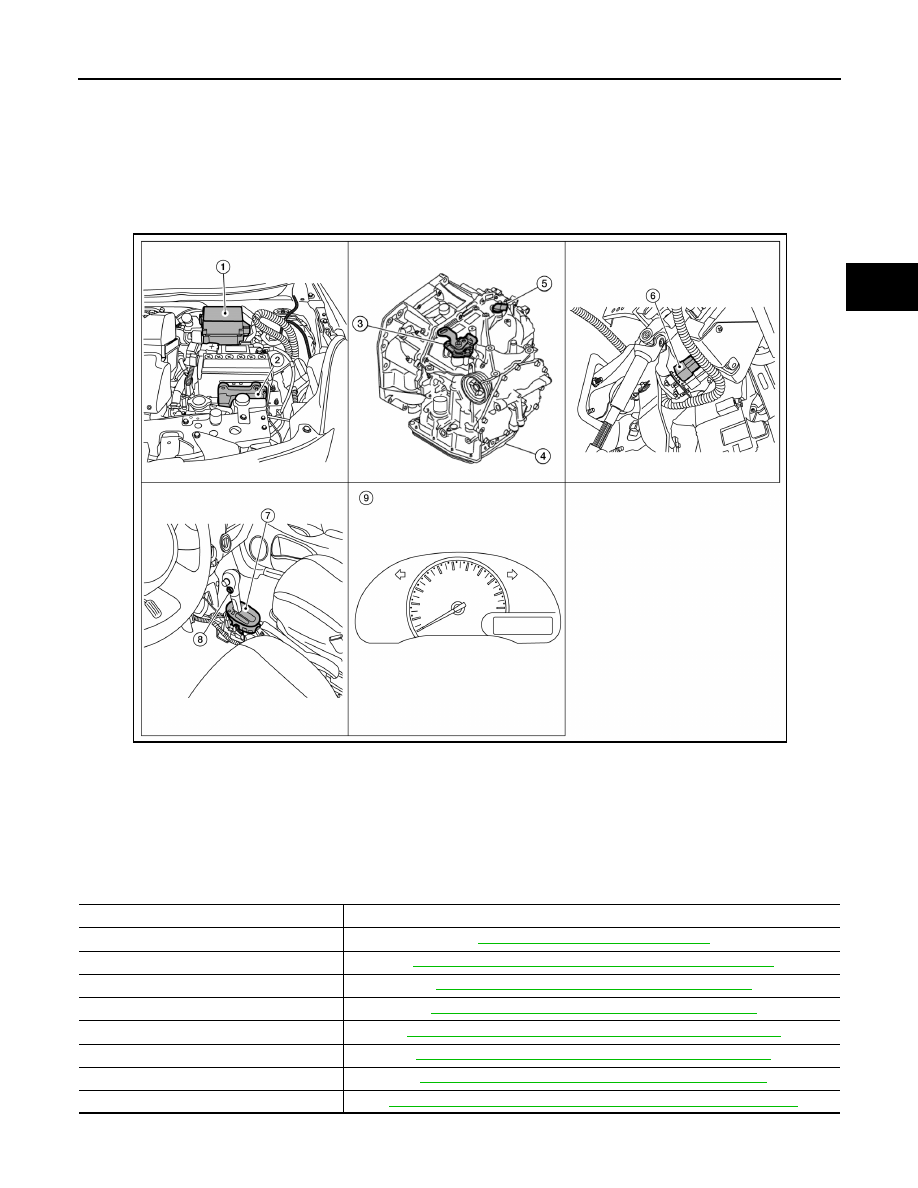

A/T CONTROL SYSTEM : Component Parts Location

INFOID:0000000009267821

A/T CONTROL SYSTEM : Component Description

INFOID:0000000009267822

1.

IPDM E/R

2.

TCM

3.

Transmission range switch

4.

A/T unit

5.

Output speed sensor

6.

Stop lamp switch

7.

A/T shift selector

8.

Overdrive control switch

9.

Combination meter (type B)

ALKIA0381ZZ

Name

Function

TCM

TM-66, "A/T CONTROL SYSTEM : TCM"

Transmission range switch

TM-66, "A/T CONTROL SYSTEM : Transmission Range Switch"

Input speed sensor

TM-66, "A/T CONTROL SYSTEM : Input Speed Sensor"

Output speed sensor

TM-67, "A/T CONTROL SYSTEM : Output Speed Sensor"

A/T fluid temperature sensor

TM-67, "A/T CONTROL SYSTEM : A/T Fluid Temperature Sensor"

Low clutch solenoid valve

TM-68, "A/T CONTROL SYSTEM : Low Clutch Solenoid Valve"

2-4 brake solenoid valve

TM-68, "A/T CONTROL SYSTEM : 2-4 Brake Solenoid Valve"

Select ON-OFF solenoid valve

TM-68, "A/T CONTROL SYSTEM : Select Switch On-Off Solenoid Valve"
