Nissan Versa Sedan. Manual - part 776

TM-10

Exploded View .......................................................

443

Removal and Installation .......................................

443

Inspection and Adjustment ....................................

443

OUTPUT SPEED SENSOR .............................

444

Exploded View .......................................................

444

Removal and Installation .......................................

444

Inspection and Adjustment ....................................

444

DIFFERENTIAL SIDE OIL SEAL ....................

445

Exploded View .......................................................

445

Removal and Installation .......................................

445

Inspection and Adjustment ....................................

445

WATER HOSE .................................................

447

Exploded View .......................................................

447

Removal and Installation .......................................

447

Inspection ..............................................................

449

FLUID COOLER HOSE ...................................

450

Exploded View .......................................................

450

Removal and Installation .......................................

450

Inspection and Adjustment ....................................

450

PLUG ................................................................

451

Description ............................................................

451

Exploded View ......................................................

451

Removal and Installation .......................................

451

Inspection and Adjustment ....................................

451

UNIT REMOVAL AND INSTALLATION ...

452

TRANSMISSION ASSEMBLY ..........................

452

Exploded View ......................................................

452

Removal and Installation .......................................

452

Inspection and Adjustment ....................................

454

SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................

456

SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................

456

General Specification ............................................

456

Shift Characteristics ..............................................

456

Stall Speed ............................................................

456

Line Pressure ........................................................

456

Torque Converter ..................................................

457

Heater Thermostat ................................................

457

PRECAUTIONS

TM-11

< PRECAUTION >

[5MT: RS5F91R]

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009267769

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

General Precautions

INFOID:0000000009267770

CAUTION:

• Do not reuse CSC (Concentric Slave Cylinder). CSC slides back to the original position every time

when removing transaxle assembly. At this time, dust on the sliding parts may damage the seal of

CSC and may cause clutch fluid leakage. Refer to

CL-16, "Removal and Installation"

• Do not reuse transaxle gear oil, once it has been drained.

• Check oil level or replace gear oil with vehicle on level surface.

• During removal or installation, keep inside of transaxle clear of dust or dirt.

• Check for the correct installation alignment prior to removal or disassembly. If matching marks are

required, be certain they do not interfere with the function of the parts marked.

• In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to out-

side. If tightening sequence is specified, use it.

• Do not damage sliding surfaces and mating surfaces.

Precaution for Work

INFOID:0000000009267771

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

TM-12

< PRECAUTION >

[5MT: RS5F91R]

PRECAUTIONS

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

PREPARATION

TM-13

< PREPARATION >

[5MT: RS5F91R]

PREPARATION

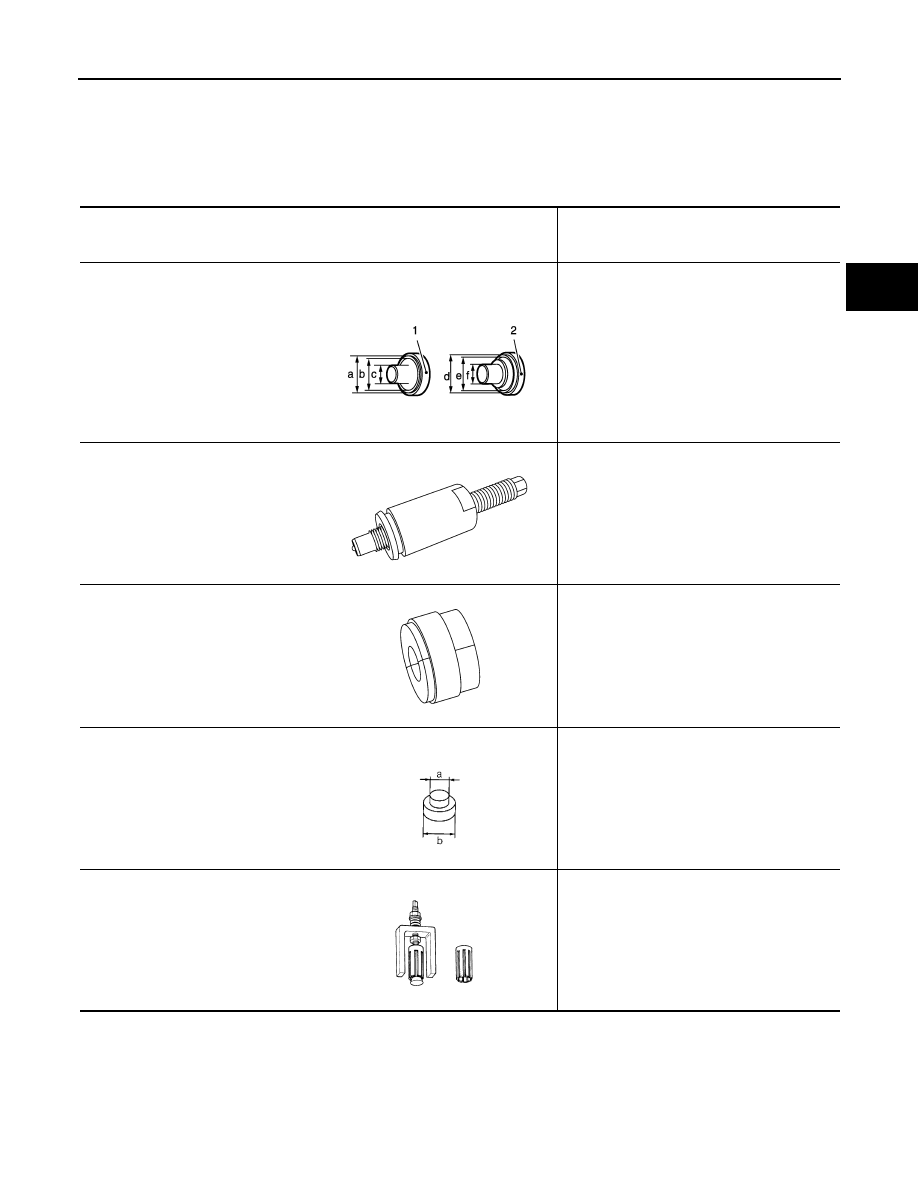

Special Service Tools

INFOID:0000000009267772

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV32500QAA
( — )
Drift set

Installing differential side oil seal
1.

—
Drift
a: 54.3 mm (2.138 in) dia.
b: 45 mm (1.77 in) dia.
c: 26.6 mm (1.047 in) dia.

—
Drift
d: 54 mm (2.13 in) dia.
e: 48.6 mm (1.913 in) dia.
f: 26.6 mm (1.047 in) dia.

KV32300QAC
( — )
Puller

Removing 5th main gear

KV32300QAD
( — )
Puller

Removing 5th main gear

ST35300000
( — )
Drift

• Removing and installing input shaft rear

bearing

• Removing and installing mainshaft rear

bearing

a: 45 mm (1.77 in) dia.
b: 59 mm (2.32 in) dia.

KV111011S0
( — )
Valve seat remover

Removing mainshaft front bearing

JPDIC0730ZZ

SCIA1781J

SCIA1782J

ZZA0969D

ZZA0872D
