STARTER MOTOR

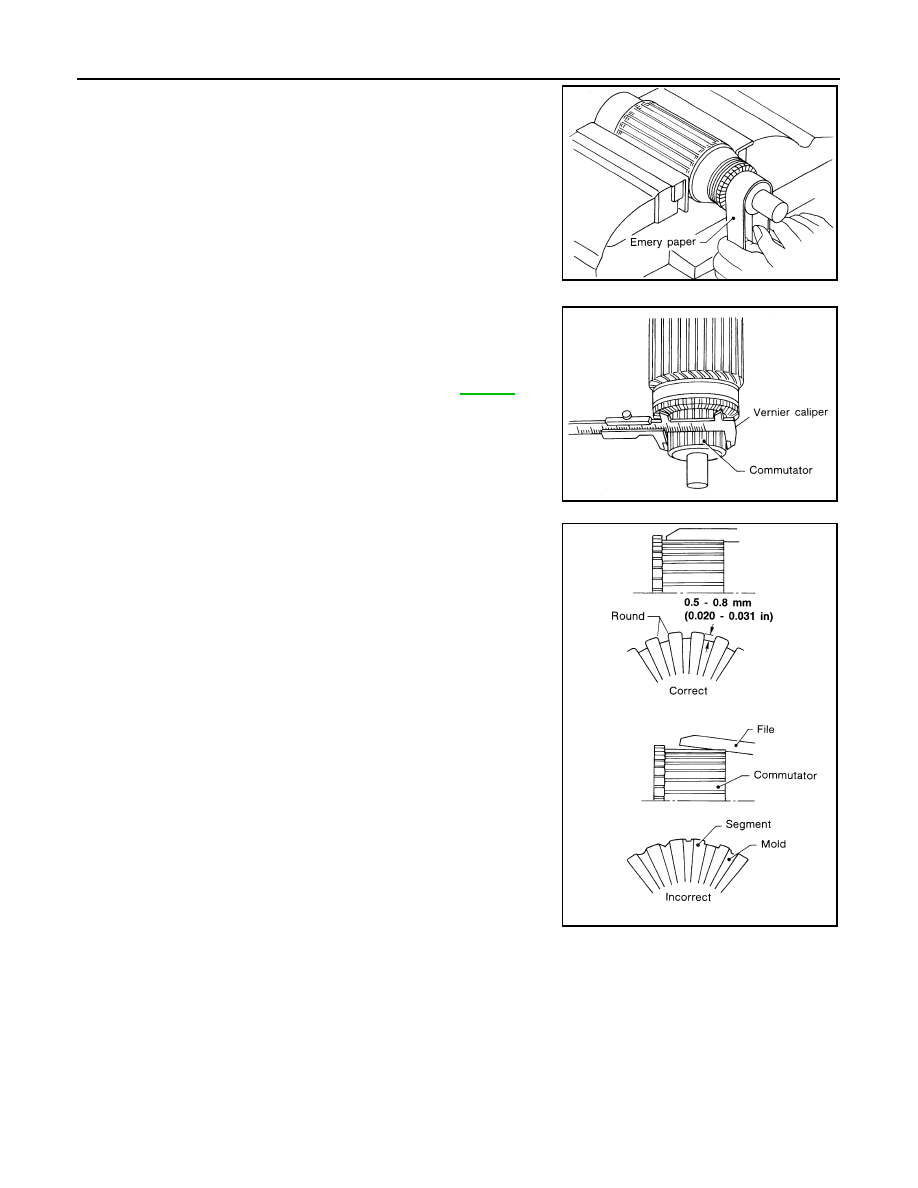

3. Check commutator surface.
• Clean commutator with No. 500 - 600 emery paper.
4. Check diameter of commutator.
• Replace armature assembly if the measurement value is less
than the specified value.
5. Check depth of insulating mold from commutator surface.
• Undercut to 0.5 to 0.8 mm (0.020 to 0.031 in) if the depth is 0.2
mm (0.008 in) or less.

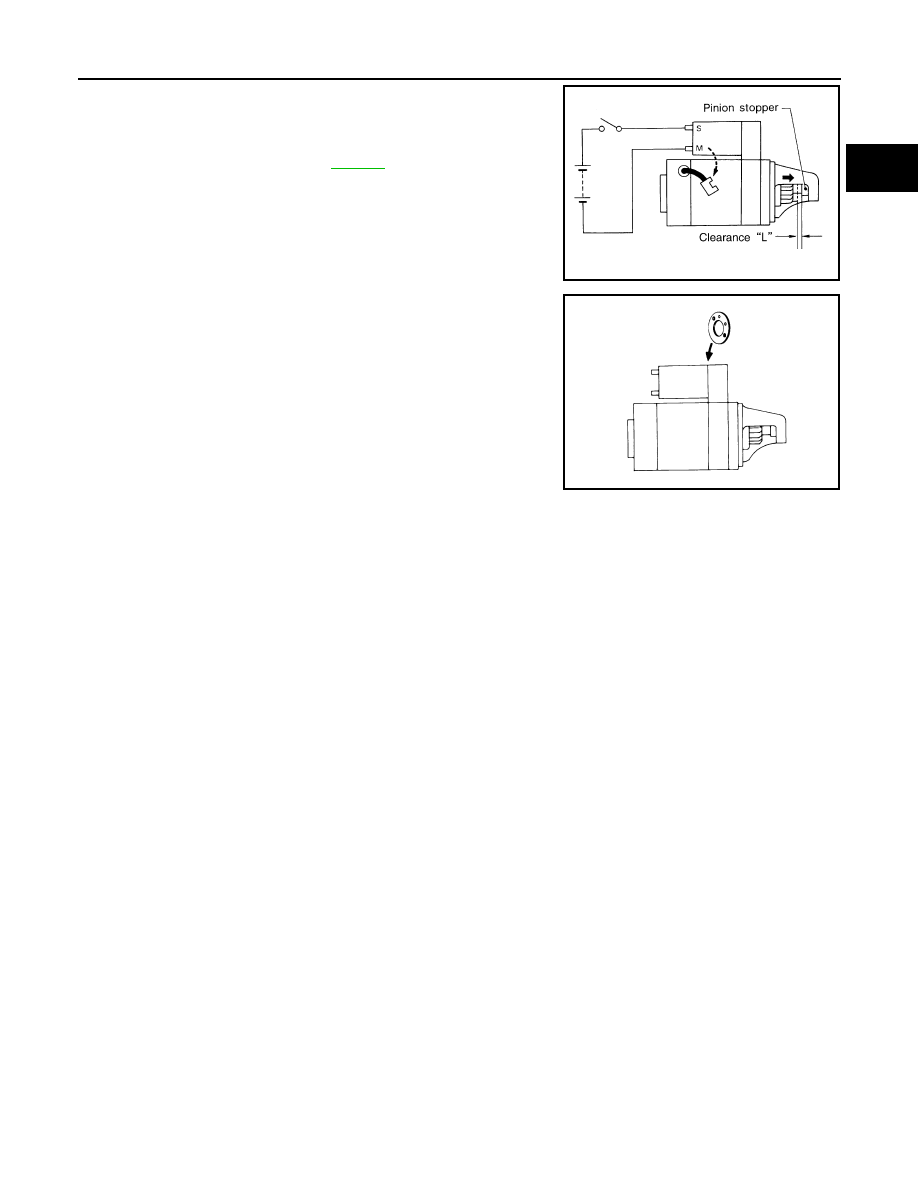

PINION PROTRUSION LENGTH ADJUSTMENT
1. Apply battery power to the magnetic switch.
SEL020Z
Commutator minimum diameter
: Refer to
SEL021Z
SEL022Z
