COMPONENT PARTS

STARTING SYSTEM (WITH INTELLIGENT KEY) : Component Parts Location

INFOID:0000000009269495

STARTING SYSTEM (WITH INTELLIGENT KEY) : Component Description

INFOID:0000000009269496

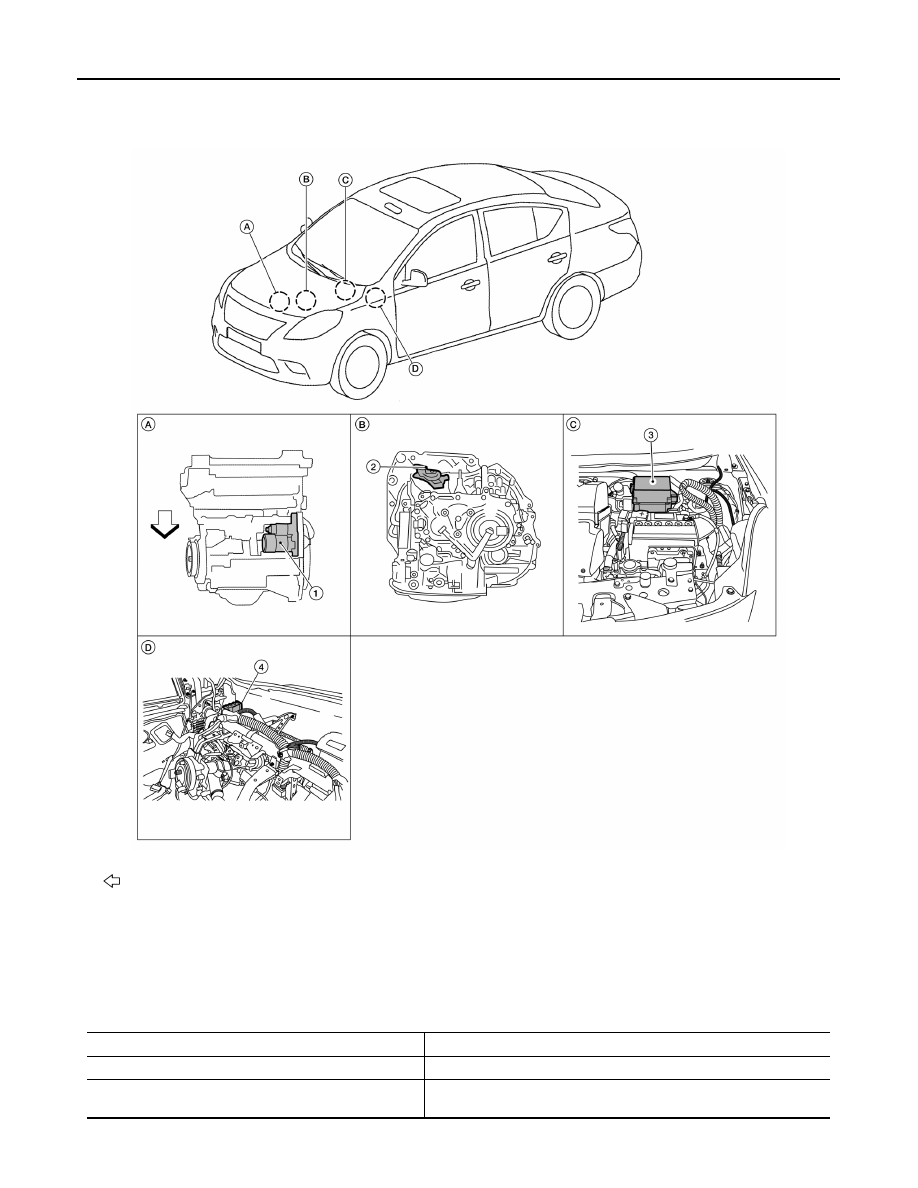

Vehicle front

1.

Starter motor

2.

Transmission range switch

3.

IPDM E/R

4.

BCM (view with instrument panel
removed)

AWBIA1488ZZ

                                         Component part

                                             Description

BCM

BCM controls the starter relay.

IPDM E/R

CPU inside IPDM E/R operates the starter control relay when the igni-
tion switch is in the start position.

COMPONENT PARTS

STR-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

Transmission range switch

Supplies power to the starter relay and starter control relay (inside
IPDM E/R) when the selector lever is shifted into the P or N position.

Starter relay

Supplies power to starter control relay inside the IPDM E/R.

Starter motor

The starter motor plunger closes and the motor is supplied with battery
power, which in turn cranks the engine, when the S terminal is supplied
with electric power.

STR-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

STARTING SYSTEM (WITHOUT INTELLIGENT KEY)

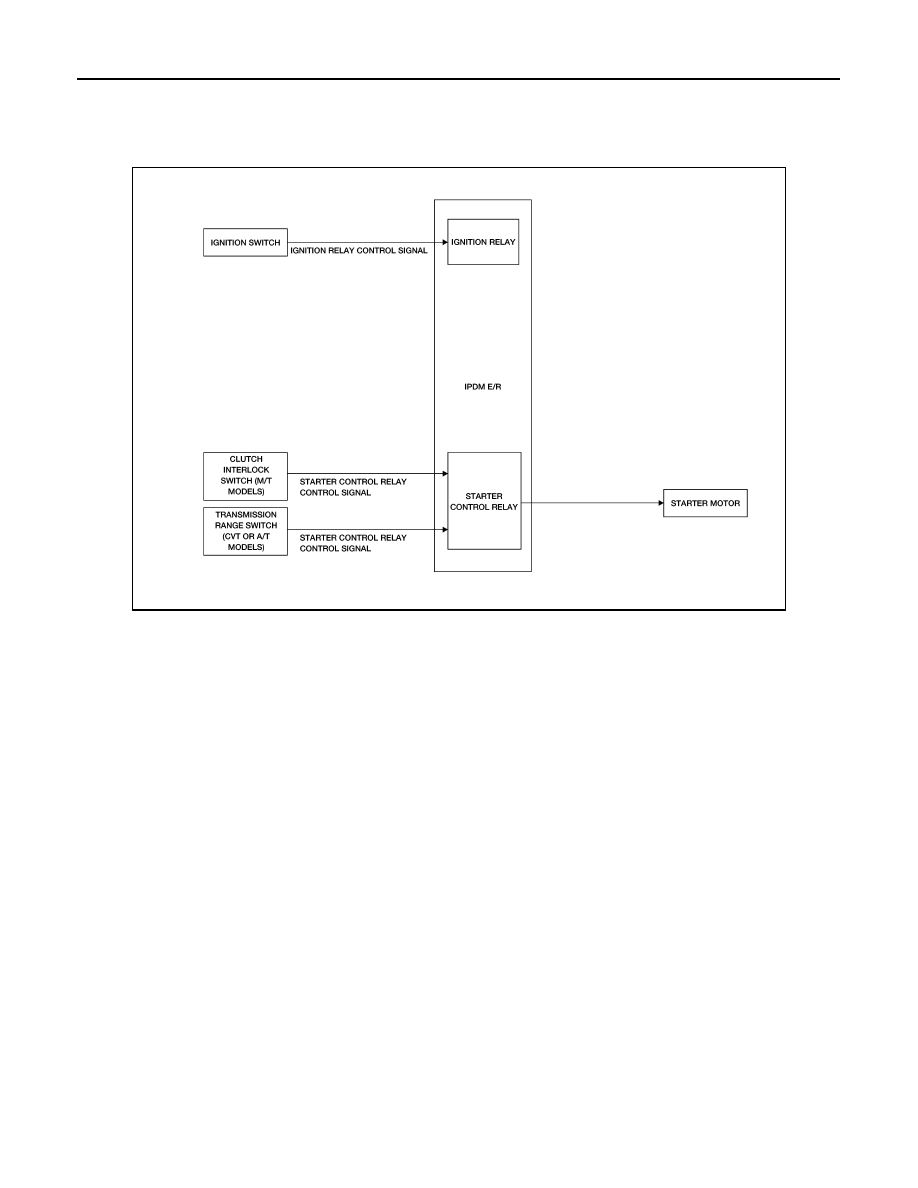

STARTING SYSTEM (WITHOUT INTELLIGENT KEY) : System Diagram

INFOID:0000000009269497

STARTING SYSTEM (WITHOUT INTELLIGENT KEY) : System Description

INFOID:0000000009269498

The starter motor plunger closes and provides a closed circuit between the battery and the starter motor. The

starter motor is grounded to the cylinder block. With power and ground supplied, the starter motor operates.

STARTING SYSTEM (WITH INTELLIGENT KEY)

AWBIA1581GB

SYSTEM

STR-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

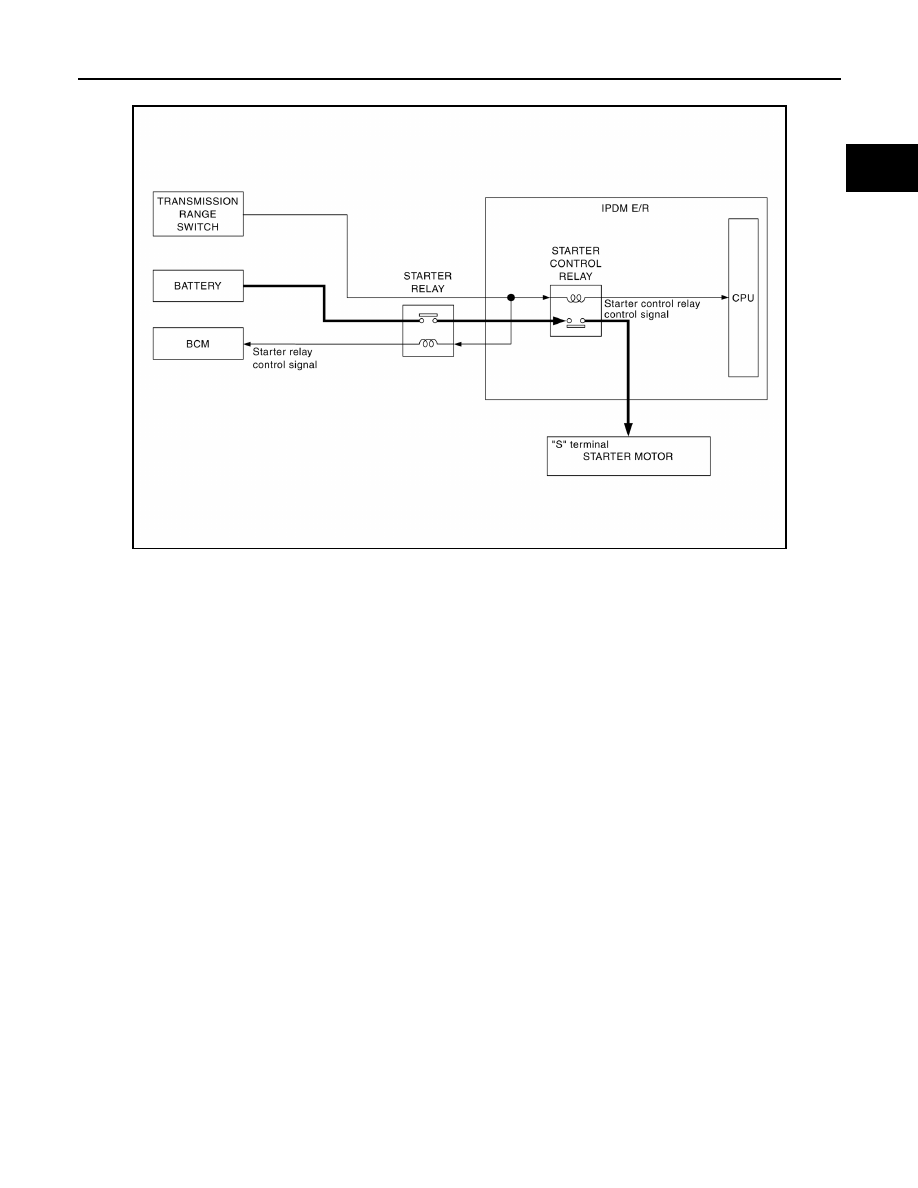

STARTING SYSTEM (WITH INTELLIGENT KEY) : System Diagram

INFOID:0000000009269499

STARTING SYSTEM (WITH INTELLIGENT KEY) : System Description

INFOID:0000000009269500

• When the selector lever is in the P or N position, power is supplied to starter relay and starter control relay by

the transmission range switch. The BCM and IPDM E/R (CPU) will detect the selector lever position by the

input signal.

• When the starter operating condition is meet, the IPDM E/R will turn the starter control relay ON by starter

control relay control signal.

• When engine cranking condition is meet, the BCM turns ON the starter relay by starter control relay signal.

• Then battery power is supplied to starter motor (“S” terminal) through the starter control relay and starter

relay.

ALBIA0984GB
