STEERING GEAR AND LINKAGE

STEERING GEAR AND LINKAGE

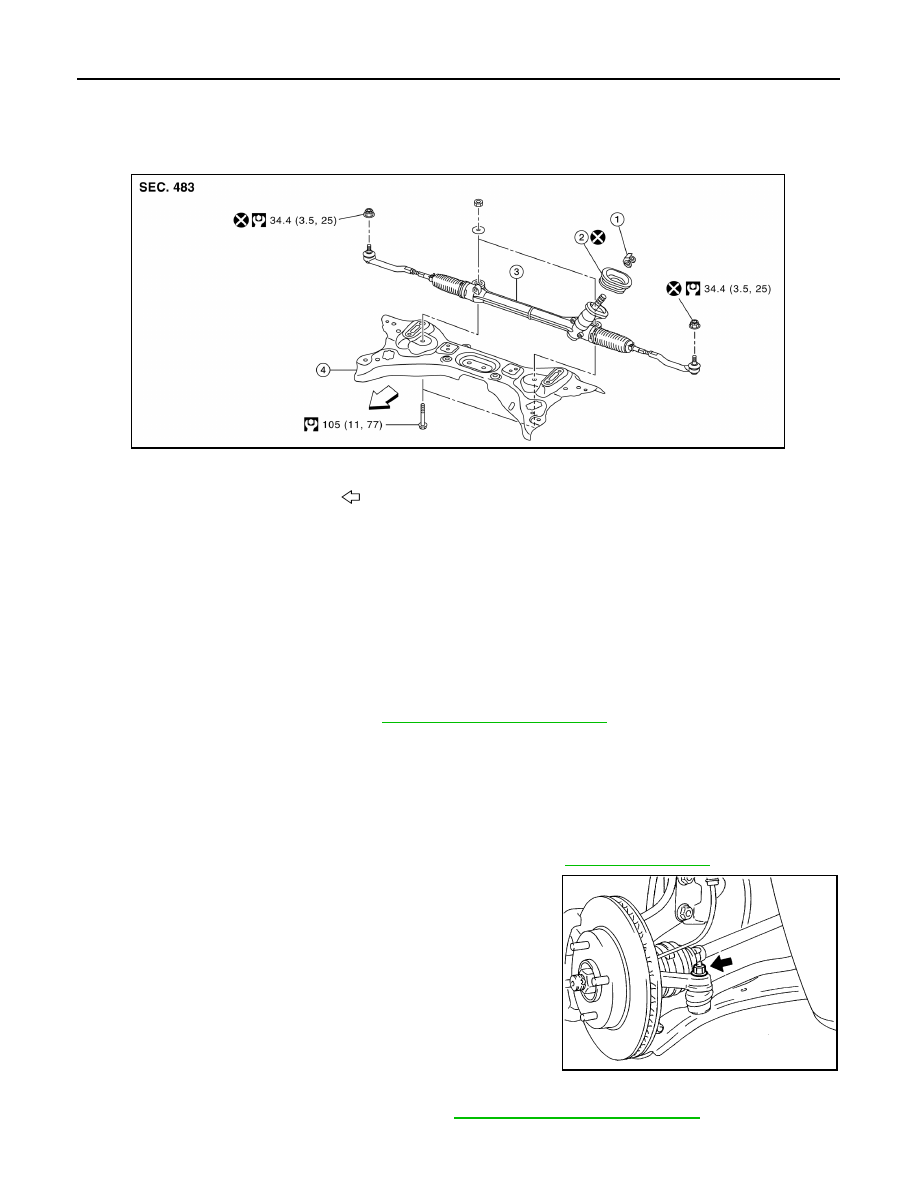

Exploded View

INFOID:0000000009266818

Removal and Installation

INFOID:0000000009266819

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Set vehicle to the straight-ahead position.
2. Place the steering column tilt to middle selection.
3. Loosen lower joint upper bolt.
4. Remove lower joint lower bolt. Refer to

ST-9, "Removal and Installation"

.

CAUTION:

• Spiral cable may be cut if steering wheel turns while separating steering column assembly and

steering gear assembly. Always secure the steering wheel using string to avoid turning.

• Place a matching mark on both lower joint and steering gear assembly before removing lower

joint.

• When removing lower joint, do not place any tool into the yoke groove to pull out the lower joint.

Replace the lower joint with a new one if damaged.

5. Remove the wheel and tire assemblies using power tool. Refer to

WT-39, "Adjustment"

.

6. Remove steering outer socket from steering knuckle using Tool.

7. Support front suspension member with a suitable jack.
8. Remove front suspension member bolts. Refer to

FSU-16, "Removal and Installation"

.

9. Remove the bolts and nuts of steering gear assembly.

1.

Guide

2.

Cowl seal

3.

Steering gear assembly

4.

Front suspension member

Front

AWGIA0236ZZ

Tool number

: HT72520000 (J-25730-A)

SGIA0184J

STEERING GEAR AND LINKAGE

ST-15

< REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

10. Separate cowl seal from vehicle.
11. Lower the suitable jack to the position where the steering gear assembly can be removed.

CAUTION:

Secure front suspension member to a jack.

12. Remove guide from pinion assembly.
13. Remove cowl seal from steering gear assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Spiral cable may be cut if steering wheel turns while separating steering column assembly and steer-

ing gear assembly. Always secure the steering wheel using string to avoid turning.

• The guide protrusion is not required to be reinstalled.

• Before installation, check that the steering column tilt position is at the middle level.

• Clean mating surface on the body side of cowl seal when installing steering gear assembly.

• Perform final tightening of nuts and bolts on each part under unladen conditions with tires on level ground

when removing steering gear assembly. Check wheel alignment. Refer to

FSU-6, "Inspection and Adjust-

ment"

.

• Rotate steering wheel to check that the spiral cable is centered, binding, noise or excessive steering effort.

• Do not reuse steering outer socket nut and cowl seal.

• Perform inspection after installation. Refer to

ST-15, "Inspection"

.

Inspection

INFOID:0000000009266820

INSPECTION AFTER INSTALLATION

• Check if steering wheel turns smoothly when it is turned several times throughout the full steering range.

• Check the steering wheel play, neutral position steering wheel, steering wheel turning force, and front wheel

turning angle.

- Steering wheel play: Refer to

ST-5, "Inspection"

.

- Neutral position steering wheel, steering wheel turning force and front wheel turning angle: Refer to

ST-5,

"Inspection"

.

ST-16

< UNIT DISASSEMBLY AND ASSEMBLY >

STEERING GEAR AND LINKAGE

UNIT DISASSEMBLY AND ASSEMBLY

STEERING GEAR AND LINKAGE

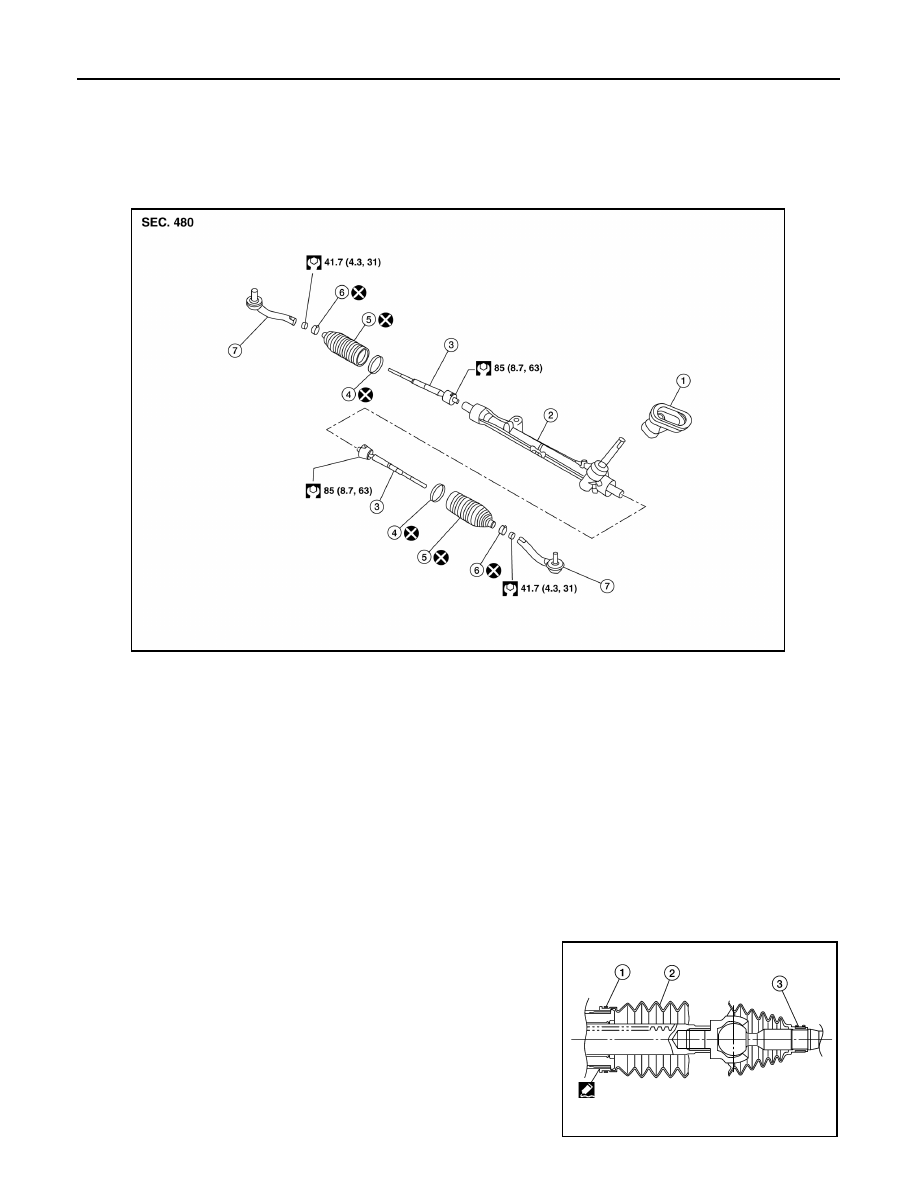

Exploded View

INFOID:0000000009266821

Disassembly and Assembly

INFOID:0000000009266822

DISASSEMBLY

1. Remove outer socket locknut and outer socket.
2. Remove boot clamps and boot.
3. Remove inner socket.

ASSEMBLY

1. Apply Three Bond 1111B or equivalent to inner socket and turn pinion fully to retract inner socket into gear

housing assembly.

2. Install large end (1) of boot (2) to gear housing assembly.
3. Install small end (3) of boot (2) to inner socket boot mounting

groove.

1.

Joint cover

2.

Steering gear assembly

3.

Inner socket

4.

Large clamp

5.

Boot

6.

Small boot clamp

7.

Outer socket

ALGIA0098GB

AWGIA0107ZZ

STEERING GEAR AND LINKAGE

ST-17

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

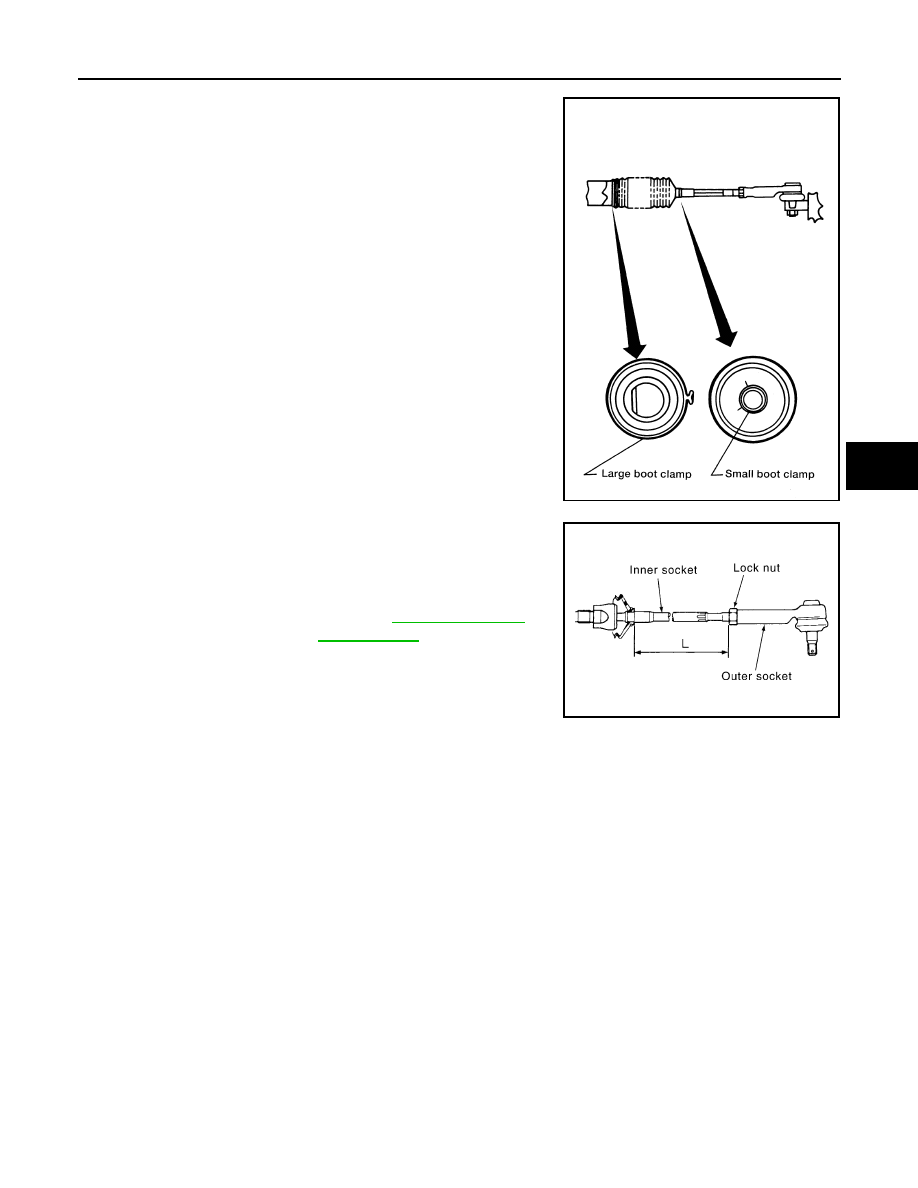

4. Install boot clamp to boot small end.
5. Install boot clamp to boot large end using Tool.

CAUTION:

Do not reuse boot clamps.

6. Adjust inner socket to standard length (L) and then tighten lock

nut to the specified torque. Check length of inner socket (L)

again after tightening lock nut. Make sure that the length is the

standard.

CAUTION:

Adjust toe-in after this procedure. The length achieved after

toe-in adjustment is not necessarily the above value.

Inspection

INFOID:0000000009266823

INSPECTION AFTER DISASSEMBLY

Boot

• Check boot for cracks and replace it if damage exists.

Steering gear Assembly

• Check steering gear assembly for damage and scratches (inner wall). Replace if there are any abnormal

conditions.

Outer Socket and Inner Socket

• Check the following items and replace the component if it does not meet the standard.

BALL JOINT SWINGING FORCE

Tool number

: KV40107300 ( — )

AST139

Inner socket length (L)

: Refer to

ST-20, "Ball Joint

Swing Force"

.

SGIA0167E
