Nissan Versa Sedan. Manual - part 750





ST-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009266804

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Service Notice or Precautions for Steering System

INFOID:0000000009266805

• In case of removing steering gear assembly, make the final tightening with grounded and unloaded vehicle

condition, and then check wheel alignment.

• Observe the following precautions when disassembling.

- Before disassembly, thoroughly clean the outside of the unit.

- Disassembly should be done in a clean work area. It is important to prevent the internal parts from becoming

contaminated by dirt or other foreign matter.

- For easier and proper assembly, place disassembled parts in order on a parts rack.

- Use nylon cloth or paper towels to clean the parts; common shop rags can leave lint that might interfere with

their operation.

- Do not reuse non-reusable parts.

- Before assembling, apply the specified grease to the directed parts.

PREPARATION

ST-3

< PREPARATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

PREPARATION

PREPARATION

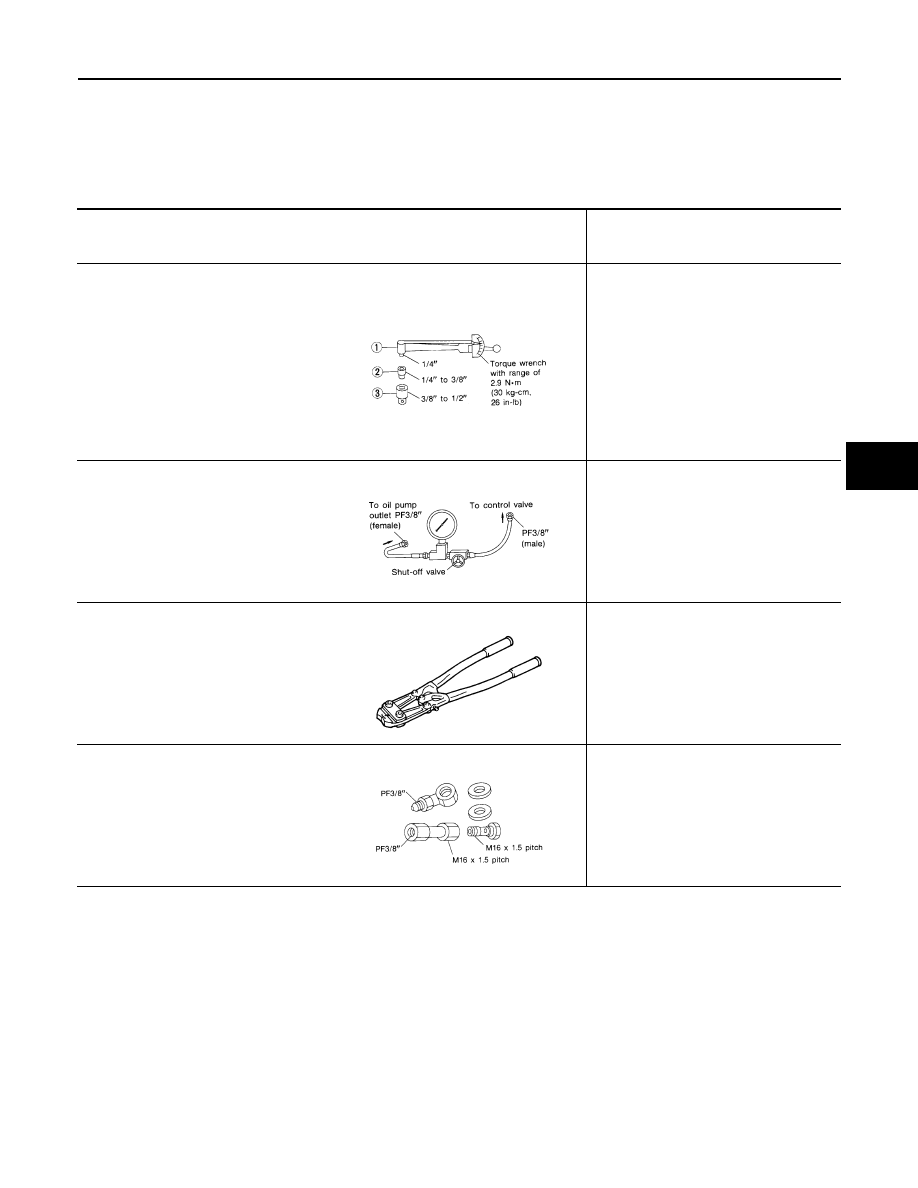

Special Service Tool

INFOID:0000000009266806

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST3127S000
(J-25765-A)
Preload gauge
1. GG9103000
(J-25765-A)
Torque wrench
2. HT62940000
( – )
Socket adapter
3. HT62900000
( – )
Socket adapter

Inspecting of rotating torque for ball joint
and steering column

KV48103500
(J-26357)
Pressure gauge

Measuring oil pump relief pressure

KV40107300
( — )
Boot clamp crimping tool

Installing boot clamps

KV48102500
(J-33914)
Pressure gauge adapter

Measuring oil pump relief pressure

S-NT541

S-NT547

ZZA1229D

S-NT542

ST-4

< PREPARATION >

PREPARATION

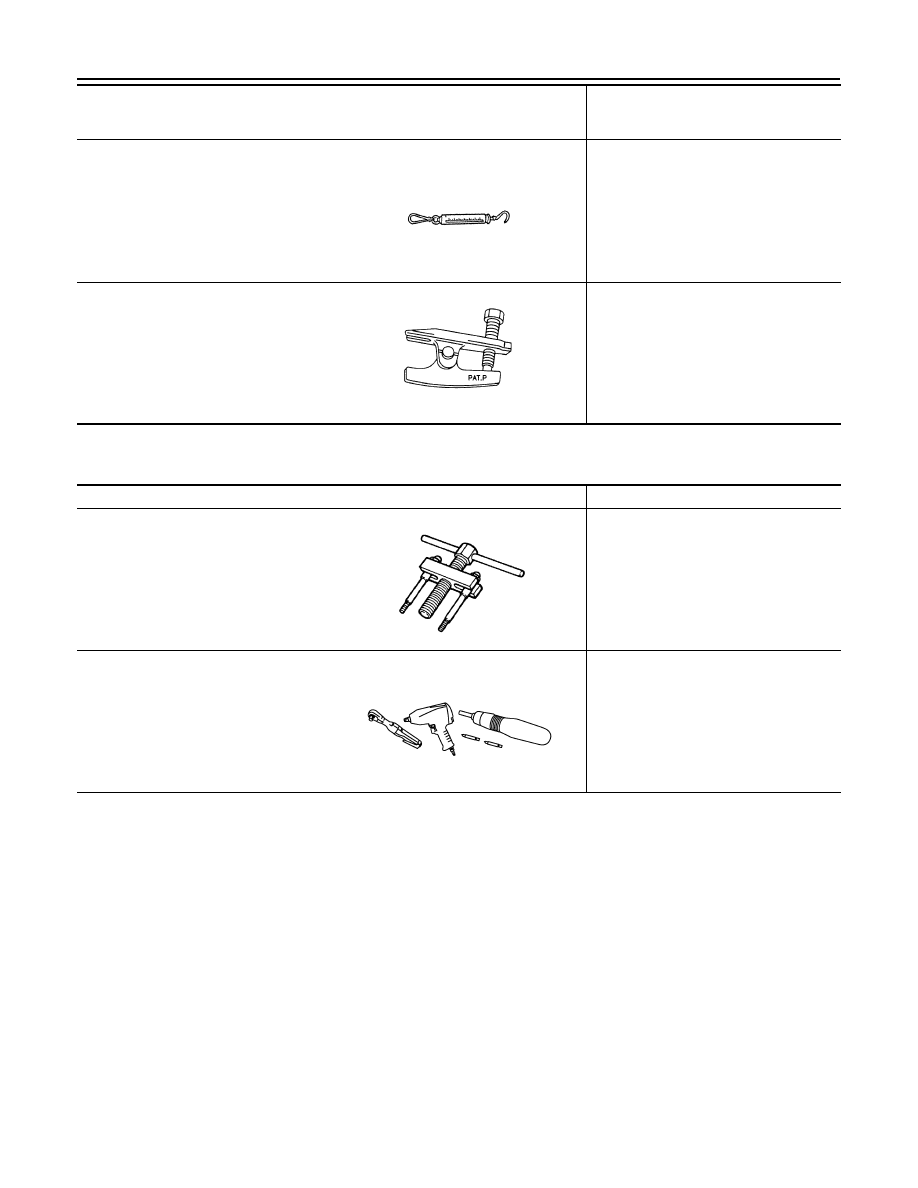

Commercial Service Tool

INFOID:0000000009266807

(J-44372)
Spring gauge

Measuring steering wheel turning force,
rack sliding force and ball joint swinging
force

HT72520000
(J-25730-A)
Ball joint remover

Removing ball joint

Tool number
(Kent-Moore No.)
Tool name

Description

LST024

NT146

Tool name

Description

Steering wheel puller

Removing steering wheel

Power tool

Loosening nuts, screws and bolts

ZZA0819D

PIIB1407E

STEERING WHEEL

ST-5

< BASIC INSPECTION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

BASIC INSPECTION

STEERING WHEEL

Inspection

INFOID:0000000009266808

CHECKING CONDITION OF INSTALLATION

• Check installation conditions of steering gear assembly, front suspension assembly, axle and steering col-

umn assembly.

• Check if movement exists when steering wheel is moved up and down, to the left and right and to the axial

direction.

• Check steering gear assembly bolts and nuts for looseness. Refer to

ST-14, "Removal and Installation"

.

CHECKING STEERING WHEEL PLAY

1. Turn steering wheel so that front wheels come to the straight-ahead position. Start engine and lightly turn

steering wheel to the left and right until front wheels start to move. Measure steering wheel movement on

the outer circumference.

2. When the measurement value is outside the standard value, check backlash for each joint of steering col-

umn assembly and installation condition of steering gear assembly.

NEUTRAL POSITION STEERING WHEEL

1. Check that steering gear assembly, steering column assembly and steering wheel are installed in the cor-

rect position.

2. Check wheel alignment within specification. Refer to

FSU-6, "Inspection and Adjustment"

.

3. Set vehicle to the straight-ahead position and confirm steering wheel is in the neutral position.

• Loosen outer socket lock nut and turn inner socket to left and right equally to make fine adjustments if

steering wheel is not in the neutral position.

CAUTION:

If the adjustment is performed by using the inner socket, check wheel alignment after the adjust-

ment. Refer to

FSU-6, "Inspection and Adjustment"

.

STEERING WHEEL TURNING FORCE

1. Park vehicle on a level and dry surface, set parking brake.
2. Tires need to be inflated normal pressure. Refer to

WT-45, "Tire Air Pressure"

.

3. Start engine.

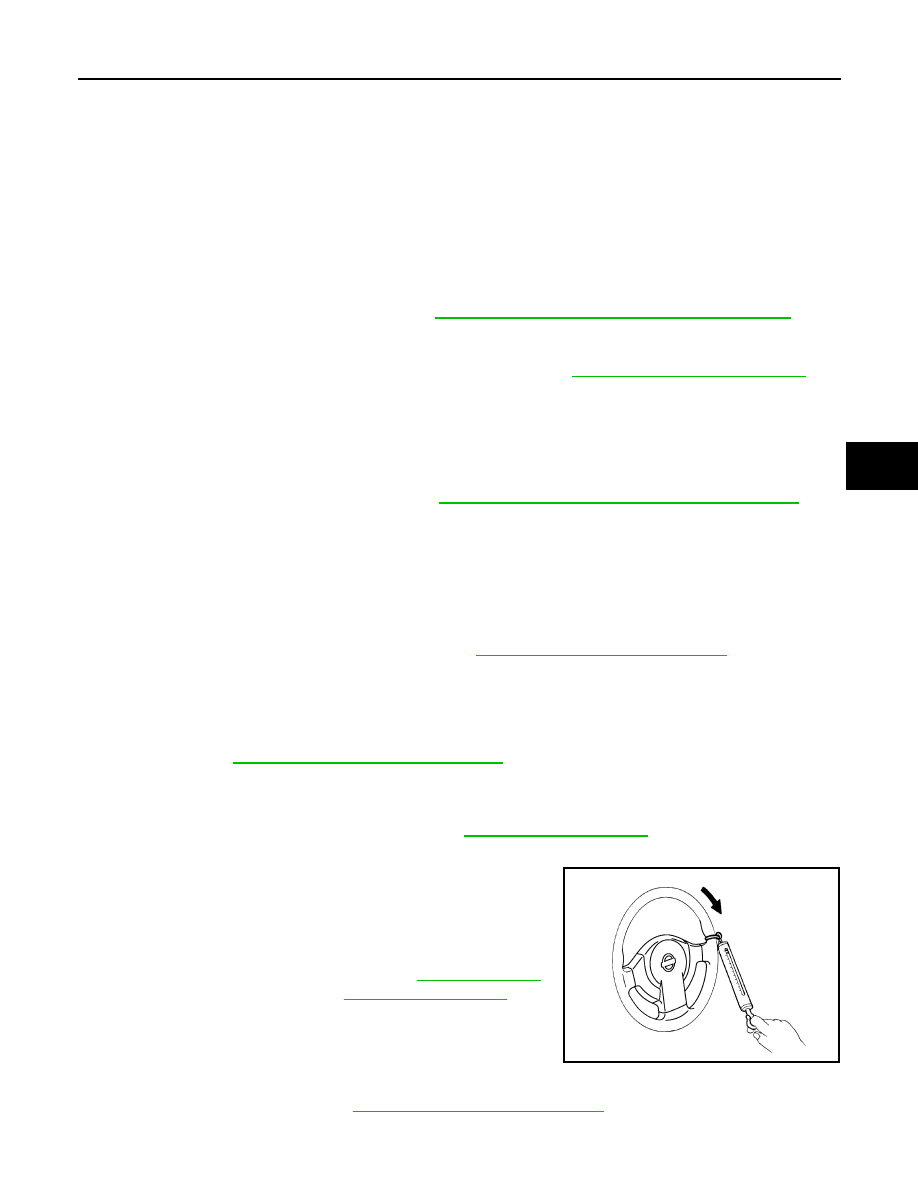

4. Check steering wheel turning force when steering wheel has

been turned 360

° from neutral position using Tool as shown.

FRONT WHEEL TURNING ANGLE

1. Perform toe-in inspection. Refer to

FSU-6, "Inspection and Adjustment"

.

CAUTION:

Steering wheel axial end play
and play

: Refer to

ST-19, "Steering Wheel Axial End Play and Play"

.

Steering wheel axial end play
and play

: Refer to

ST-19, "Steering Wheel Axial End Play and Play"

.

Tool number :

(J-44372)

Steering wheel turning
force

: Refer to

ST-19, "Steering

Wheel Turning Force"

.

SGIA1523J
