SE-22

< REMOVAL AND INSTALLATION >

REAR SEAT

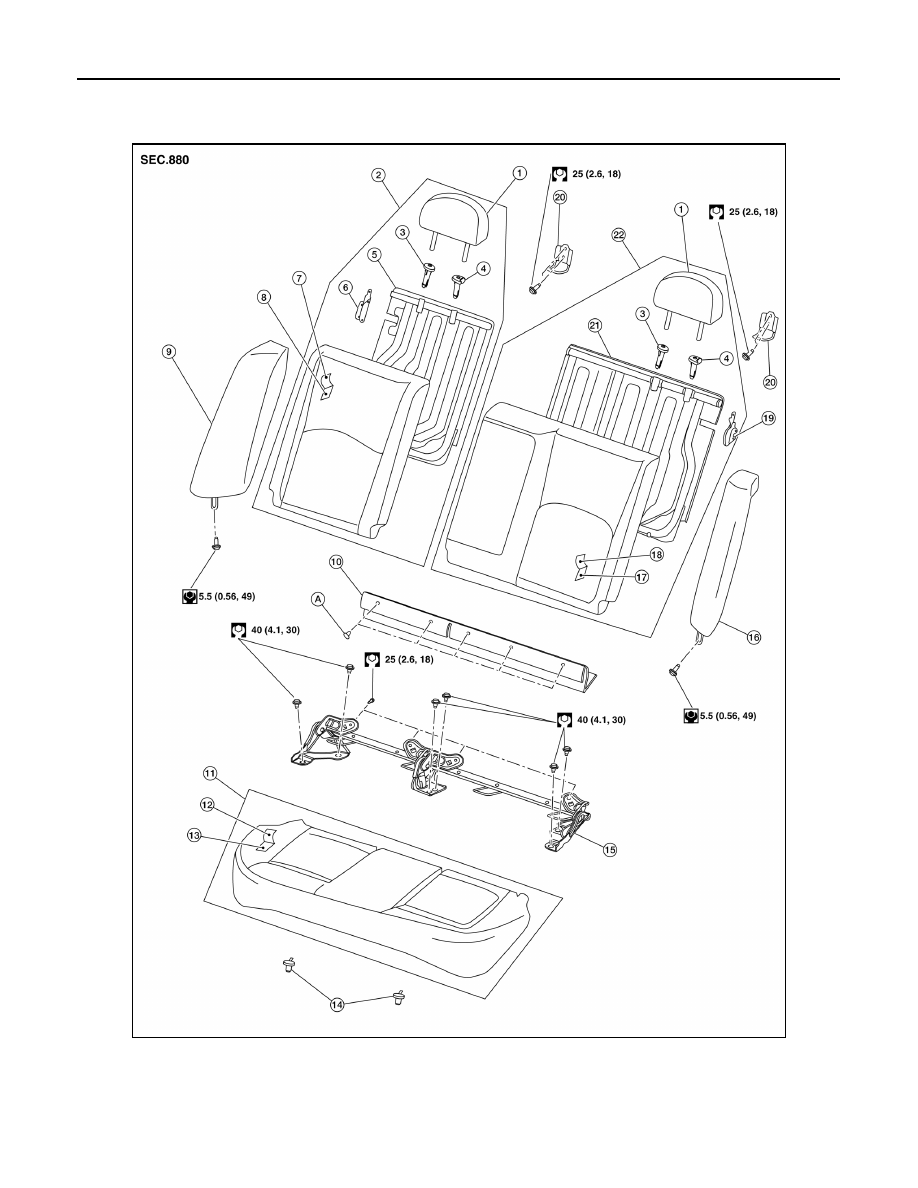

Exploded View - 60:40 Split Seatback

INFOID:0000000009268523

60:40 SPLIT SEATBACK

ALJIA0981ZZ

1.

Headrest

2.

Rear seatback assembly (RH)

3.

Headrest holder (free)

4.

Headrest holder (locked)

5.

Rear seatback frame (RH)

6.

Seatback latch assembly (RH)

7.

Seatback trim (RH)

8.

Seatback pad (RH)

9.

Rear seat bolster (RH)

10. Seatback hinge finisher

11. Seat cushion assembly

12. Seat cushion trim

REAR SEAT

SE-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Removal and Installation - Seat Cushion Assembly

INFOID:0000000009268524

REMOVAL

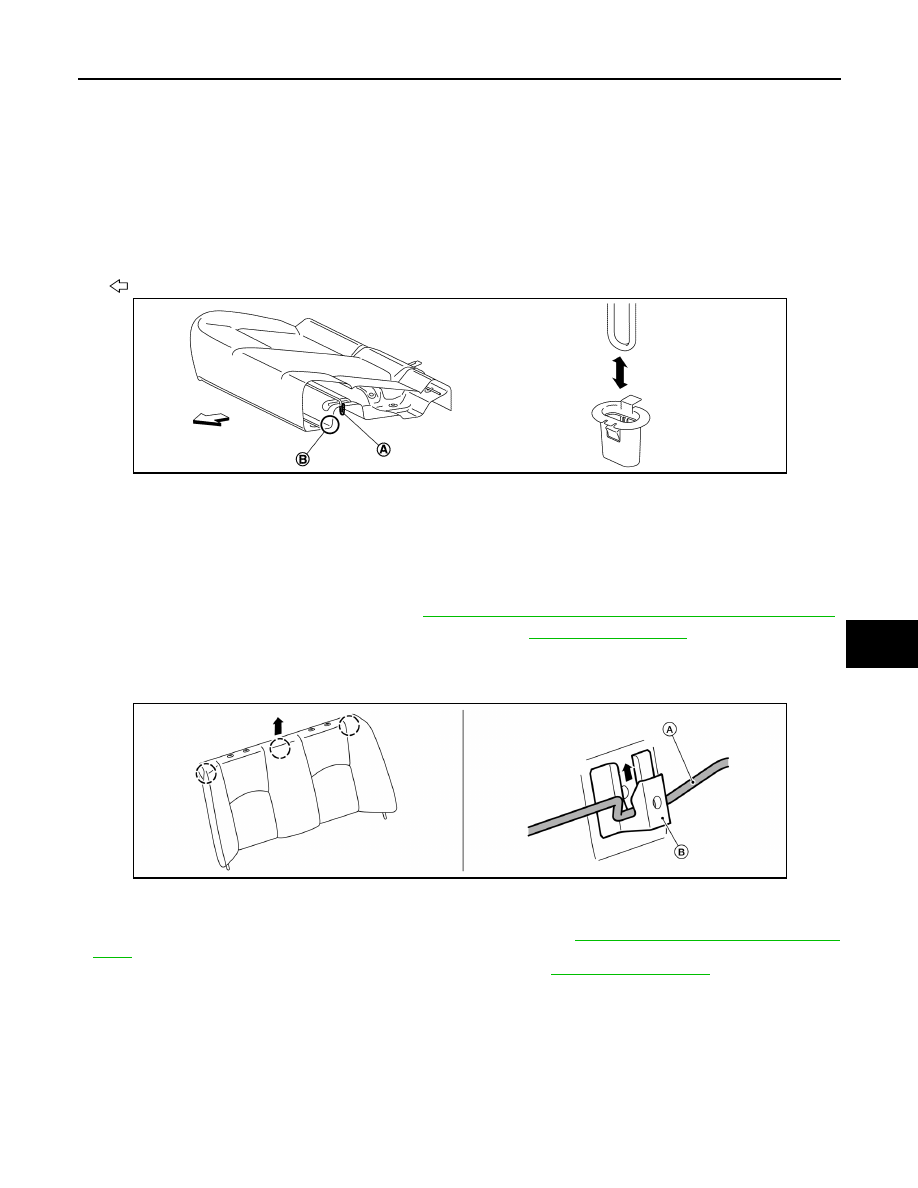

1. Lift up the seat cushion assembly close to the front edge (B) to release it from the seat cushion hooks (A)

(one for each side) and remove the seat cushion assembly.

: Front

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation - Fixed Seatback

INFOID:0000000009268525

REMOVAL

1. Remove the seat cushion assembly. Refer to

SE-23, "Removal and Installation - Seat Cushion Assembly"

.

2. Remove the rear seat belt D-ring anchors (LH/RH). Refer to

SB-9, "Exploded View"

.

3. Remove the two seatback bolts.
4. Lift the rear seatback assembly upward and disengage the seatback frame (A) from body hook (B) and

remove the rear seatback assembly.

INSTALLATION

Installation is in the reverse order of removal.

• Tighten the rear seatback assembly bolts to specification. Refer to

SE-21, "Exploded View - Fixed Seat-

back"

.

• Tighten the rear seat belt D-ring anchors to specification. Refer to

SB-9, "Exploded View"

.

Removal and Installation - 60:40 Split Seatback

INFOID:0000000009268526

REMOVAL

1. Place the rear seatback assembly in the folded down position.

13. Seat cushion pad

14. Seat cushion hook

15. Seatback hinge assembly

16. Rear seat bolster (LH)

17. Seatback pad (LH)

18. Seatback trim (LH)

19. Seatback latch assembly (LH)

20. Seatback striker

21. Rear seatback frame (LH)

22. Rear seatback assembly (LH)

A.

Seatback hinge finisher clips

JMJIA4835ZZ

AWJIA0723ZZ

SE-24

< REMOVAL AND INSTALLATION >

REAR SEAT

2. Release the hook fasteners (A) in the lower corners of the rear

seatback assembly.

3. Remove the rear seatback assembly bolts (B) from the seatback

hinge assembly (1), then remove the rear seatback assembly.

INSTALLATION

Installation is in the reverse order of removal.

• Tighten the rear seatback assembly bolts to specification. Refer to

SE-22, "Exploded View - 60:40 Split Seat-

back"

.

Removal and Installation - Seatback Hinge Assembly

INFOID:0000000009268527

REMOVAL

1. Remove the seat cushion assembly. Refer to

SE-23, "Removal and Installation - Seat Cushion Assembly"

.

2. Remove the rear seatback assemblies (LH/RH). Refer to

SE-23, "Removal and Installation - 60:40 Split

Seatback"

3. Remove the rear seat bolsters (LH/RH). Refer to

SE-24, "Removal and Installation - Rear Seat Bolster"

4. Remove the bolts and the seatback hinge assembly.

INSTALLATION

Installation is in the reverse order of removal.

• Tighten the seatback hinge assembly bolts to specification. Refer to

SE-22, "Exploded View - 60:40 Split

Seatback"

.

Removal and Installation - Rear Seat Bolster

INFOID:0000000009268528

REMOVAL

1. Remove the seat cushion assembly. Refer to

SE-23, "Removal and Installation - Seat Cushion Assembly"

.

2. Remove the bolt at bottom of rear seat bolster.
3. Lift the rear seat bolster to remove.

INSTALLATION

Installation is in the reverse order of removal.

• Tighten rear seat bolster bolt to specification. Refer to

SE-22, "Exploded View - 60:40 Split Seatback"

.

Removal and Installation - Seat Cushion Hook

INFOID:0000000009268529

REMOVAL

1. Remove the seat cushion assembly. Refer to

SE-23, "Removal and Installation - Seat Cushion Assembly"

.

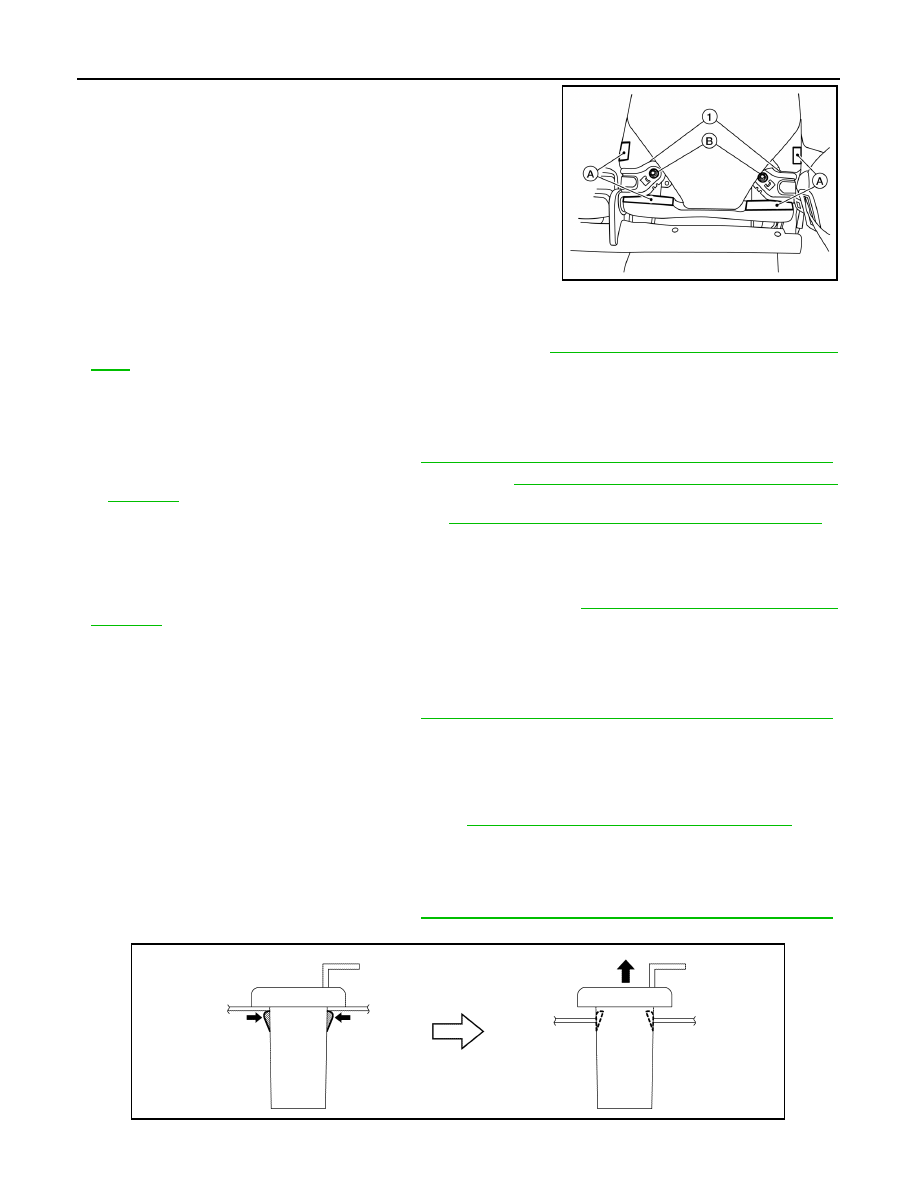

2. Release the seat cushion hook pawls as shown and remove.

CAUTION:

ALJIA0985ZZ

JMJIA6035ZZ

REAR SEAT

SE-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Before removing/installing the seat cushion hook, check its orientation (front/rear).

INSTALLATION

Installation is in the reverse order of removal.
