Nissan Versa Sedan. Manual - part 662

RAX-8

< REMOVAL AND INSTALLATION >

REAR WHEEL HUB

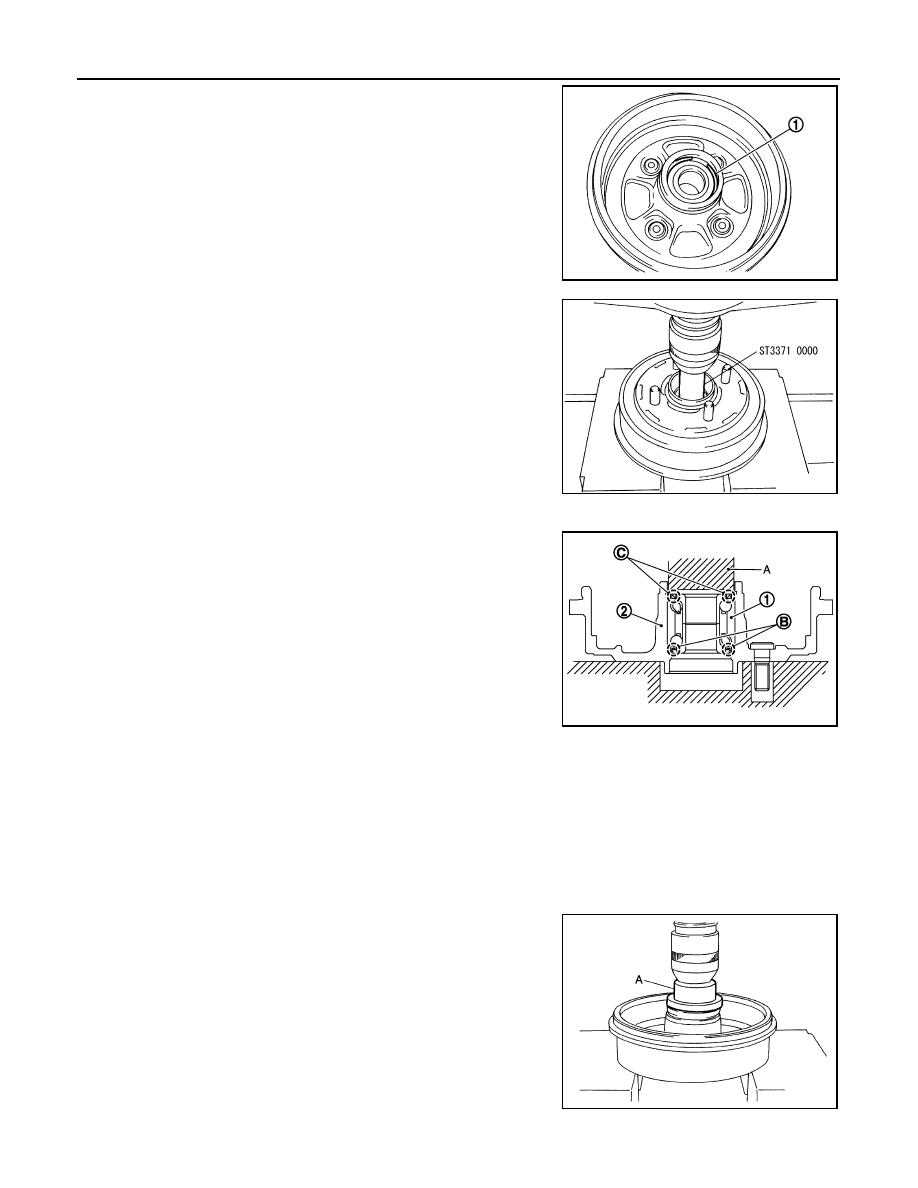

2. Remove snap ring (1).

3. Remove wheel bearing, using the Tool.

ASSEMBLY

1. Install wheel bearing (1) to brake drum (2), using the Tool (A).

CAUTION:

• Do not reuse wheel bearing.

• Do not apply lubricating oil to the press-fit surface of the

wheel hub bearing.

• Install wheel bearing with the seal rubber part (B) faced to

the brake drum side.

• Set brake drum and wheel bearing horizontally and insert

them vertically.

• The press-fit load must be applied to the wheel bearing

outer race and the brake drum.

• Do not apply press-fit load to the wheel bearing inner race, the seal (B) on the rubber surface

side, and the seal (C) on the metallic surface side. If a press-fit load is applied, the wheel bearing

must be replaced with a new one.

• Wheel bearing press-fit load must be 49 kN (5,000 kg-f, 11,015 lb-f).

2. Install snap ring to brake drum.

CAUTION:

• Do not damage the wheel bearing seal.

• The snap ring must be installed evenly into the groove.

3. Install sensor rotor, using the Tool (A).

CAUTION:

Do not reuse sensor rotor.

JPDIG0092ZZ

Tool number : ST33710000 ( — )

JPDIG0079ZZ

Tool number : KV40104730 ( — )

Tool number : ST30032000 ( — )

JPDIG0200ZZ

JPDIG0191ZZ

REAR WHEEL HUB

RAX-9

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

Inspection

INFOID:0000000009267694

INSPECTION AFTER REMOVAL

Check the brake drum assembly and spindle for wear, cracks, and damage. Replace if necessary.

INSPECTION AFTER DISASSEMBLY

• Check brake drum for wear, cracks, or any other damage. Replace if necessary.

• Check snap ring for wear or cracks. Replace if necessary.

INSPECTION AFTER INSTALLATION

1. Check wheel bearing rotating torque per the following instructions.

NOTE:

The adequacy of turning torque can be judged from a measurement value by a suitable tool.

a. Check the contact surface of the brake drum and spindle for foreign matter. If there is any foreign matter,

clean the contact surface.

b. Check that the wheel hub lock nut is tightened to the specified torque.
c. Turn the brake drum 10 times or more both clockwise and counterclockwise for proper fit.

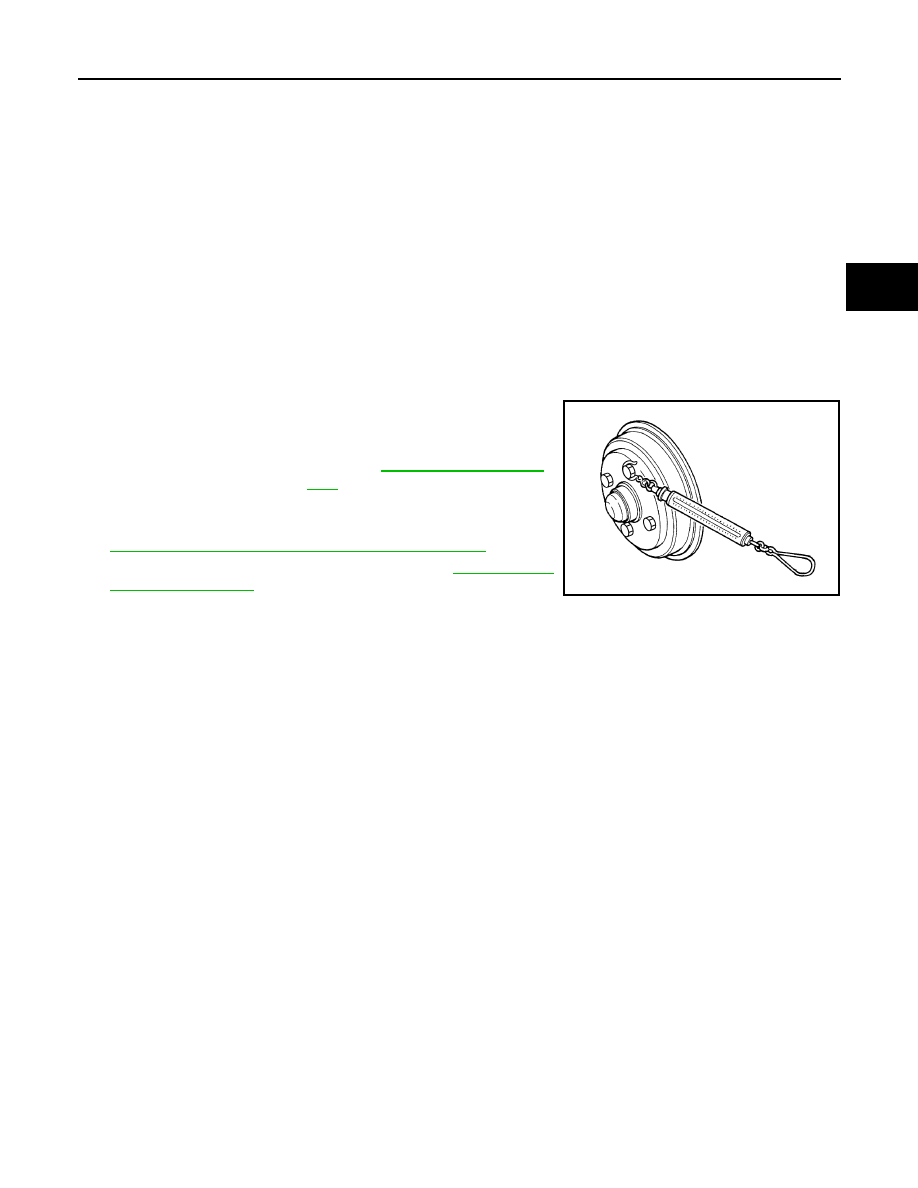

d. Set a suitable tool to the hub bolt and measure turning torque at

turning speeds of 8 to 12 rpm.

2. Check wheel sensor harness for proper connection. Refer to

BRC-105, "REAR WHEEL SENSOR : Exploded View"

.

3. Adjust parking brake operation (stroke). Refer to

PB-4, "Inspec-

tion and Adjustment"

.

Rotating torque, and
spring balance mea-
surement

: Refer to

RAX-10, "Wheel Bear-

ing"

.

MDIA0060E

RAX-10

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000009267695

Item

Standard

Axial end play

0.05 mm (0.002 in) or less

Rotating torque

1.71 N·m (0.17 kg-m, 15 in-lb) or less

Spring balance measurement

12.3 N (1.25 kg-f, 2.77 lb-f) or less

RSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

RSU

A

B

RSU

N

O

P

CONTENTS

REAR SUSPENSION

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precautions for Suspension ......................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tools  ........................................

3

SYMPTOM DIAGNOSIS  ...............................

4

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

4

NVH Troubleshooting Chart  ......................................

4

PERIODIC MAINTENANCE ..........................

5

REAR SUSPENSION ASSEMBLY  .....................

5

On-Vehicle Inspection and Service  ...........................

5

WHEEL ALIGNMENT ..........................................

6

Inspection ..................................................................

6

REMOVAL AND INSTALLATION ................

8

REAR SHOCK ABSORBER  ..............................

8

Exploded View ..........................................................

8

Removal and Installation  ..........................................

8

Inspection .................................................................

9

Disposal ....................................................................

9

COIL SPRING  ...................................................

11

Exploded View .........................................................

11

Removal and Installation  .........................................

11

Inspection ................................................................

11

REAR SUSPENSION BEAM ............................

13

Exploded View .........................................................

13

Removal and Installation  .........................................

13

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

14

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

14

Wheel Alignment  .....................................................

14

Wheelarch Height  ....................................................

14
