PWO-4

< WIRING DIAGRAM >

POWER SOCKET

WIRING DIAGRAM

POWER SOCKET

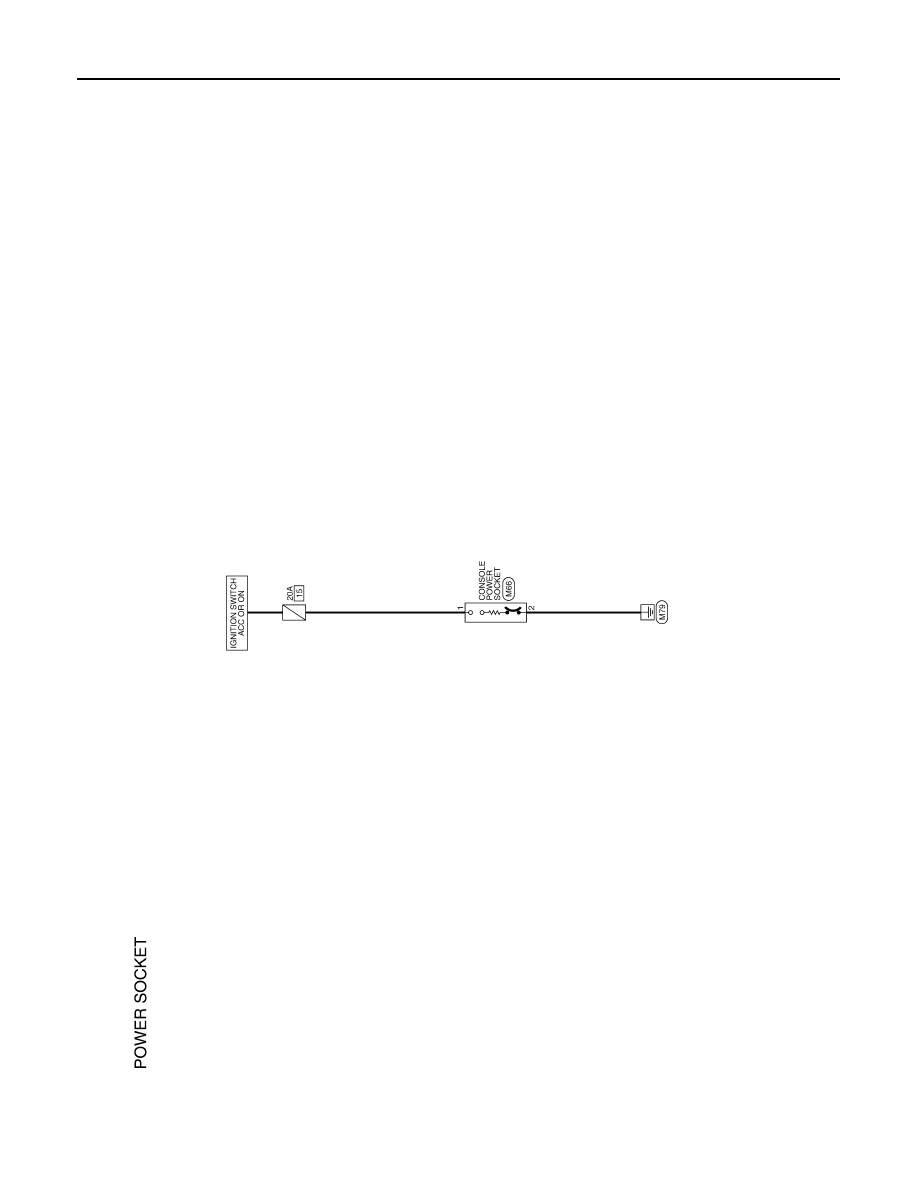

Wiring Diagram

INFOID:0000000009267573

ABMWA1311GB

PWO

POWER SOCKET

PWO-5

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

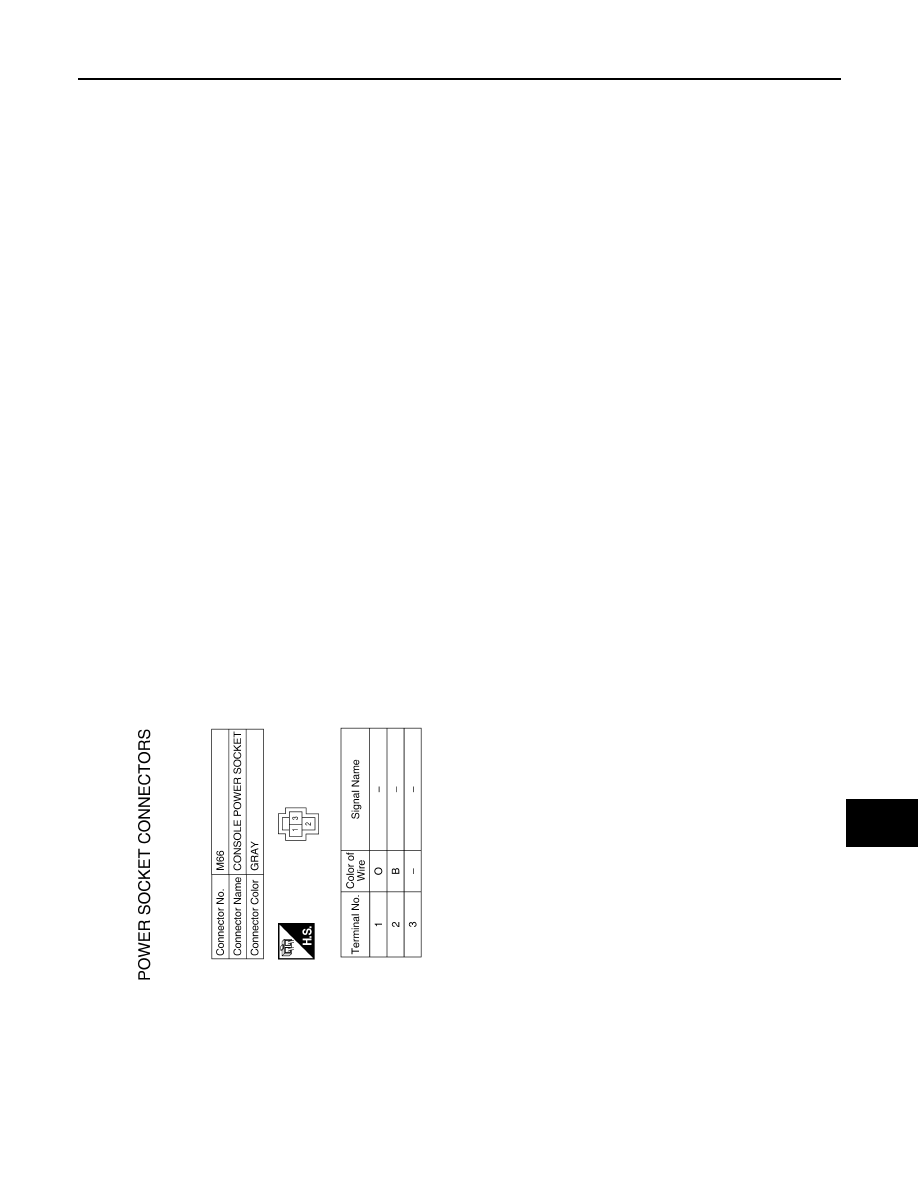

ABMIA4732GB

PWO-6

< REMOVAL AND INSTALLATION >

POWER SOCKET

REMOVAL AND INSTALLATION

POWER SOCKET

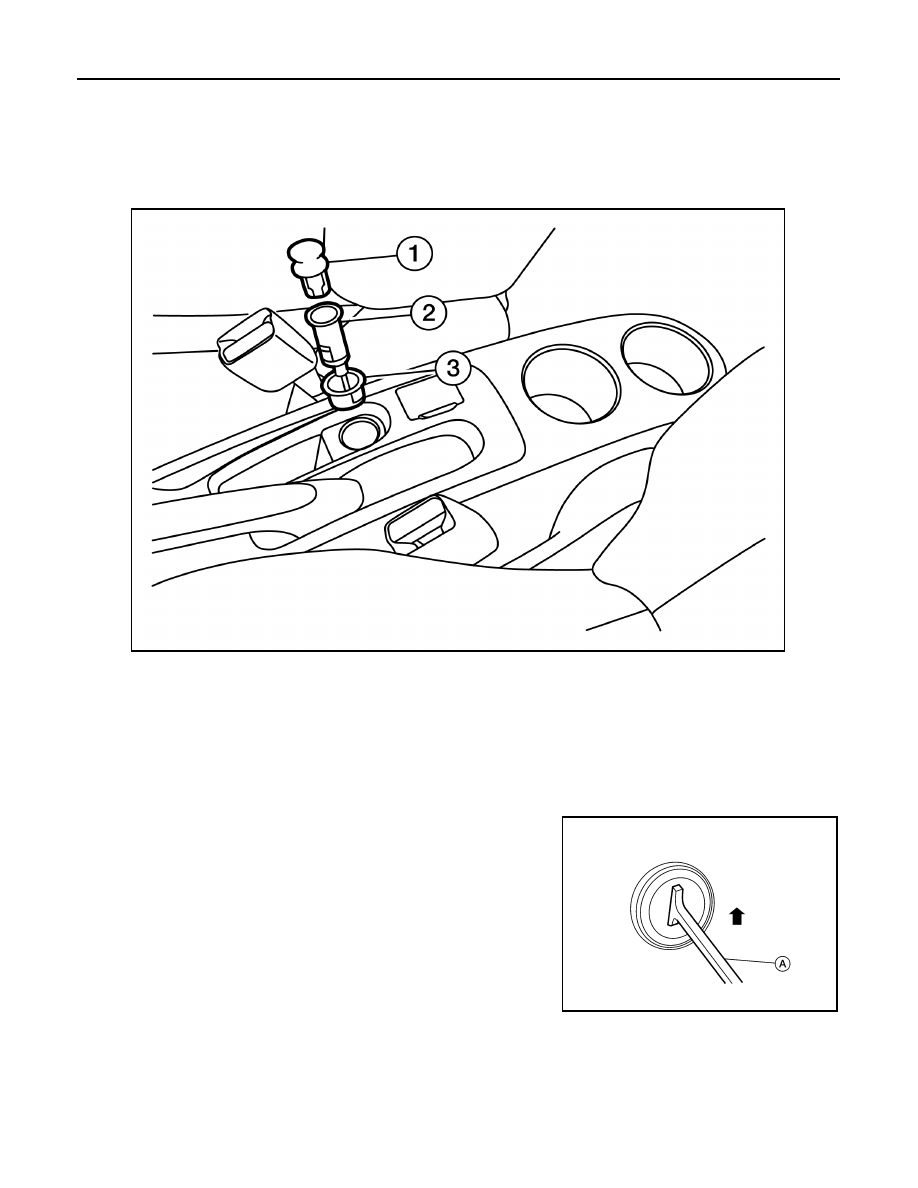

Exploded View

INFOID:0000000009267574

Removal and Installation

INFOID:0000000009267575

CONSOLE POWER SOCKET

Removal

1. Remove the fuse for the power socket.
2. Insert one end of the Tool (A) into one of the square holes inside

the power socket.

3. Lift up the handle of the Tool until the other end of the Tool is

inside the socket and snaps into the other square hole in the

power socket.

4. Pull the power socket straight out with the Tool.
5. Disconnect harness connector from power socket.

Installation

1.

Cap

2.

Inner socket

3.

Ring

AWMIA1228ZZ

Tool number:

—   (J-42059)

AWMIA1182GB

PWO

POWER SOCKET

PWO-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Installation is in the reverse order of removal.

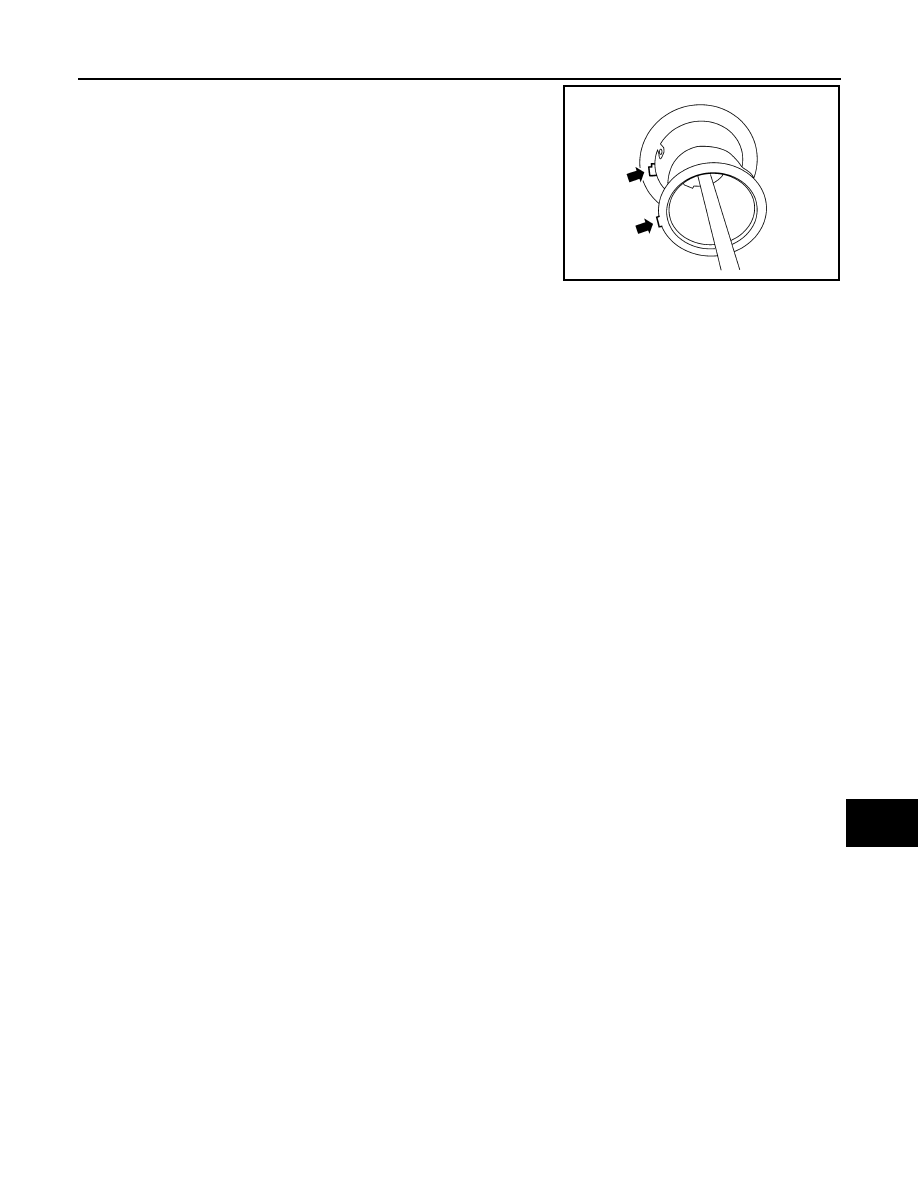

NOTE:

Make sure to align the tab with the square notched area during

installation.

AWMIA1183GB
