PG-26

< DTC/CIRCUIT DIAGNOSIS >

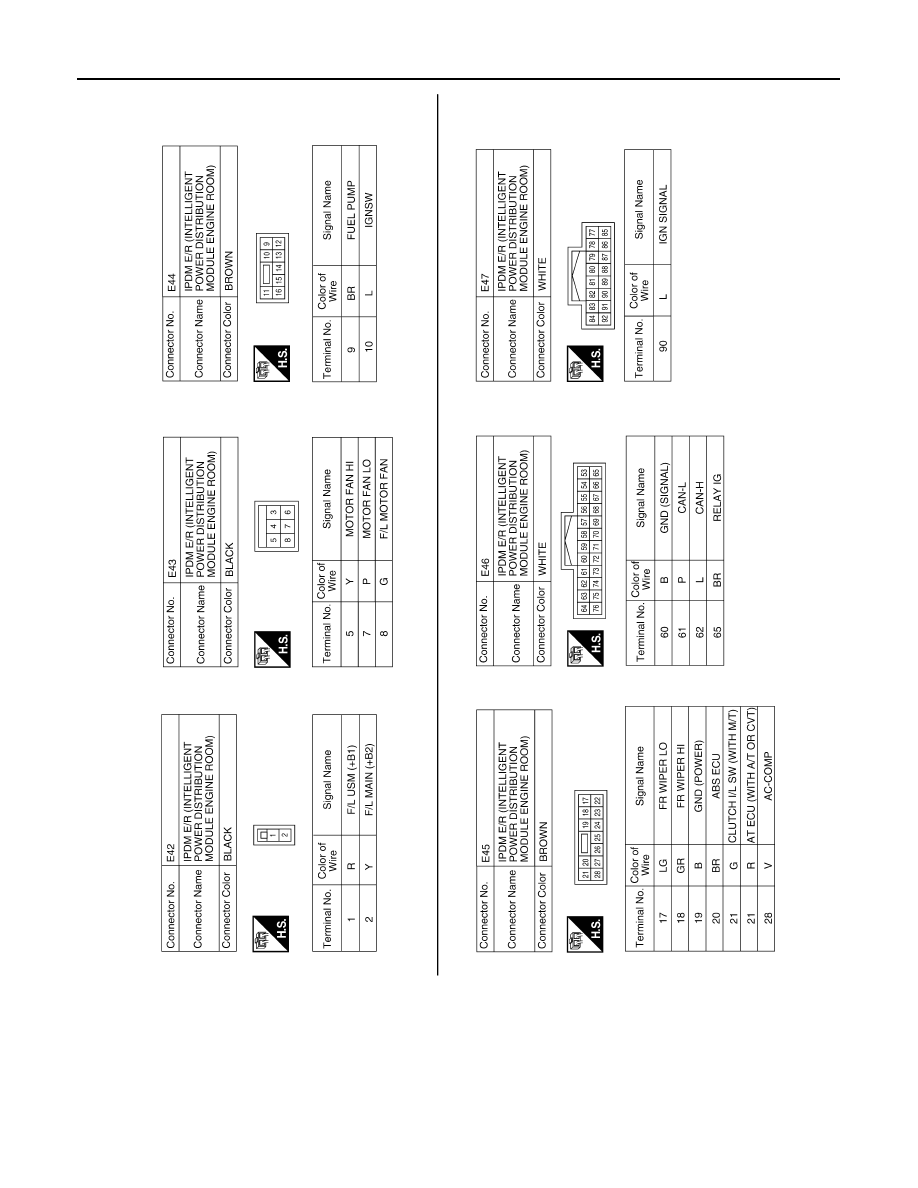

POWER SUPPLY ROUTING CIRCUIT

ABMIA4741GB

PG

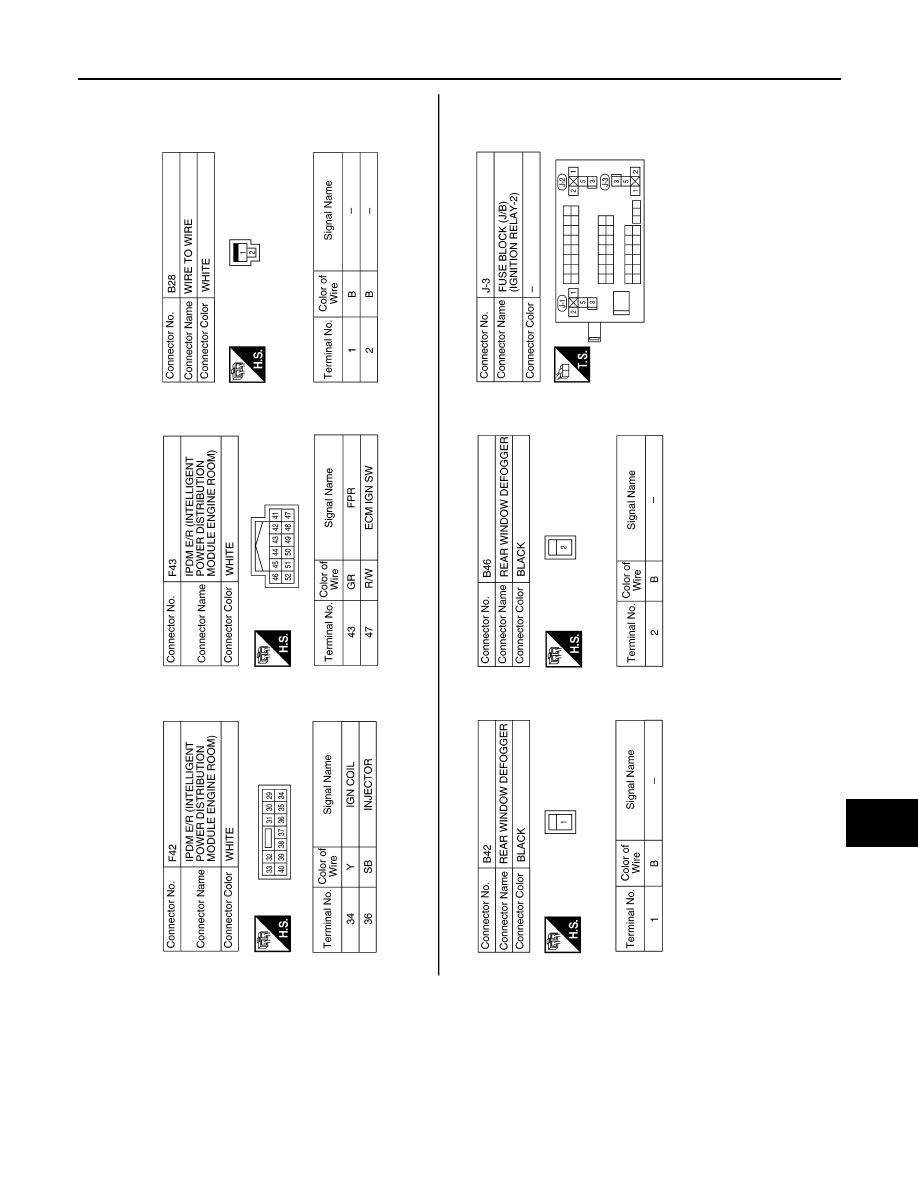

POWER SUPPLY ROUTING CIRCUIT

PG-27

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA4762GB

PG-28

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

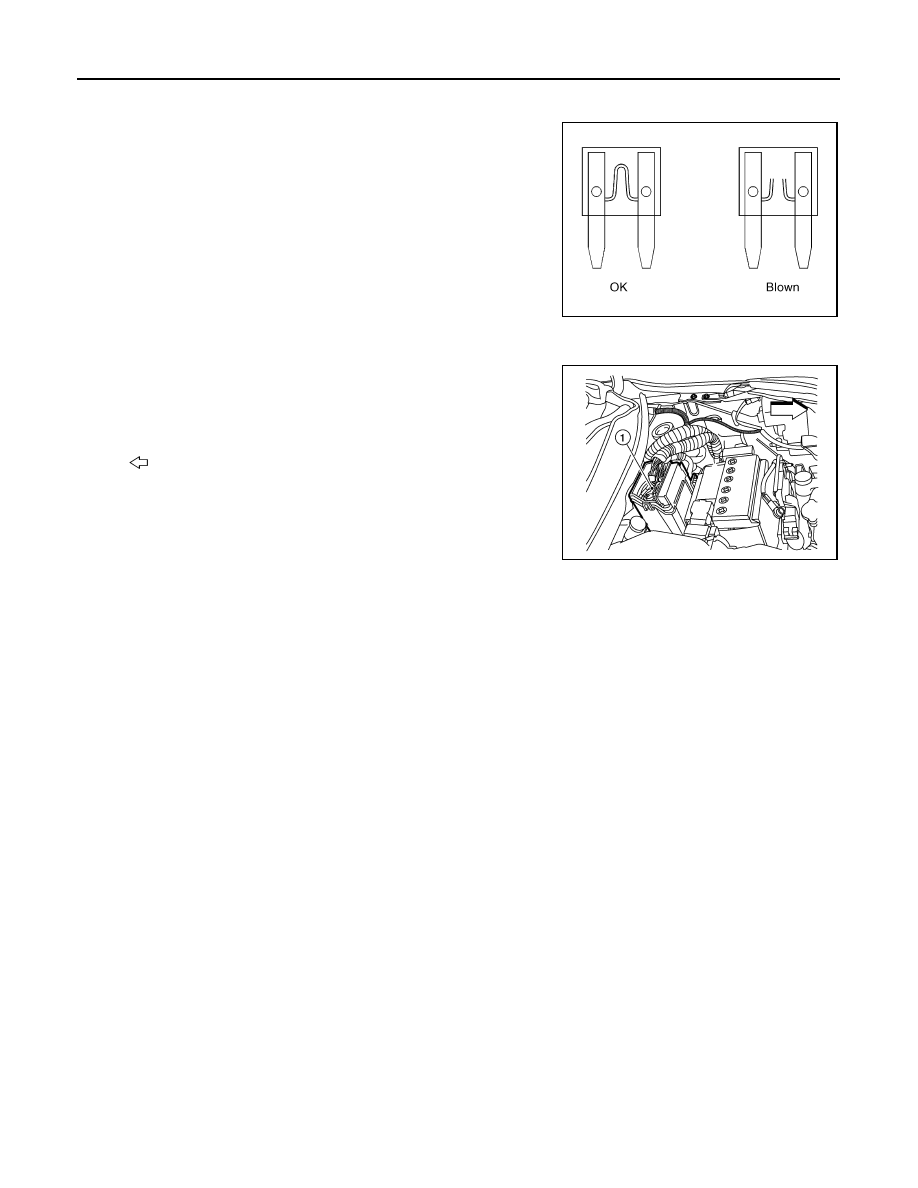

Fuse

INFOID:0000000009267727

• If fuse is blown, be sure to eliminate cause of malfunction before

installing new fuse.

• Use fuse of specified rating. Never use fuse of more than specified

rating.

• Do not partially install fuse; always insert it into fuse holder prop-

erly.

• Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not

used for a long period of time.

Fusible Link

INFOID:0000000009267728

A melted fusible link can be detected either by visual inspection or by

feeling with finger tip. If its condition is questionable, use circuit

tester or test lamp.

CAUTION:

• If fusible link should melt, it is possible that critical circuit

(power supply or large current carrying circuit) is shorted. In

such a case, carefully check and eliminate cause of malfunc-

tion.

• Never wrap outside of fusible link with vinyl tape. Important: Never let fusible link touch any other

wiring harness, vinyl or rubber parts.

CEL083

1

: Fusible link

: Vehicle front

AAMIA0805GB

PG

GROUND

PG-29

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

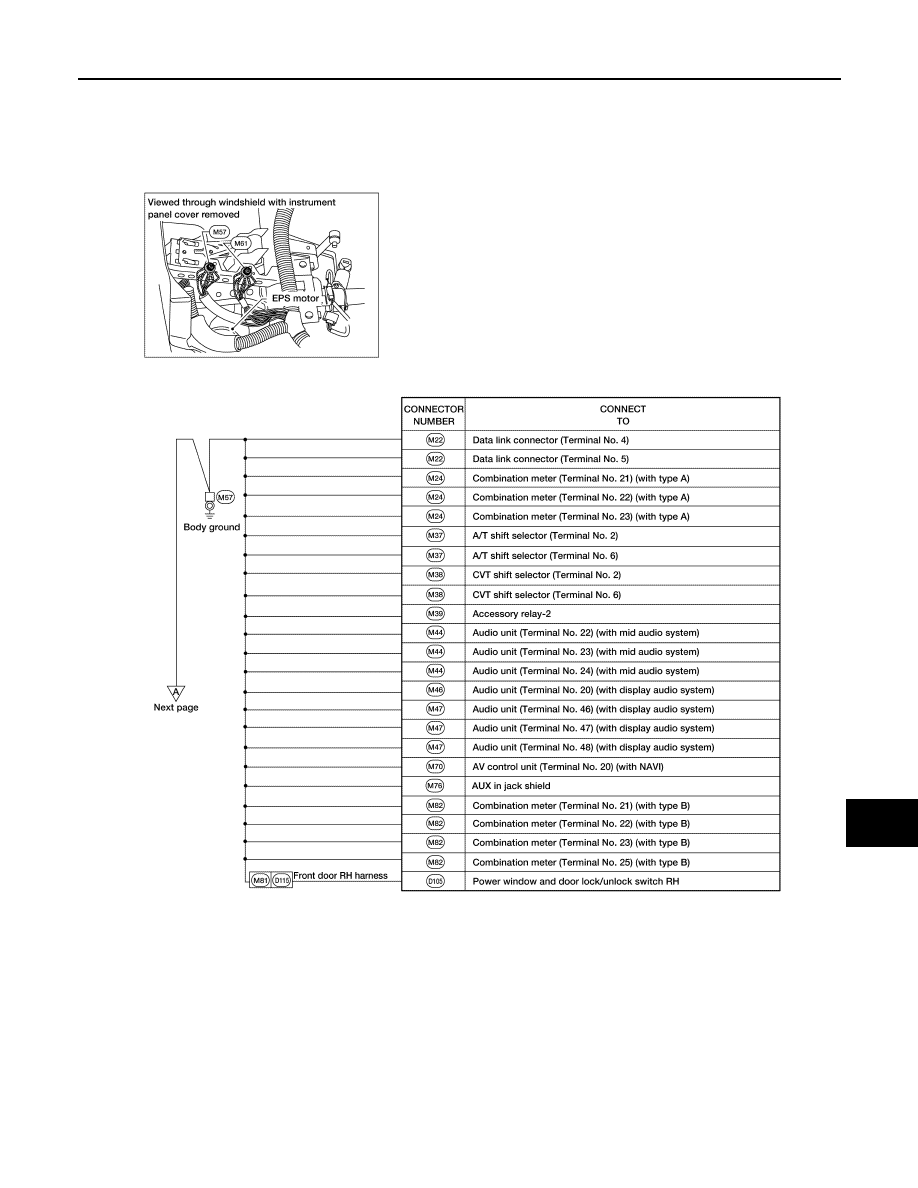

GROUND

Ground Distribution

INFOID:0000000009267729

MAIN HARNESS

ABMIA4754GB
