PCS-98

< SYMPTOM DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

PUSH-BUTTON IGNITION SWITCH DOES NOT OPERATE

SYMPTOM DIAGNOSIS

PUSH-BUTTON IGNITION SWITCH DOES NOT OPERATE

Description

INFOID:0000000009266491

Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and check

each symptom.

NOTE:

The engine start function, door lock function, power distribution system, and NATS-IVIS/NVIS in the Intelligent

Key system are closely related to each other regarding control. The vehicle security function can operate only

when the door lock and power distribution system are operating normally.

Conditions of Vehicle (Operating Conditions)

• “ENGINE START BY I-KEY” in “WORK SUPPORT” is ON when setting on CONSULT.

• One or more of Intelligent Keys with registered Intelligent Key ID is in the vehicle.

Diagnosis Procedure

INFOID:0000000009266492

1.

PERFORM WORK SUPPORT

Perform “INSIDE ANT DIAGNOSIS” on Work Support of “INTELLIGENT KEY”.

Refer to

BCS-20, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

>> GO TO 2.

2.

PERFORM SELF-DIAGNOSIS RESULT

Perform Self-Diagnosis Result of “BCM”.
Is DTC detected?

YES

>> Refer to

BCS-48, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK PUSH-BUTTON IGNITION SWITCH

Check push-button ignition switch.

Refer to

PCS-95, "Component Function Check"

.

Is the operation normal?

YES

>> GO TO 4.

NO

>> Repair or replace malfunctioning parts.

4.

CONFIRM THE OPERATION

Confirm the operation again.
Is the inspection normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> GO TO 1.

PCS

BCM (BODY CONTROL MODULE)

PCS-99

< REMOVAL AND INSTALLATION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

BCM (BODY CONTROL MODULE)

Removal and Installation

INFOID:0000000009266493

For removal and installation of the BCM (Body Control Module), refer to

BCS-69, "Removal and Installation"

(WITH INTELLIGENT KEY SYSTEM) or

BCS-122, "Removal and Installation"

 (WITHOUT INTELLIGENT KEY

SYSTEM).

PCS-100

< REMOVAL AND INSTALLATION >

[POWER DISTRIBUTION SYSTEM]

PUSH-BUTTON IGNITION SWITCH

PUSH-BUTTON IGNITION SWITCH

Removal and Installation

INFOID:0000000009266494

REMOVAL

1. Remove NATS antenna amp. Refer to

SEC-104, "Removal and Installation"

.

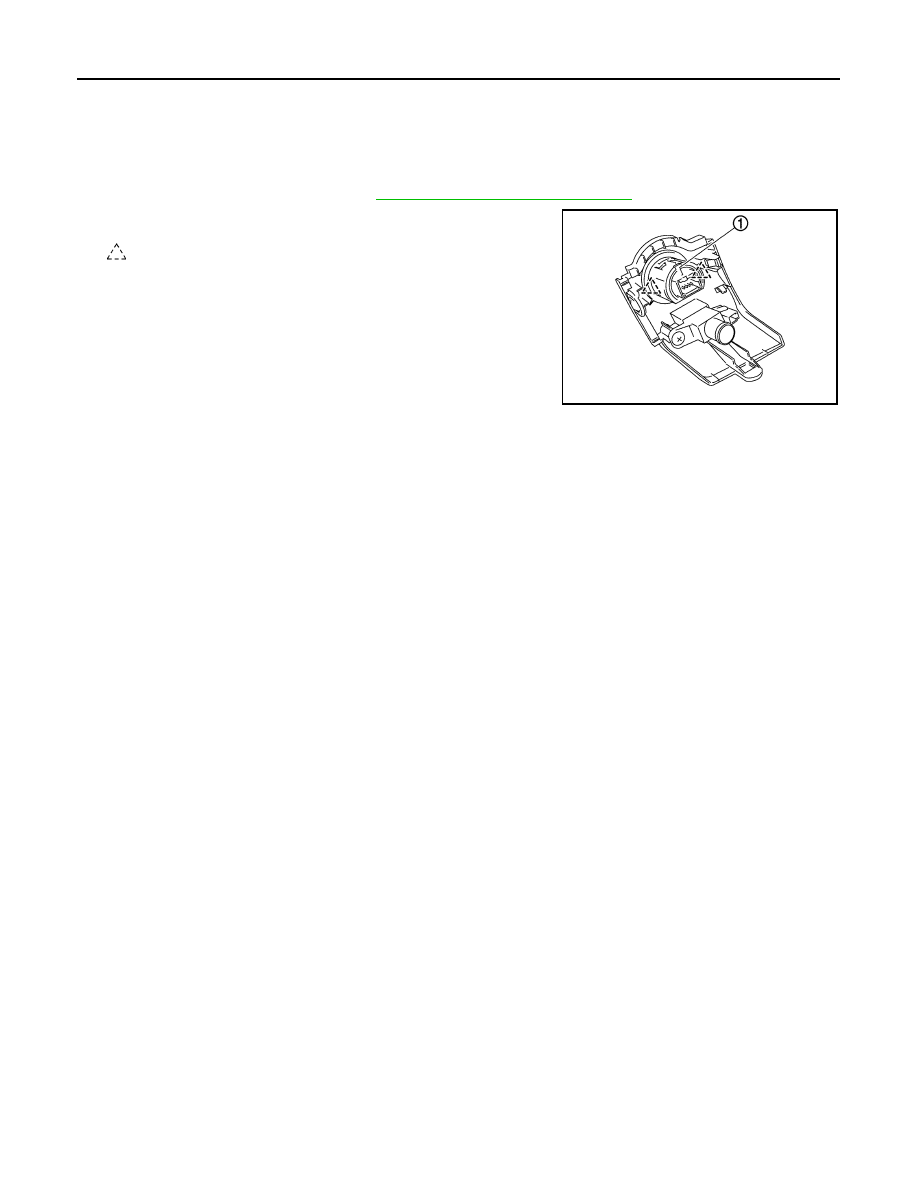

2. Release the push-button ignition switch pawls and remove the

push-button ignition switch (1).

: Pawl

INSTALLATION

Install in the reverse order of removal.

JMKIA8105ZZ

PG

PG-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

PG

A

O

P

N

CONTENTS

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

BASIC INSPECTION  ....................................

4

BATTERY ............................................................

4

How to Handle Battery ..............................................

4

Work Flow  .................................................................

4

INSPECTION AND ADJUSTMENT .....................

7

ADDITIONAL SERVICE WHEN REMOVING BAT-
TERY NEGATIVE TERMINAL ...................................
..

7

ADDITIONAL SERVICE WHEN REMOVING
BATTERY NEGATIVE TERMINAL : Special Re-
pair Requirement .....................................................
..

7

DTC/CIRCUIT DIAGNOSIS  ..........................

8

POWER SUPPLY ROUTING CIRCUIT ...............

8

Wiring Diagram — Battery Power Supply — .............

8

Wiring Diagram — Accessory Power Supply —  .....

16

Wiring Diagram — Ignition Power Supply —  ..........

20

Fuse ........................................................................

28

Fusible Link  .............................................................

28

GROUND ...........................................................

29

Ground Distribution ..................................................

29

HARNESS .........................................................

36

Harness Layout  .......................................................

36

ELECTRICAL UNITS LOCATION  ....................

51

Electrical Units Location  ..........................................

51

HARNESS CONNECTOR  .................................

55

Description ...............................................................

55

STANDARDIZED RELAY  .................................

58

Description ...............................................................

58

FUSE BLOCK - JUNCTION BOX (J/B)  ............

60

Terminal Arrangement .............................................

60

FUSE, FUSIBLE LINK AND RELAY BOX ........

61

Terminal Arrangement .............................................

61

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

62

IPDM E/R Terminal Arrangement ............................

62

REMOVAL AND INSTALLATION ...............

63

BATTERY ..........................................................

63

Removal and Installation  .........................................

63

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

64

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

64

Battery .....................................................................

64
