Nissan Versa Sedan. Manual - part 624

PCS-82

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

B2615 BLOWER RELAY CIRCUIT

NO

>> Repair or replace harness or connectors.

3.

 CHECK BLOWER MOTOR RELAY

Perform the relay component inspection. Refer to

HAC-40, "Component Inspection (Blower Relay)"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace blower motor relay.

4.

 CHECK BLOWER MOTOR RELAY POWER SUPPLY (BCM)

Check voltage between BCM connector M98 terminal 106 and ground.

Is the inspection result normal?

YES

>> Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace BCM. Refer to

BCS-69, "Removal and Installation"

.

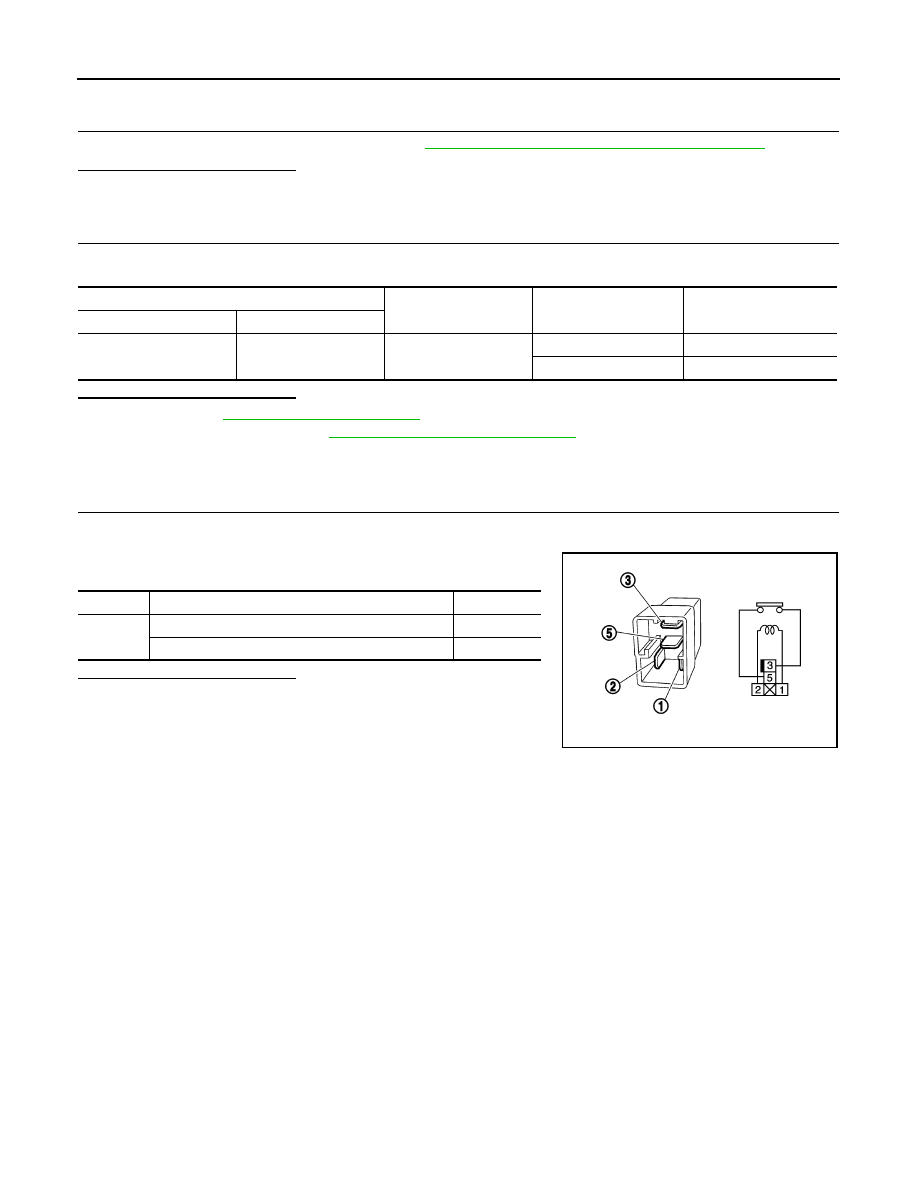

Component Inspection

INFOID:0000000009266474

1.

CHECK BLOWER RELAY

1. Turn blower switch OFF.

2. Remove blower relay.

3. Check the continuity between blower relay terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace blower relay

BCM

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M98

106

—

Ignition: OFF

0V

Ignition: ON

Battery voltage

Terminals

Condition

Continuity

3 and 5

12 V direct current supply between terminals 1 and 2

Yes

No current supply

No

PBIB0098E

PCS

B2616 IGNITION RELAY CIRCUIT

PCS-83

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B2616 IGNITION RELAY CIRCUIT

DTC Logic

INFOID:0000000009266475

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

 PERFORM SELF DIAGNOSTIC RESULT

1. Turn ignition switch ON under the following conditions, and wait for at least 1 second.

-

CVT selector lever is in the P (park) or N (neutral) position.

-

Release brake pedal

2. Perform self diagnostic result.
Is DTC B2616 detected?

YES

>> Refer to

PCS-83, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000009266476

Regarding Wiring Diagram information, refer to

PCS-68, "Wiring Diagram"

.

1.

 CHECK IGNITION RELAY-2 POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector M98.

3. Check continuity between ignition relay-2 connector J-3 terminal 1 and BCM connector M98 terminal 99.

4. Check continuity between ignition relay-2 connector J-3 terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

 CHECK IGNITION RELAY-2 GROUND CIRCUIT

1. Check continuity between ignition relay-2 connector J-3 terminal 2 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

CONSULT Display

DTC Detection Condition

Possible Cause

IGNITION RELAY CIRCUIT
[B2616]

An immediate operation of ignition relay-2 is re-
quested by BCM, but there is no response for more
than 1 second.

• Harness or connectors.
• Ignition relay-2.
• Fuse block J/B.
• BCM.

Ignition relay-2

BCM

Continuity

Connector

Terminal

Connector

Terminal

J-3

1

M98

99

Yes

Ignition relay-2

Ground

Continuity

Connector

Terminal

J-3

1

—

No

Ignition relay-2

Ground

Continuity

Connector

Terminal

J-3

2

—

Yes

PCS-84

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

B2616 IGNITION RELAY CIRCUIT

NO

>> Repair or replace harness or connectors.

3.

 CHECK IGNITION RELAY-2

Perform the relay component inspection. Refer to

PCS-84, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace ignition relay-2.

4.

 CHECK IGNITION RELAY-2 POWER SUPPLY (BCM)

Check voltage between BCM connector M98 terminal 99 and ground.

Is the inspection result normal?

YES

>> Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace BCM. Refer to

BCS-69, "Removal and Installation"

.

Component Inspection

INFOID:0000000009266477

1.

CHECK IGNITION RELAY

1. Turn ignition switch OFF.

2. Remove ignition relay.

3. Check the continuity between ignition relay terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace ignition relay

BCM

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M98

99

—

Ignition: OFF

0V

Ignition: ON

Battery voltage

Terminals

Condition

Continuity

3 and 5

12 V direct current supply between terminals 1 and 2

Yes

No current supply

No

PBIB0098E

PCS

B2618 BCM

PCS-85

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B2618 BCM

DTC Logic

INFOID:0000000009266478

DTC DETECTION LOGIC

NOTE:

• If DTC B2618 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

PCS-77, "DTC Logic"

.

• If DTC B2618 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

PCS-78, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

 PERFORM SELF DIAGNOSTIC RESULT

1. Turn ignition switch ON under the following conditions, and wait for at least 1 second.

-

CVT selector lever is in the P (park) or N (neutral) position.

-

Release brake pedal

2. Perform self diagnostic result.
Is DTC B2618 detected?

YES

>> Refer to

PCS-85, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000009266479

Regarding Wiring Diagram information, refer to

PCS-68, "Wiring Diagram"

.

1.

CHECK IGNITION RELAY-1 CONTROL SIGNAL

Check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-69, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK IGNITION RELAY-1 CONTROL SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector and IPDM E/R.

3. Check continuity between BCM harness connector and IPDM E/R harness connector.

4. Check continuity between BCM harness connector and ground.

CONSULT Display

DTC Detection Condition

Possible Cause

BCM
[B2618]

An immediate operation of ignition relay-1 is request-
ed by BCM, but there is no response for more than 1
second

• Harness or connectors
• BCM
• IPDM E/R

(+)

(–)

Condition

Voltage (V)

(Approx.)

BCM

Connector

Terminal

M98

98

Ground

Ignition switch

OFF or ACC

Battery voltage

ON

0

BCM

IPDM E/R

Continuity

Connector

Terminal

Connector

Terminal

M98

98

E47

90

Yes
