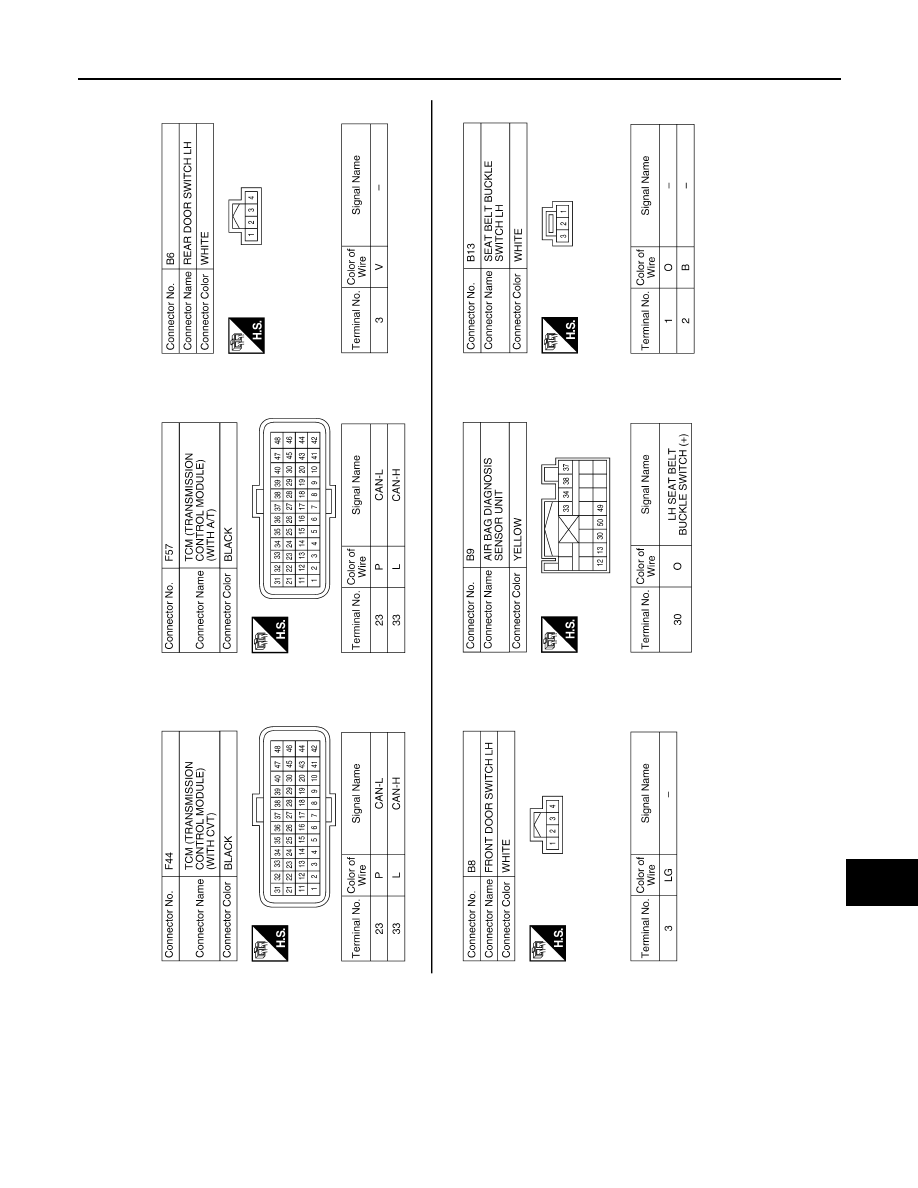

MWI

METER SYSTEM

MWI-35

< WIRING DIAGRAM >

[TYPE A]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA3810GB

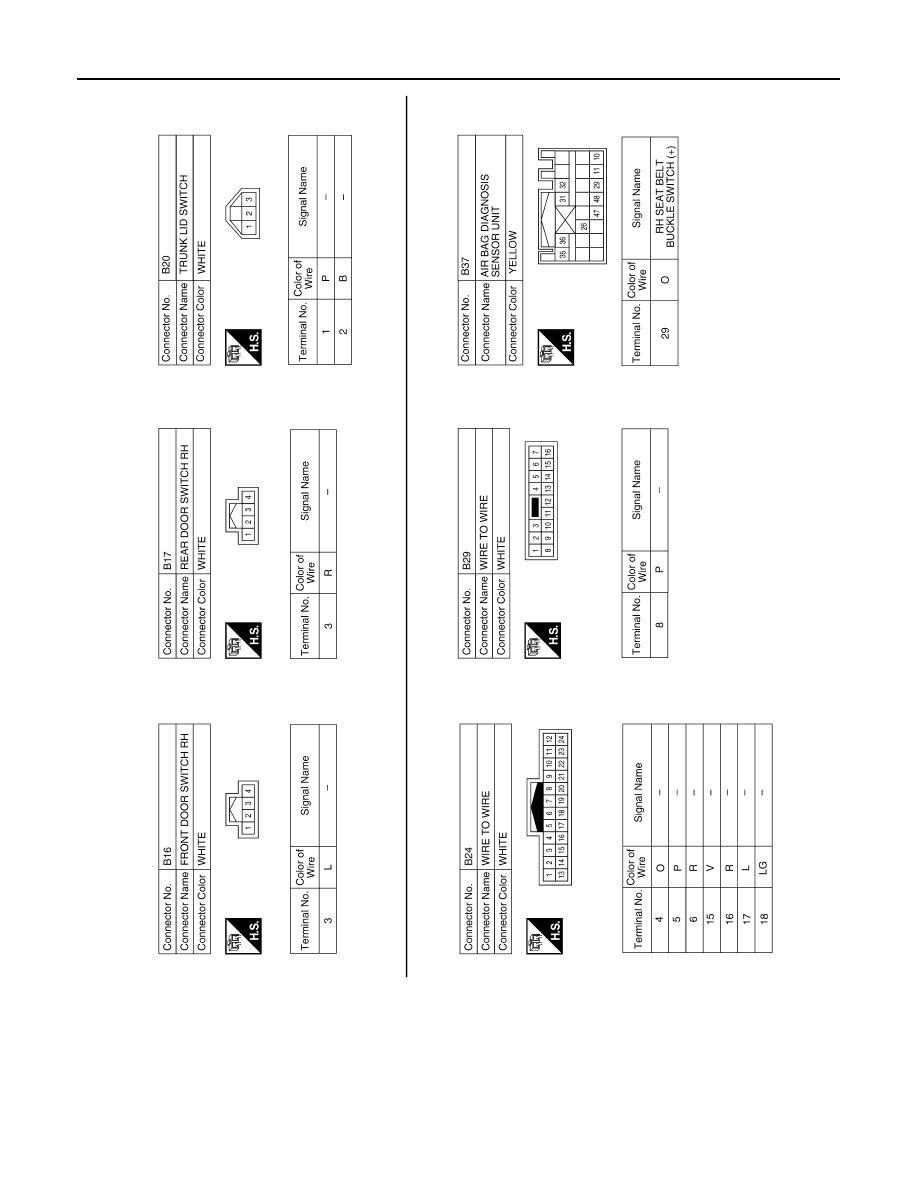

MWI-36

< WIRING DIAGRAM >

[TYPE A]

METER SYSTEM

ABNIA3811GB

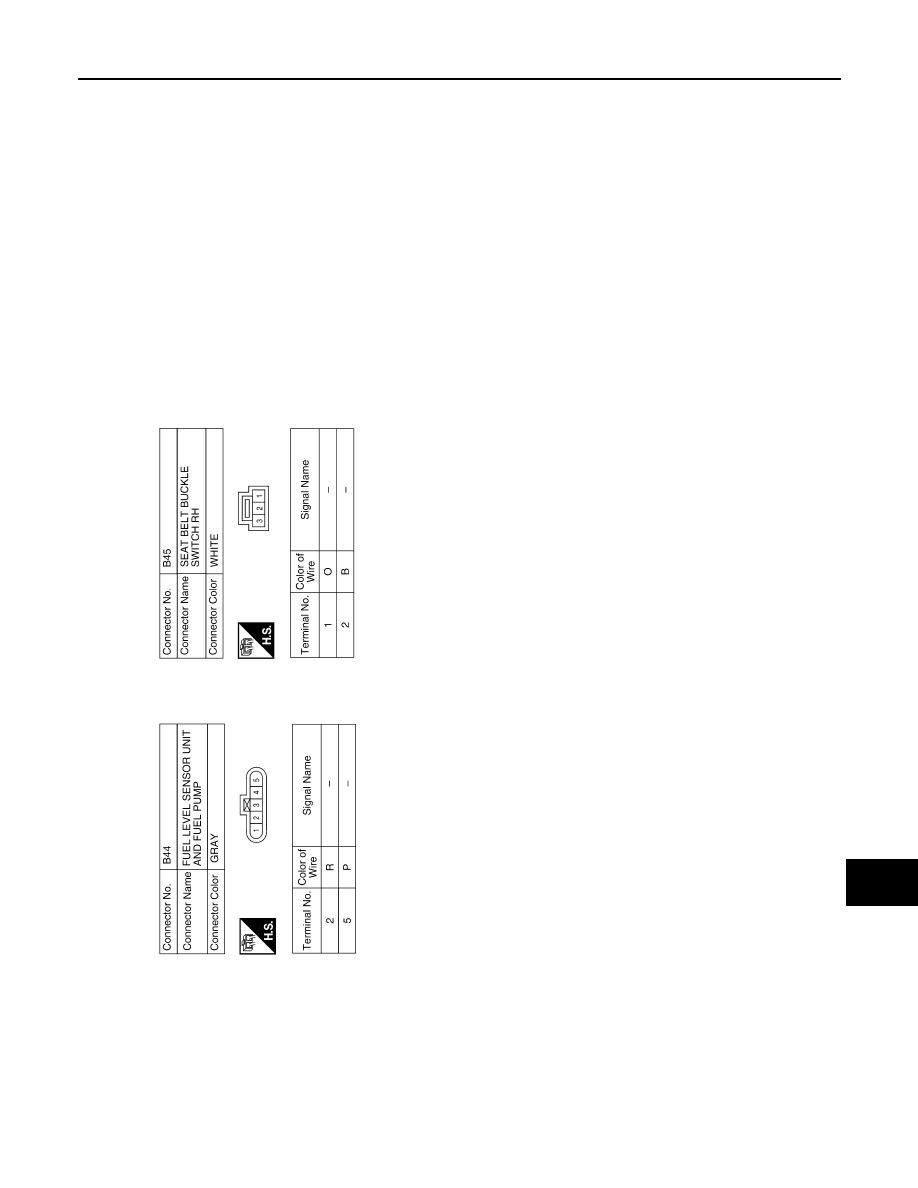

MWI

METER SYSTEM

MWI-37

< WIRING DIAGRAM >

[TYPE A]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA3816GB

MWI-38

< BASIC INSPECTION >

[TYPE A]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009266585

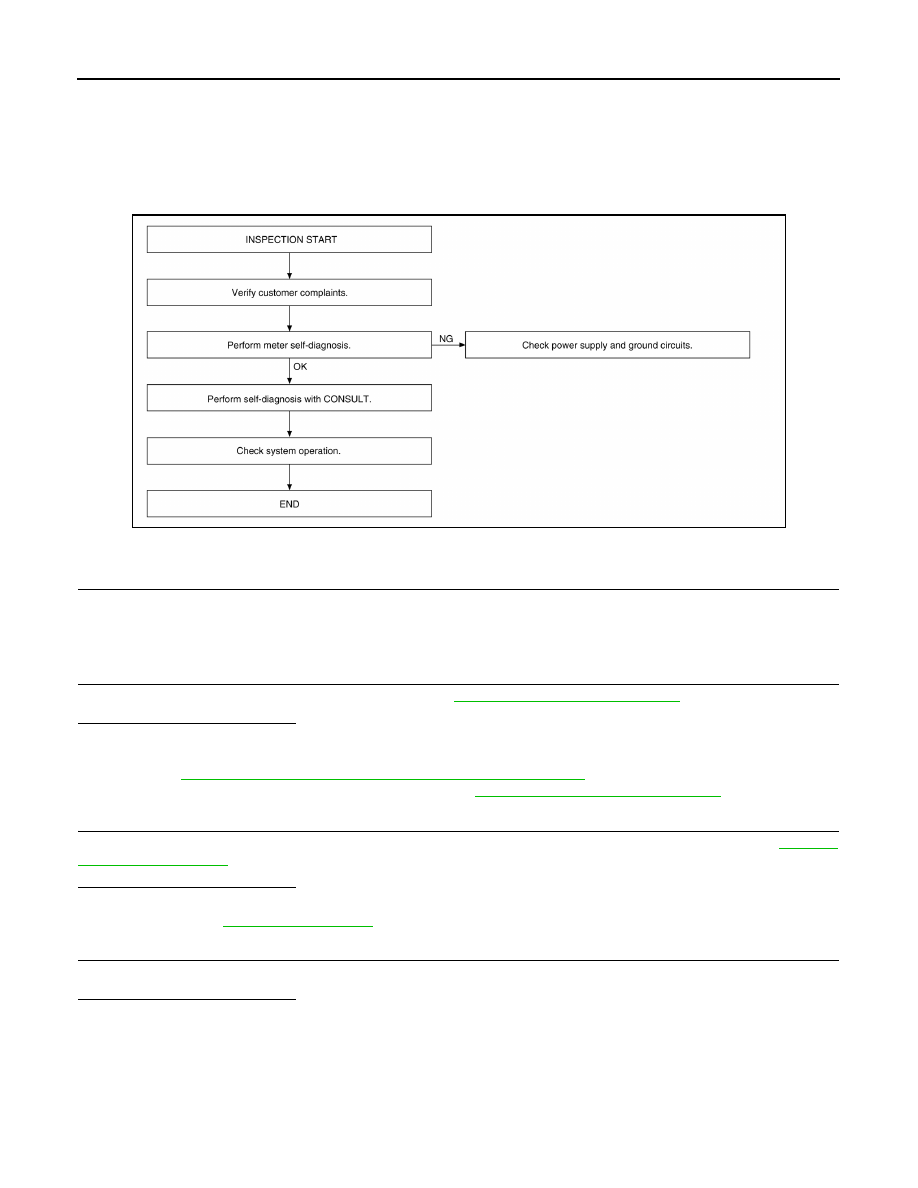

OVERALL SEQUENCE

DETAILED FLOW

1.

CONFIRM SYMPTOM

Confirm symptom or customer complaint.

>> GO TO 2

2.

SELF-DIAGNOSIS OF COMBINATION METER

Perform self-diagnosis of combination meter. Refer to

MWI-18, "Diagnosis Description"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> If self-diagnosis will not start, check power supply and ground circuit of combination meter. Refer

to

MWI-44, "COMBINATION METER : Diagnosis Procedure"

. If power supply and ground circuits

are OK, replace combination meter. Refer to

MWI-53, "Removal and Installation"

.

3.

CHECK COMBINATION METER WITH CONSULT

Select “METER/M&A” on CONSULT and perform self-diagnosis of combination meter. Refer to

MWI-19,

"CONSULT Function"

.

Is the inspection result normal?

YES

>> Check symptom. GO TO 4.

NO

>> Refer to

MWI-25, "DTC Index"

.

4.

CHECK SYSTEM OPERATION

Check the combination meter to verify that the repair has been completed successfully.
Is the inspection result normal?

YES

>> Inspection End.

NO

>> GO TO 1

AWNIA2458GB
