MA-38

< PERIODIC MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

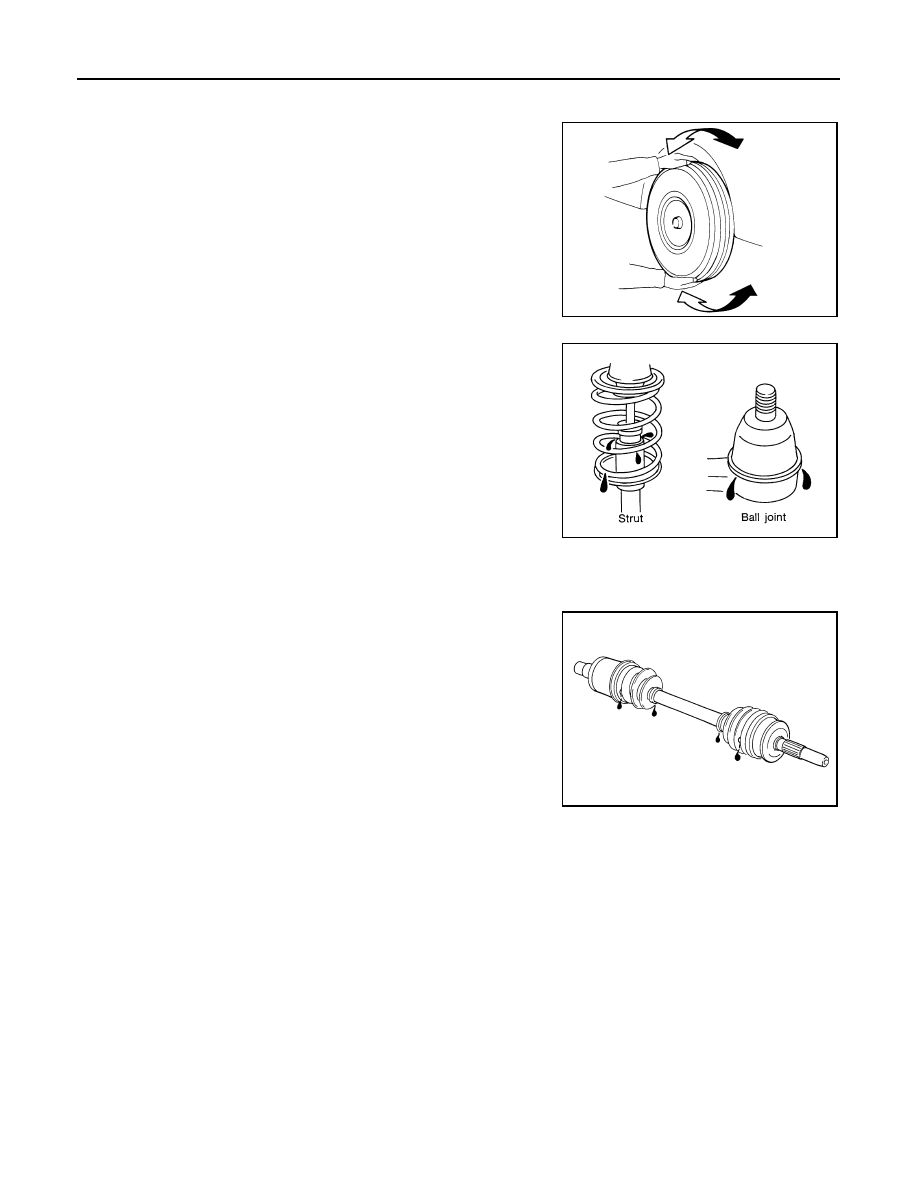

AXLE AND SUSPENSION PARTS : Inspection

INFOID:0000000009269082

Check front and rear axle and suspension parts for excessive play,

cracks, wear or other damage.

• Shake each wheel to check for excessive play.

• Check wheel bearings for smooth operation.

• Check axle and suspension nuts and bolts for looseness.

• Check strut (shock absorber) for oil leakage or other damage.

• Check suspension ball joint for grease leakage and ball joint dust

cover for cracks or other damage.

DRIVE SHAFT
DRIVE SHAFT : Inspection

INFOID:0000000009269083

Check boot and drive shaft for cracks, wear, damage and grease

leakage.

LOCKS, HINGES AND HOOD LATCH

SMA525A

SFA392B

SFA108A

CHASSIS AND BODY MAINTENANCE

MA-39

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

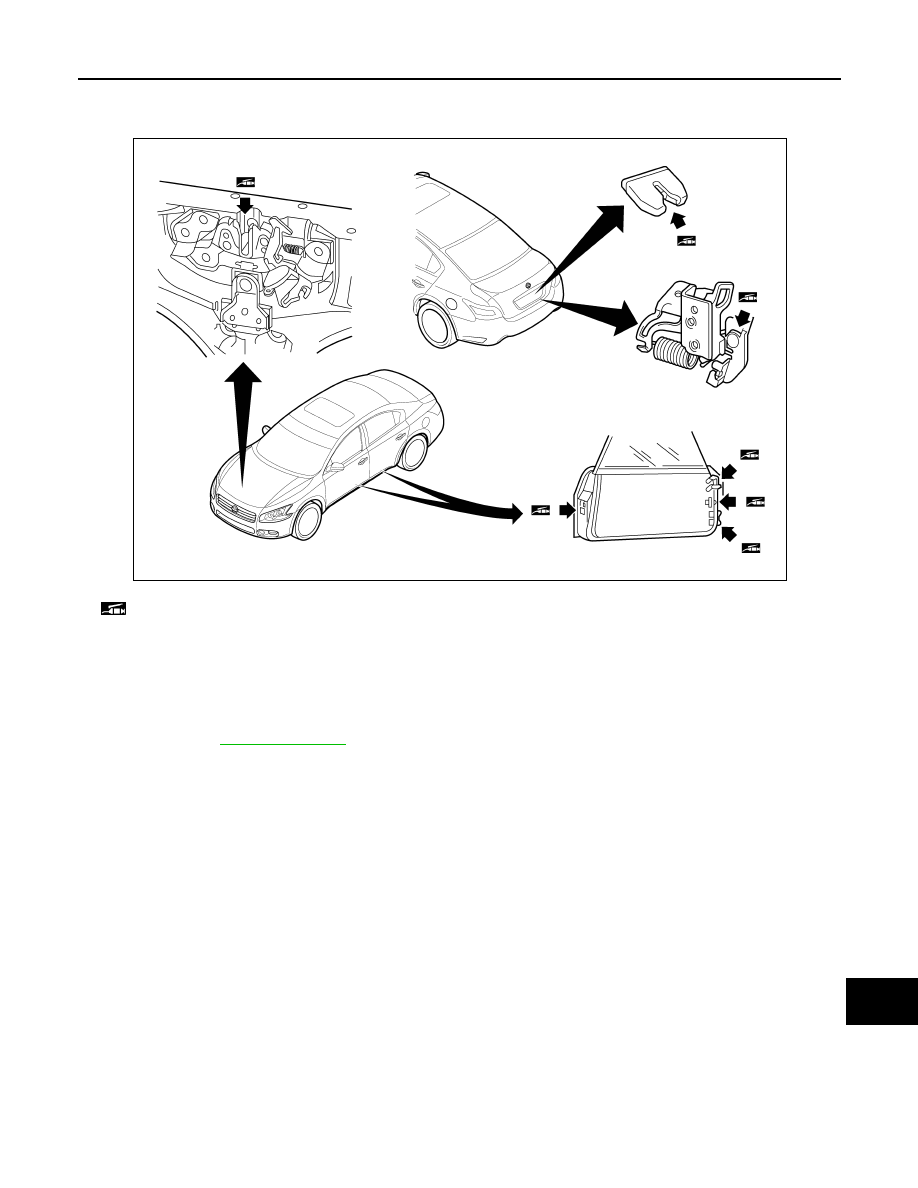

LOCKS, HINGES AND HOOD LATCH : Lubricating

INFOID:0000000009269084

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS
SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS : Inspection

INFOID:0000000009269085

Check the seat belt buckles, webbing, retractors, anchors and adjusters. Replace any seat belt assembly as

necessary. Refer to

SB-3, "Inspection"

.

• Check the seat belt anchors for loose bolts, damage, or excessive wear.

• Check the seat belt webbing for any damage, cuts, fraying, or excessive wear.

• Check the retractor for smooth operation.

• Check the function of the buckles by inserting the seat belt tongue and checking for proper engagement of

the buckle and press the button on the buckle to check for proper release of the seat belt tongue.

CAUTION:

• After any collision, inspect all seat belt assemblies, including retractors and other attached compo-

nents, such as the guide rail set. NISSAN recommends replacing all seat belt assemblies in use dur-

ing a collision, unless they are not damaged and are inspected to confirm they are operating

properly after a minor collision.

Also inspect all seat belt assemblies that are not in use during a collision, and replace any compo-

nents if damaged or not operating properly. The seat belt pre-tensioner should be replaced even if

the seat belts are not in use during a frontal collision where the driver and passenger air bags have

been deployed.

• If any component of the seat belt assembly is suspected of being damaged or not operating prop-

erly, do not repair the component. Replace the components as an assembly.

• If the seat belt webbing is cut, frayed, or damaged then replace the seat belt assembly.

• Do not lubricate the seat belt buckle or tongue.

• When replacing any seat belt assembly always use a Genuine NISSAN seat belt assembly.

 Body grease

ALLIA0913GB

MIR-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

MIR

A

B

MIR

N

O

P

CONTENTS

MIRRORS

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution for Work  ..................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tools .......................................

3

WIRING DIAGRAM .......................................

4

DOOR MIRROR ...................................................

4

Wiring Diagram  .........................................................

4

DTC/CIRCUIT DIAGNOSIS  ..........................

7

DOOR MIRROR REMOTE CONTROL
SWITCH (MIRROR SWITCH/CHANGEOVER
SWITCH) ..............................................................

7

Component Inspection  ..............................................

7

SYMPTOM DIAGNOSIS  ...............................

8

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

8

Work Flow .................................................................

8

Generic Squeak and Rattle Troubleshooting ...........

10

Diagnostic Worksheet ..............................................

12

REMOVAL AND INSTALLATION ...............

14

INSIDE MIRROR  ...............................................

14

Removal and Installation  .........................................

14

DOOR MIRROR  ................................................

15

Exploded View .........................................................

15

DOOR MIRROR ASSEMBLY  ....................................

15

DOOR MIRROR ASSEMBLY : Removal and In-
stallation ..................................................................

15

FRONT DOOR CORNER FINISHER  .........................

17

FRONT DOOR CORNER FINISHER : Removal
and Installation  ........................................................

17

DOOR MIRROR GLASS  ...................................

18

Removal and Installation  .........................................

18

DOOR MIRROR REAR FINISHER  ...................

19

Removal and Installation  .........................................

19

DOOR MIRROR REMOTE CONTROL
SWITCH .............................................................

20

Removal and Installation  .........................................

20

MIR-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009269086

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least 3 minutes before performing any service.

Precaution for Work

INFOID:0000000009269087

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.
