INSTRUMENT LOWER PANEL LH

INSTRUMENT LOWER PANEL LH

Removal and Installation

INFOID:0000000009266854

REMOVAL

1. Remove data link connector from instrument lower panel LH.

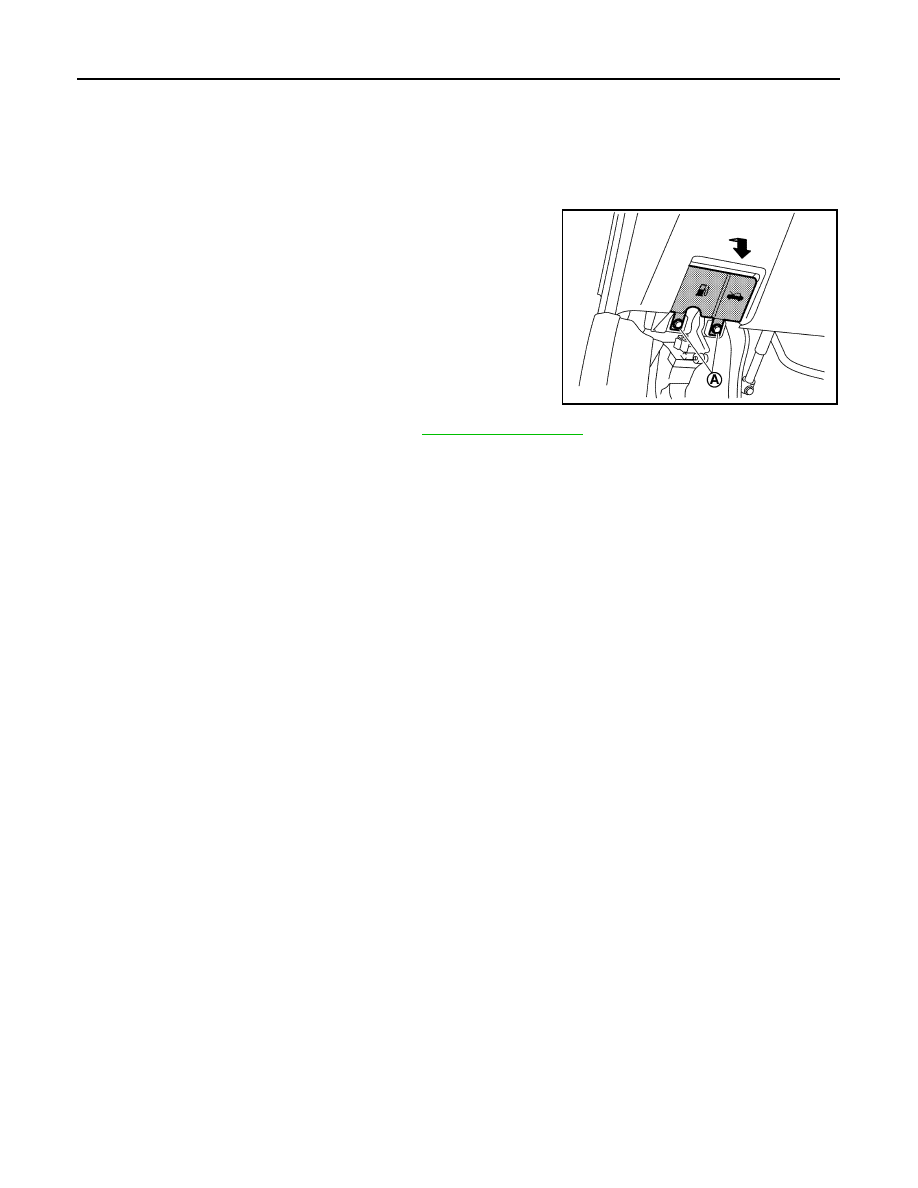

2. Remove hood and fuel filler handle assembly bolts (A) and posi-

tion hood and fuel filler handle assembly aside.

3. Remove instrument lower panel LH. Refer to

IP-14, "Exploded View"

.

a. Release instrument lower panel LH by using a suitable tool to release the pawls and metal clips and pull-

ing rearward.

CAUTION:

Disengage pawls and metal clips slowly so that they are not damaged.

b. Disconnect harness connectors from instrument lower panel LH and remove.

INSTALLATION

Installation is in the reverse order of removal.

JMKIA7998ZZ

CLUSTER LID C

IP-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CLUSTER LID C

Removal and Installation

INFOID:0000000009266855

REMOVAL

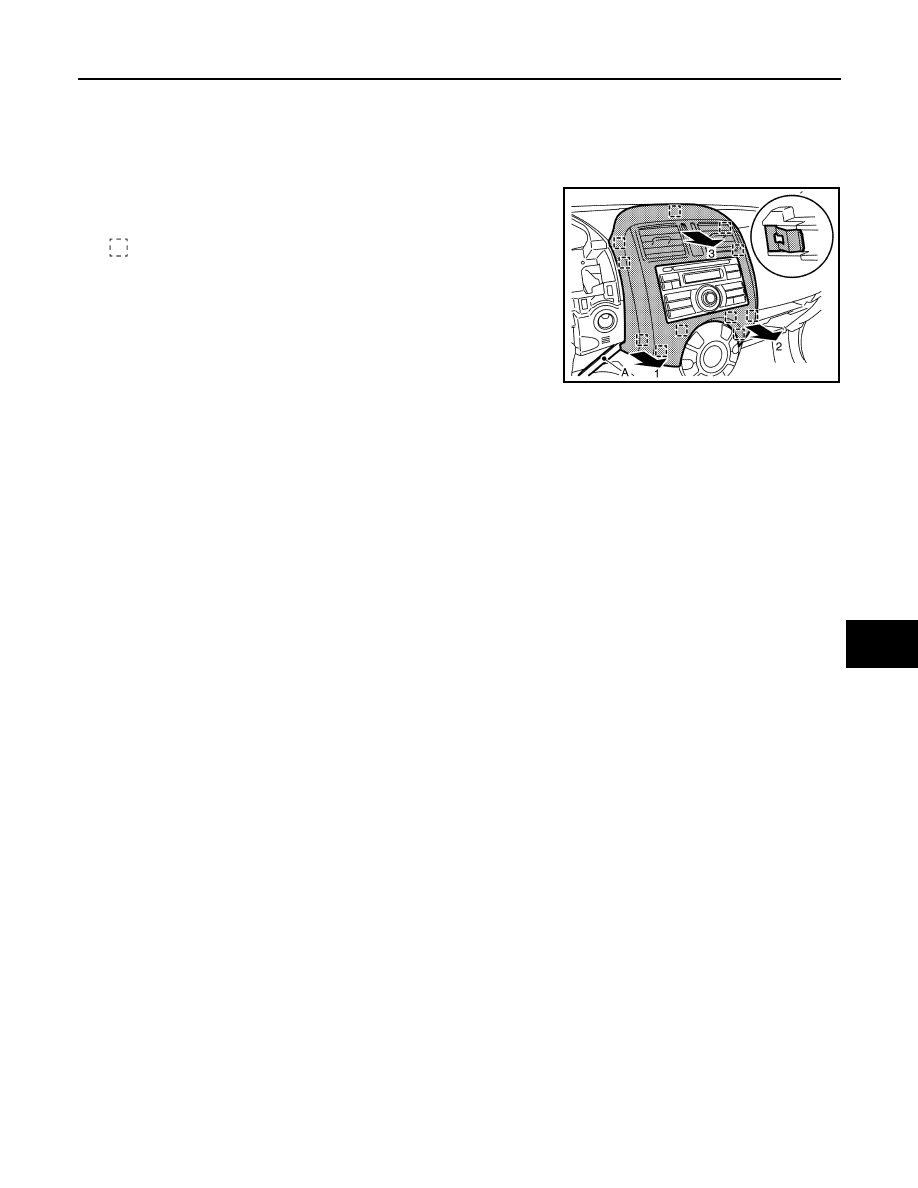

1. Release the metal clips using a suitable tool (A), beginning in

the lower left corner of cluster lid C and working in a counter-

clockwise direction.

: Metal clip

2. Reposition cluster lid C to access harness connectors.
3. Disconnect harness connectors from cluster lid C and remove.

INSTALLATION

Installation is in the reverse order of removal.

JMJIA6055ZZ

IP-22

< REMOVAL AND INSTALLATION >

GLOVE BOX ASSEMBLY AND HOUSING

GLOVE BOX ASSEMBLY AND HOUSING

Removal and Installation

INFOID:0000000009266856

REMOVAL

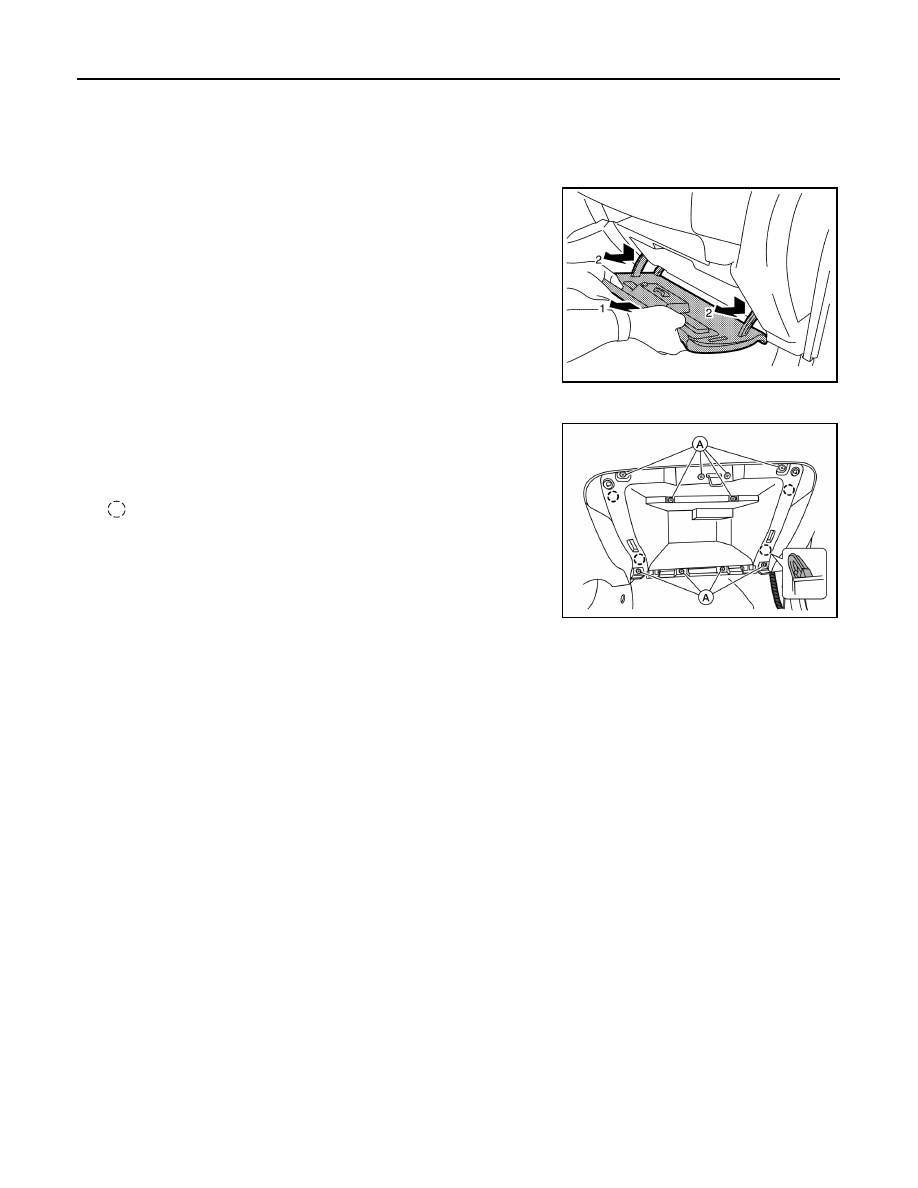

1. Remove glove box lid.
a. Open glove box lid.
b. Pull glove box lid rearward and glove box lid hinges down and

rearward to disengage, then remove the glove box lid.

c.

Disconnect glove box damper (if equipped).

2. Remove glove box assembly.
a. Remove glove box assembly screws (A).
b. Pull glove box assembly rearward to disengage pawls and

remove glove box assembly.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

JMJIA6060ZZ

AWJIA0714ZZ

CENTER CONSOLE ASSEMBLY

IP-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CENTER CONSOLE ASSEMBLY

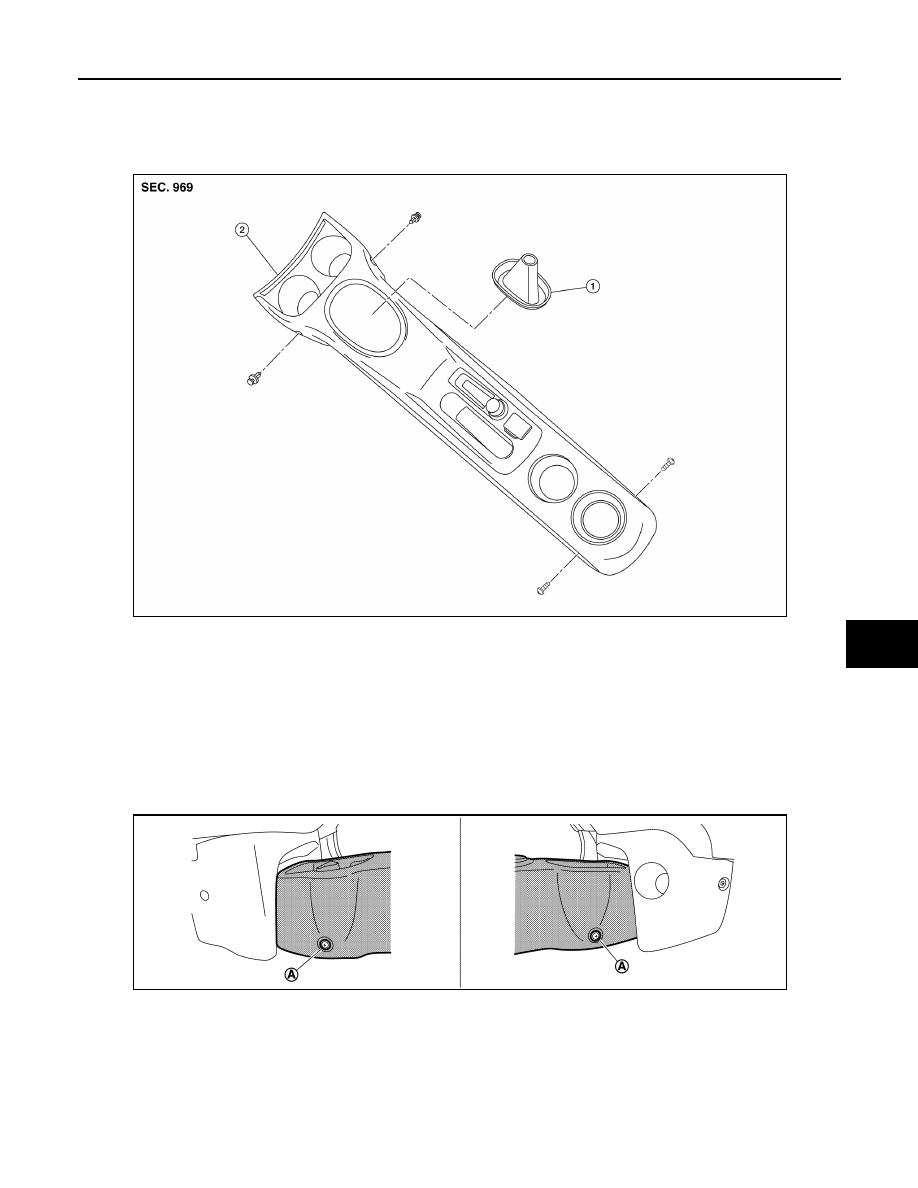

Exploded View

INFOID:0000000009266857

Removal and Installation

INFOID:0000000009266858

REMOVAL

1. Move shift selector to “N” position (CVT models or A/T models).
2. Remove shift selector handle and console boot (M/T models).
3. Raise parking brake lever.
4. Remove center console assembly clips (A).

5. Remove the center console assembly rear screws.
6. Slide front seat (RH) all the way rearward and place in fully reclined position.
7. Slide front seat (LH) all the way forward and tilt seatback to the full forward position.

1.

M/T console boot (M/T models)

2.

Center console assembly

AWJIA0694ZZ

JMJIA6093ZZ
