FAX-12

< REMOVAL AND INSTALLATION >

FRONT WHEEL HUB AND KNUCKLE

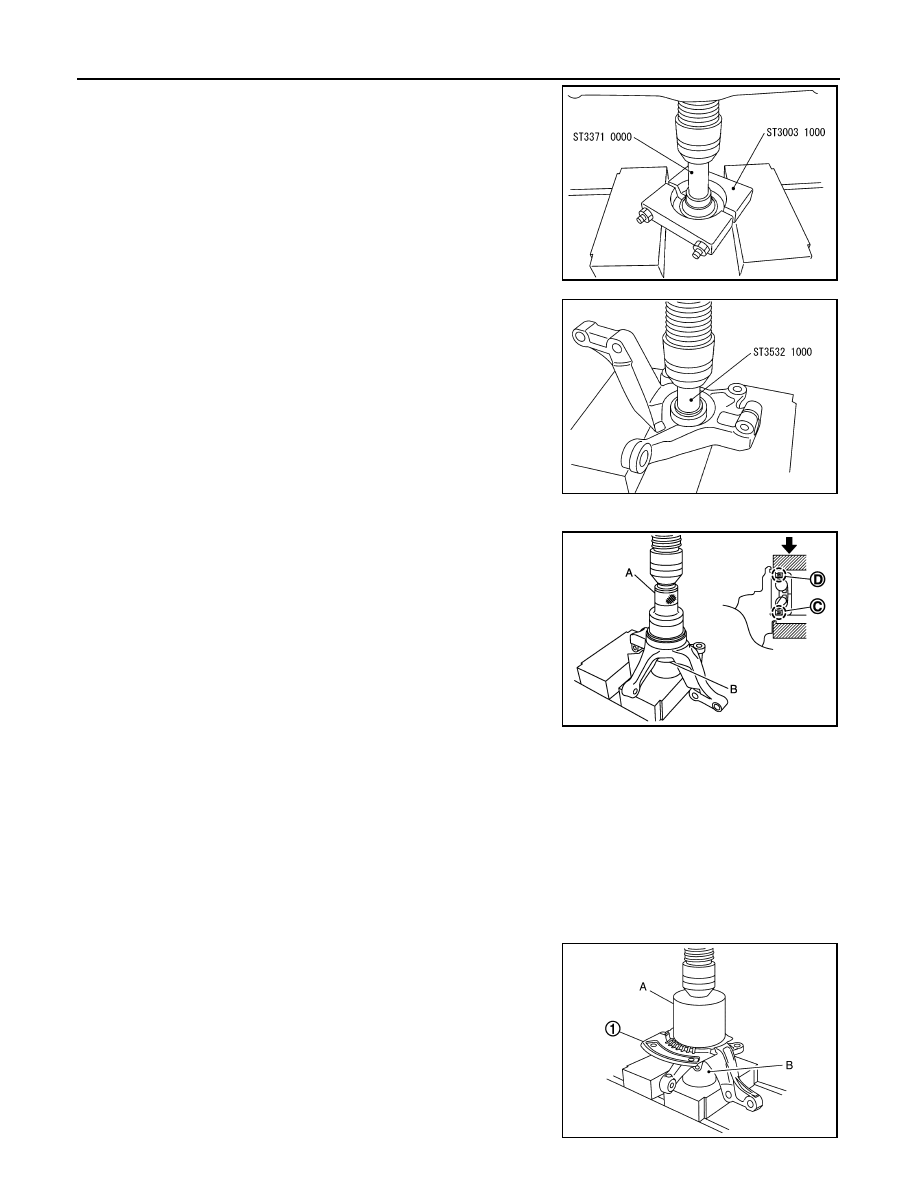

3. Remove wheel bearing inner race (outer side) from wheel hub,

using Tools.

4. Remove snap ring from steering knuckle, using suitable tool.

CAUTION:

Do not damage steering knuckle.

5. Remove wheel bearing using Tool from steering knuckle.

ASSEMBLY

1. Install wheel bearing to steering knuckle, using the Tool (A) and

a suitable tool (B).

CAUTION:

• Do not reuse wheel bearing.

• Do not apply a cleaning agent or anticorrosive to the

mounting surface of the wheel bearing of steering

knuckle.

• Install wheel bearing with the wheel sensor rotor rubber

part (C) faced to the steering knuckle inner side.

• The wheel sensor rotor of the wheel bearing must be kept

free of foreign matter.

• The press-fit load must be applied to the wheel bearing outer race and the steering knuckle.

• Do not apply press-fit load to the wheel bearing inner race, the seal (C) on the rubber surface

side (wheel sensor rotor side), and the seal (D) on the metallic surface side. If a press-fit load is

applied, the wheel bearing must be replaced with a new one.

• Wheel bearing press-fit load must be 49 kN (5,000 kg-f, 11,015 lb-f).

2. Install snap ring to steering knuckle.

CAUTION:

• Do not damage the wheel bearing seal.

• The snap ring must be installed evenly into the groove.

3. Press splash guard (1) into the steering knuckle using suitable

tools (A and B).

CAUTION:

Do not reuse splash guard.

Tool number : ST33710000 ( — )
Tool number : ST30031000 ( — )

SDIA0759J

Tool number : ST35321000 ( — )

SDIA0760J

Tool number : ST35271000 ( — )

JPDIF0306ZZ

JSDIA2728ZZ

FRONT WHEEL HUB AND KNUCKLE

FAX-13

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

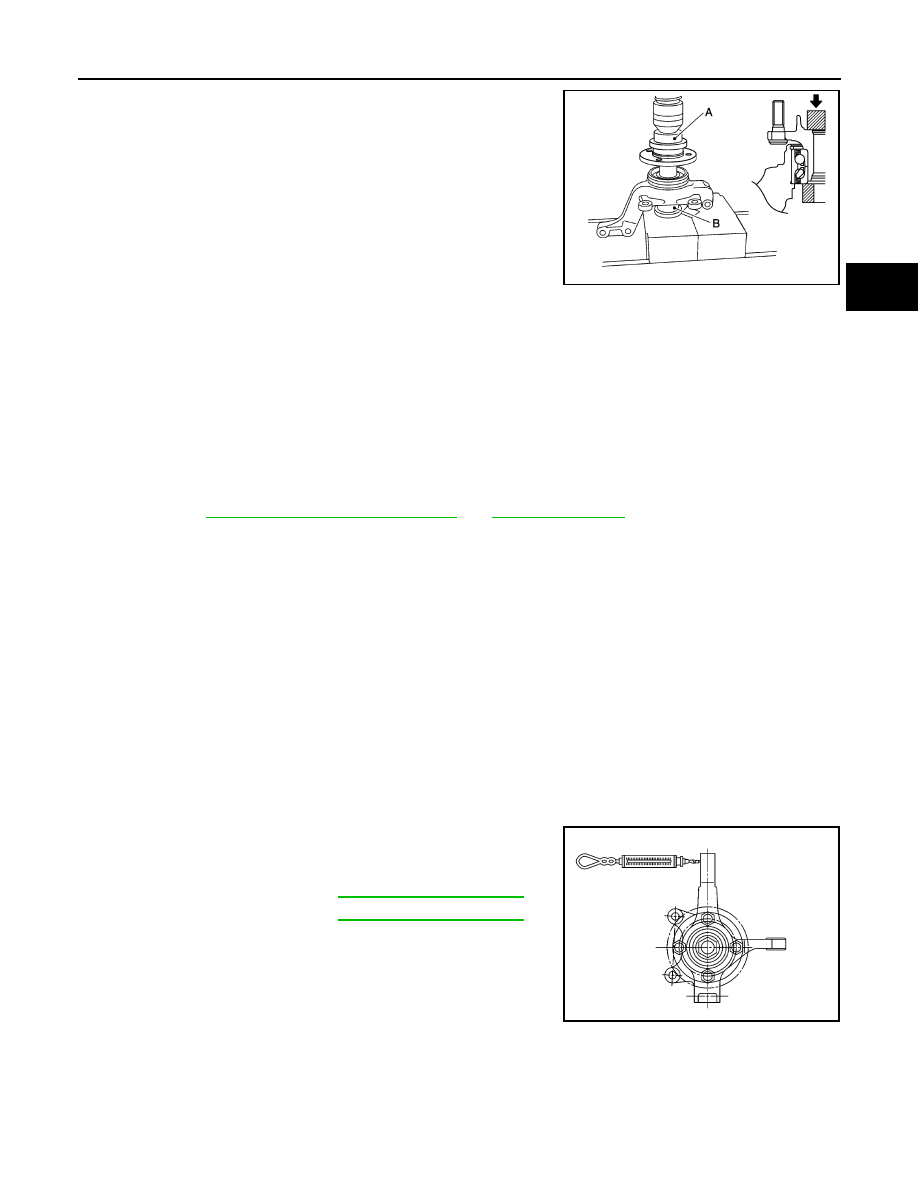

4. Install wheel hub, using Tools.

CAUTION:

• Do not apply lubricating oil to the press-fit surface of the

wheel hub bearing.

• Set wheel hub and wheel bearing horizontally and insert

them vertically.

• The press-fit load must be applied to the wheel hub and

the wheel bearing inner race.

• Do not apply press-fit load to the steering knuckle and the wheel bearing, the seal. If a press-fit

load is applied, the wheel bearing must be replaced with a new one.

• Apply a press-fit load of 49 kN (5,000 kg-f, 11,015 lb-f) and maintain the loaded state for 30 sec-

onds.

• If the inserted wheel hub is removed again, the wheel bearing must be replaced with a new one.

Inspection

INFOID:0000000009268299

INSPECTION AFTER REMOVAL

Check the following items, and replace the part if necessary.

• Check components for deformation, cracks, and other damage.

• Check boots of transverse link and steering outer socket ball joint for breakage, axial end play, and swing

torque. Refer to

FSU-6, "Inspection and Adjustment"

 and

ST-15, "Inspection"

.

INSPECTION AFTER DISASSEMBLY

Wheel Hub

• Check wheel hub for cracks (with magnetic exploration or dye testing). Replace if necessary.

Steering Knuckle

• Check steering knuckle for deformation, cracks, and other damage. Replace if any non-standard conditions

are found.

Snap Rings

• Check snap ring for wear or cracks. Replace if necessary.

INSPECTION AFTER ASSEMBLY

Check wheel bearing rotating torque as per the following instructions.

NOTE:

The adequacy of turning torque can be judged from a measurement value by a spring balancer.
1. For a proper fit of the bearing, turn the wheel hub both clockwise and counterclockwise, respectively, 10

times or more with a press-fit load of 34,300 - 49,000 N (3,500 - 4,998 kg-f, 7,710 - 11,015 lb-f) applied.

2. Set a spring balance on strut mounting hole (upper). Measure

rotating torque at an rpm of 8 - 12 rpm.

• If the turning torque cannot be obtained by the above method,

measure the torque, according to the instructions below.

- Install drive shaft and tighten the hub lock nut to the specified

torque. Rotate the wheel hub to fit properly.

- Set a spring balancer to the hub bolt and measure turning torque

at turning speeds of 8 to 12 rpm.

INSPECTION BEFORE INSTALLATION

Tool number (A) : ST33061000 ( — )
Tool number (B) : ST35321000 ( — )

JPDIF0284ZZ

Rotating torque : Refer to

FAX-24, "Wheel Bearing"

.

Spring balance
measurement

: Refer to

FAX-24, "Wheel Bearing"

.

Rotating torque

: 0.16 N·m (0.016 kg-m, 1.4 in-lb) or less

Spring balance measurement

: 0.32 N (0.03 kg-f, 0.07 lb-f) or less

SDIA0762J

FAX-14

< REMOVAL AND INSTALLATION >

FRONT WHEEL HUB AND KNUCKLE

Check wheel sensor rotor for foreign matter. Clean the rotor, if necessary.

INSPECTION AFTER INSTALLATION

1. Check wheel sensor harness for proper connection. Refer to

BRC-104, "FRONT WHEEL SENSOR :

Exploded View"

.

2. Check the wheel alignment. Refer to

FSU-6, "Inspection and Adjustment"

.

FRONT DRIVE SHAFT

FAX-15

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

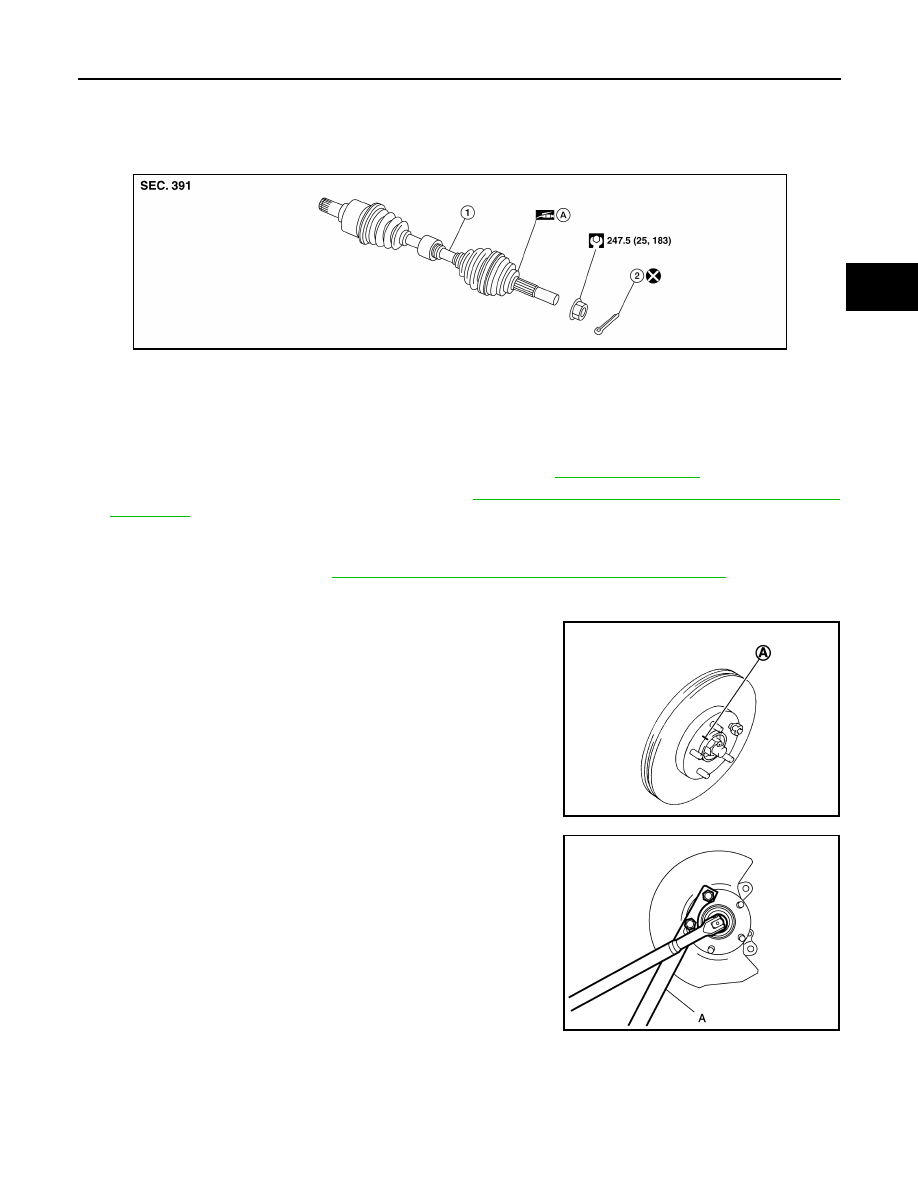

FRONT DRIVE SHAFT

Exploded View

INFOID:0000000009268300

Removal and Installation

INFOID:0000000009268301

REMOVAL

1. Remove the wheel and tire assembly using power tool. Refer to

WT-39, "Adjustment"

.

2. Remove wheel sensor and sensor harness. Refer to

BRC-104, "FRONT WHEEL SENSOR : Removal and

Installation"

.

3. Remove brake lock plate from strut assembly.
4. Remove brake caliper using power tool, leaving brake caliper hydraulic lines connected. Reposition brake

caliper aside with wire. Refer to

BR-36, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

NOTE:

Avoid depressing brake pedal while brake caliper is removed.

5. Put matching marks (A) on disc rotor and wheel hub and bearing

assembly, then remove disc rotor.

CAUTION:

• Put matching marks (A) on the wheel hub and the disc

rotor before removing the disc rotor.

• Do not drop disc rotor.

6. Remove and discard cotter pin, and then loosen wheel hub lock

nut, using Tool (A).

1.

Drive shaft

2.

Cotter pin

A. Apply Molykote M77

AWDIA0951GB

JPDIG0066ZZ

Tool number : KV40104000 ( — )

JSDIA2708ZZ
