REAR COMBINATION LAMP

EXL-109

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REAR COMBINATION LAMP

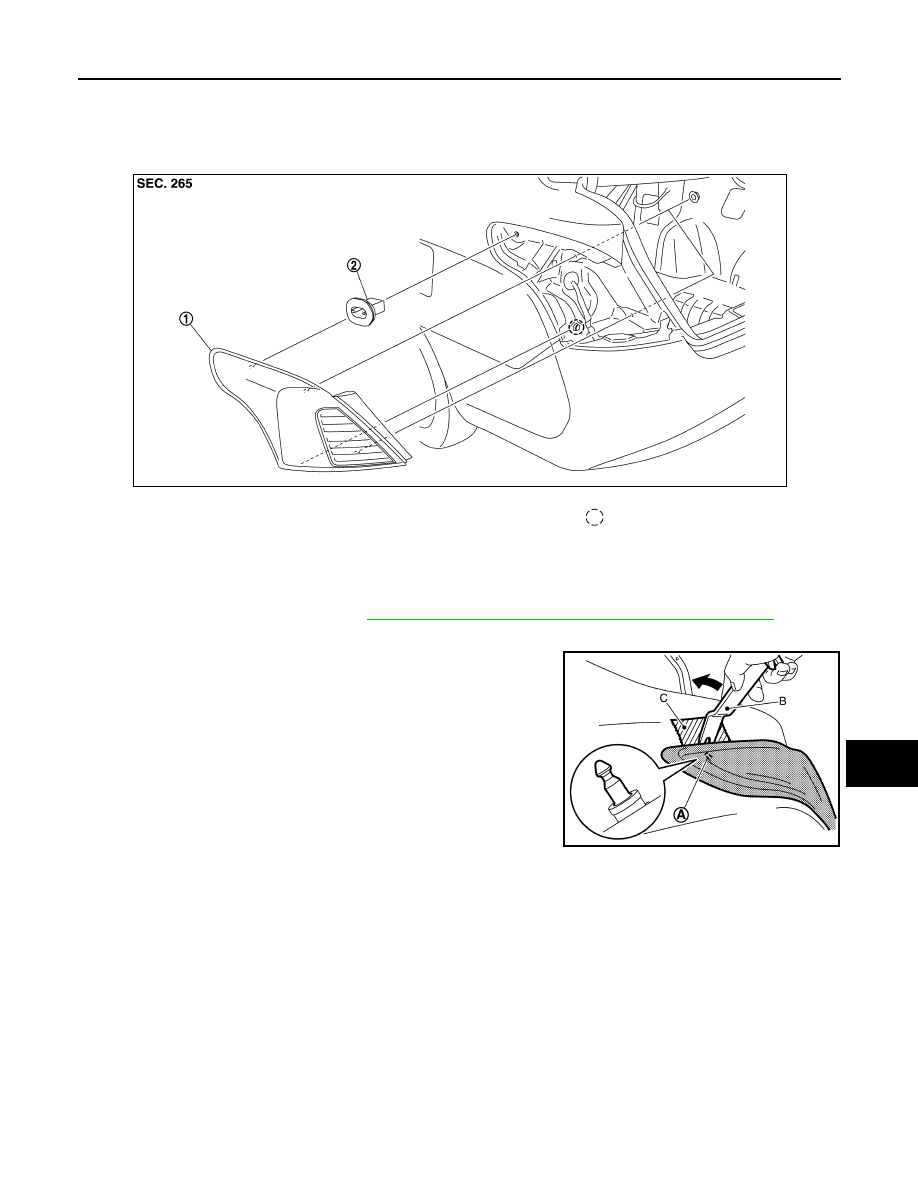

Exploded View

INFOID:0000000009269680

Removal and Installation

INFOID:0000000009269681

REMOVAL

1. Remove trunk rear finisher. Refer to.

INT-32, "TRUNK REAR PLATE : Removal and Installation"

.

2. Remove rear combination lamp nuts.
3. Disengage the locating pin (A) of the rear combination lamp

using a suitable tool (B) at the gap between the rear combination

lamp and rear fender.

CAUTION:

Apply protective tape (C) on body to protect the painted

surface from damage.

4. Disconnect the harness connectors from the rear combination lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000009269682

1.

Rear combination lamp

2.

Grommet

Clip

JMLIA2044ZZ

JMLIA2046ZZ

EXL-110

< REMOVAL AND INSTALLATION >

REAR COMBINATION LAMP

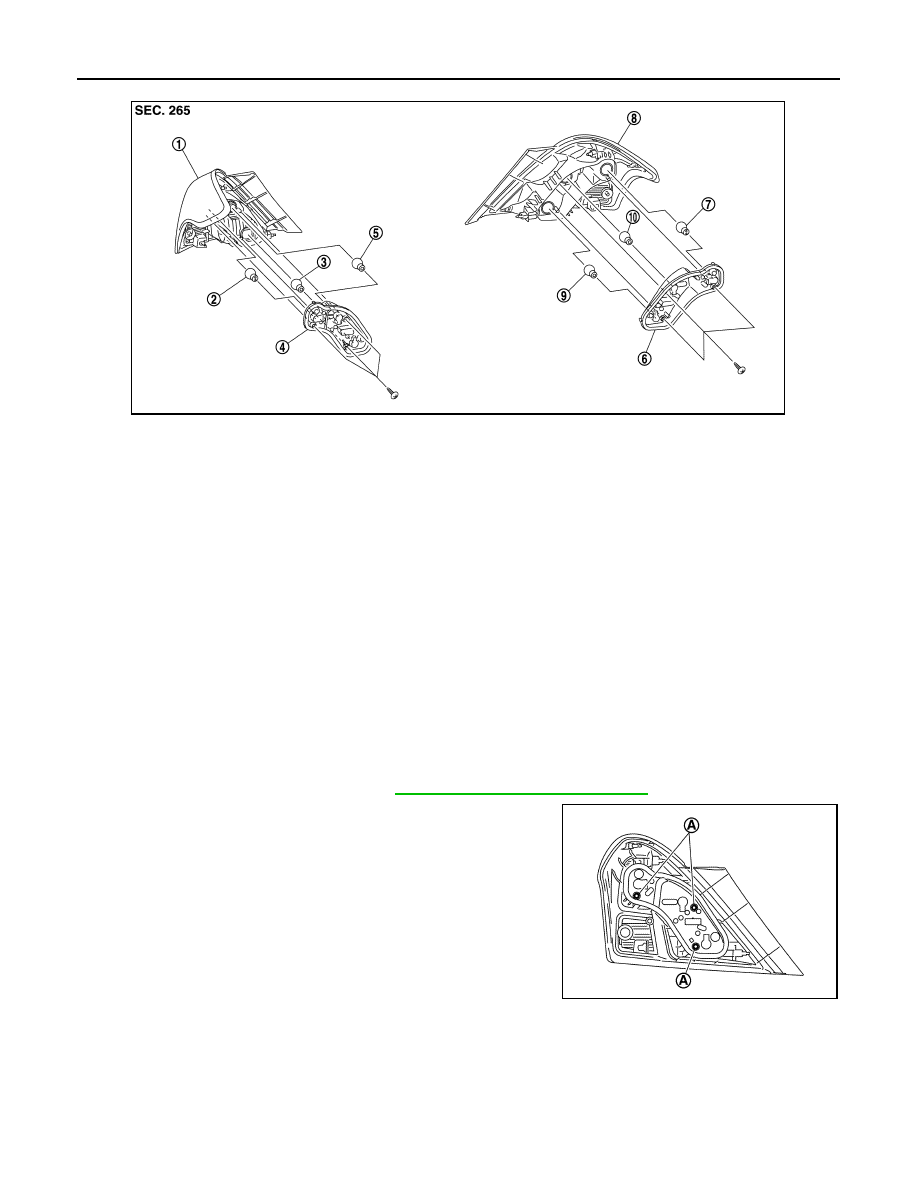

Bulb Replacement

INFOID:0000000009269683

WARNING:

Do not touch bulb with your hand while it is on or right after being turned off. Burning may result.

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse while performing the opera-

tion.

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

STOP/TAIL LAMP BULB

Removal

1. Remove rear combination lamp. Refer to

EXL-109, "Removal and Installation"

.

2. Remove screws (A) and the bulb holder.

3. Rotate stop/tail lamp bulb counterclockwise and remove.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the back cover and the bulb socket securely for watertightness.

REAR TURN SIGNAL LAMP BULB

1.

Rear combination lamp (RH)

2.

Stop/tail lamp bulb (RH)

3.

Back-up lamp bulb (RH)

4.

Bulb holder (RH)

5.

Rear turn signal lamp bulb (RH)

6.

Bulb holder (LH)

7.

Stop/tail lamp bulb (LH)

8.

Rear combination lamp (LH)

9.

Back-up lamp bulb (LH)

10. Rear turn signal lamp bulb (LH)

JMLIA2045ZZ

JMLIA2047ZZ

REAR COMBINATION LAMP

EXL-111

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

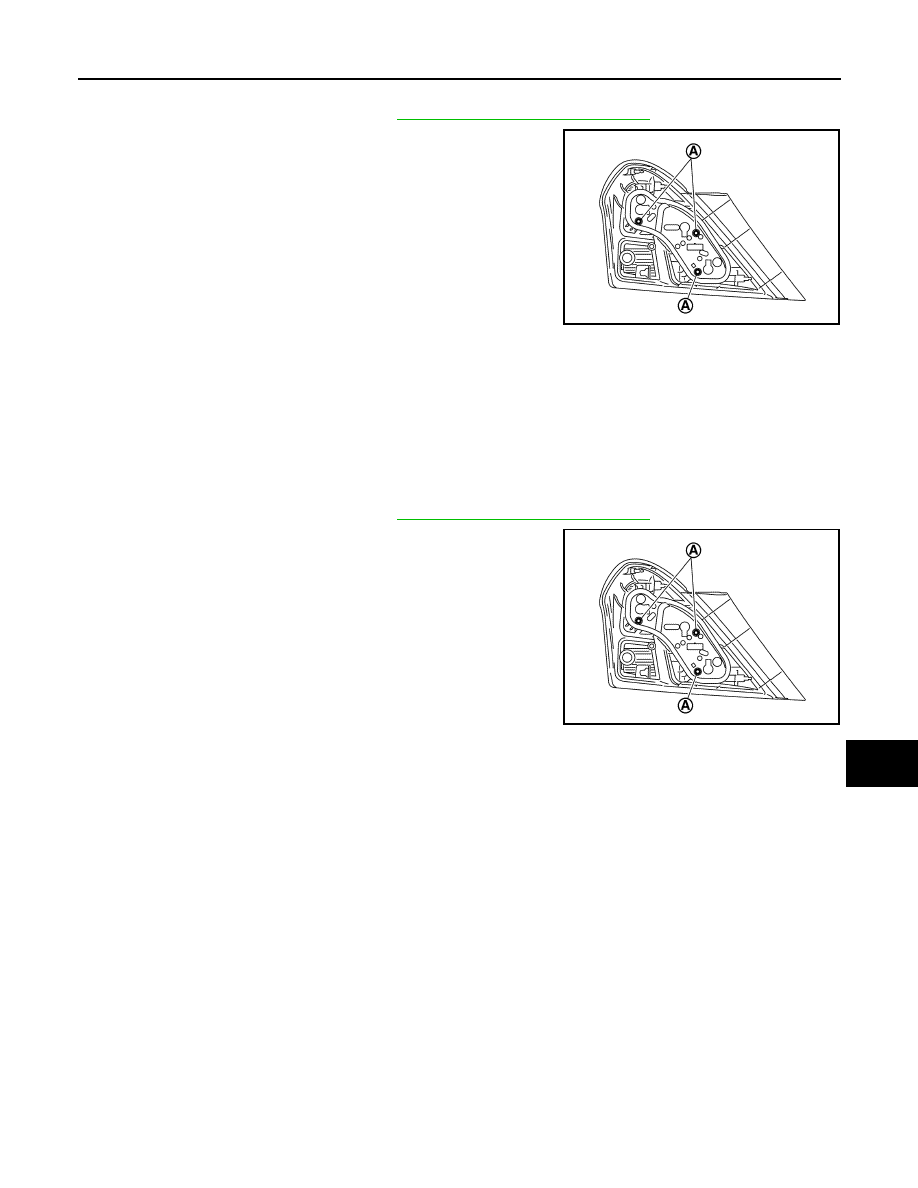

Removal

1. Remove rear combination lamp. Refer to

EXL-109, "Removal and Installation"

.

2. Remove screws (A) and the bulb holder.

3. Rotate rear turn signal lamp bulb counterclockwise and remove

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the cover and the bulb socket securely for watertightness.

BACK-UP LAMP BULB

Removal

1. Remove rear combination lamp. Refer to

EXL-109, "Removal and Installation"

.

2. Remove screws (A) and the bulb holder.

3. Rotate back-up lamp bulb counterclockwise and remove.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the cover and the bulb socket securely for watertightness.

JMLIA2047ZZ

JMLIA2047ZZ

EXL-112

< REMOVAL AND INSTALLATION >

HIGH-MOUNTED STOP LAMP

HIGH-MOUNTED STOP LAMP

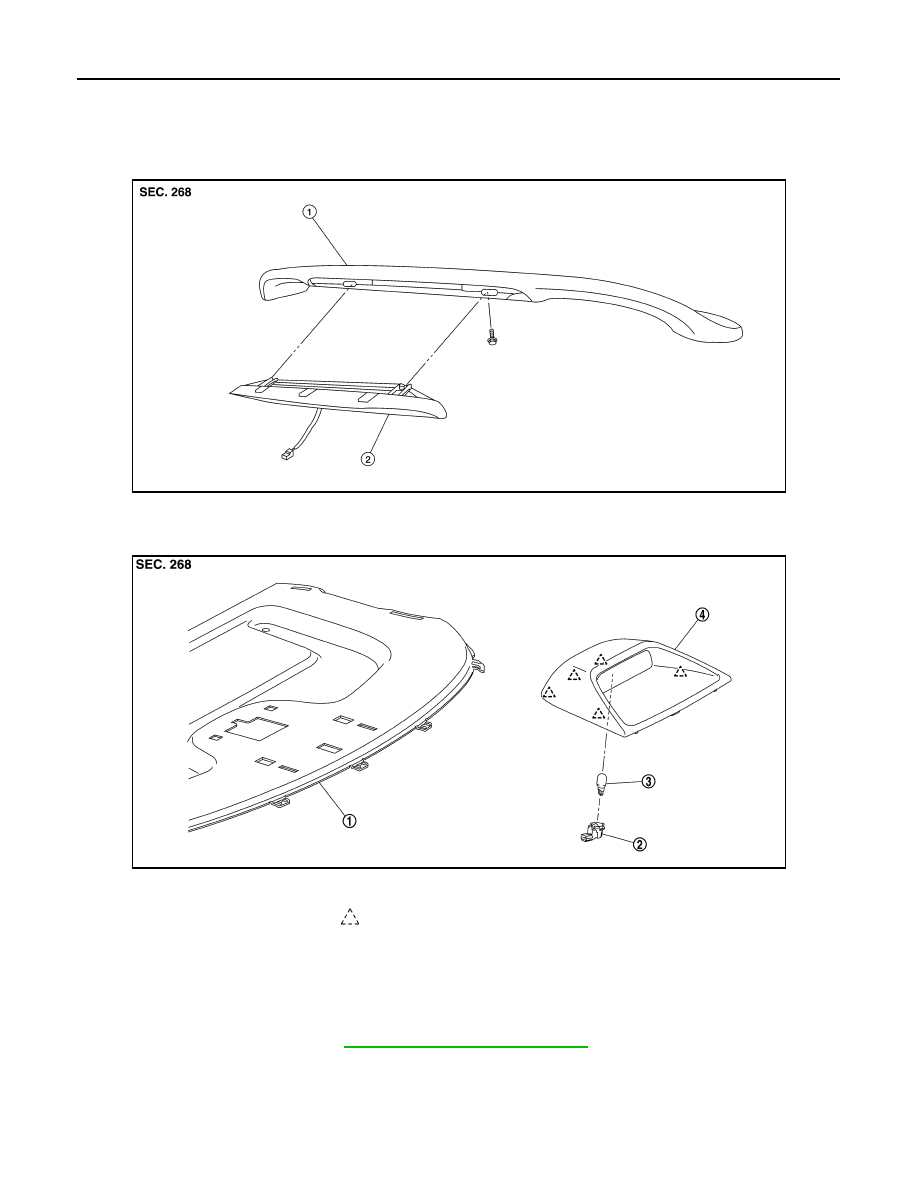

Exploded View

INFOID:0000000009269684

Rear Spoiler

Rear Parcel Shelf

Removal and Installation

INFOID:0000000009269685

HIGH-MOUNTED STOP LAMP - REAR SPOILER

Removal

1. Remove the rear spoiler. Refer to

EXT-33, "Removal and Installation"

.

2. Remove screws and the high-mounted stop lamp.

Installation

Installation is in the reverse order of removal.

HIGH-MOUNTED STOP LAMP - PARCEL SHELF

ALLIA0905ZZ

1.

Rear spoiler

2.

High-mounted stop lamp assembly

JMLIA2054ZZ

1.

Rear parcel shelf finisher

2.

High-mounted stop lamp socket

3.

High-mounted stop lamp bulb

4.

High-mounted stop lamp housing

Pawl
