BACK-UP LAMP

EXL-69

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ABLIA4075GB

EXL-70

< WIRING DIAGRAM >

BACK-UP LAMP

ABLIA4076GB

DIAGNOSIS AND REPAIR WORKFLOW

EXL-71

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009269636

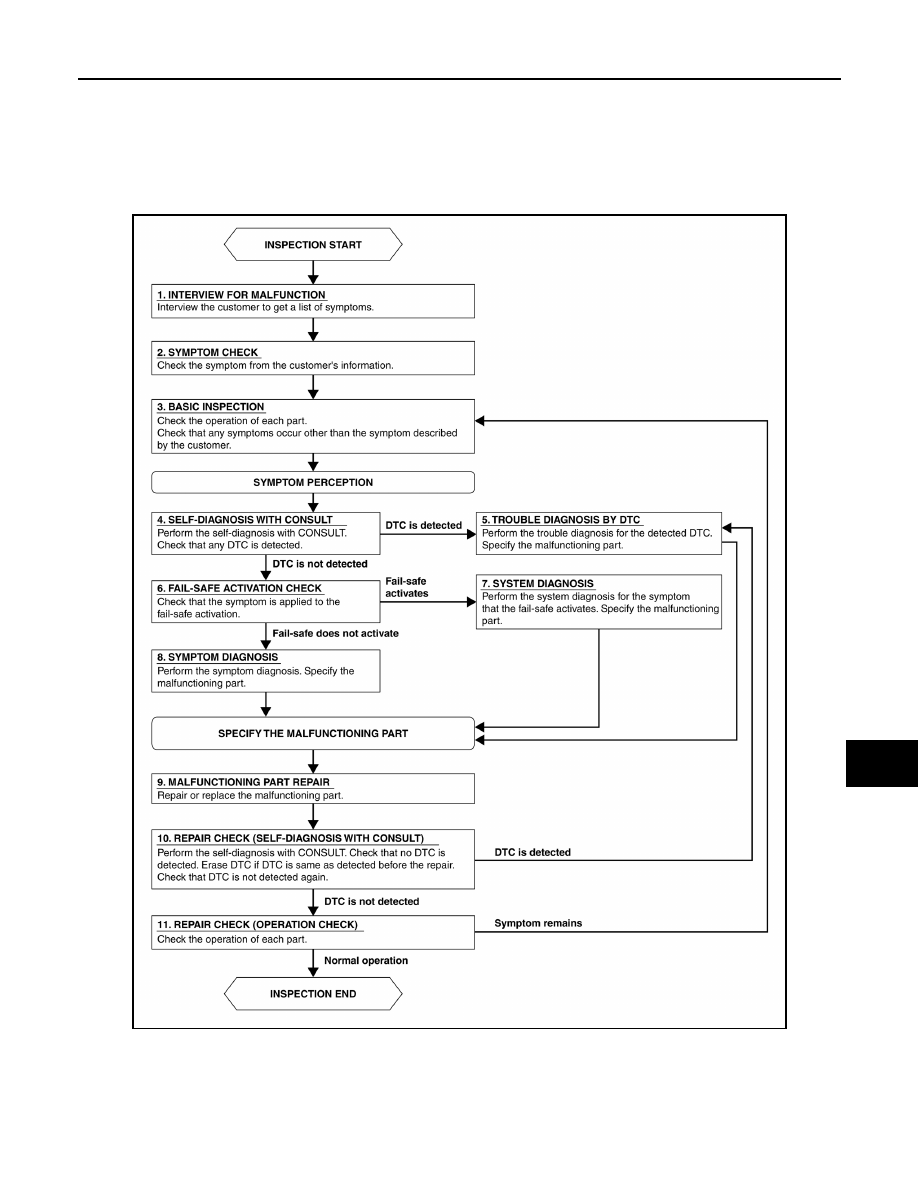

OVERALL SEQUENCE

AWLIA1823GB

EXL-72

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Find out what the customer's concerns are.

>> GO TO 2.

2.

SYMPTOM CHECK

Verify the symptom from the customer's information.

>> GO TO 3.

3.

BASIC INSPECTION

Check the operation of each part. Check any concerns that occur other than those mentioned in the customer

interview.

>> GO TO 4.

4.

SELF-DIAGNOSIS WITH CONSULT

Perform the self-diagnosis with CONSULT. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9.

6.

FAIL-SAFE ACTIVATION CHECK

Determine if the customer's concern is related to fail-safe activation.
Does the fail-safe activate?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system in which the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9.

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9.

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 10.

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT)

Perform the self-diagnosis with CONSULT. Verify that no DTCs are detected. Erase all DTCs detected prior to

the repair. Verify that DTC is not detected again.
Is any DTC detected?
