AIR CLEANER FILTER

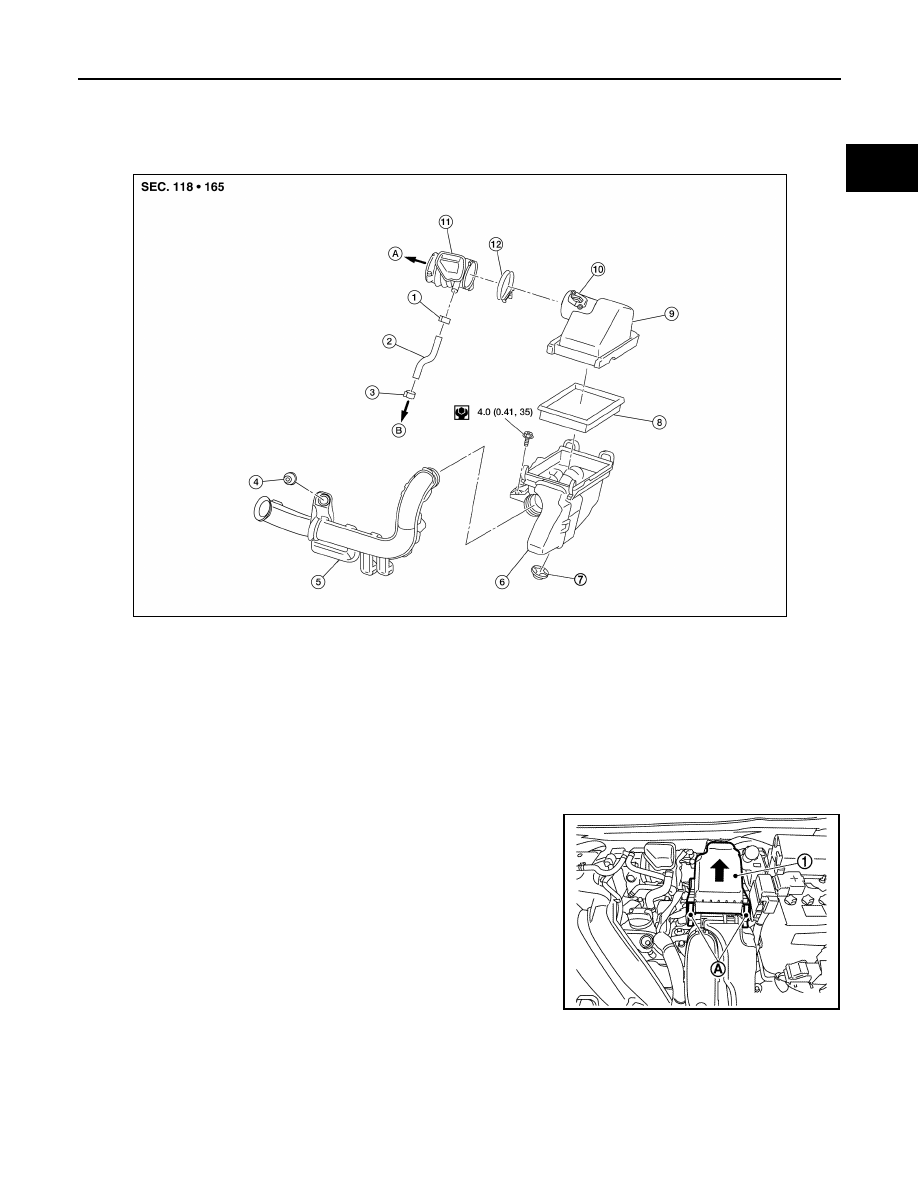

Exploded View

INFOID:0000000009266639

Removal and Installation

INFOID:0000000009266640

REMOVAL

1. Unhook clips (A) and pull the air cleaner cover upward (1).

1.

Clamp

2.

PCV hose

3.

Clamp

4.

Mount rubber

5.

Air duct (inlet)

6.

Air cleaner body

7.

Grommet

8.

Air cleaner filter

9.

Air cleaner cover

10. Mass air flow sensor

11. Air duct

12. Clamp

A.

To electric throttle control actuator

B.

To rocker cover

AWBIA1126ZZ

JSBIA1092ZZ

EM-20

< PERIODIC MAINTENANCE >

[HR16DE]

AIR CLEANER FILTER

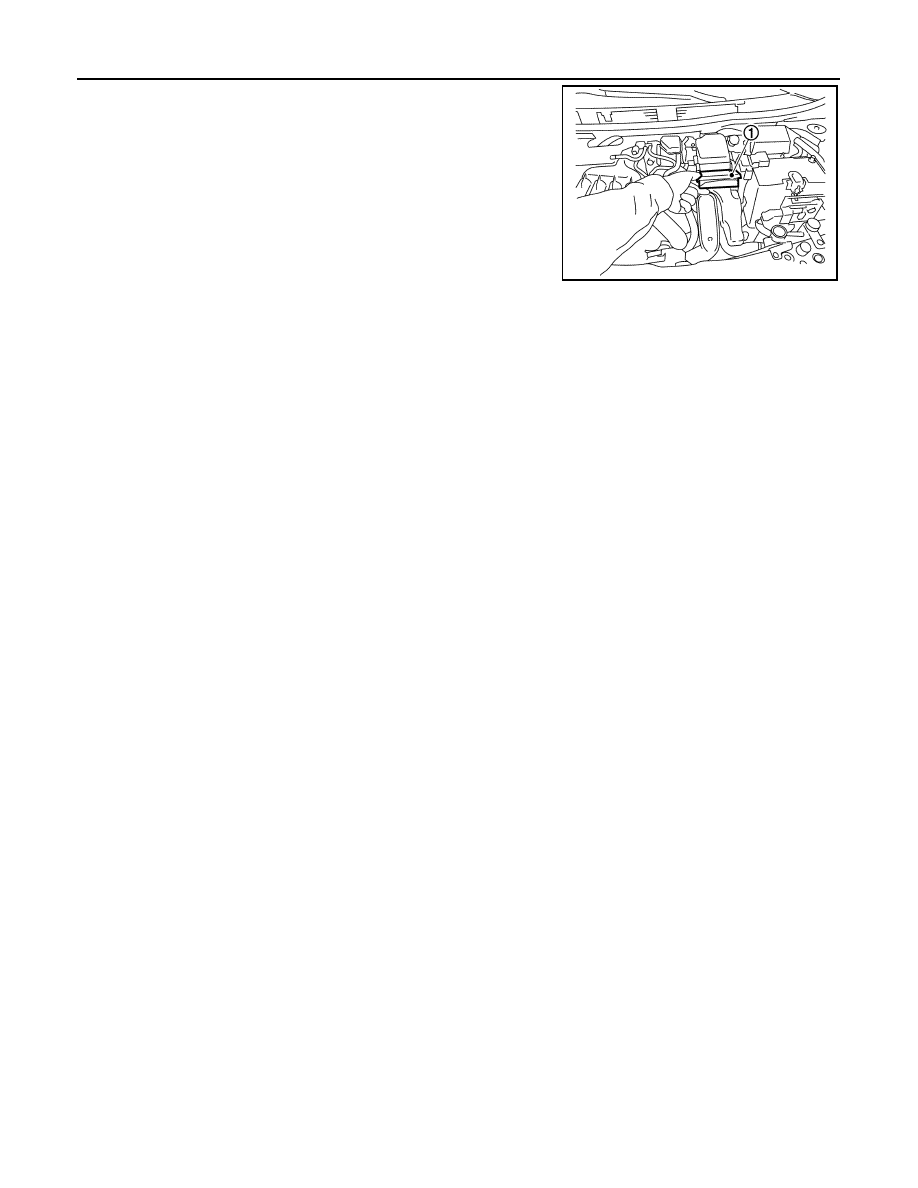

2. Remove the air cleaner filter (1) from the air cleaner body.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Check that the air cleaner filter is securely placed in the air cleaner body.

JSBIA1093ZZ

SPARK PLUG

EM-21

< PERIODIC MAINTENANCE >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

SPARK PLUG

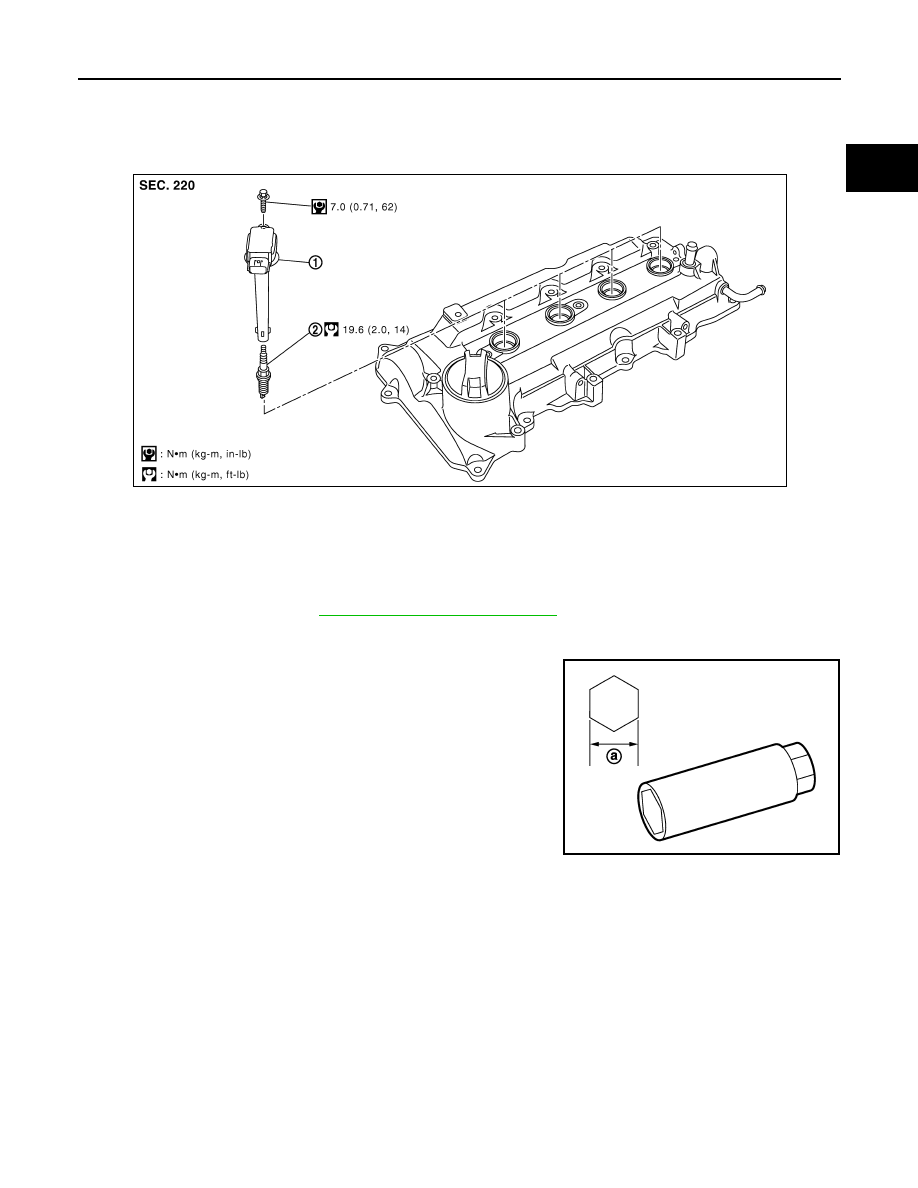

Exploded View

INFOID:0000000009266641

Removal and Installation

INFOID:0000000009266642

REMOVAL

1. Remove ignition coil. Refer to

EM-44, "Removal and Installation"

.

CAUTION:

Do not drop or shock ignition coil.

2. Remove spark plug using a suitable tool.

CAUTION:

Do not drop or shock spark plug.

INSPECTION AFTER REMOVAL

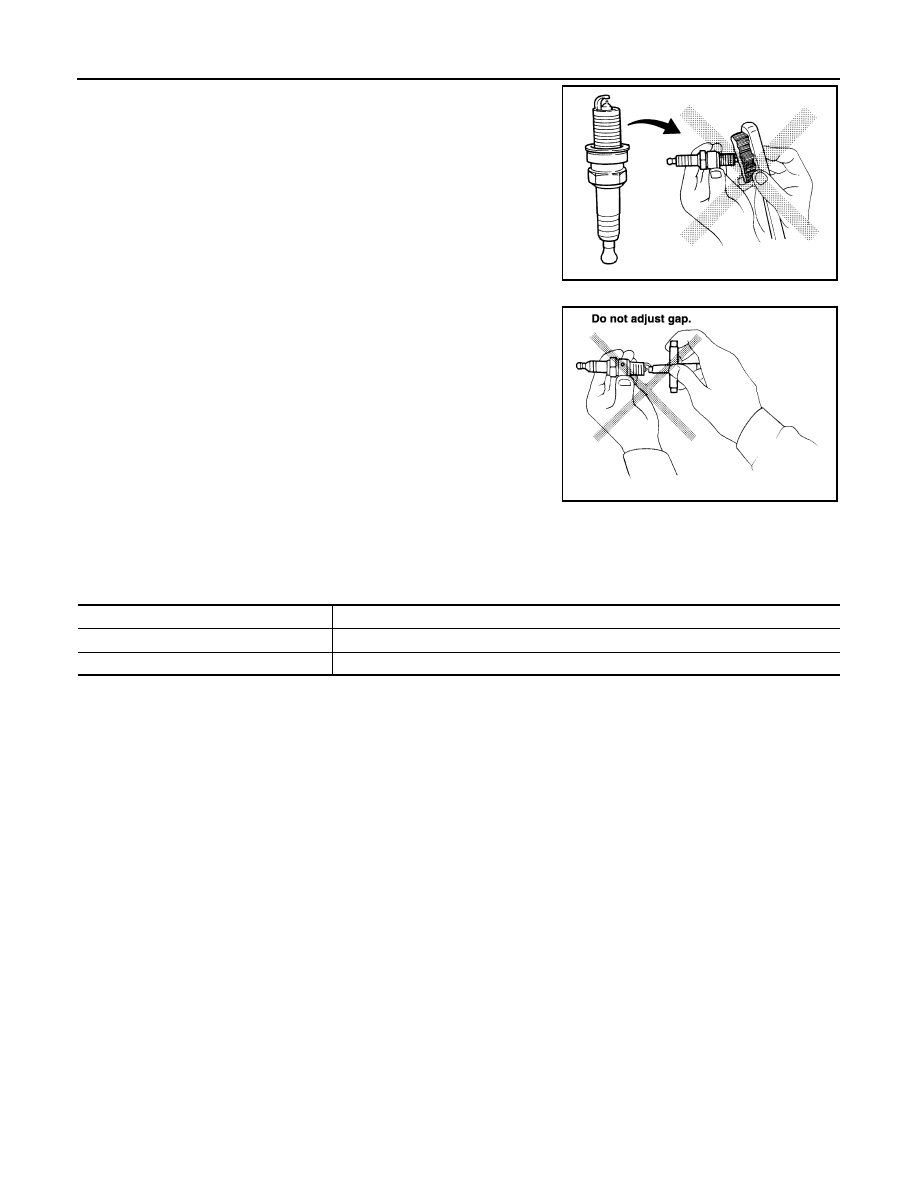

• If the spark plug tip is covered with carbon, a spark plug cleaner may be used.

CAUTION:

1.

Ignition coil

2.

Spark plug

PBIC3662E

Diameter (a)

: 14 mm (0.55 in)

JPBIA0030ZZ

Cleaner air pressure

: Less than 588 kPa (6 kg/cm

2

, 85 psi)

Cleaning time

: Less than 20 seconds

EM-22

< PERIODIC MAINTENANCE >

[HR16DE]

SPARK PLUG

Do not use a wire brush for cleaning.

• Checking and adjusting spark plug gap is not required between

change intervals. Do not adjust the gap; replace the spark plug as

necessary if out of specification.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not drop or shock the spark plug.

*: Always check with the Parts Department for the latest parts information.

SMA773C

SMA806CA

Make

NGK

Standard type*

PLZKAR6A-11

Gap (nominal)

1.1 mm (0.043 in)
